TFT Touch Screen

1.69''​‍​‌‍​‍‌ TFT LCD is a versatile display technology which has a number of excellent features including high resolution, accurate color depiction, low energy usage, and a small size. It is one of the most frequently chosen display technologies for wearable technology, industrial machinery, medical equipment, and other applications where a small but high-quality display is necessary.

This item, P024BFT01-40, features a 2.4-inch TFT LCD panel with a resolution of 240×320 (QVGA) and an RGB vertical stripe pixel layout. The display area is 36.72×48.96mm with a pixel pitch of 0.51×0.153mm, rendering a fine and clear image. Besides a high brightness of 300cd/m² and a contrast ratio of 250:1, it also supports 262K colors, which helps maintain excellent readability even under strong outdoor light.

This compact little unit measures 42.50×42.50×3.60mm, with a minimal thickness of only 3.6mm. The side-LED backlight ensures the unit remains slim despite integrated touch. It works in extreme temperature ranges from -20℃ to 70℃ for operation and -30℃ to 80℃ for storage. Also, it has successfully undergone testing for temperature extremes, vibration and interference resistance.

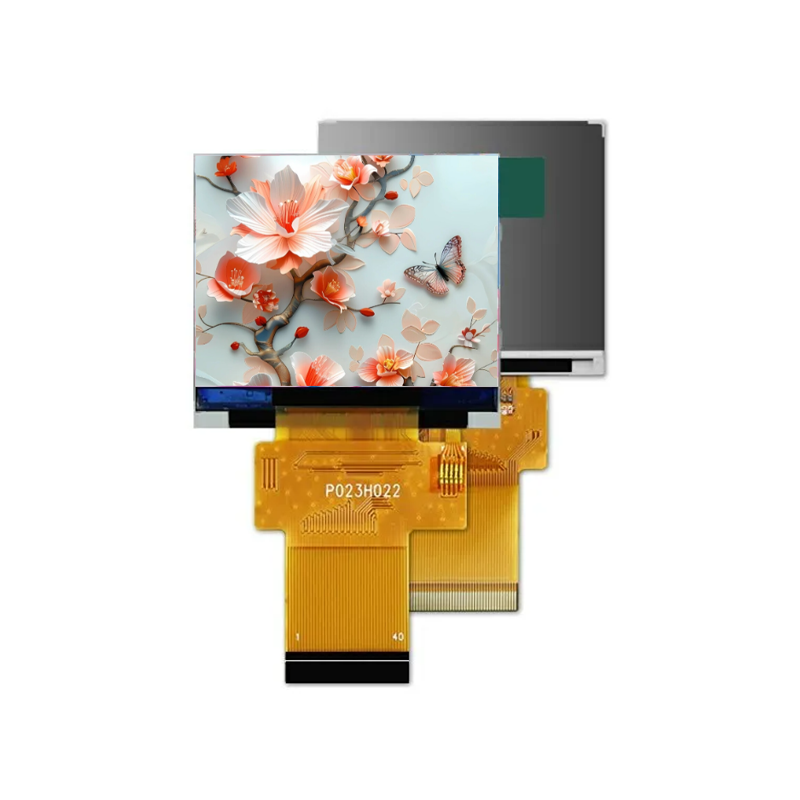

P023H022​‍​‌‍​‍‌ is a 2.31-inch square TFT panel with a resolution of 320×240, presenting QVGA fine image quality within a 46.75×35.06mm display area. It has 146.1×146.1μm square pixels arranged in vertical RGB stripes, providing natural color transitions. With 250 nits brightness and a 500:1 contrast ratio, the interface is easily readable in indoor environments; the 262K colors depth make status indicators, data charts, and branded interfaces visually distinct and layered. The Normally White display mode renders unlit areas in soft white, which is suitable for light UI designs and creates a contrast with dark mode.

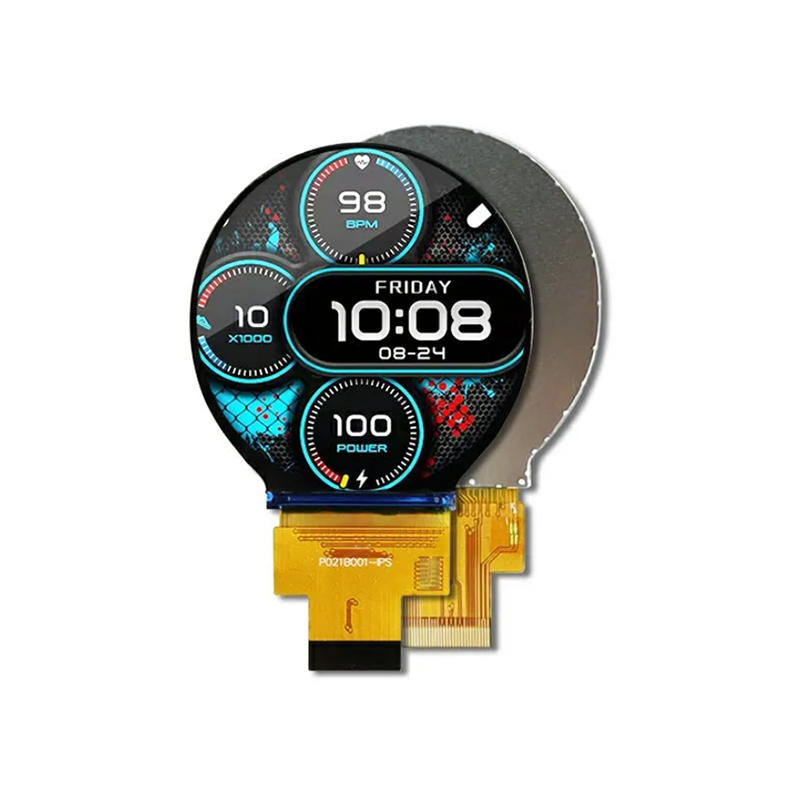

The​‍​‌‍​‍‌ 2.1-inch circular LCD (Liquid Crystal Display) is a very compact, modern display module. It presents a flexible solution for a number of electronic devices. The minimal size of the display along with its amazing visual effect is a big reason why such a circular LCD finds its way into numerous technological liquids.

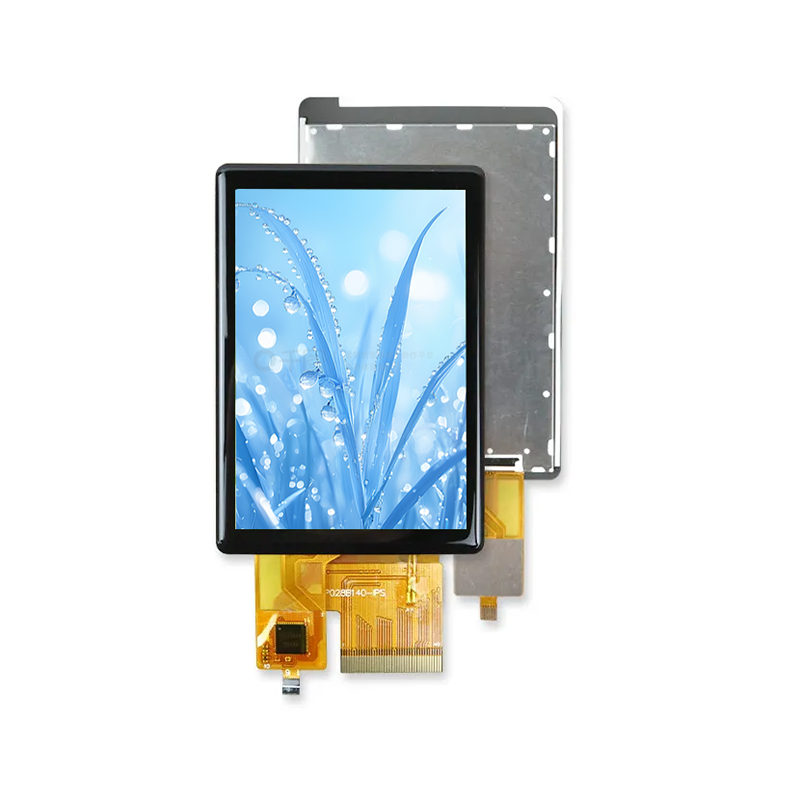

2.8 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The‍‌‍‍‌ screen measures 2.8 inches diagonally, with a pixel resolution of 240x320. This results in clear, sharp images with faithful color representation.

The‍‌‍‍‌ 350 nit high brightness is far beyond the level of the ordinary wearable screens and with a 600:1 contrast ratio, the watch face can still be clearly seen even under the strong sunlight; 262K color depth allows gradient theme, photo quality wallpaper, and dynamic data chart to show different layers.The Normally Black mode turns the unlit areas into deep pure black, so they perfectly harmonize with the device’s appearance, and the screen-off looks are even comparable to the most high-end smartphones.

The panel uses the RGB565 parallel bus interface, and the 40-pin ribbon cable connection is stable and provides enough signal bandwidth to allow smooth refresh without tearing. RGB565 format represents colors in 16-bit, compromising on maximum color performance while reducing data bandwidth requirements, thus making it compatible with the limited resources of embedded controllers. The driver IC ST7701S is not only tailored for high-resolution bar panels but also includes a hardware image rotation engine that can support 90°/180°/270° rotation of the content, thus not burdening the main controller with additional computation, and improving development efficiency.

IPS​‍​‌‍​‍‌ technology enabled 3.97" TFT LCD displays wider viewing angles and a higher contrast ratio, resulting in the clearest and most realistic image display. Hence, these types of displays can be used in various fields.

The​‍​‌‍​‍‌ P024C026 is a compact module for TFT LCD measuring 2.4 inches diagonally. It has a resolution of 240×320, which is QVGA-quality, displayed on a nice size screen of 36.72×48.96mm. It has a pixel pitch of 51×153μm, and the RGB is arranged in vertical stripes. That is why the characters appear very sharp and not at all jagged. It has a luminous intensity of 260 nits and a contrast ratio of 250:1, so it is capable of making very smooth from light-to-dark and vice versa transitions in normal white mode. It should be noted that normal black mode is characterized by the strong contrast, but normal white mode is more suitable for situations like reading, doing data entry, parameter monitoring, and others where the viewer needs to look at the display for a long time. With a color depth of 262K, status blocks, trend curves, and warning indicators can be easily differentiated from one another.

This HD TFT Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 260 nits under normal operating.

Resolution：128x32 Brightness (cd/m²)：100 (min)cd/㎡ Interface：Parallel / I²C / 4-wire SPI Active Area (W * H )：55.02x13.1mm Outline Dimension：62x24x2.0mm
