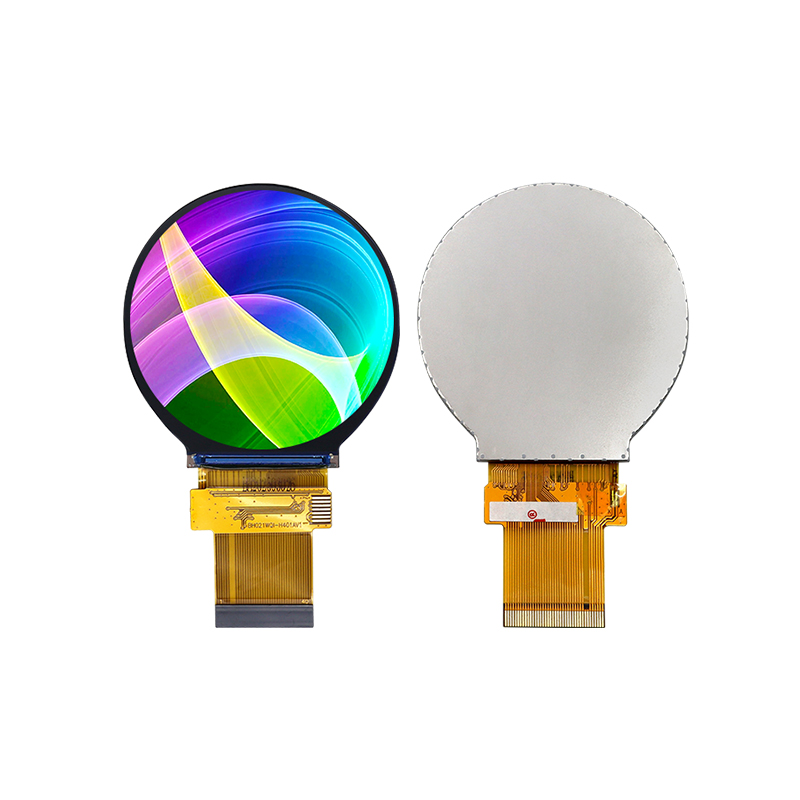

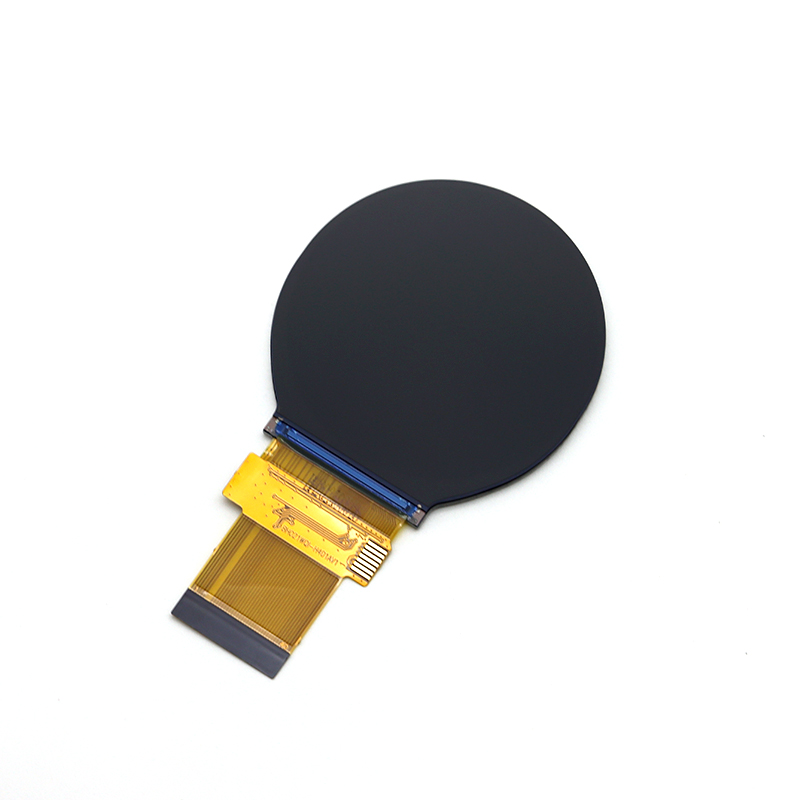

2.1 inch 40-pin Plug-in Round Screen

Product parameters

Product Name: 2.1" Color Screen

Product Size: 2.1 inch

Resolution: 480 × 480

Display Type: Color

Driver IC: ST7701S

Connection Method: Plug-in 40P

Power Supply: 2.8V–3.3V

Display Area: 53.28 × 53.28 mm

Interface Type: 4-Wire SPI

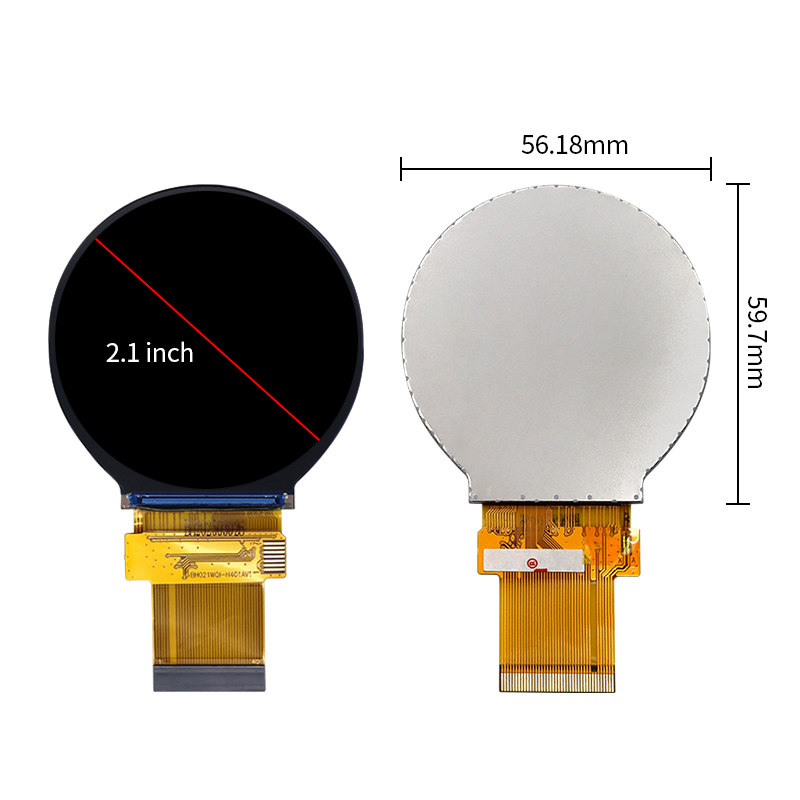

Screen Dimensions: 56.18 × 59.7 × 2.26 mm

Pin definition

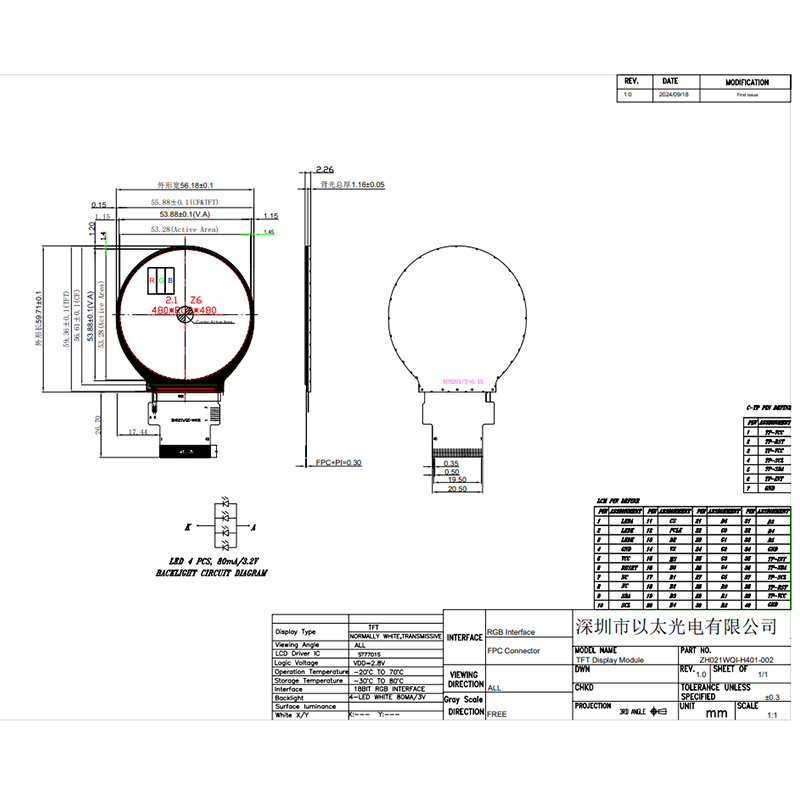

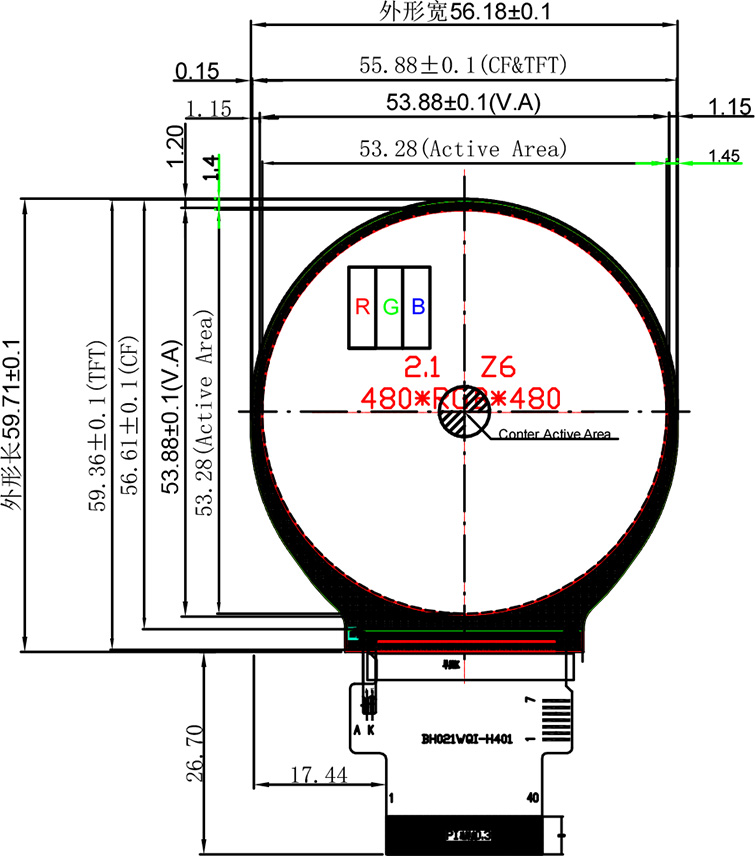

Drawings are

Ether Photoelectric is a high-tech enterprise integrating R&D, design, production, sales, and service, with two manufacturing bases in Shenzhen and Jiangxi. We have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. Equipped with advanced facilities, extensive production experience, and a professional R&D team, we offer customized structural designs to meet your needs, ensuring high-quality products and complete after-sales support.

Core Product Features
1. High PPI, Clear and Sharp
Up to 800*480, pixel density over 250 PPI; high pixel density ensures delicate, grain-free display.
2. High Brightness
300-1000 nits, clearly visible under strong light, meeting display requirements in outdoor or high-light environments.
3. Wide Viewing Angle
Using IPS/FFS technology, viewing angles can reach 160°~178°, with no color shift when viewed from the side.
4. Wide Temperature Operation
Supports industrial temperature range of -30°C~85°C, suitable for complex environments.

5. High Integration and Rich Interfaces:

Supports SPI, MCU, RGB, MIPI, and other interfaces, compatible with mainstream main control chips, easy to drive.

6. Lightweight and Compact, Space-saving:

Compact module structure, thickness can be less than 2.0mm, easily integrated into portable and small devices.

7. Long Lifespan:

 LED backlight life exceeds 50,000 hours.

8. Flexible Customization:

Supports FPC length, pin definition, and interface position customization, meeting various structural layout requirements.
