Product Description
Parameter:
| TFT LCD | Specification |
| Model No. | P040H001-CTP |
| Screen Size | 3.97 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 71.856(H)x70.176(V)mm |
| Pixel pitch | 0.1497(H)x0.1462(V)mm |
| Pin | 40 pin |

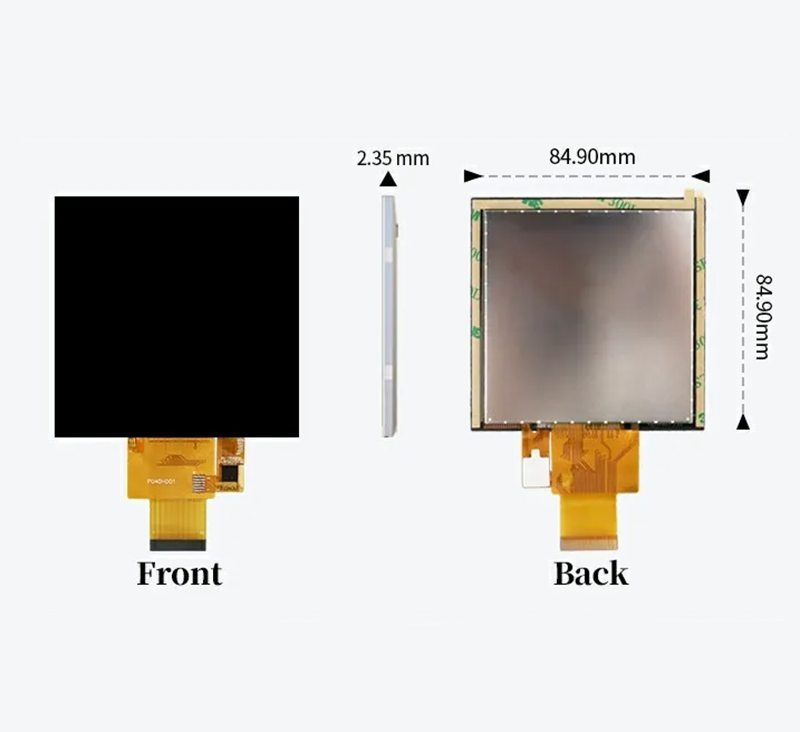

| Outline Dimension | 84.90x84.90x2.35mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black/Transmissive |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 800:1 |
| Interface | RGB 18BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Applications
A 3.97 inch TFT LCD is a small-sized display with a high resolution and excellent color performance. It is widely used in various applications, such as portable devices, automotive electronics, medical equipment, and industrial control systems. In portable devices, it can be used as a display screen for smartphones, digital cameras, and portable media players. In automotive electronics, it can be used as a display screen for car infotainment systems, rearview cameras, and GPS navigation systems. In medical equipment, it can be used as a display screen for patient monitors, ultrasound machines, and endoscopes. In industrial control systems, it can be used as a display screen for PLCs, HMIs, and data loggers.

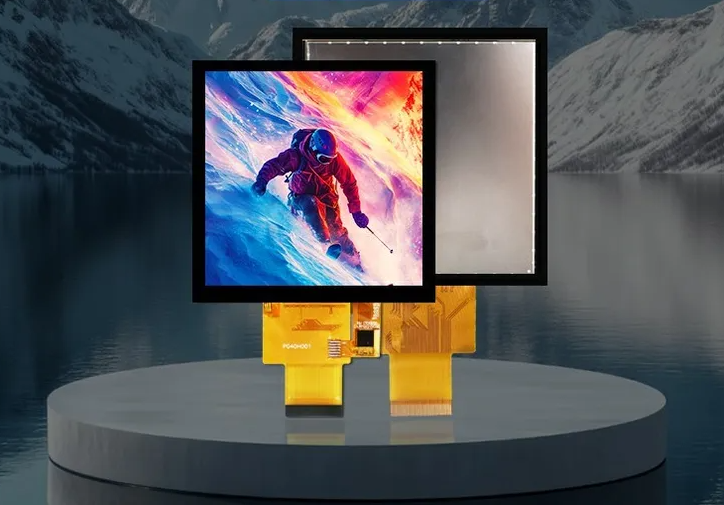

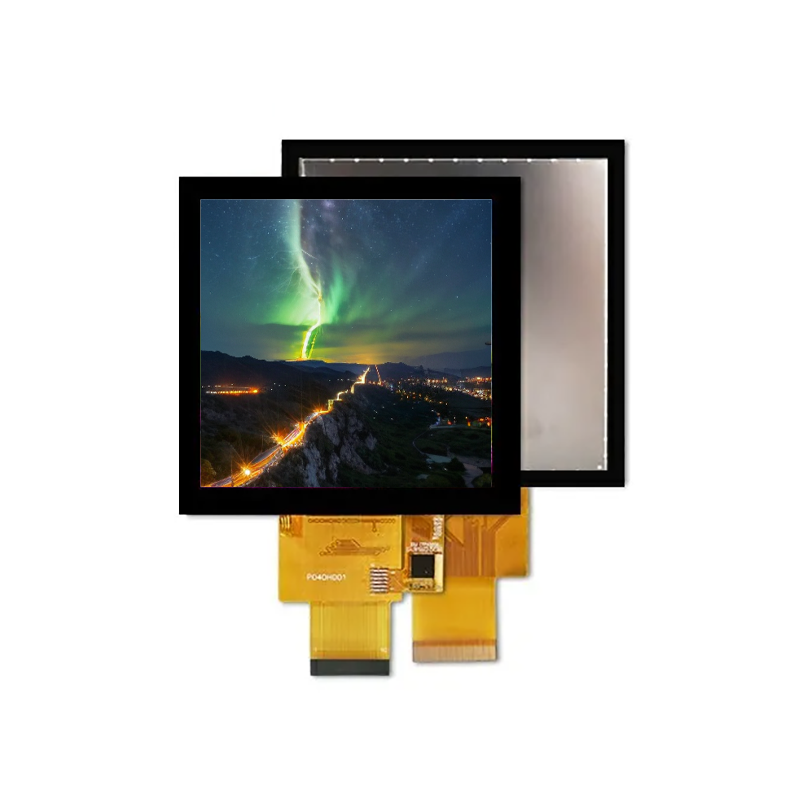

The P040H001-CTP is a 3.97-inch square IPS full-view TFT panel with a resolution of 480×480, achieving 1:1 balanced image quality within a nearly square display area of 71.856×70.176mm. It has finely detailed pixels of 149.7×146.2μm, with RGB vertical stripe arrangement, sharp text edges, and jag-free circular dials. With 350 nits of high brightness and an 800:1 high contrast ratio, the interface is clear and eye-catching in both indoor and outdoor environments; the 262K color depth makes gradient color rings, dynamic pointers, and skeuomorphic knobs vivid and lifelike.
A superior production environment is the physical foundation of quality for Shenzhen Yitai Optoelectronics Co., Ltd. Within its 20,000-square-meter facility, a class-10,000 cleanroom keeps dust particles at an extremely low level, and 20 fully automated mid-to-high-end LCD production lines operate precisely. With a monthly output of 2.5 to 3 million units, 320 employees work in a clean environment, while a 28-member R&D team optimizes environmental processes. Established in 2014, the company has obtained more than 20 patents, ISO9001 certification, and is recognized as a national high-tech enterprise. Products include over a thousand TN/HTN/STN/VA models and hundreds of TFT color screens, with customizable LED backlights. Focusing on small-size displays ranging from 0.96 inches to 7 inches, with twelve years of environmental control experience, the products are widely used in handheld inspection devices, portable medical equipment, smart home systems, and IoT terminals, and are sold overseas.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.
Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.

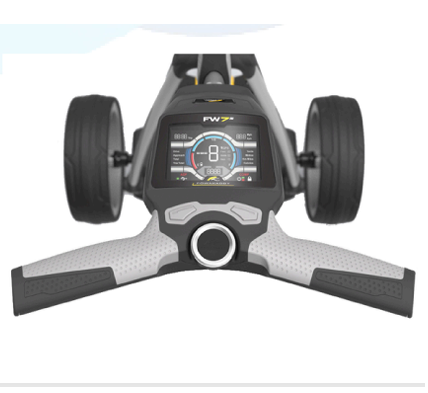

Customized a 3.5-inch high-definition dashboard display for the client, Using high contrast IPS full lamination technology we were able to ensure that the display is seen clearly even in the presence of bright light. In compliance with automotive grade requirements we remodeled ultra narrow bezel and curved design so they perfectly complement the cockpit interior style. An intelligent light-sensing adjustment system has now been integrated into the screen which is capable of automatically adjusting brightness and color temperature with reference to the ambient light which significantly contributes to driving safety and visual comfort.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
