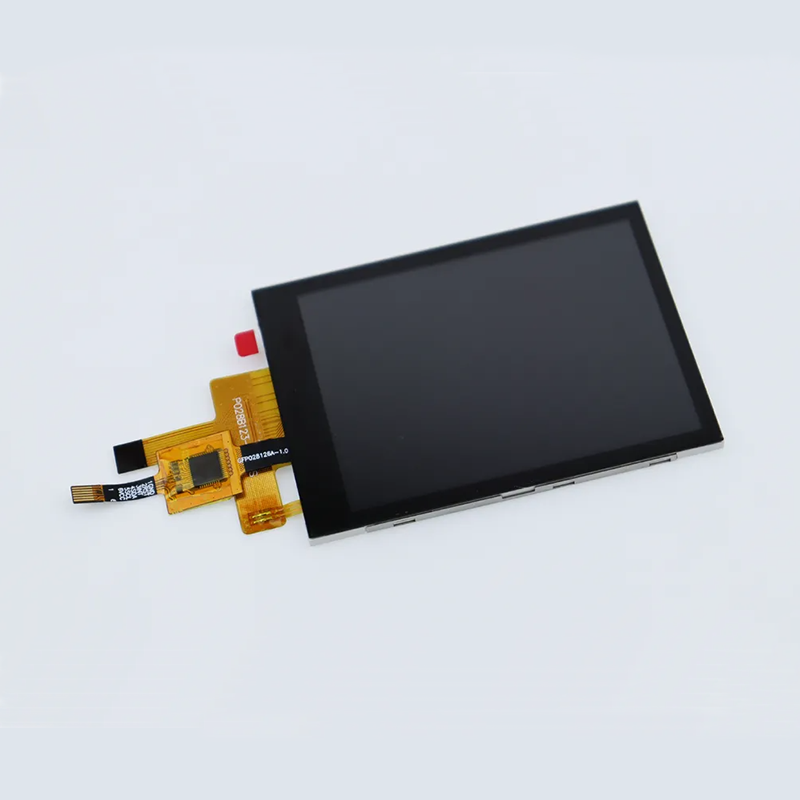

Product Description
Parameter:
| Model | P028B123P-10-IPS-CTP |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Pin | 10 pin |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Outline Dimension | 50.00x69.20x3.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | 4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789P3 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
The benefits of a 2.8 inch TFT Display are:
1. Excellent display performance: Actually, TFT LCD screens utilize plasma technology which helps deliver the high-definition, high-brightness, and high-contrast display capabilities to the fullest, thus, the images look more natural and crisp.
2. Wide viewing angle: 2.8" LCDs have a broad viewing angle in both the horizontal and vertical directions meaning that several viewers can enjoy a clear image from different angles.
3. Short response time: TFT LCDs have a very short response time which makes it a possibility to display rapidly changing images and videos efficiently.
4. Energy Efficiency: TFT LCD displays require very little energy as compared to other types of LCD displays. This feature allows the battery life of a device to be prolonged.
5. Compactness: A 2.8-inch LCD is very compact and therefore can be comfortably integrated with small devices such as portable electronic gadgets and smartwatches.
6. Durability: TFT LCD screens are very long-lasting and stable. They offer stable display performance and are hardly ever affected by problems such as flickering or backlight leakage.
Customized touch panel:
You can have either capacitive or resistive touch screens installed on our TFT LCD panels. We also provide options for custom panels in glass or acrylic materials. Besides this, we are capable of incorporating blue light filters in displays to protect the user’s eyes from potential damage due to blue light exposure.
The touch panels come as single and multi-touch. Single-point touch only has to detect one touch point, whereas multi-touch screen has to detect the locations and movements of several touch points simultaneously, hence several touch sensor technologies are more advanced and higher processor power might be necessary to meet response speed.
Free Service:
1. Connectors are free for the sample order.
2. Tooling charge is 50% discounted.
3. Changing the tooling of CTP / FPC / Backlight is free.
4. Tooling is free for order ≥3000pcs Within 1 Year VIP.
5. FPC tooling is free.
6. Standard product samples are free.
7. For new projects, the testing board is free.
8. Half of the tooling fee is for customization of Backlight / CTP.

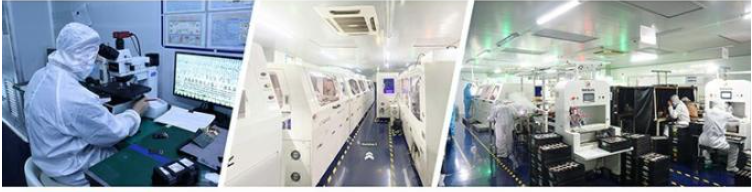

Founded in 2014, Shenzhen Yitai Optoelectronics Co., Ltd. is a national high-tech enterprise for over ten years in Shenzhen. We have our independent factory with 320 workers. In addition to manufacturing displays, our expertise extends to backlighting, module assembly, and design services. Our monthly output can reach 2.5 to 3 million units, which equips us well to accommodate large-scale customer orders. Covering an area of 20,000 square meters, the factory currently has 20 production lines running. Moreover, to keep pace with rapidly evolving times and better serve customer requirements, we have a senior R&D team of 28 members designing new products. We have the latest and most reliable production equipment and facilities such as a 10,000-class cleanroom and fully automated LCD production lines to ensure that our products are of the highest quality and reliability.
Product-wise, we have developed over a thousand TN/HTN/STN/VA display products, a few hundreds TFT color LCDs and provide customized LED backlight services covering a wide range of application scenarios. Technical strength and qualifications: in addition to being a national high-tech enterprise and a technology-based SME in Shenzhen, Yitai Optoelectronics is the holder of more than 20 patented technologies and certified to ISO9001 quality management system. The company operates under the "customer first, quality foremost" principle and tests each product rigorously including high and low-temperature, vibration, and anti-interference tests so as to ensure their stable operation in various complex environments.
We designed a custom 4.3-inch industrial-grade display for a famous power equipment manufacturer. The display uses high-contrast IPS full lamination technology and complies with the IP65 protection level requirements. Besides that, we improved the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for the power industry needs so the power equipment can work reliably even in complex environments such as substations.
The screen brings together an adaptive brightness control system that is able to adjust display effects automatically according to the ambient light, which in turn to a great extent improves data reading efficiency and operational safety during outdoor inspections.
We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.

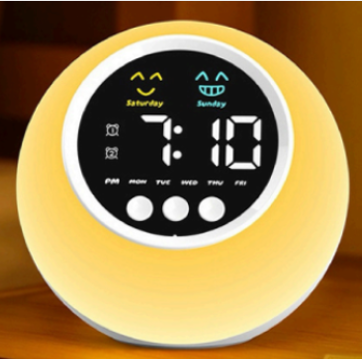

Ourclient home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
