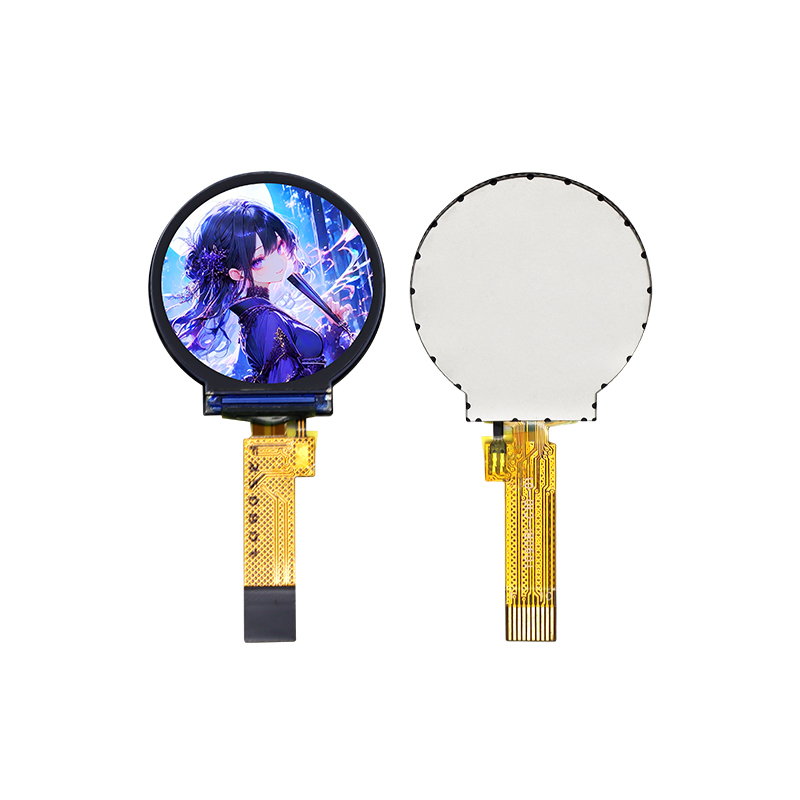

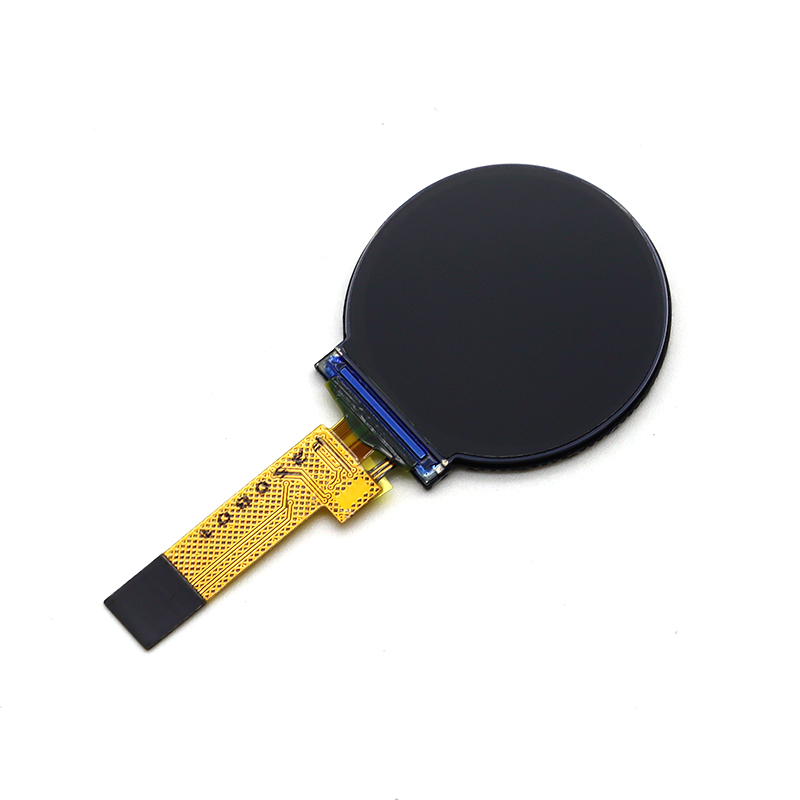

Product Name: 0.9-inch Color Screen Product Size: 0.9 inches
Resolution: 128×128 Display Type: Color
Driver IC: ST7735 Connection: 10-pin Plug-in
Power Supply: 2.8V–3.3V Display Area: 23.04×23.04mm

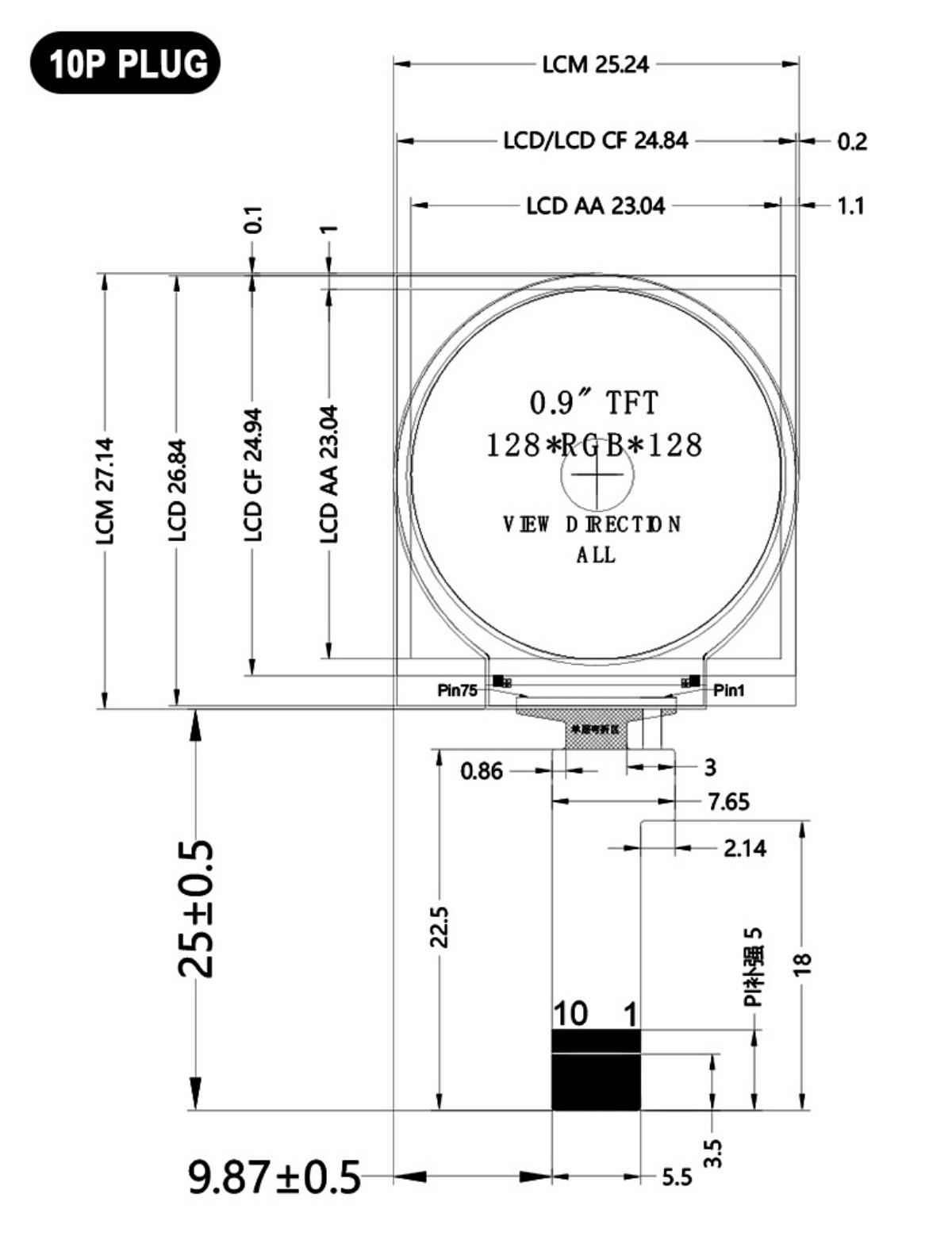

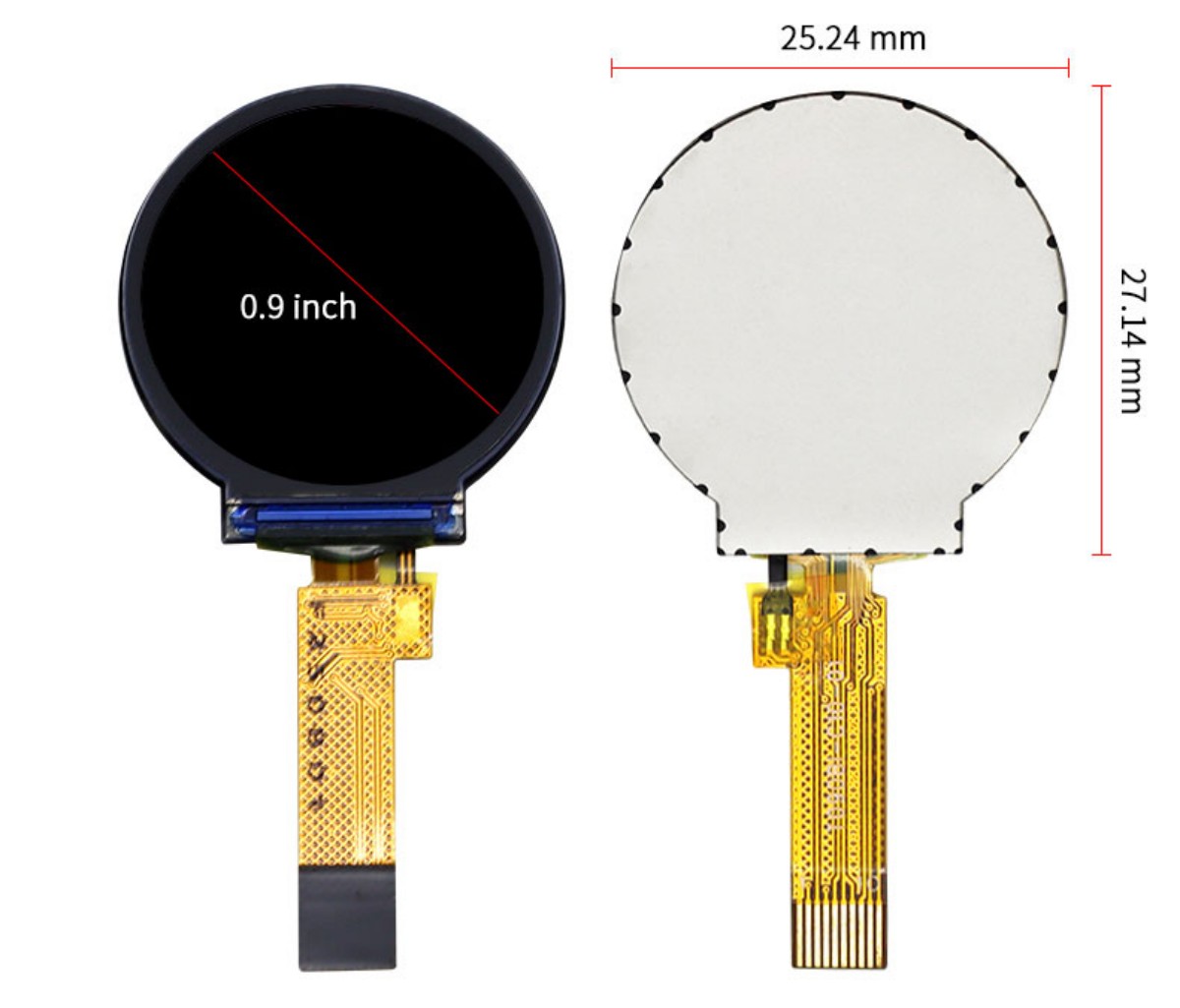

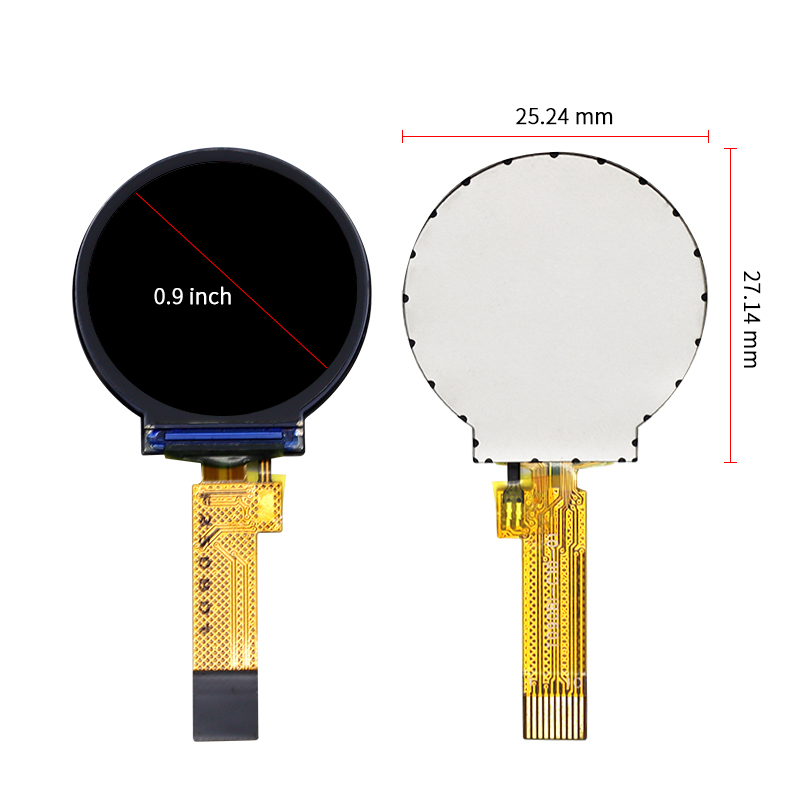

Interface: SPI Module Size: 25.24×27.14×1.94mm

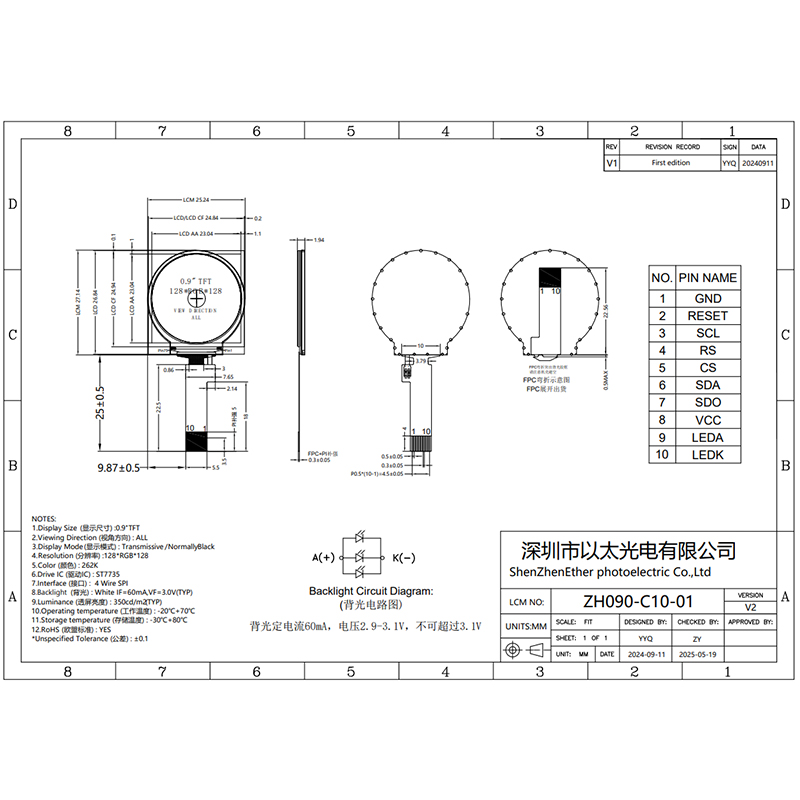

| NO. | PIN NAME | NO. | PIN NAME |
| 1 | GND | 6 | SDA |
| 2 | RESET | 7 | SDO |
| 3 | SCL | 8 | VCC |
| 4 | RS | 9 | LEDA |
| 5 | CS | 10 | LEDK |
Customization Capability: The Infinite Possibilities of Small Screens
Shenzhen Ether Optoelectronics is able to offer a highly collaborative and personalized development process, which is the main reason why the company is so competitive in the market. Besides just supplying screens, we consider ourselves your product design partner. In fact, our engineering team will stay alongside you throughout the whole development process: first, understanding your different uses and functional needs, and then helping you transform your unique ideas, complicated specs, or even tight spaces into high-quality display modules, stable and reliable, plug-and-play.
Ether Photoelectric is an innovative high-tech company that combines R&D, design, manufacturing, marketing, and after-sales service. Besides their two production lines, one in Shenzhen and one in Jiangxi, the company has designed over 100 TFT color screens and color module products as well as more than 1,000 TN/HTN/STN/VA display products. By virtue of the company's advanced equipment, long production experience, and skilled R&D team, it is able to provide customized structural design solutions in order to satisfy your needs while guaranteeing top-quality products and comprehensive after-sales support.
Core Competitiveness: Why Do Global Clients Choose ETHER Optoelectronics?
Strict Quality Control, Yield Rate Up to 99.8%
Quality is the lifeline of a company. We manufacture each display panel to military-grade standards:
Intelligent Inspection: Using fully automated production lines combined with AOI optical inspection systems to achieve micrometer-level precision control
Extreme Reliability: The defect rate of small-size screens is strictly controlled below 0.2%, reaching industry-leading levels
International Certification: All products are certified by CE/FCC/RoHS and other authoritative standards, meeting European and American export standards
From raw materials to finished products, we have established 18 quality control checkpoints. We let the data speak, ensuring our quality withstands the test of the global market.
We custom-made a 3.5-inch industrial-grade intercom display for a top communication equipment manufacturer, featuring a high-brightness IPS fully laminated touch screen and meeting IP67 protection standards. To address the industry's unique requirements, we not only upgraded the shock resistant frame but also designed the exterior with anti-slip texture, which guarantees the device will work reliably in harsh environment. The device comes with a smart light-sensing adjustment feature that can automatically change the display mode between day and night according to the surrounding light, thus making it much easier to see and operate, especially when working outdoors.
With a high-resolution IPS fully laminated pane, a 5-inch medical-grade touch display was custom-developed for a leading medical device manufacturer, meeting EM Class B requirements. To align with medical ergonomics requirements, which are very strict, we designed antibacterial bezels and anti-glare surface to be used in operating rooms and other complex environments, where the equipment needs to be running. The display has an intelligent ambient light adjustment system embedded in it which is capable of automatically adapting the screen parameters in conformity with the usage scenario so that the medical staff's eyes remain comfortable and their efficiency in diagnosis and treatment is enhanced.
We made a 3.5-inch high-precision temperature control display for a well-known HVAC brand, which utilized the full-view IPS full lamination technology, and multi-touch operation was also supported. Meeting the requirements of a home environment, we went for ultra-thin bezels and a design based on rounded corners, thus perfectly fitting the style of modern interior decoration. The panel features a lighting intelligence function that adjusts the brightness and contrast levels automatically in response to the indoor lighting conditions; therefore, the user's visual experience and energy saving aspects are significantly improved.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
