Product Description
Description of 2.4 inch TFT LCD :

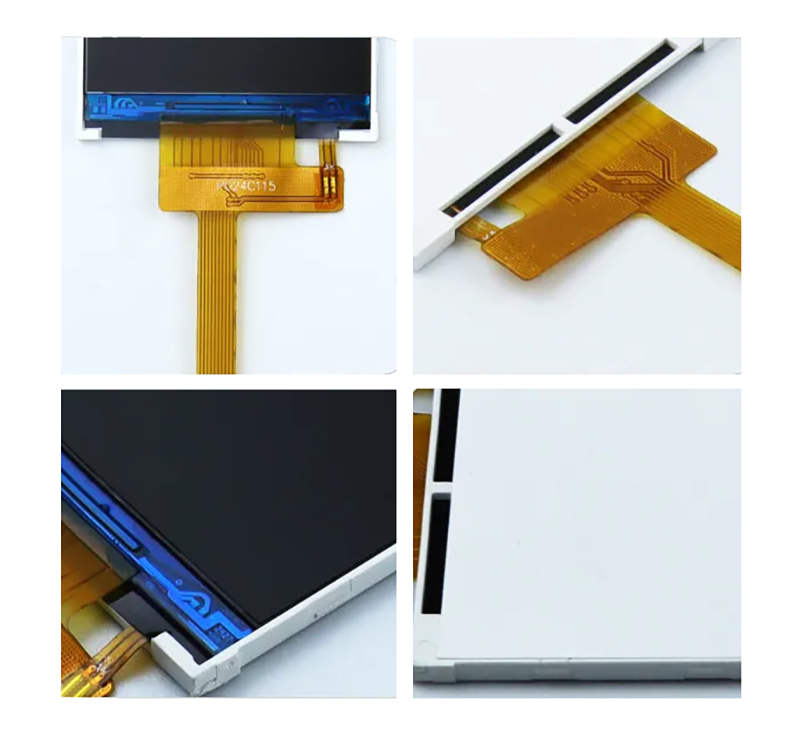

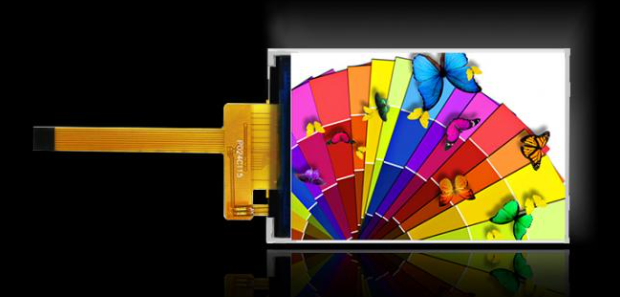

A 2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a compact display device that employs TFT method to show superior color graphics and video. The display features a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, lending to the production of vividly clear images along with precise color rendition.
Parameter:
| Model | P024C115 |
| Screen Size | 2.4 inch diagonal |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pins | 10 Pins |

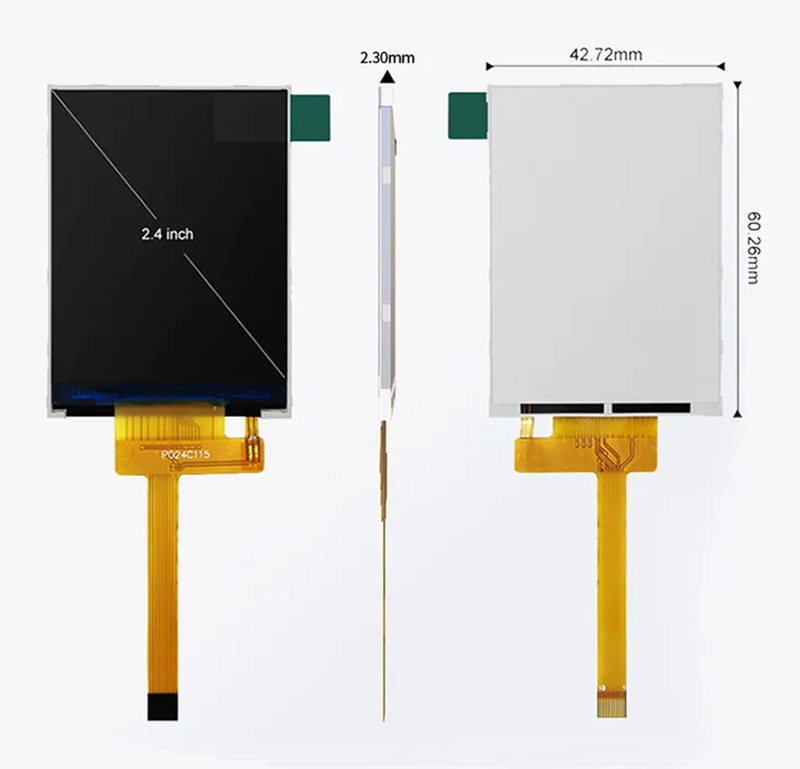

| Outline Dimension | 42.72x60.26x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 250:1 |
| Surface treatment | ―― |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The 2.4 inch TFT display is a thin film transistor liquid crystal display with a diagonal dimension of 2.4 inches. It ranks among the most commonly used display sizes for a range of applications, such as handheld devices, digital cameras, portable gaming consoles, and various other embedded systems. The display boasts a high resolution and contrast ratio, a broad viewing angle, and an integrated resistive touchscreen. Additionally, it supports several communication protocols, including SPI, I2C, and UART, thus ensuring its compatibility with a wide range of devices. Its low power consumption combined with the integrated power management system makes it particularly suitable for battery-powered devices. Besides, its compact and lightweight design makes it very easy for integration into a variety of devices.
2.4 inch TFT displays are widely used in various products, including:
1. Handheld devices: 2.4 inch lcd are commonly used in handheld devices such as smartphones, mp3 players, and GPS devices. The displays provide clear and detailed images while remaining compact and lightweight.
2. Digital cameras: Many digital cameras use 2.4 inch TFT displays as their primary viewing screens. The displays allow users to view their photos and videos with high resolution and clarity.
3. Portable gaming consoles: 2.4 inch IPS Screen are also commonly used in portable gaming consoles such as the Nintendo DS and PSP. The displays provide a vibrant and immersive gaming experience while remaining small and portable.
4. Medical devices: Medical devices such as glucose meters and blood pressure monitors use 2.4 inch TFT displays to display important health information to patients and healthcare professionals.
5. Industrial control systems: 2.4 inch TFT module are used in various industrial control systems such as process control systems and machine interface applications. The displays provide real-time information and user interface control capabilities.
6. Automotive displays: Many automotive displays, such as infotainment systems and dashboard displays, use 2.4 inch TFT displays to provide drivers and passengers with important information and entertainment options.
2.4 inch TFT LCD displays are versatile and widely used in various applications that require high-quality displays in a compact and lightweight form factor.
Free Service:
1. Free Connectors for Sample Order.
2. 50% Discount for Tooling Charge.
3. Free Modification for Tooling of CTP / FPC / Backlight.
4. Free Tooling for Order ≥3000pcs Within 1 Year VIP.
5. Free Tooling for FPC.
6. Free Samples for Standard Products.
7. Free Testing Board for New Projects.
8. Half Tooling Fee for Customizing Backlight / CTP.
Just as a flywheel, once it begins spinning, momentum will continue to increase, Shenzhen Yitai Optoelectronics Co., Ltd. was established in 2014 and since then has been spinning the flywheel for twelve years: a good name in quality brings in customers, order from customers lead to higher production capacity, production at scale results in cost reduction, and cost advantage attracts even more customers. They occupy a 20,000 square meter plant, have 20 production lines capable of producing 2.5 to 3 million pieces per month, staff of 320 with 28 R&D persons. The flywheel is kept spinning in a ten-thousand-level cleanroom with a fully automated LCD production line. ISO9001 certification ensures smooth rotation of flywheel bearings, over 20 patents provide boost to flywheel power, and national high-tech enterprise qualifications verify flywheel efficiency. With more than a thousand TN/HTN/STN/VA products and hundreds of TFT color screens along with custom LED backlights, the concentration is mainly on the 0.96-inch to 7-inch range. Stringent testing is done on each item which serves to increase the flywheel in handheld testers, portable medical devices, smart home panels, and IoT terminals. The flywheel impact extends from Shenzhen to Europe, America, and Southeast Asia.
We made a charging pile interactive screen of 4.3 inches in size for a top brand in new energy sector, using high-brightness IPS full lamination technology, and complying with IP65 protection level requirements.We specifically improved the anti-glare feature of the screen and the functioning of the device at a wide temperature range (-30 °C to 70°C) as used for the outdoor complex environments so that the display can clearly show the data even under the most extreme weather conditions.The screen is equipped with an intelligent light-sensing adjustment system able to continuously optimize the display brightness by a combination of day and night light variations, thereby radically improving the user operation experience.
One of the best home brands wanted a clock display that is both simple and elegant. So, the customized development of the clock display of only 2.8 inches was done using low-power IPS full lamination technology and the clock face can be viewed clearly even from the side at 180° wide viewing angles. Since the bedroom is usually the place where such a clock will be used, we made the ultra-thin borderless design and the soft light guide structure so that they will be perfect for the modern home décor. The screen has a built-in intelligent light-sensing adjustment feature whereby display modes change automatically depending on the variations in daylight, and at night be changes the mode to soft light which is non-disruptive to sleep.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer. The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
