Product Description
Parameter:

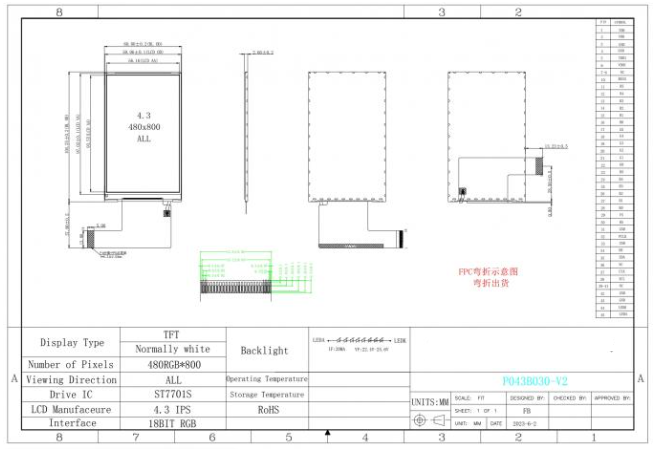

| Model | P043B030-V2 |
| Screen Size | 4.3 inch |
| Number of Pixel | 480RGB(H)x800(V) |
| Display area | 56.16(H)x93.55(V)mm |
| Pixel pitch | 0.039(H)x0.117(V)mm |
| Pins | 45 pins |
| Outline Dimension | 60.00x104.25x2.6mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 400 nit |
| Contrast Ratio | 1500:1 |
| Interface | RGB 18bit |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Ultra-high resolution portrait display and fine image quality
With a physical resolution of 480RGB(H)×800(V) and an active display area of 56.16mm (horizontal) × 93.55mm (vertical), the module achieves a pixel density of 0.039mm (horizontal) × 0.117mm (vertical). The vertical height of 800 pixels enables a very high information density on a 4.3-inch panel, which can display long lists, data tables, vertical navigation menus, and industrial parameter panels on a single screen without any need for users to flip pages. The 480×800 portrait ratio has been tested on the market and is a great fit for the applications that require a very accurate human-machine interface layout, e.g. handheld terminals, portable medical testing devices, industrial HMI equipment, or smart appliance control panels.
Industrial-grade wide temperature reliability
The operating temperature range is from -20°C to 70°C, while the storage temperature range is from -30°C to 80°C. This makes the product capable of catering to the most stringent requirements of temperature stress in industrial sites, automotive electronics, outdoor measurement instruments, and logistics handheld terminals, for example. The ST7701S driver chip is equipped with temperature compensation and power management circuits that are well developed and can ensure that the gamma curves and refresh timing remain stable even when the temperature is very high or very low; this means it can help to prevent display anomalies and color shifts in extreme environments.
Shenzhen Yitai Optoelectronics Co., Ltd. started its operations in 2014. A national high-tech enterprise that has been doing business in Shenzhen for over ten years, we operate our own independent factory with a workforce of more than 320 employees. Display manufacturing is our forte for 12 years, and we can easily handle large-scale customer orders with our monthly output capacity of 2.5 to 3 million units. Our factory spans 20,000 square meters, we have as many as 20 production lines in operation, and a senior R&D team of 28 members is continuously designing new products to keep up with times and customer needs better.
The modern production base is equipped with a 10,000 level cleanroom and high-end automated LCD production lines to ensure stable and reliable product quality. A rich product line has been developed successfully by us including over one thousand TN/HTN/STN/VA display products and hundreds of TFT color LCDs, besides providing customized LED backlight services covering a wide range of application scenarios.
Technical strength and qualifications: Yitai Optoelectronics, as a national high-tech enterprise and a technology-based SME in Shenzhen, records over 20 patented technologies and ISO9001 quality management system certification. The company follows the philosophy of "customer first, quality foremost," and different environmental tests including high and low temperature, vibration, and anti-interference tests are conducted on every product to ensure stable operation in various complex environments.
Developed a custom 2.8-inch minimalist clock display for a well-known home brand, using low-power IPS full lamination technology, 180° full-view display, ultra-thin borderless design, soft light guiding structure, and intelligent light-sensing that automatically switches between day and night modes. The soft light at night does not disturb sleep, aligning with modern home aesthetics. The screen integrates an intelligent light-sensing adjustment system that automatically switches display modes according to day and night light changes, turning to soft light mode at night, ensuring the time is clearly visible without affecting sleep quality.
We customized a 3.5-inch industrial walkie-talkie display for a famous communication equipment manufacturing company, featuring a high-brightness IPS full lamination touch screen, which met the IP67 protection requirements. To address the special needs of the communication industry, we have designed shock-resistant cases and anti-slip surfaces that facilitate operation even in uncompromising environments.In addition, the display screen is equipped with an intelligent light-sensing feature that automatically switches the display from day to night mode. It ensures clear visibility even under strong light, which leads to a significantly enhanced working experience outdoors.
A 4.3-inch industrial-grade device display was custom-developed for a famous power equipment manufacturer, in our high-contrast IPS full lamination technology, and eligible to fulfill the demands of the IP65 protection level. The power supply industry has special requirements in terms of dust and water resistance, which we have addressed together with the temperature range wide design (-30°C to 70°C).The display includes an adaptive brightness adjustment feature that can automatically help the user to visually optimize the display according to the changing level of the ambient light, which will significantly facilitate them in data reading efficiency as well as overall safety during outdoor operations.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
