Product Details
Parameter:
Model | P024C026 |
Screen Size | 2.4 inch |
Number of Pixel | 240RGB(H)x320(V) |
Display area | 36.72(H)x48.96(V)mm |
Pixel pitch | 51(H)x153(V)um |
Pins | 40 pins |

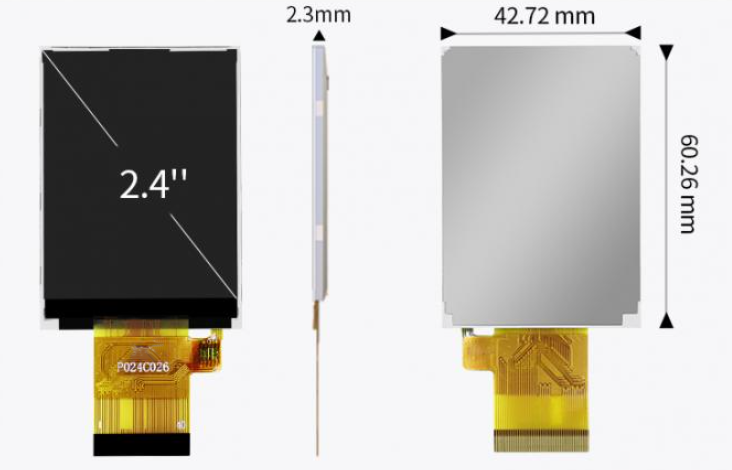

Outline Dimension | 42.72x60.26x2.30mm |
Pixel arrangement | RGB Vertical Stripe |
Display mode | Normally White |
Viewing Direction(eye) | 12 0'CLOCK |
Display Color | 262K |
Luminance(cd/m2) | 260 nit |
Contrast Ratio | 250:1 |
Interface | MCU 16bits |
Back-light | LED Side-light type |
Drive IC | ST7789V |
Operation Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
The P024C026 is a compact module for TFT LCD measuring 2.4 inches diagonally. It has a resolution of 240×320, which is QVGA-quality, displayed on a nice size screen of 36.72×48.96mm. It has a pixel pitch of 51×153μm, and the RGB is arranged in vertical stripes. That is why the characters appear very sharp and not at all jagged. It has a luminous intensity of 260 nits and a contrast ratio of 250:1, so it is capable of making very smooth from light-to-dark and vice versa transitions in normal white mode. It should be noted that normal black mode is characterized by the strong contrast, but normal white mode is more suitable for situations like reading, doing data entry, parameter monitoring, and others where the viewer needs to look at the display for a long time. With a color depth of 262K, status blocks, trend curves, and warning indicators can be easily differentiated from one another.
The interface is based on a 16-bit MCU parallel bus, it comes with a 40-pin ribbon cable which provides a stable connection and enough signal bandwidth for smooth refresh. The ST7789V driver IC is one of the most popular and trusted in the market at the moment, and also driver libraries for such platforms as Arduino and STM32 are available which allow a short development cycle. The size of the module is 42.72×60.26×2.30mm, with a thickness of only 2.3mm, and a small LED side-entry backlight structure.
Focused research achievements in display technology have established the professional status of Shenzhen Yitai Optoelectronics Co., Ltd. The company was founded in 2014 and is a leading company among manufacturers of the LCD display panel. It is engaged in the development of high-quality and diversified display solutions. Currently, the company's R&D team consists of 28 members; they have more than 20 patents and national high-tech enterprise qualifications. On an area of 20,000 square meters, there are 20 production lines capable of manufacturing from 2.5 to 3 million units per month. With a workforce of 320, they are primarily focused on manufacturing. They are also ISO9001 certified and have a 10,000-level cleanroom along with fully automated LCD production lines. Their products include more than a thousand types of TN/HTN/STN/VA and over a hundred TFT color screens that come with customizable LED backlights. Targeting the small-size market from 0.96 inches to 7 inches, their products are going through rigorous testing and are used widely in handheld detectors, portable medical devices, smart home control panels, IoT terminals, and continuously being exported to Europe, the United States, and Southeast Asia.

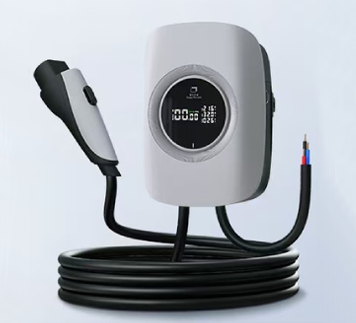

Made a 4.3-inch interactive screen for charging piles of a famous new energy brand, using high-brightness IPS full lamination technology, capable of meeting the requirements for IP65 protection level. For the complicated outdoor environment, we mainly made the anti-glare design and wide temperature operation performance (-30°C to 70°C) wise improvements to make sure that the display is clear in various weather condition. The display embedded a highly efficient light sensing system that is capable of changing the brightness of display automatically, this system has greatly improved the user operation experience.
Custom-developed a 5-inch medical-grade touch display for a well-known medical device manufacturer, using a high-resolution IPS fully laminated panel, compliant with Class B electromagnetic compatibility standards. We strictly adhere to medical ergonomics requirements, implementing antibacterial bezels and anti-glare design to ensure stable operation in complex environments such as operating rooms. The screen integrates an ambient light intelligent adjustment system, which can automatically optimize display parameters according to the usage scenario, effectively reducing visual fatigue for medical staff and improving diagnostic and treatment efficiency.

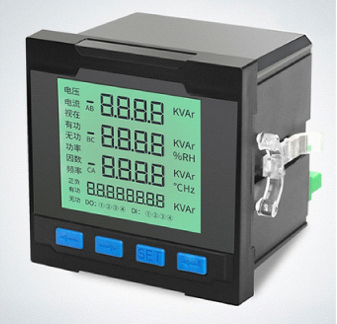

Customized development of a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer, using high-contrast IPS full lamination technology and are able to meet IP65 protection level requirements. The dustproof and waterproof structure and wide temperature design (-30°C to 70°C) have been enhanced to meet the specific needs in the power industry. This ensures that the products are capable of functioning even in complex environments such as substations. The display can automatically optimize the display effects according to changing ambient lighting, through an adaptive brightness adjustment system; this significantly improves data reading efficiency as well as operational safety during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
