Product Description
This TFT LCD Module is for commercial and industrial use. Our TFT LCD has a 3.5 inch diagonally. The resolution of our tft lcd is 320 * 480. The normal brightness is 450 nits under the test of laboratory.
| P/N | P035C013-CTP |
| Size(inch) | 3.5 |
| Resolution | 320*480 |
| Brightness (cd/m²) | 450 |
| Interface | 8080 MCU 16bit |
| Driver Ic | ILI9488 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

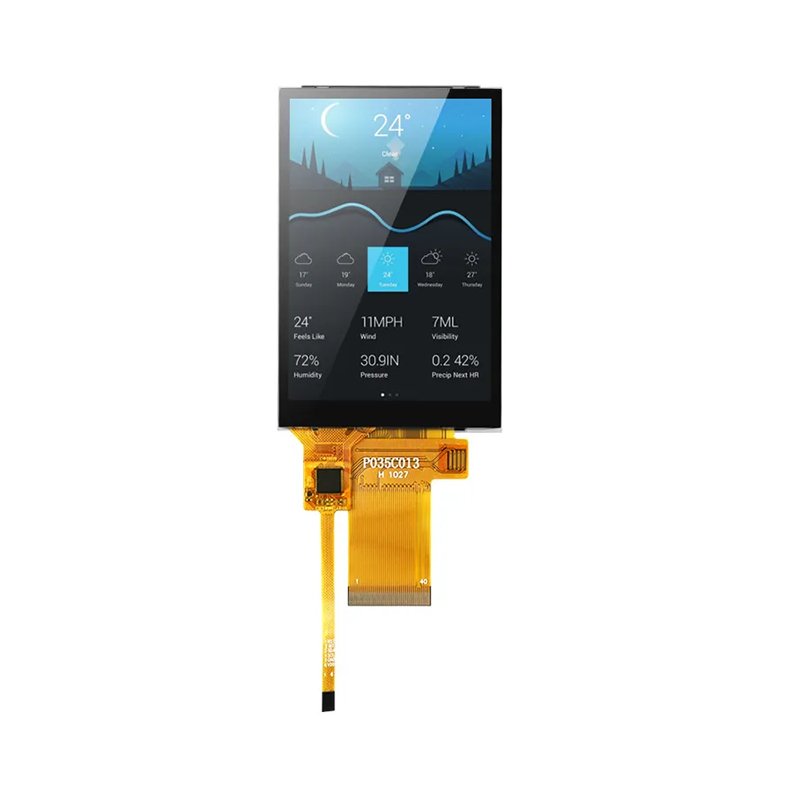

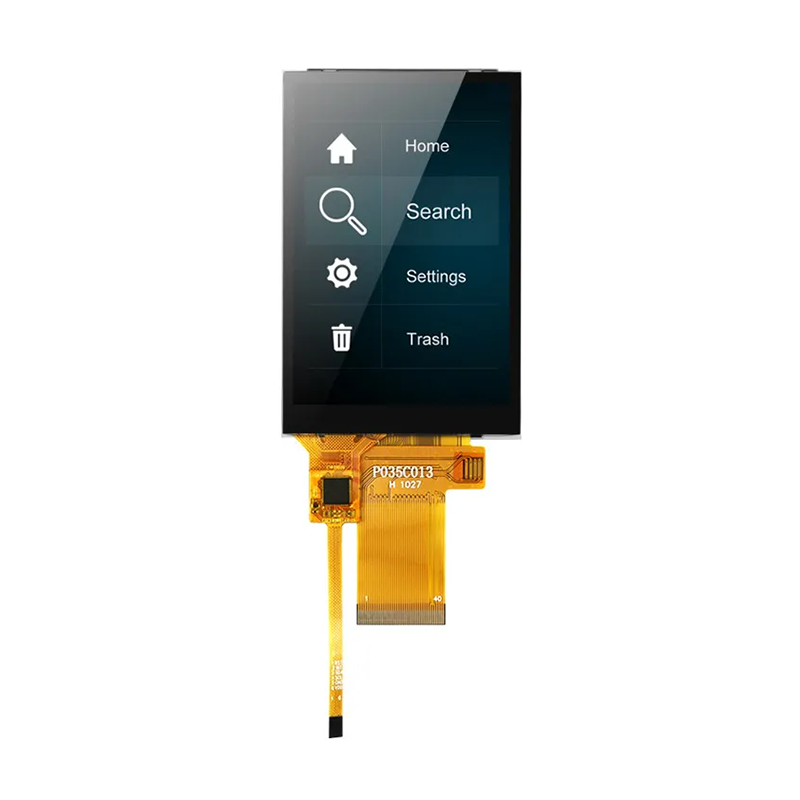

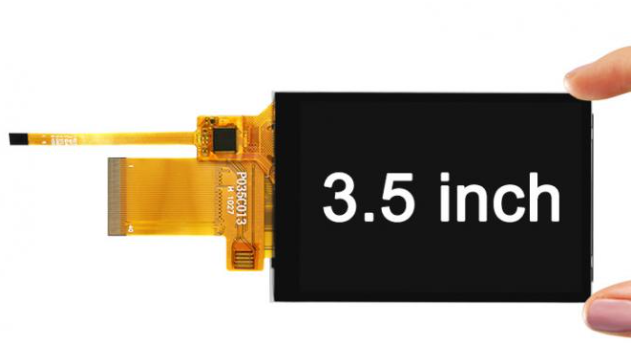

The P035C013-CTP is a 3.5-inch 320x480 TFT LCD module integrated with capacitive touch. Its vertical panel format matches the natural holding position of handheld devices. The display has a high brightness level of 450 nits and a 12 o'clock directional viewing angle. This means the screen will be most bright and contrasty when you look down on it directly. When you look from other angles the picture quality will not suddenly change, it will gradually worsen instead - this "directional enhancement" approach is a compromise between the cost of an all-angle solution and keeping the excellent visual experience in the main scenarios.
The touch used capacitive CTP, multi-touch capable and very responsive. The glass surface is scratch and wear resistant though smooth to sliding the finger. Since the touch layer was directly bonded with the display one the result is a bright display and a very quick touch response plus no Newton's rings. The display interface is 8080 MCU 16-bit parallel bus along with a 40-pin ribbon cable meets all the requirements providing stable connection, enough signal bandwidth and smooth refreshing without any tearing. The driver IC ILI9488 has been confirmed and proven extensively in the market; it comes with full documentation, has large user community, and therefore development time is very short.
Customer deep customization is the service highlight of Shenzhen Yitai Optoelectronics Co., Ltd. Since the company was established in 2014, it has been providing LED backlight customization and display panel customization services on the basis of specific customer requirements. With a research and development team of 28 people, working in a 20,000-square-meter plant, the company through its 20 production lines makes 2.5 to 3 million customized items monthly. The team of 320 people ensures the completion of customized projects. The company has more than 20 patents, ISO9001 certification, and is declared a national high-tech enterprise. Class 10,000 clean rooms and fully automated production lines ensure the accuracy of customization. In addition, the TN/HTN/STN/VA product line consists of more than a thousand items, and hundreds of TFT color screens are the basic platform from which the company focuses mainly on the market of 0.96-inch to 7-inch displays. Besides that, the company, which is experienced in customization services for twelve years, conducts the product tests for the high and low temperature, vibration, and anti-interference, and their products are extensively used in handheld inspection, portable medical devices, smart home systems, and IoT terminals, being exported to Europe, America, and Southeast Asia.
We developed 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer with a high-brightness IPS fully laminated touch screen that meets the IP67 protection level. We have improved the shock-resistant frame, anti-slip texture design, and other industry-specific areas to ensure the device will work reliably even in harsh environments. The screen features automatic light-sensing adjustment technology which, based on the ambient light, can switch from day to night display mode, helping to improve visibility and operational efficiency significantly when working outdoors.
For a famous new energy brand, developed a 4.3" charging pile interactive screen based on high-brightness IPS full lamination, meeting IP65 protection requirements. We made particular adjustments to the anti-glare design and operation temperature range (-30℃~70℃) for the complicated outdoor environment, able to maintain clear display under a variety of weather conditions. The display is embedded with a smart sensor-based light regulating system which can automatically adjust display brightness according to day and night light levels changes, hence enhancing the user operation experience greatly.
Created a 4" financial-grade encrypted display for international banks, based on a military-grade IPS full lamination touchscreen, compatible with PCIDSS payment security standards. In order to reach the high security level of the financial sector, we developed an anti-peeping privacy filter, an enclosed case to protect tampering and locking of data in ATMs and other self-service terminals. Besides, the display integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, thus enhancing customer operation experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
