Product Description

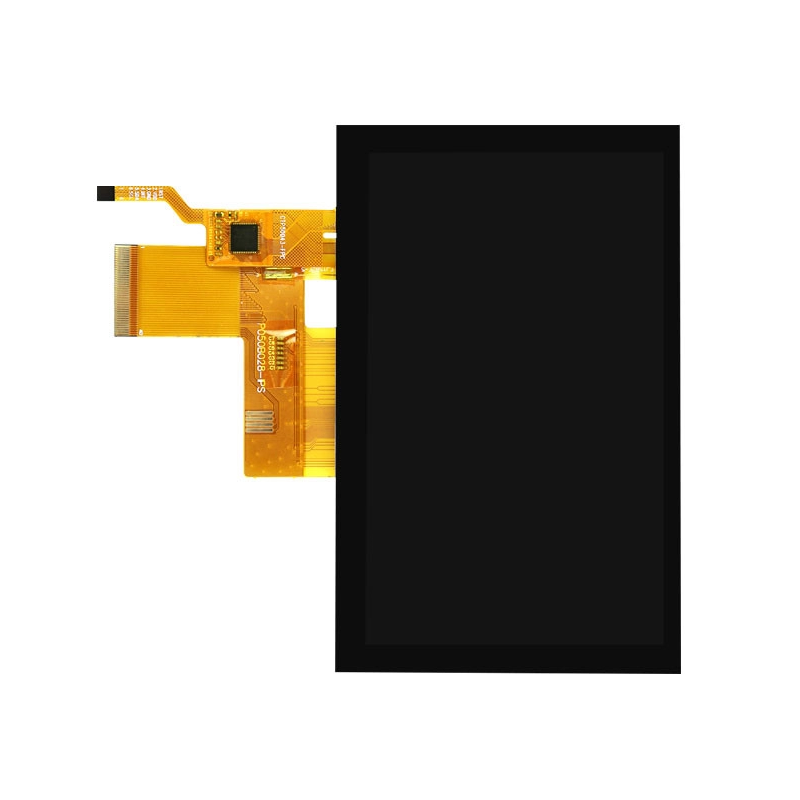

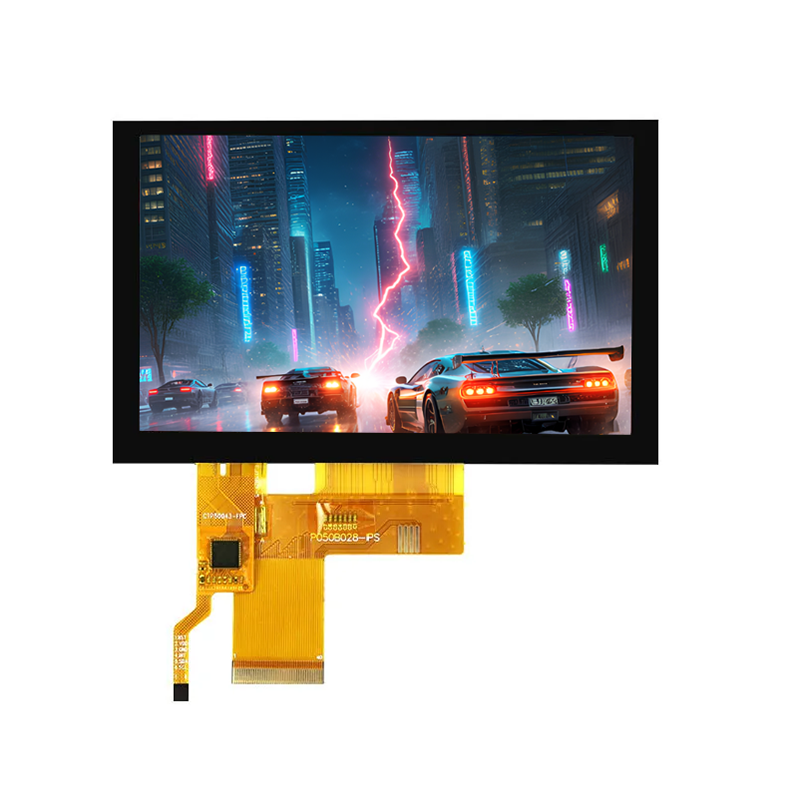

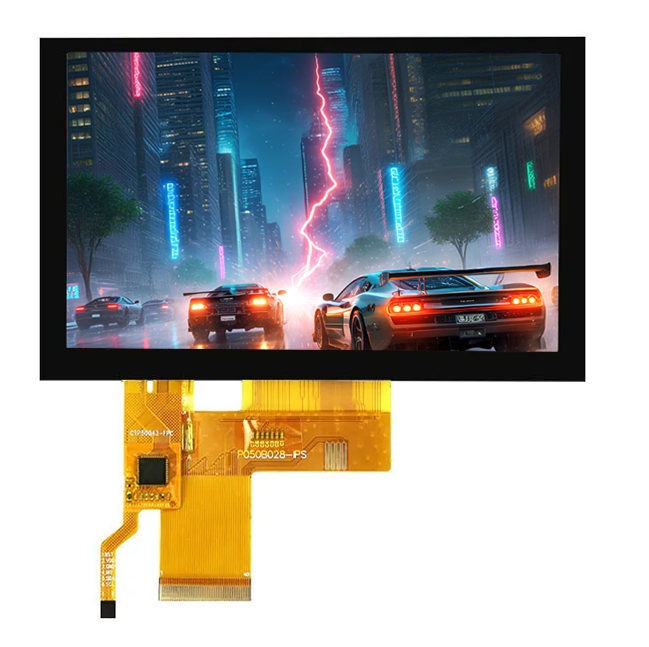

This IPS TFT LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 5 inch then our lcd is just what you need. Improve your product design by adding our 800 * 480 resolution product. QC department measured the luminance is 300 nits under normal operating.
| P/N | P050B028-IPS-CTP |
| Size(inch) | 5 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 300 |
| Interface | RGB 24bit |
| Driver Ic | ST7262 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The P050B028-IPS-CTP is a 5-inch TFT LCD display module designed for industrial control and smart terminals. It uses IPS full-view technology and features a built-in ST7262 high-performance driver chip, with a resolution of 800×480 pixels (WVGA). With 24-bit true color depth, high integration touch functionality, and a wide color gamut parallel interface, it provides an integrated display and touch professional visual interaction solution for industrial tablets, vehicle navigation, smart POS machines, medical devices, smart home control panels, and portable instruments.
The lean operation philosophy runs through the entire management process of Shenzhen Yitai Optoelectronics Co., Ltd. From the warehousing of raw materials to the shipment of finished products, the ISO9001 quality management system regulates every step, eliminating waste and improving efficiency. Inside the 20,000 square meter building, the 20 production lines are laid out very neatly, producing up to 2.5-3 million units per month, and the company's output per capita is the highest in the industry. The 320-person staff is compact and very efficient. The 28-person R&D group is dedicated to the company's main values. The company, which was set up in 2014, has been doing lean management for 12 years, has gotten more than 20 patented technologies, and it is a national high-tech enterprise. The ten thousand-level cleanroom and the fully automated LCD production lines are a sign of lean investment. With over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlights, the company mainly produces small display screens ranging from 0.96 to 7 inches. The products are subjected to temperature extremes, vibration, and anti-interference testing and to a great extent, have been used in medical, inspection, smart home, and Internet of Things areas. They are helping people all over the world with their lean-cost solutions.
Made a 4.3-inch charging station interactive screen for a famous new energy brand with high-brightness IPS full lamination technology. In addition to meeting the IP65 protection level requirements, we dramatically improved the anti-reflection design and temperature operation capacity (-30°C~70°C) for outdoor use to achieve clear display in different weather conditions. To enhance the user experience, the device is equipped with an automatic brightness adjustment based on changes in day and night lighting.
Made a 5-inch medical-grade touch display for a famous medical device manufacturer with high-resolution IPS fully laminated panel, compliant with Class B standards for electromagnetic compatibility. Besides that, we use antibacterial bezels and anti-glare design to make a better environment for doctors, so that their operating room does not cause them any trouble. Equipped with an ambient light intelligent adjustment system that is able to change display settings automatically based on usage scenario, this solution minimizes medical staff visual fatigue while increasing efficiency in diagnosing and treating patients.
Made a 3.5-inch industrial-grade intercom display with a high-brightness IPS fully laminated touch screen for a famous communication equipment manufacturer that is IP67 protected. Specially adapted to industrial scenarios, the shock-resistant frame and anti-slip texture design along with the anti-drop enclosure ensure protection from accidents in the harsh environment. Enhanced by intelligent light-sensing technology that automatically provides for the appropriate display mode based on ambient light levels, it is also much easier to see and work with outside during the day or night.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
