Product description:
1.69'' TFT LCD is a versatile display technology which has a number of excellent features including high resolution, accurate color depiction, low energy usage, and a small size. It is one of the most frequently chosen display technologies for wearable technology, industrial machinery, medical equipment, and other applications where a small but high-quality display is necessary.
Parameter:
| Model | P169H002P-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18Pins |

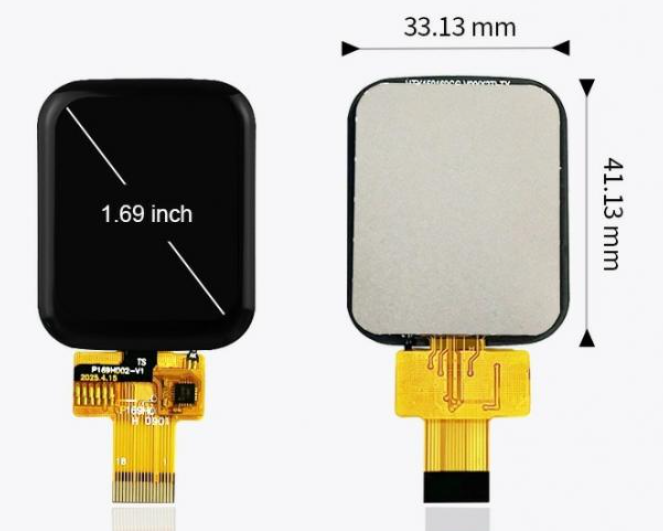

| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The P169H002P-CTP was developed with this goal in mind. This 1.69-inch square TFT screen has a resolution of 240×280, delivering a fine display in a compact space, and the vertical RGB stripes setup ensures color transitions remain natural. With a peak brightness level of 500 nits and a contrast ratio of 1000:1, dial information stays clear and easily readable even when under direct sunlight outside; the 262K color depth brings each watch face design to life, whether it's the numeric update of sports data or the flashy icons of message notifications, the details are captured exactly.
The ALL-view (ALL) IPS technology is the major feature of this product. Current TN screens change grayscale and colors when viewed from oblique angles, whereas IPS panels keep the same color accuracy and brightness from all directions—so, when the smartwatch is worn on the wrist, users are able to have a pleasant visual experience irrespective of the movement of their arms.
The normally black display mode gives a deep and pure black when the screen is off, which goes perfectly with the device's look and gives a higher level of overall quality.
Shenzhen Yitai Optoelectronics Co., Ltd., located in Shenzhen and oriented towards the worldwide market, is working on increasing its global footprint. The company was founded in 2014 and its products have been very successful in the domestic market. Besides the domestic market, the company also exports to Europe, America, and Southeast Asia areas, and the pace of internationalization is steady. The firm covers an area of 20,000 square meters, operates 20 production lines, has a monthly output of between 2.5 and 3 million units, and a staff of 320 people (of which 28 are R&D personnel) supporting worldwide supply. They have come up with more than 20 patents, got ISO9001 certification, and are honored as a national high-tech enterprise. The Class 10,000 cleanroom and fully automated production lines guarantee export-quality products. The company's products consist of more than 1,000 TN/HTN/STN/VA items and hundreds of TFT color screens, customizable LED backlights are available. It dedicates itself to the small-size market of 0.96-7 inches and has accumulated twelve years of experience there. In fact, its products are widely used in handheld testing devices, portable medical equipment, smart homes, and IoT terminals.

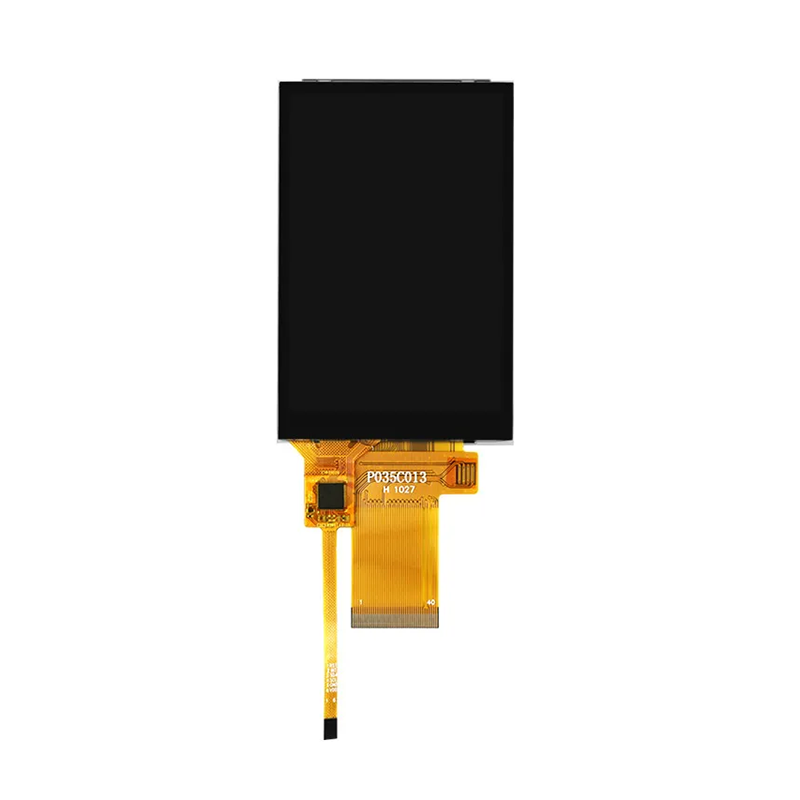

Customized development of a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, meeting IP67 protection requirements. We even go so far as to optimize the shock-resistant frame and anti-slip texture design to meet the special needs of the industry, thereby making sure reliable operation is maintained even in harsh environments.The screen also has an intelligent light-sensing adjustment feature that allows it to automatically switch between day and night display modes depending on the level of ambient light. This results in a considerable increase in visibility and efficiency of operation when working outdoors.
A 4.3-inch charging pile interactive screen was designed and manufactured for a major new energy brand, featuring high-brightness IPS full lamination technology, while also fulfilling the IP65 protection level standards. Besides, we tailored the anti-glare design and wide temperature operation (-30°C~70°C) to ensure that the screen remains clearly visible even in outdoor environments with changing weather conditions. The screen boasts a high level of integration with the intelligent light-sensing adjustment system which automatically adjusts the brightness of the display according to changes of day and night lighting, thus significantly improving the user operation experience.
Developed a 4-inch financial-grade encrypted display customized for international banks, composed of a military-grade IPS full lamination touchscreen, aligned with PCIDSS payment security standards. In order to reach the highly demanded financial security levels, we made anti-peeping mechanism and tamper-proof frame to enhance data security on ATMs and other self-service terminals. A smart ambient light adaptation system is included in the panel, which can be set to the original display mode according to the changes in light of the branch, bringing a new level of customer experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
