Product Details
Parameter:
| Model | P024BFT01-40 |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pin | 20 pin |

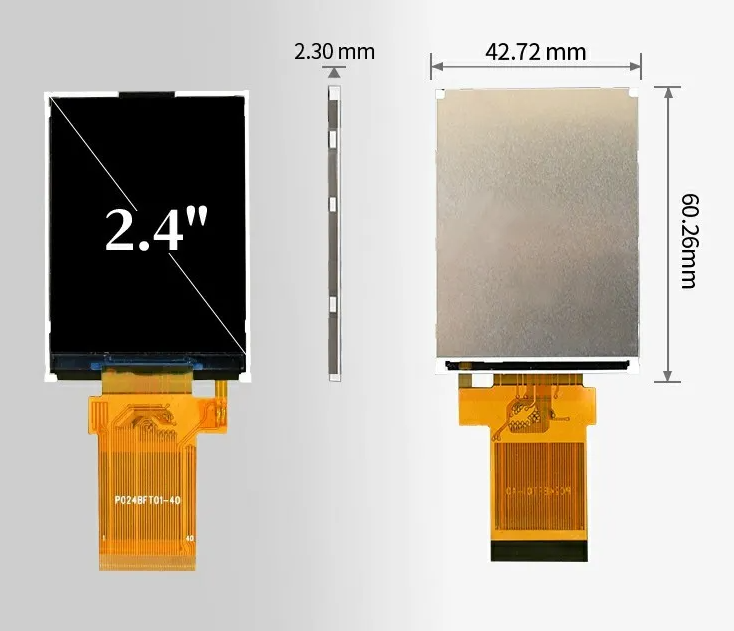

| Outline Dimension | 42.72x60.26x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | Transflective |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 250:1 |
| Interface | 3W4W SPI / MCU 8bit 16bit |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

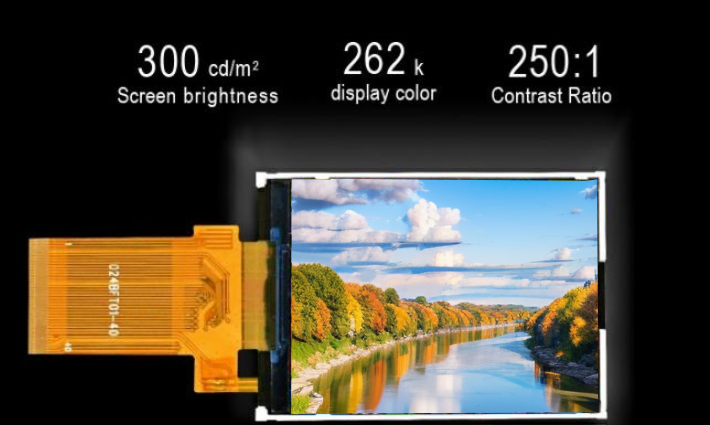

Product P024BFT01-40 is equipped with a 2.4-inch TFT LCD panel working at a resolution of 240×320 (QVGA) and with an RGB vertical stripe pixel arrangement. The Display Area measures 36.72×48.96mm while the pixel pitch is 0.51×0.153mm, combining to deliver a finely detailed and clear image. It supports a rich palette of 262K colors, boasts a high brightness of 300cd/m², and a contrast ratio of 250:1. These features enable the screen to remain easily readable even in the presence of strong outdoor light.
Its multi-functional transflective mode of display is one of the product's major features. This mode inherits the benefits of both transmissive and reflective display types. When one is in bright light, the device can display a message simply by using reflection of ambient light; whereas in the absence of light or at night, the image is still crisp due to the backlight. Such a technique not only lessens power consumption but also elongates the battery life of a portable device. The 178° ultra-wide viewing angle allows users to enjoy vibrant and accurate color reproduction devoid of color shifting or distortion irrespective of the viewing direction. This feature especially benefits scenarios where multiple persons share the same screen or when the device is operated from different angles.
Strategic focus drives professional depth. Shenzhen Yitai Optoelectronics Co., Ltd., who identifies display products of small sizes as its main working area, has kept its focus on the 0.96-inch to 7-inch industrial and consumer-grade display screens only since the company was founded in 2014. It thus has been developing professional barriers for over twelve years now. It also happens to have acquired more than 20 patents, ISO9001 certification, and national high-tech enterprise status. Its 20,000-square-meter base and 20 production lines can together produce monthly output reaching 2.5 to 3 million units. The company is manned by 320 people of which 28 research and development staff. Two tiers of strategic deployment viz. class-10,000 cleanroom and automated production lines coupled with a comprehensive product matrix consisting of thousands of TN/HTN/STN/VA items, hundreds of TFT color screens, and customized LED backlighting are also on the company's card. The company's products are being adopted by hospitals, medical laboratories, smart homes, IoT sectors etc. Besides being widely circulated in China, the company also exports to Europe, America, and Southeast Asia.

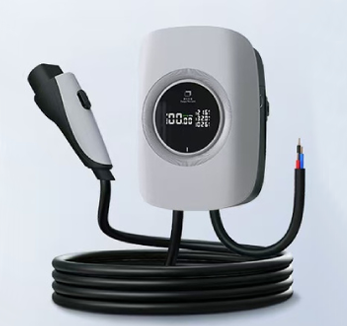

A 4.3-inch charging pile interactive screen was tailor-made for a new energy brand with a high level of public recognition, where high-brightness IPS full lamination technology was chosen, and meeting the criteria of IP65 level of protection. Our anti-reflective design and wide temperature operation (-30°C to 70°C) were especially optimized with the aim of providing clear visibility in complicated outdoor environments and under different weather conditions. In addition, the screen features an intelligent light sensor-based brightness adjustment system, which can automatically adjust the light of the display based on the change of day and night, thus the user operation experience is greatly improved.
Developed a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer that uses a high-brightness IPS fully laminated touch screen, meeting the IP67 protection requirements. The anti-vibration frame was designed alongside anti-slip texture for the industrial sector's specific requirements, making sure the device operates reliably even under harsh conditions. Incorporating intelligent light-sensing adjustment technology, the display can automatically switch between day and night modes depending on the surrounding light, greatly improving visibility and operational efficiency during work outdoors.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment. The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
FAQ
1.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
2. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
3. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
4.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
5. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
6. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
7. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
