Product Description
Parameter:
| Model | P021B001-IPS |
| Screen Size | 2.1 inch |
| Number of Pixel | 480RGB(H)x480(V) |
| Display area | 53.28(H)x53.28(V)mm |
| Pixel pitch | 111(H)x111(V)um |
| Pin | 30 pins |
| Outline Dimension | 56.18x59.71x2.2mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262k |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | 2Line MIPI |
| Back-light | LED Side-light type |
| Drive IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Application:
This LCD module finds applications in various industries, including smartwatches, fitness trackers, portable medical devices, electronic instruments, and smart home systems.
Its small size and adaptability make it suitable for a wide range of products.

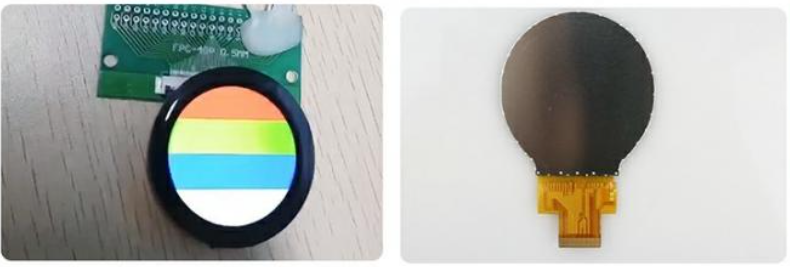

The P021B001-IPS is a 2.1-inch full-round TFT LCD panel with a resolution of up to 480×480, achieving great detail inside the 53.28mm diameter display area. The RGB vertical stripe pixel arrangement and the 111×111μm pixel pitch allow sharp edges of texts and detailed icons. A 300-nit brightness level accompanied by a 1000:1 ultra-high contrast ratio makes the dial information clearly readable under direct sunlight, while in the dark, the deep blacks and bright colors provide a striking visual impression. With a 262K color depth, gradient dials, dynamic pointers, and photo-quality watch faces are very realistic.
Thanks to the IPS full-angle (ALL) technology, the colors remain accurate and no brightness reduction occurs at different viewing angles — it can be naturally read by simply raising your wrist when worn, it is instantly visible with a glance when mounted on a bicycle, and the color remains stable even when rotated within a knob. The normally black display mode means that unlit areas are pure black, which means they blend perfectly with the circular frame so that the screen is off, it looks like a piece of exquisite obsidian.
The deep manufacturing heritage supports Shenzhen Yitai Optoelectronics Co., Ltd.'s commitment to quality. With twelve years of experience in display screen manufacturing, the company has been continuously accumulating expertise since its founding in 2014. It has an independent 20,000-square-meter factory, 20 production lines, a monthly output of 2.5 to 3 million units, and over 320 skilled workers. The 28-person R&D team drives innovation, and the company has obtained more than 20 patents. Recognized as a national high-tech enterprise, it holds ISO9001 certification, features a ten-thousand-level dust-free cleanroom, and operates mid-to-high-end fully automated LCD production lines. Products include over a thousand TN/HTN/STN/VA display models and more than a hundred TFT color LCD screens, along with custom LED backlight services. Focusing on the 0.96-7 inch market, the products undergo rigorous testing and are widely used in handheld testing, portable medical devices, smart home applications, and IoT terminals, and are sold extensively to Europe, America, and Southeast Asia.
Customized design and development of a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer where the display was a high-brightness IPS fully laminated touch screen meeting IP67 protection standards. Additional features included the optimized shock-resistant frame and the anti-slip texture design, which were specially made for the unique requirements of the industry, thereby achieving stable operation when used in the harsh environment. The implementation of the intelligent light-sensing adjustment technology in the screen allows for automatic changes from day to night display modes based on the surrounding light, greatly improving the level of visibility and the overall efficiency of operations carried out outdoors.

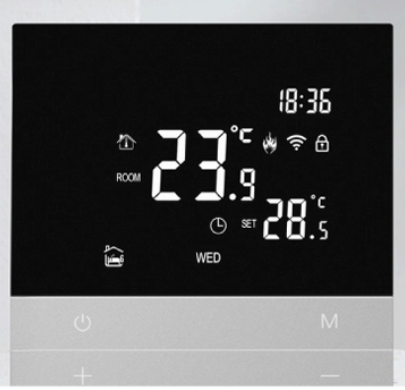

Developed a 3.5-inch high-precision temperature control display customized for a well-known HVAC brand, using full-view IPS full lamination technology and supporting multi-touch operation. According to home environment requirements, we adopted an ultra-thin bezel and rounded corner design, perfectly matching modern interior decoration styles. The screen integrates an ambient light intelligent adjustment function, which can automatically optimize display brightness and contrast according to indoor lighting, greatly enhancing user operation experience and energy efficiency.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment.The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
