3 inch 268x800 IPS Screen 40pin RGB565 interface 700 nit ST7701S 3" TFT LCD Display

Parameter:

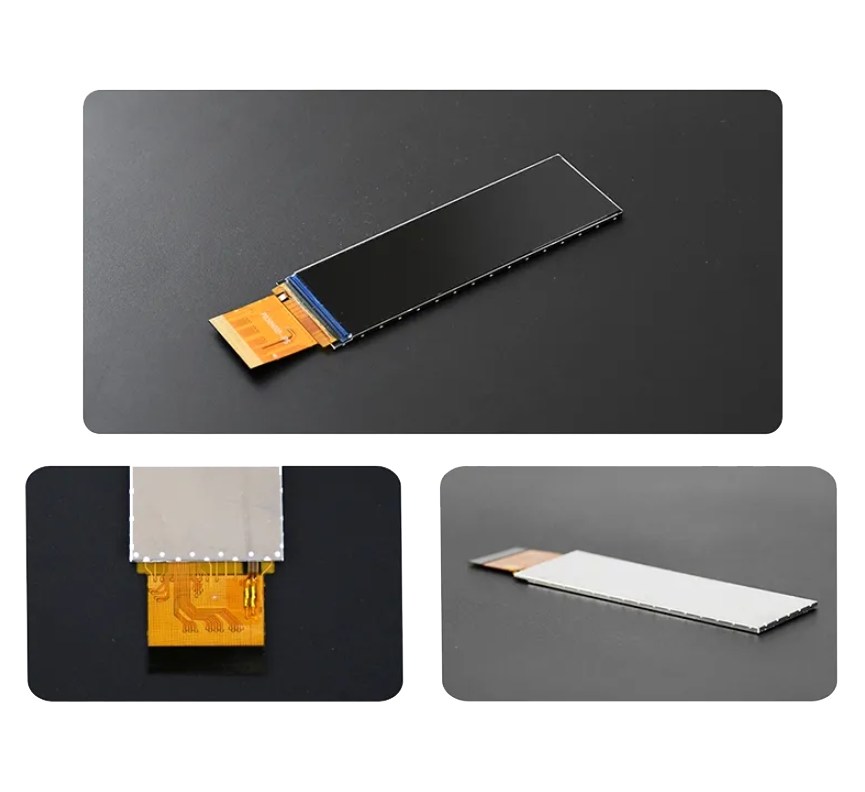

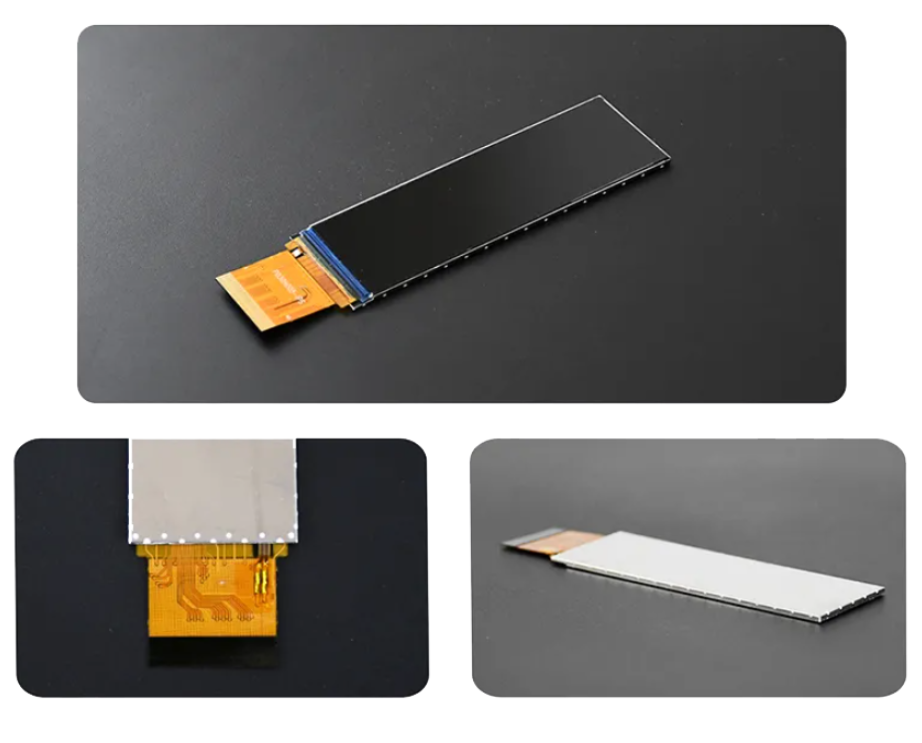

The‍‌‍‍‌ P030H005-IPS-V2 is a 3-inch bar-type IPS full-view TFT panel featuring a size of 268×800. This is capable of providing vertical high-definition image quality within a 24.12×72mm display area. With 90×90μm tiny pixels and vertically striped RGB configuration, the edges of characters look sharp, whilst vertical lines are straight and devoid of jagged edges. Besides that, 700 nits ultra-high brightness level, much higher than the typical indoor screen, is combined with an outstanding contrast ratio of 1200:1, so even under direct strong light, the interface still appears layered—besides being a must for industrial sites, outdoor equipment, and high-brightness computer rooms, where readability is strictly required, the combination of high brightness and excellent contrast also makes these displays suited for other applications.

A degree of 262K in color depth is a great feature as it allows temperature scales, pressure spectrums, and status color blocks to be rendered accurately, thereby significantly increasing information transfer efficiency.

The panel uses the RGB565 parallel bus interface, and the 40-pin ribbon cable connection is stable and provides enough signal bandwidth to allow smooth refresh without tearing. RGB565 format represents colors in 16-bit, compromising on maximum color performance while reducing data bandwidth requirements, thus making it compatible with the limited resources of embedded controllers. The driver IC ST7701S is not only tailored for high-resolution bar panels but also includes a hardware image rotation engine that can support 90°/180°/270° rotation of the content, thus not burdening the main controller with additional computation, and improving development efficiency.

The overall dimensions are quite small: 26.96×80.08×1.75mm for the entire unit, and the thickness is only 1.75mm. The LED backlight with side-entry arrangement manages to keep the ultra-high brightness while the overall thickness is still controlled. This "cards-thin" shape enables bar screens to be easily embedded in device gaps, attached to the edges of cabinets, or mounted on instrument pillars—display space is no longer a problem.

Factory Showcase

Shenzhen Yitai Optoelectronics Co., Ltd. has carried the torch of quality for generations. Since its inception in 2014, the company has consistently implemented the policy 'Customer First, Quality First' for twelve years, which has deeply influenced the behavior of every employee. The workforce comprises about 320 employees (28 R&D staff included), who use 20 production lines to make 2.5 to 3 million top-grade display panels per month in a 20,000-square-meter plant. The enterprise has secured over 20 patents, is a nationally recognized high-tech enterprise, and is ISO9001 certified. The class-10,000 cleanroom and the full automation production lines serve as the vessels for the inheritance of quality. The product line consists of nearly a thousand TN/HTN/STN/VA modules and several hundred TFT color panels, all with the option to customize LED backlights. Targeting the 0.96–7 inch segment, the range has been broadly applied in handheld test equipment, portable medical devices, smart homes, and IoT terminals, with exports to Europe, the US, and Southeast Asia. Their quality and good name have been spreading from one person to ‍‌‍‍‌another.

Typical Custom Case

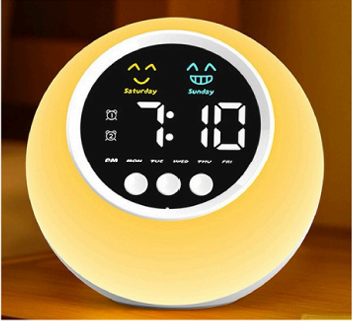

Alarm clocks

Our‍client home brand has entrusted us with the development of a 2.8-inch minimalist clock display that is exclusively tailored for the house brand. It uses low power consumption technology, depolyed in an IPS full lamination and capable of supporting clear display from very wide viewing angles of up to 180°. We have based the bedroom usage scenarios as the primary one, in fact, and so, together with the ultra-thin borderless design and soft light guide structure, the final product will look absolutely in line with contemporary home style. To boost consumer comfort, a system for intelligent light sensing and automatically changing of display modes takes its place inside the screen, which leads to an automatic switch to the soft light mode during nighttime. This is a clear time display which does not interfere with the quality of one’s sleep.

Medical devices

We custom-made a 5-inch medical-grade touch display for a famous medical device manufacturer using a high-resolution IPS fully laminated panel, Class B electromagnetic compatibility standard compliant. Besides medical on ergonomics requirements, we also implemented antibacterials bezels and an anti-glare design to make sure equipment can work steadily in complex environments such as operating rooms. The screen comes with a system that intelligently adjusts to the ambient light and can optimize display settings automatically, thus not only significantly reducing the visual fatigue of medical personnel but also enhancing their diagnostic and treatment work efficiency.

Charging stations

We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.

FAQ

1. Can you customize the products?

Yes, we can customize products for content, size with customer's requirements.

2. Can we use our own logo or design?

Yes, you can. You can contact us for the details.

3. Who do I contact if I have a problem?

You can email to us, we will provide quality after-sales service

4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?

MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.

5. How do you pack your product?

We adopt standard export package, cartons or boxes, also can pack it by your requirement.

6. What's your method of payment?

We accept payment by L/C, Western Union, T/T, PayPal etc

7.What shipping methods do you support?

We support sea freight, air freight, international express, railway transportation and special line logistics
