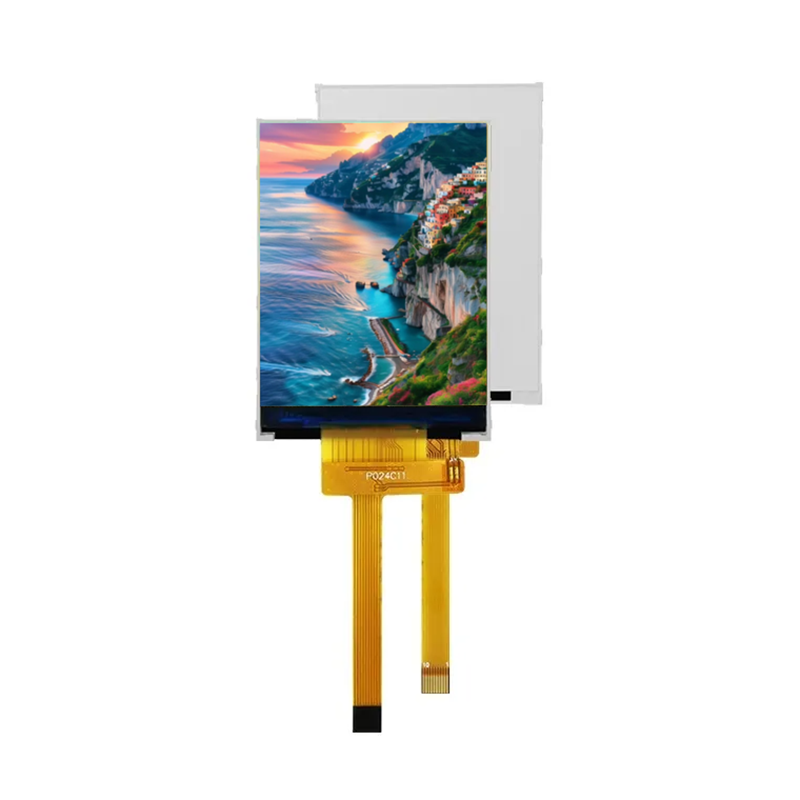

This HD TFT Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product.
QC department measured the luminance is 260 nits under normal operating.
Parameter:
| Model | P024C115 |
| Screen Size | 2.4 inch diagonal |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pins | 10 Pins |
| Outline Dimension | 42.72x60.26x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 250:1 |
| Surface treatment | ―― |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
With the text pitch as small as 51×153μm, and the colors vertically aligned in an RGB stripe layout, the characters are very sharp and highly detailed icons.
The brightness level of 260 nits ensures that the text is perfectly visible in a typical room; in addition to this, a contrast ratio of 250:1 combined with the Normally White display mode results in an appearance very similar to that of soft paper—reading a book for a long time is not tiring for the eyes and entering data is not exhausting, also monitoring parameters are done with less strain. With the color depth of 262K, pieces of information, graphical representation of data over time, and warning signs are clearly separated and perceived.
The driver IC ST7789V3 is the newest version of the ST7789 series, which besides other features, provides lower power usage and a more straightforward initialization sequence. Though one could still use the driver code for previous iterations if he/she wants, it will also lead to efficiency of refresh optimization. Just typing "ST7789" in search box of Arduino IDE will produce dozens of open-source libraries so that one can hardly be pressed to install them; directly adding dependencies to a project in PlatformIO environment can even give rise to compiling the code shown in the example—maturity of the ecosystem is to a great extent responsible for cutting down the development time from several days to just a few hours.

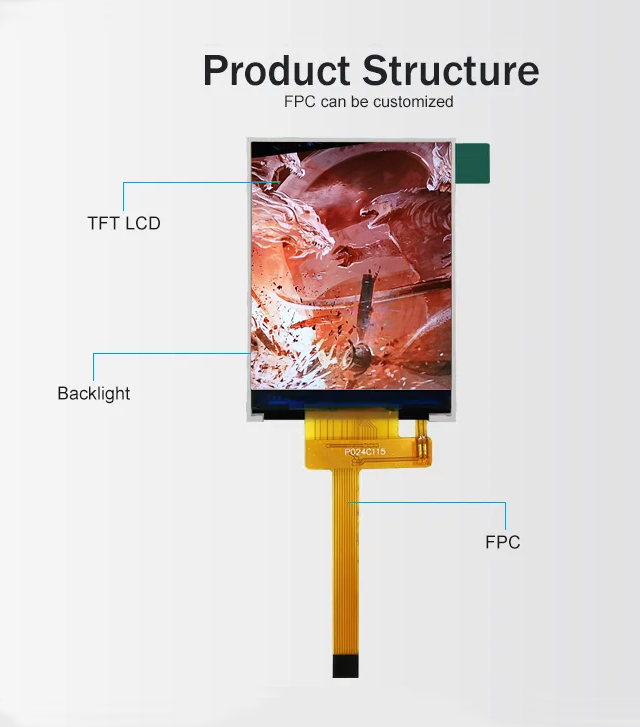

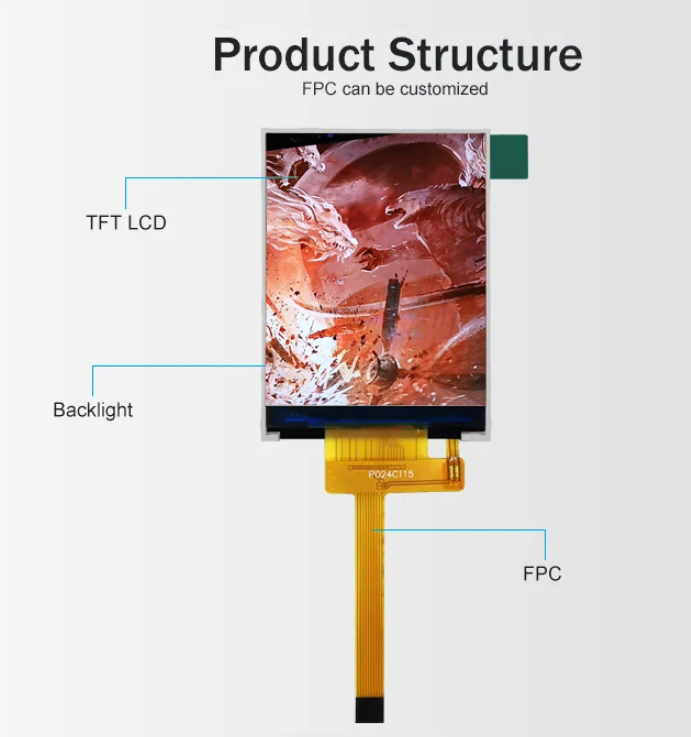

The design is simple: the outer size is 42.72×60.26×3.20mm but the display is only 3.2mm thick. An LED side-entry backlight design is used to leave more space for the component of the device.
Operating temperature range is -20°C to 70°C, storage temperature -30°C to 80°C, and the module has undergone a series of extremely high and low temperature tests as well as vibration and interference resistance tests.
The increase in production capacity is at the same time the growing path of Shenzhen Yitai Optoelectronics Co., Ltd. After the company was set up in 2014, the monthly production capacity has reached 2.5 to 3 million units, with 20 production lines running at full speed within a 20,000-square-meter plant. There is a workforce of 320 employees, including 28 R&D personnel, who work behind the scenes for technological upgrades that lead to production capacity. As doors are unlocked for more than 20 patents, getting ISO9001 certification and the status of a national high-tech enterprise together, a ten-thousand-class cleanroom and automated production lines ensure stable quality throughout the expansion. The product range consists of over one thousand TN/HTN/STN/VA modules and hundreds of TFT color screens, with customizable LED backlights. With attention focused on small size displays from 0.96 to 7 inches, and twelve years of production capacity building experience, the items are used broadly across medical, testing, smart home, and IoT fields, and very well selling both domestically and internationally.

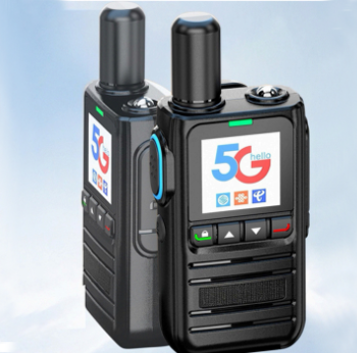

We carried out the project of a 3.5-inch co-creation industrial-grade intercom display for a communication equipment manufacturer of high repute, using the highest brightness IPS fully laminated touch screen which also complies with IP67 protection level. We re-designed the shock-resistant frame and the anti-slip texture to the standards of the industry, thus making sure the device will run well in harsh environments. The display unit also features intelligent light-sensing adjustment capability which automatically changes display modes between day and night according to the amount of ambient light, which leads to a great increase in delivery of information and working efficiency of the users outdoors.

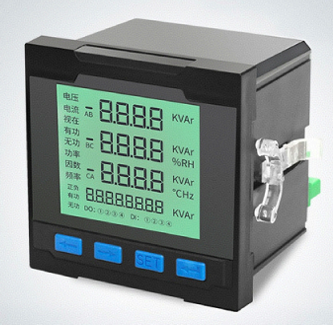

We tailor-made a 4.3-inch industrial-grade instrument display with high brightness and IP65 protection level for a famous power equipment manufacturer, utilizing high-contrast IPS full lamination technology. We have enhanced the dustproof and waterproof structure as well as the wide temperature design (-30°C to 70°C) for the unique requirements of the power industry, thereby ensuring uninterrupted functioning even in highly challenging environments such as substations. In addition, it adopts an adaptive brightness adjustment system that can automatically regulate the display based on ambient light, which greatly increases both data reading efficiency and operational safety while conducting outdoor inspections.
Developed a 4-inch financial-grade encrypted display customized for international banks, composed of a military-grade IPS full lamination touchscreen, aligned with PCIDSS payment security standards. In order to reach the highly demanded financial security levels, we made anti-peeping mechanism and tamper-proof frame to enhance data security on ATMs and other self-service terminals. A smart ambient light adaptation system is included in the panel, which can be set to the original display mode according to the changes in light of the branch, bringing a new level of customer experience and transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
