| Item | Specification |
| Model | P023H022 |
| Screen Size | 2.31 inch |
| Number of Pixel | 320RGB(H)x240(V) |
| Display area | 46.75(H)x35.06(V)mm |
| Pixel pitch | 0.1461(H)x0.1461(V)mm |
| Pins | 40 pins |

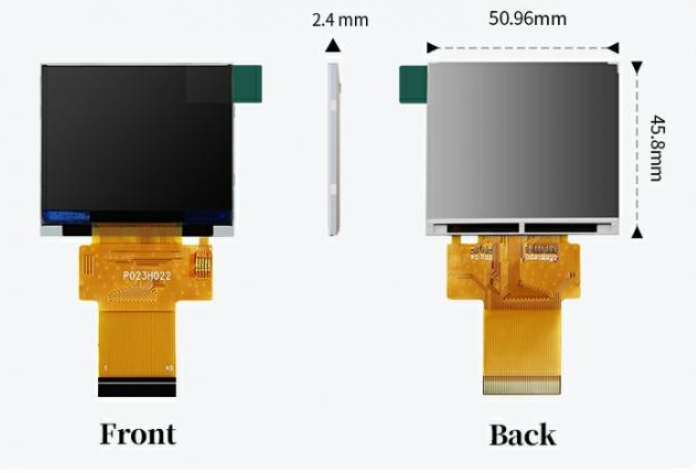

| Outline Dimension | 50.96x45.80x2.40mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally White |
| Viewing Direction(eye) | 12 0'CLOCK |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 250 nit |
| Contrast Ratio | 500:1 |
| Surface treatment | -- |
| Interface | MCU8/16BIT SPI3/4wire RGB18BIT |

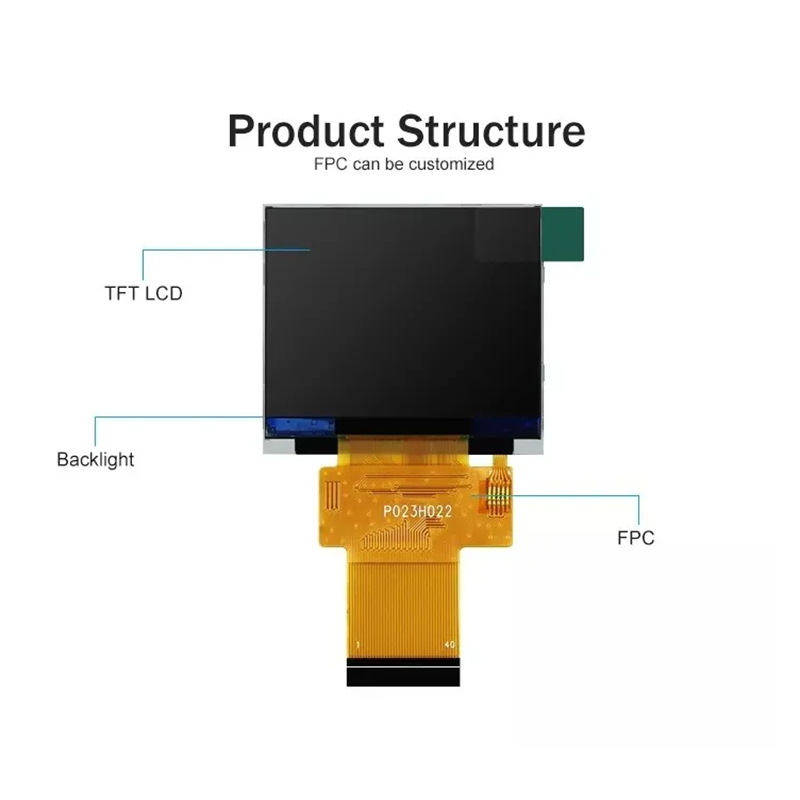

| Back-light | LED Side-light type |
| Drive IC | ILI9342C |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Weight | -- |
Below are our other LCD panels stock for your easy reference:
| Hot selling P/N | Size (inch) | Resolution | Interface |
| N096-1608TBBIG11-H13 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| N133-2424TCBIG01-H12 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
We also have other industrial LCD panels, please contact to us for any information you need to know.
Why do you choose us?
• Quick response to you within 24 hours.
• More than 10-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
The reasons you choose us
1) More competitive price! As a professional LCD Distributor, we have our own product line to support us for the more competitive service, not only the price, but also size hard to find.
2) Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3) Fast delievery! Delivery time will be faster than others.
4) Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5) Best sale-service! Professional team to service with you before sale, on sale & after service.
P023H022 is a 2.31-inch square TFT panel with a resolution of 320×240, presenting QVGA fine image quality within a 46.75×35.06mm display area. It has 146.1×146.1μm square pixels arranged in vertical RGB stripes, providing natural color transitions. With 250 nits brightness and a 500:1 contrast ratio, the interface is easily readable in indoor environments; the 262K colors depth make status indicators, data charts, and branded interfaces visually distinct and layered. The Normally White display mode renders unlit areas in soft white, which is suitable for light UI designs and creates a contrast with dark mode.
The viewing angle design is exactly fixed to the 12 o'clock direction and it is not only optimized for viewing from the front of desktop instruments, wall-mounted panels, and handheld devices - when users look at the screen directly, brightness and color will be at their highest levels, avoiding redundancy of cost of full-view solutions while at the same time ensuring the visual experience in main scenarios. This 'directional optimization' method is a manifestation of the Ether Optoelectronics' thorough understanding of different usage scenarios.
Capable tech transfer is one of the Shenzhen Yitai Optoelectronics Co., Ltd. company's trademarks. A 28-member R&D team is able to make a large number of inventions that are swiftly turned into top-quality products with a monthly capacity of 2.5–3 million units by a 20,000-square-meter plant having 20 production lines. Since the company started operating in 2014, they have secured over 20 patents and have been a national high-tech enterprise recognized. A 320-people group guarantees transfer effectiveness, and ISO9001 certification is a standardizing transfer method. A ten-thousand-class cleanroom together with fully automated LCD production lines make sure that transfer quality is very high. Products consist of over a thousand TN/HTN/STN/VA modules and more than a hundred TFT color screens, including wholed out LED backlight Customizable light. Having twelve years of activity, the company is on focusing on small displays ranging from 0.96 to 7 inches. These products have widespread application in handheld testing, portable medical devices, smart homes, and IoT terminals. They are exported to Europe, America, and Southeast Asia.
We customized a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, through a high-brightness IPS fully laminated touch screen, which also met IP67 protection requirements. We redesign the shock-proof frame and anti-slip texture to the industry requirements, ensuring effective operation in harsh environment. Besides this, the screen has smart lighting sensing adjustment that can automatically change the display from day to night mode depending on the light in the environment, thus greatly improving the visibility and effectiveness of the operations outside.
Custom-developed a 5-inch medical-grade touch screen for a well-known medical device manufacturer, made of a high-resolution IPS fully laminated panel, fulfilling Class B electromagnetic compatibility standards. We strictly follow medical ergonomic standards and ergonomically designed the antibacterially coated bezels and anti-glare methods to work in the operating room environments. The display has an intelligent ambient light system that makes the necessary changes automatically without human intervention to help in reducing eye strain in medical personnel and other devices that can aid in diagnosis and treatments.
We provided a 4.3-inch charging pile interactive screen of a new energy brand well known globally, which is capable of a high-brightness IPS full lamination display and is able to meet IP65 protection level test requirement. Special attention has been given to the optimization of the glare reduction and the wide temperature operation performance (-30°C~70°C) to ensure the display clarity and the system stability in the variety of climatic conditions for the complex outdoor environments. Together with this, there is an intelligent light-sensing adjustment system in the display, which is capable of detecting in real time changes in ambient light both day and night and adjusting automatically the display brightness, thus greatly enriching the operation experience of the user.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
