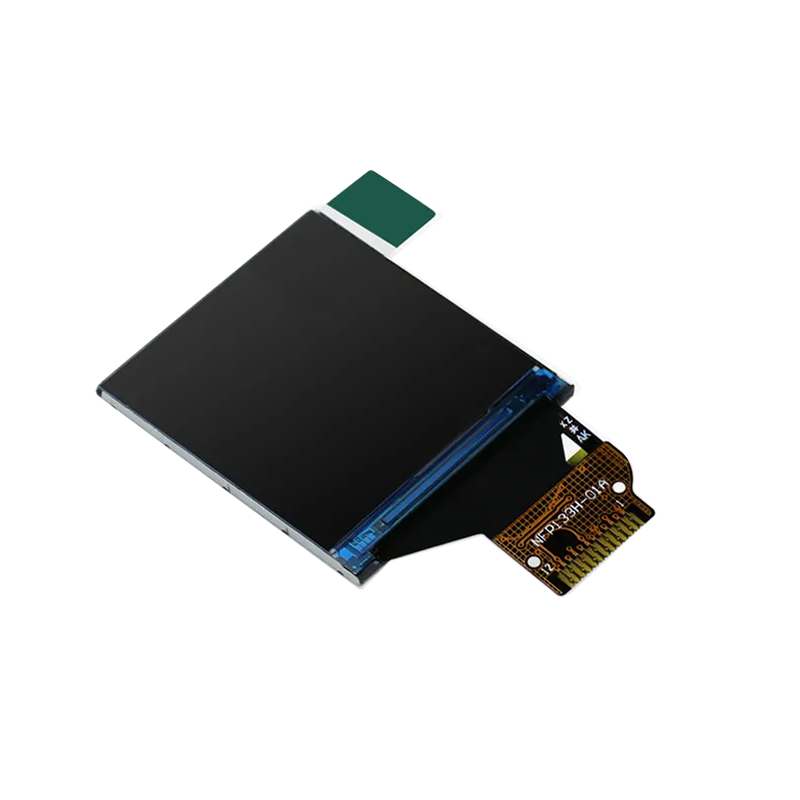

New published TFT LCD Display for commercial and industrial use.
We can also customize other types of interfaces and FPCs for you.

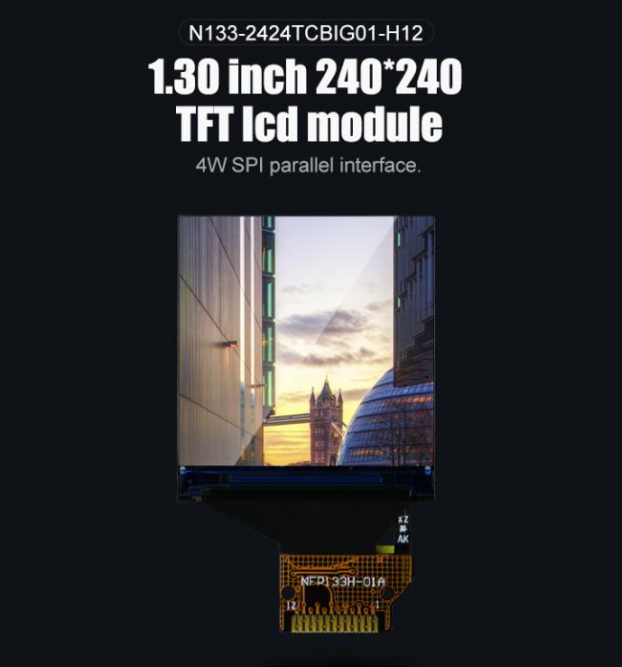

| P/N | P133H002 |
| Size(inch) | 1.33 |
| Resolution | 240*240 |
| Active Area(mm) | 23.40*23.40 |
| Pixel pitch(um) | 97.5*97.5 |

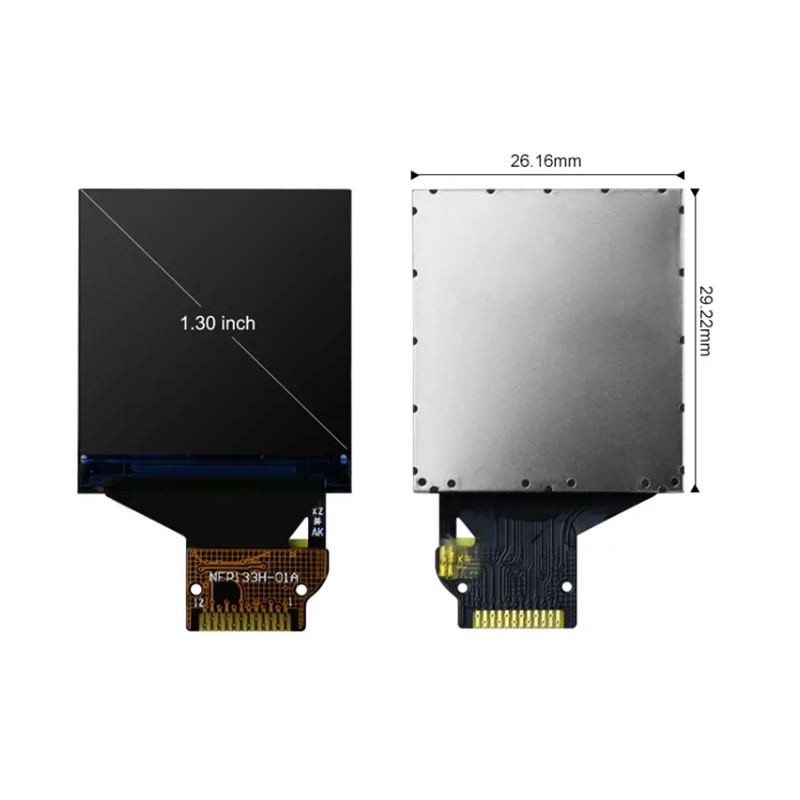

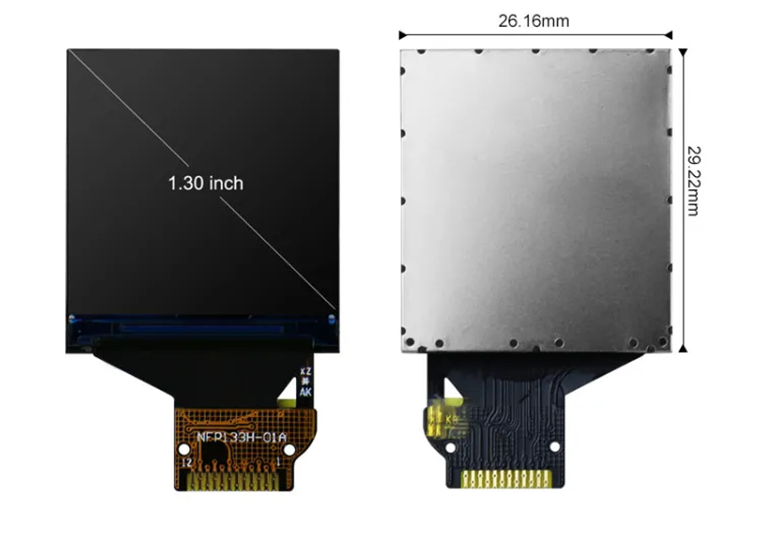

| Outline Dimension(mm) | 26.16*29.22*1.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness(cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 4 Wire SPI |

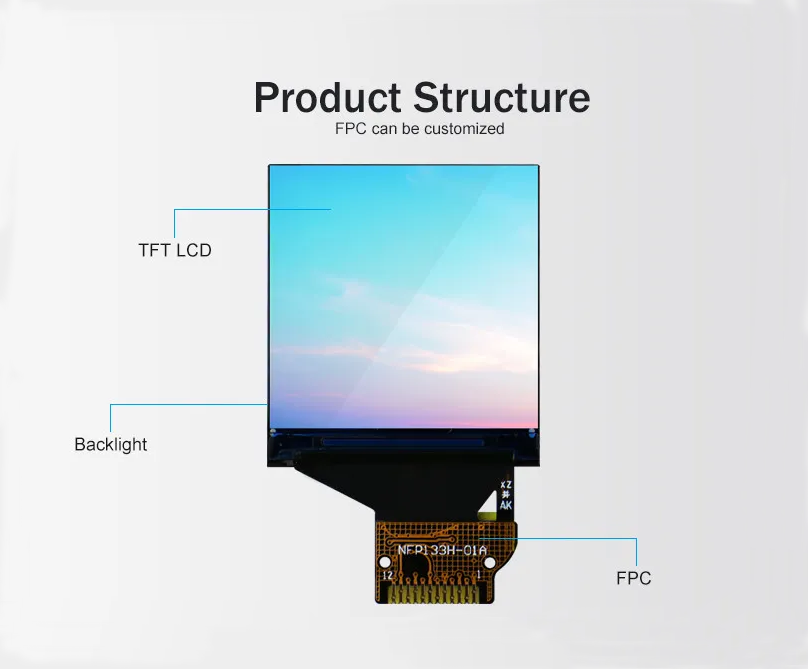

| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 12 |
| Hot selling P/N | Size (inch) | Resolution | Interface |
| P096H001 | 0.96 | 80*160 | 4 Line SPI |
| P114H002 | 1.14 | 135*240 | 4 Wire SPI |
| P133H002 | 1.33 | 240*240 | 4 Wire SPI |
| P169H002-CTP | 1.69 | 240*240 | 4 Line SPI |
| P177C011 | 1.77 | 800*480 | RGB 24bit |
| P020H017-IPS | 2 | 240*320 | MCU 8BIT |
| HINK-E0213A189-A0 | 2.13 | 122*250 | 3 Line SPI 4 Line SPI |
| P022H002 | 2.2 | 240*320 | 4 Line SPI |
| P023H005-V2 | 2.31 | 320*240 | 8080 MCU 16bit |
| EO-DIS-TFT24V03 | 2.4 | 240*320 | 8080 MCU 8bits |
| P027-40-V2 | 2.7 | 960*240 | RGB 8bit |
| P028H042 | 2.8 | 240*320 | MCU 8/16bit SPI3/4-wire |
| P032010A | 3.2 | 320*820 | SPI+16BIT RGB |
| P035C013-CTP | 3.5 | 320*480 | 8080 MCU 16bit |
| P035M048-IPS | 3.5 | 320*480 | 18BIT RG |
| P043B018 | 4.3 | 800*480 | RGB 24bit |
| P050B028-IPS-CTP | 5 | 800*480 | RGB 24bit |
| P055H018-IPS-V3 | 5.5 | 720*1280 | MIPI |
| P070C012 | 7 | 800*480 | RGB 24bit |
| T10150UX-V01 | 10.1 | 1024*600 | RGB 24bit |
The 350 nit high brightness is far beyond the level of the ordinary wearable screens and with a 600:1 contrast ratio, the watch face can still be clearly seen even under the strong sunlight; 262K color depth allows gradient theme, photo quality wallpaper, and dynamic data chart to show different layers.The Normally Black mode turns the unlit areas into deep pure black, so they perfectly harmonize with the device’s appearance, and the screen-off looks are even comparable to the most high-end smartphones.
The all-viewing-angle (ALL) IPS technology ensures that the colors don’t change when you look from different angles—if you are running and swinging arms, cycling and looking down at the wrist, or at the same time in a meeting, the screen will still be the same as you expect it. A 35ms response time gets rid of the motion blur, so the screen transitions are very smooth and responsive, bringing you an interactive experience that is on par with high-end smartwatches.
Customer value creation is the main mission of Shenzhen Yitai Optoelectronics Co., Ltd. The company started its operation in 2014 and since that time, it has become the 'invisible screen supplier' for many niche markets by combining high-precision display technology and deeply customized services. With a 20,000-square-meter base, 20 production lines, a monthly output of 2.5–3 million units, and a team of 320 employees (including 28 R&D staff), the company engages in value creation. The company holds more than 20 patents, ISO9001 certification, and has been a national high-tech enterprise. A class 10,000 cleanroom and automated production lines will allow you to really rely on the quality of its value carriers. Product selection spans over a thousand TN/HTN/STN/VA models and over a hundred TFT color screens, plus LED backlights of any specification customized on request. Focusing on the 0.96–7 inch market, the company’s products find use extensively in handheld testing instruments, portable medical devices, smart home products, and IoT terminals, and are exported to Europe, America, and Southeast Asia.
Based on a communication equipment brand house, an industrial 3.5-inch intercom display was custom-made by employing an IPS fully laminated high-brightness touch screen, which is capable of fulfilling the IP67 protection standards. Shock-resistant frame and anti-slip texture design were two of the improvements that were made to accommodate the very specific industrial working conditions and those that are capable of surviving in severe environments are reliable operation is ensured. The screen incorporates a smart light sensor adjustment function that can automatically switch day and night display modes according to ambient light, thus greatly improving visibility and efficiency of outdoor work.
Developed a 5-inch medical-grade touch display specifically, for a leading medical device company. The display was based on a high-resolution IPS fully laminated panel and met Class B electromagnetic compatibility standards. Medical ergonomics is the primary focus, therefore, antibacterial bezels and anti-glare design are implemented to ensure stable operation in complex environments such as operating rooms. The display includes an ambient light intelligent adjustment system, which automatically optimizes display parameters according to the usage scenario, thereby effectively reducing visual fatigue of medical staff and increasing diagnostic and treatment efficiency.
A 4.3-inch charging pile interactive screen was designed and manufactured for a major new energy brand, featuring high-brightness IPS full lamination technology, while also fulfilling the IP65 protection level standards. Besides, we tailored the anti-glare design and wide temperature operation (-30°C~70°C) to ensure that the screen remains clearly visible even in outdoor environments with changing weather conditions. The screen boasts a high level of integration with the intelligent light-sensing adjustment system which automatically adjusts the brightness of the display according to changes of day and night lighting, thus significantly improving the user operation experience.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
