TFT LCD Display

Ether​‍​‌‍​‍‌ Photoelectric is a highly specialized technology company that coordinates R&D, design, production, sales and after-sales services. It owns two manufacturing bases located in Shenzhen and Jiangxi. The company has introduced more than 100 TFT color screens and various module products, including over 1,000 types of TN/HTN/STN/VA display products. A professional R&D team, together with advanced production facilities and a vast accumulation of production know-how, are at your disposal. We can customize the structural design to match your requirements, guarantee production of premium products and provide thorough after-sales support.

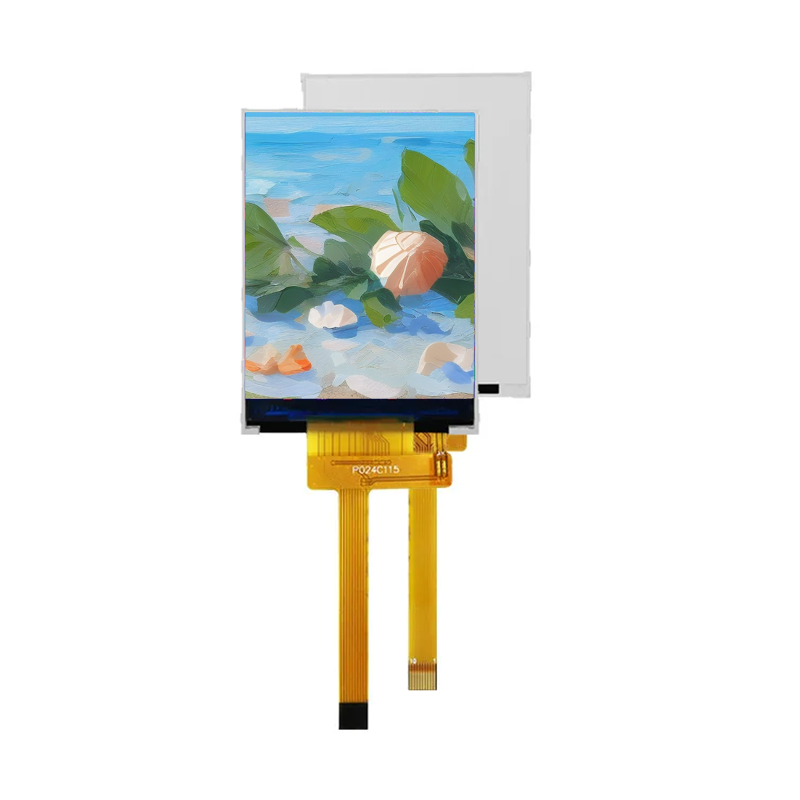

A‍‌‍‍‌ 2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a compact display device that employs TFT method to show superior color graphics and video. The display features a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, lending to the production of vividly clear images along with precise color rendition.

This is a high-performance display solution designed for industrial control, smart terminals, and high-end consumer electronics. It features a standard 4.3-inch panel and is powered by the ST7701S driver chip. With a 45-pin standard interface and an 18-bit RGB video interface, it enables high-speed data transmission, achieving a breakthrough in comprehensive performance with ultra-high resolution, full-angle display, and high brightness within a compact size.

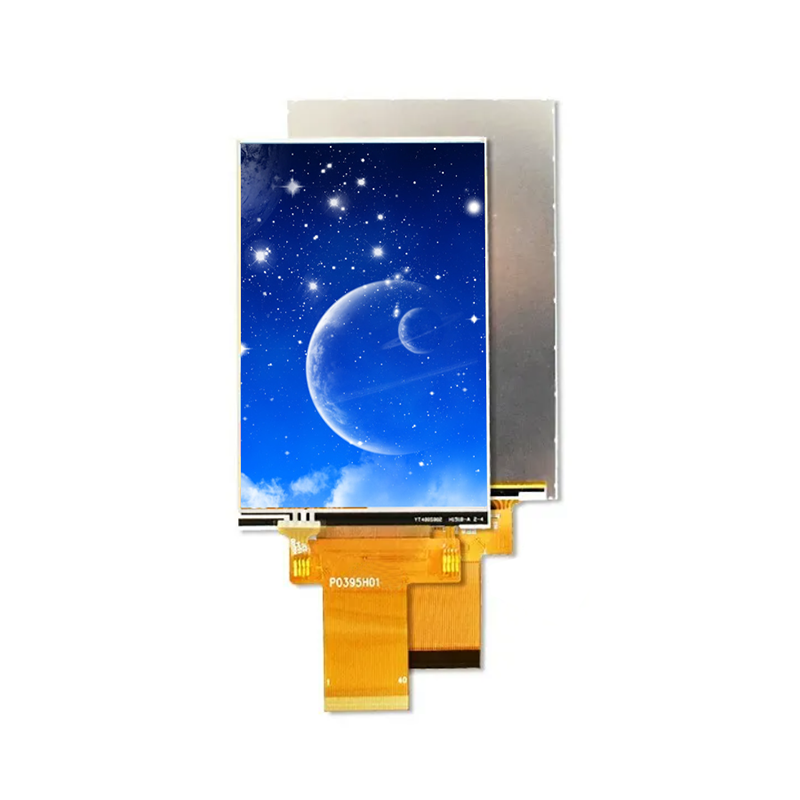

The display is a high-performance solution targeting industrial control, smart terminal, and portable device markets. Its panel size is 3.95 inches, standard, while using the ILI9488 as main driver. It supports RGB plus several protocol parallel buses through 40-pin standard interface. This has led to a thorough performance upgrade in display resolution, viewing angles, and multiple interface compatibilities all within a very small size.

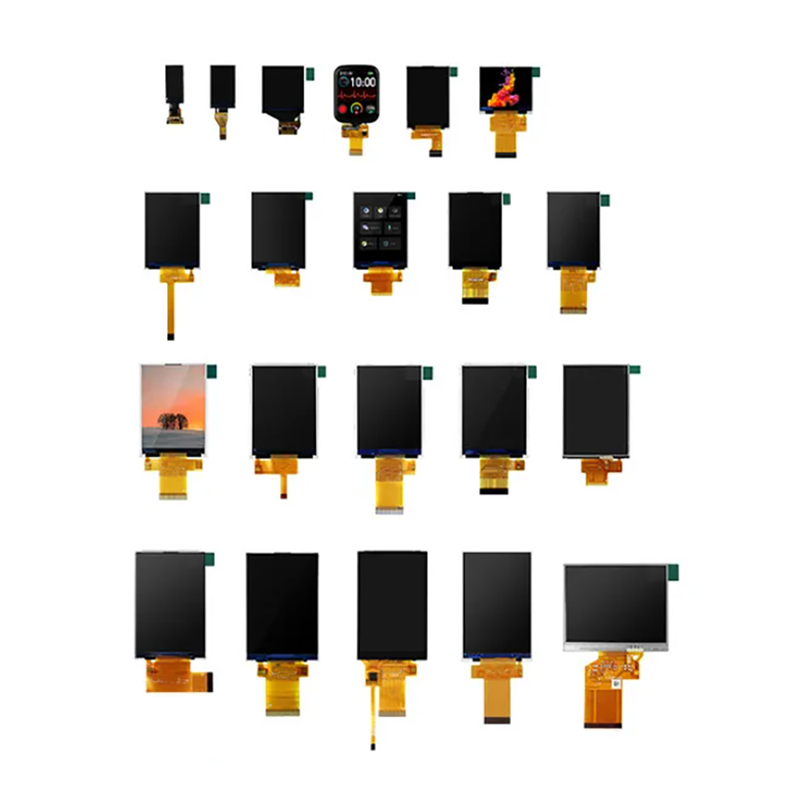

We​‍​‌‍​‍‌ offer a variety of LCD TFT screens that are customizable to your needs. You can choose capacitive or resistive touch screens, and we provide custom panels either in glass or acrylic. Besides that, we can also make a blue light filter that will shield users' eyes from dangerous blue light ​‍​‌‍​‍‌radiation.

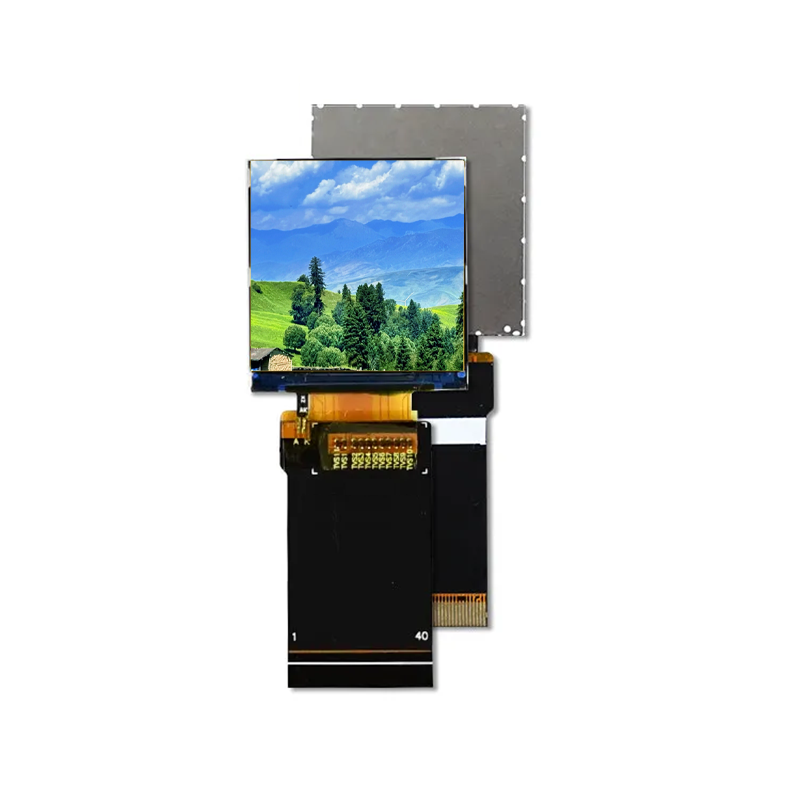

Extremely​‍​‌‍​‍‌ compact structural dimensions: Measuring only 31.52×33.72×2.00mm, with a thickness of 2.0mm, the side-entry LED backlight manages to maintain high brightness performance while controlling the overall thickness. This 'card-thin' shape, in fact, allows the module to be embedded inside ultra-compact devices such as smartwatches, portable instruments, and IoT nodes very easily.

What​‍​‌‍​‍‌ is a TFT LCD? A TFT LCD module (Thin-Film-Transistor Liquid Crystal Display module) is a type of display module that utilizes thin-film-transistor (TFT) technology for a better display image and response. It consists of several layers such as backlight layer, color filter layer, TFT layer, and glass substrate layer. TFT LCD screens are great for various electronic devices because of their high resolution, quick refresh rate, and low energy consumption.

A 3.97 inch TFT LCD with IPS technology provides wider viewing angles and higher contrast ratios for clearer and more realistic image display, making it suitable for various applications.
