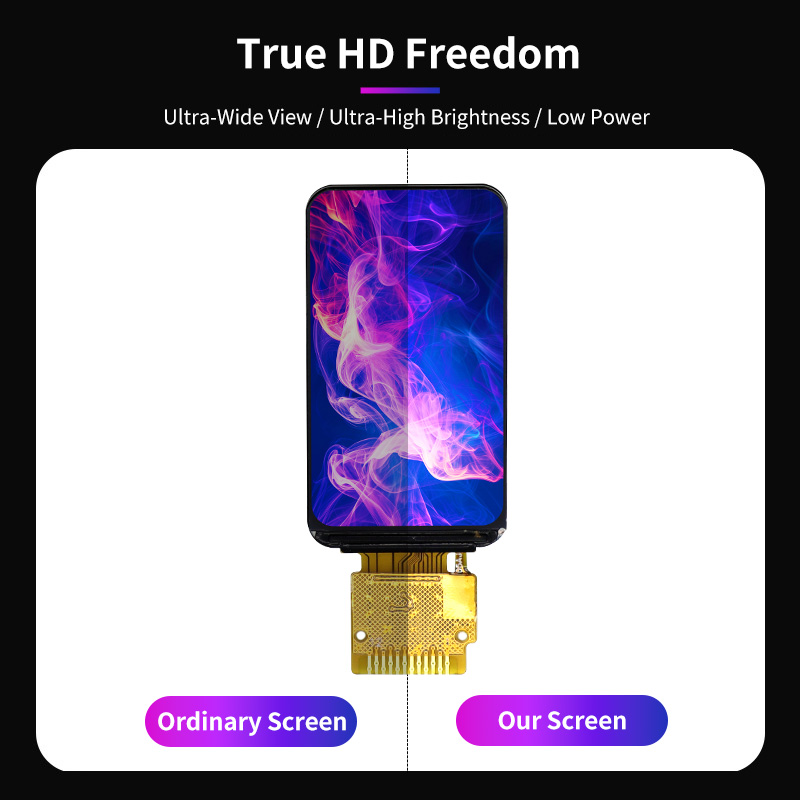

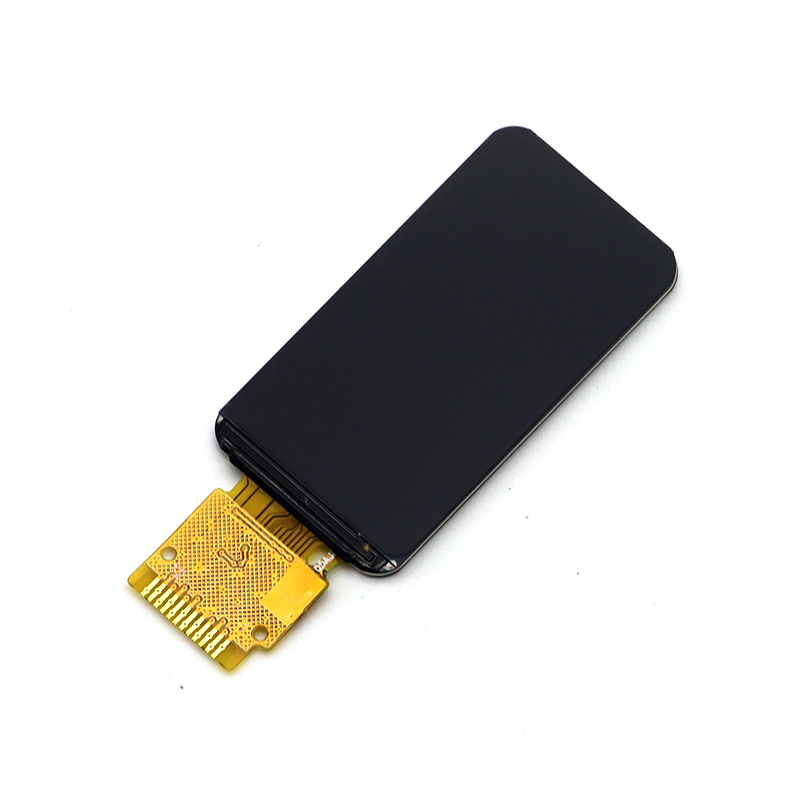

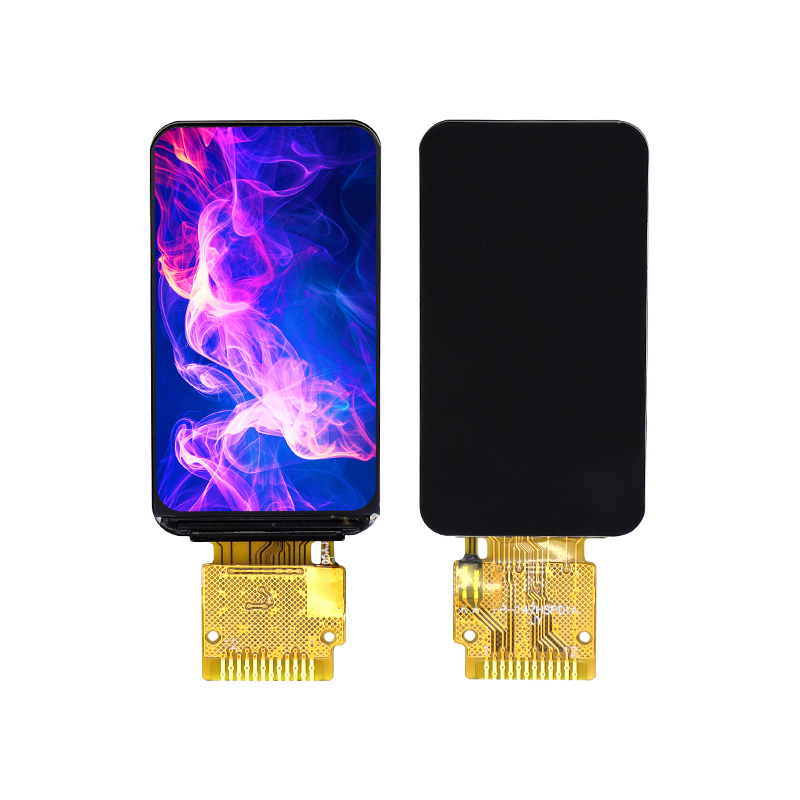

Ether Photoelectric’s 1.47 inch 12-pin soldering COG dot matrix TFT color screen is engineered with advanced production craftsmanship and rigorous quality testing procedures. Different from plug-in displays, the 12-pin soldering connection enhances structural stability, shock resistance and connection reliability, suitable for high-vibration and long-service-life application scenarios. Matched with stable ST7789V3 driver IC and 4-wire SPI universal interface, the product boasts strong compatibility with mainstream embedded control systems. Compact overall dimension and slim 2.0mm thickness maximize space utilization of terminal products. Every display module is produced in standardized dust-free workshops with sophisticated automated equipment and operated by skilled professional technicians. Our company owns independent core R&D technology, mass production capacity of over 100 TFT color module series and 1000+ custom LCD display products. We offer one-stop customized services including appearance modification, pin definition adjustment, brightness enhancement and optical lamination, delivering high-quality display products and comprehensive pre-sales consultation & after-sales guarantee services globally.
Product Name: 1.47" Color Screen
Product Size: 1.47 inch
Resolution: 172 × 320
Display Type: Color
Driver IC: ST7789V3
Connection Method: Soldering 12P
Power Supply: 2.8V–3.3V

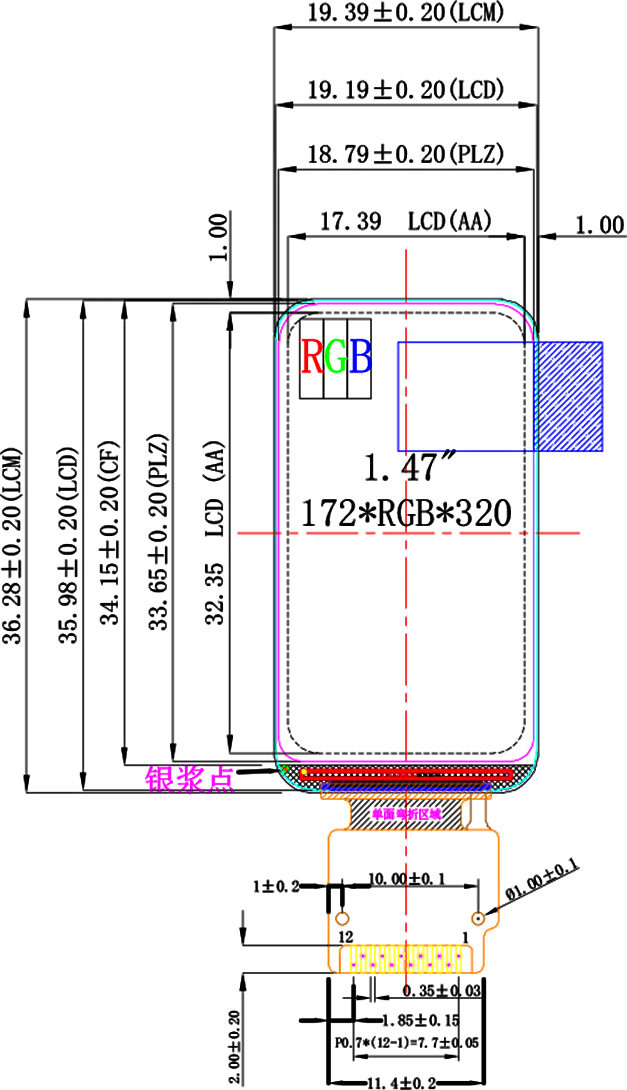

Display Area: 17.39 × 32.35 mm
Interface Type: 4-Wire SPI

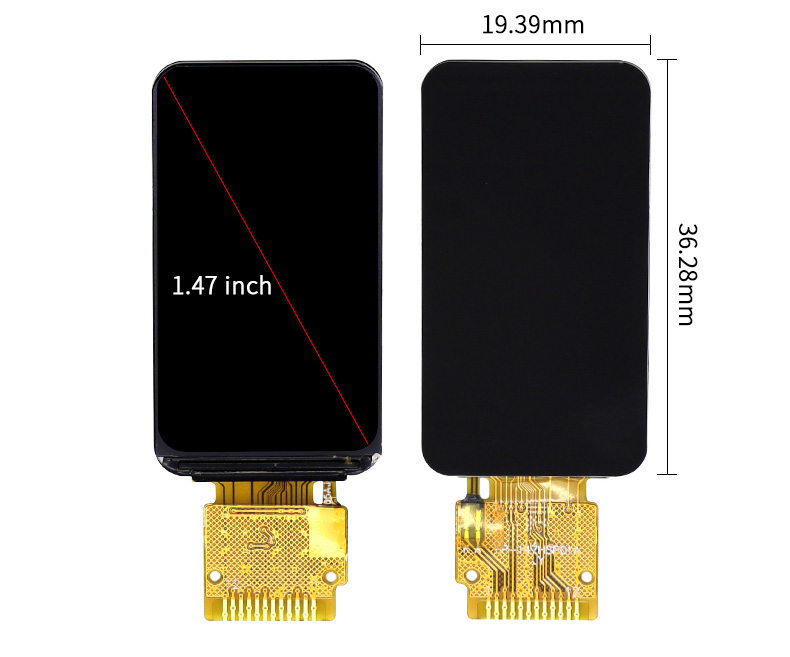

Screen Dimensions: 19.39 × 36.28 × 2.0 mm

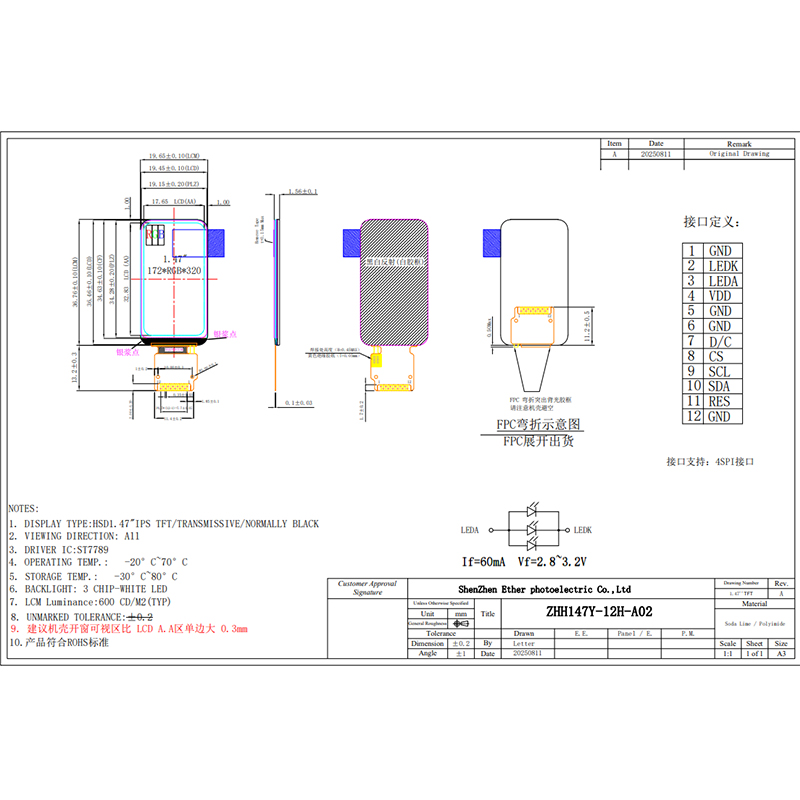

| PIN | DESCRIPTION | PIN | DESCRIPTION |
| 1 | GND | 7 | D/C |
| 2 | LEDK | 8 | CS |
| 3 | LEDA | 9 | SCL |
| 4 | VDD | 10 | SDA |
| L | GND | 11 | RESET |
| 6 | GND | 12 | GND |
Ether Photoelectric is a high-tech enterprise integrating R&D, design, production, sales, and service, with two manufacturing bases in Shenzhen and Jiangxi. We have developed over 100 TFT color screens and colorful module products, as well as more than 1,000 TN/HTN/STN/VA display products. Equipped with advanced facilities, extensive production experience, and a professional R&D team, we offer customized structural designs to meet your needs, ensuring high-quality products and complete after-sales support.
Ether Photoelectric’s 1.47 inch 12-pin soldering COG dot matrix TFT color screen is engineered with advanced production craftsmanship and rigorous quality testing procedures. Different from plug-in displays, the 12-pin soldering connection enhances structural stability, shock resistance and connection reliability, suitable for high-vibration and long-service-life application scenarios. Matched with stable ST7789V3 driver IC and 4-wire SPI universal interface, the product boasts strong compatibility with mainstream embedded control systems. Compact overall dimension and slim 2.0mm thickness maximize space utilization of terminal products. Every display module is produced in standardized dust-free workshops with sophisticated automated equipment and operated by skilled professional technicians. Our company owns independent core R&D technology, mass production capacity of over 100 TFT color module series and 1000+ custom LCD display products. We offer one-stop customized services including appearance modification, pin definition adjustment, brightness enhancement and optical lamination, delivering high-quality display products and comprehensive pre-sales consultation & after-sales guarantee services globally.
Product Name: 1.47" Color Screen
Product Size: 1.47 inch
Resolution: 172 × 320
Display Type: Color
Driver IC: ST7789V3
Connection Method: Soldering 12P
Power Supply: 2.8V–3.3V
Display Area: 17.39 × 32.35 mm
Interface Type: 4-Wire SPI
Screen Dimensions: 19.39 × 36.28 × 2.0 mm
| PIN | DESCRIPTION | PIN | DESCRIPTION |
| 1 | GND | 7 | D/C |
| 2 | LEDK | 8 | CS |
| 3 | LEDA | 9 | SCL |
| 4 | VDD | 10 | SDA |
| L | GND | 11 | RESET |
| 6 | GND | 12 | GND |
Our advantage
Customized a 4-inch financial-grade encrypted display for international banks, using a military-grade IPS full lamination touch screen, compliant with PCIDSS payment security standards. For the high security requirements of the financial industry, we specially designed an anti-peeping structure and tamper-proof frame to ensure data security on self-service terminals such as ATMs. The screen integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, significantly enhancing the customer operation experience and transaction efficiency.
Custom-developed a 3.5-inch high-precision temperature control display for a well-known HVAC brand, using full-view IPS full lamination technology and supporting multi-touch operation. Based on home environment requirements, we adopted an ultra-thin bezel and rounded corner design, perfectly matching modern interior decoration styles. The screen integrates an ambient light sensing intelligent adjustment function, which can automatically optimize display brightness and contrast according to indoor lighting, greatly enhancing user experience and energy-saving effects.
Customized development of a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer, using high-contrast IPS full lamination technology, meeting IP65 protection level requirements. We optimized the dustproof and waterproof structure and wide-temperature design (-30°C~70°C) to meet the special needs of the power industry, ensuring stable operation in complex environments such as substations. The screen integrates an adaptive brightness adjustment system, which can automatically optimize the display effect according to ambient light, significantly improving data reading efficiency and operational safety during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
