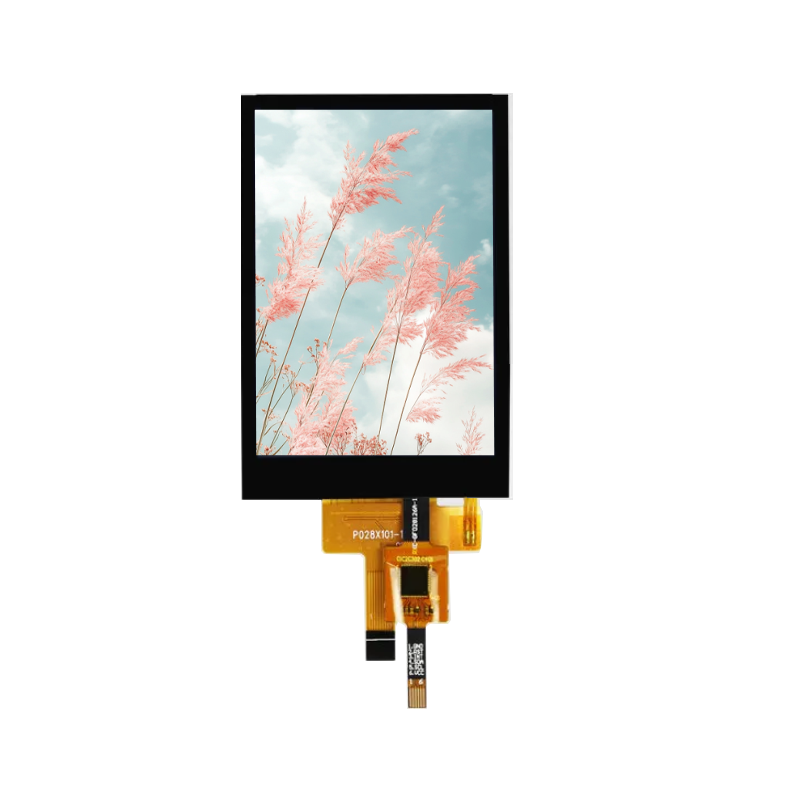

Custom TFT LCD 0.96 ~ 7" LCM IPS Screen 2.4 2.8 3 3.5 4.3 5 7 inch Touch Panel TFT Display LCD Module

Product Details

Product Description

What‍‌‍‍‌ is a TFT LCD?

A TFT LCD module (Thin-Film-Transistor Liquid Crystal Display module) is a type of display module that utilizes thin-film-transistor (TFT) technology for a better display image and response. It consists of several layers such as backlight layer, color filter layer, TFT layer, and glass substrate layer. TFT LCD screens are great for various electronic devices because of their high resolution, quick refresh rate, and low energy consumption.

R&D, Design and Customization

Customized service are acceptable, such as LCD size, touch panel, backlight, brightness, view angle, FPC shape and materials and so on. From software development, data analysis, hardware design and prototyping, our engineer team has 15 years of experience in developing and implementing innovative technologies to meet growing market demands.

Application

Our products are widely used in medical equipment, industrial instruments, telecommunication terminals, smart home and smart wearable device, aviation, automotive, military, retail, gaming and other fields.

Custom Touch Panel

Our TFT displays can be customized with capacitive or resistive touch screens, with glass or acrylic custom panels. In addition, we can also customize blue light filters to protect users' eyes from harmful blue light radiation. The touch panel offers single and multi-touch options. Single-point touch only needs to respond to one touch point, while multi-touch screen needs to respond to the position and action of multiple touch points at the same time, so more advanced touch sensor technology and higher processing power are required to achieve faster response speed.

Free Service:
1. Free Connectors for Sample Order.
2. 50% Discount for Tooling Charge.
3. Free Modification for Tooling of CTP / FPC / Backlight.
4. Free Tooling for Order ≥3000pcs Within 1 Year VIP.
5. Free Tooling for FPC.
6. Free Samples for Standard Products.
7. Free Testing Board for New Projects.
8. Half Tooling Fee for Customizing Backlight / CTP.

From a 0.96-inch mini display window to a 7-inch industrial monitoring screen, from a 200-nit indoor instrument to a 1200-nit outdoor terminal—the range of display requirements is much broader than imagined.

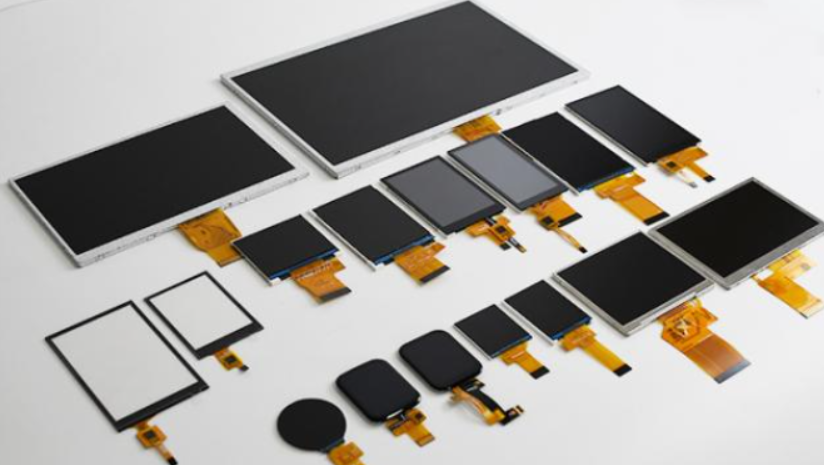

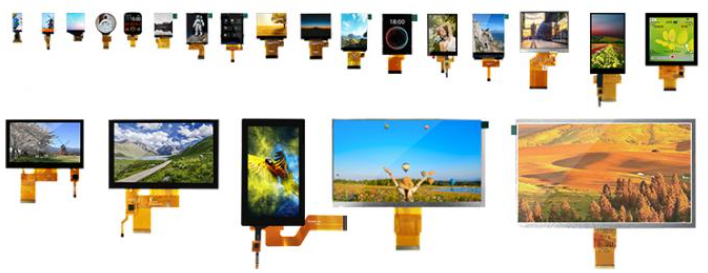

Coverage of all sizes is the main competitiveness of Ether Optoelectronics. Smaller sizes from 0.96-inch to 1.54-inch are mainly smart wearables and miniature portable devices; 2.4-inch to 3.5-inch are handheld terminals and industrial PDAs; 4-inch to 5-inch is the vehicle displays and medical equipment; 7-inch to 10.1-inch is industrial monitoring and commercial terminals. In each size segment, three forms are available: bare display, module, and integrated touch, giving customers freedom to choose according to their depth of integration.

Flexible technical specifications: viewing angle is ips full-angle, can be also 6 o'clock, or 12 o'clock with the directional optimization; interfaces are the four major ones SPI, RGB, MCU, and MIPI; brightness is from 200 nits to 1200 nits, indoors, outdoors, and high-light environment lighting are also covered; touch is capacitive CTP and resistive RTP, interactive demands may be different in different scenarios. To get the deepest pure blacks when the backlight is off and the richest colors when it is on, the transmissive display mode is used.



Factory Showcase

Professional Technicians · Advanced Production Equipment

Efficient operation of Shenzhen Yitai Optoelectronics Co., Ltd. results from team collaboration. 320 employees work together in a 20,000-square-meter factory, company runs 20 production lines with the monthly output of 2.5-3 million units. The R&D team of 28 members is exporting more than 20 patented technologies into products in close cooperation with the production team. Culture of teamwork is deeply rooted since the establishment in 2014. Company is recognized as a national high-tech enterprise, passed ISO9001 certification. Maintenance of cleanrooms at the ten-thousand level and fully automated production lines calls for collaboration. They have over a thousand TN/HTN/STN/VA models and hundreds of TFT color screens, customizable LED backlights. For the small-size market of 0.96-inch to 7-inch displays, with twelve years of collaboration experience, products are widely applied in handheld inspection, portable medical devices, smart homes, IoT terminals, and also exported ‍‌‍‍‌overseas.



Typical Custom Case



Information and communication

We‍‌‍‍‌ custom-made a 3.5-inch industrial-grade intercom display for a top communication equipment manufacturer, featuring a high-brightness IPS fully laminated touch screen and meeting IP67 protection standards. To address the industry's unique requirements, we not only upgraded the shock resistant frame but also designed the exterior with anti-slip texture, which guarantees the device will work reliably in harsh environment. The device comes with a smart light-sensing adjustment feature that can automatically change the display mode between day and night according to the surrounding light, thus making it much easier to see and operate, especially when working outdoors.

Alarm clocks

Designed a 2.8-inch minimalist clock display for a popular home brand that utilizes low-power IPS full lamination technology and also able to support clear display from 180° wide viewing angles. We turned the ultra-thin borderless design and soft light guide structure into the accurate implementation of modern home art after working on bedroom usage scenarios. The screen features a clever light-sensing adjustment system that can switch display modes automatically according to the daylight changes and that will also switch to soft light mode overnight keeping the time visible without disturbing the sleep quality.

Medical devices

Using a high-resolution IPS fully laminated panel and complying with Class B electromagnetic compatibility standards, a 5-inch medical-grade touch display was a custom-made product for a famous medical device manufacturer. We rigorously follow medical ergonomic standards and provide antibacterial bezels together with an anti-glare feature so as to guarantee a stable functioning in operations rooms, for instance. An ambient light intelligent adjustment system is a feature of the screen that automatically modifies the display according to the user’s scenario, thus, visibly cutting down on the visual fatigue of medical staff while also increasing their diagnostic and treatment ‍‌‍‍‌efficiency.

FAQ

1. Can you customize the products?

Yes, we can customize products for content, size with customer's requirements.

2. Can we use our own logo or design?

Yes, you can. You can contact us for the details.

3. Who do I contact if I have a problem?

You can email to us, we will provide quality after-sales service

4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?

MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.

5. How do you pack your product?

We adopt standard export package, cartons or boxes, also can pack it by your requirement.

6. What's your method of payment?

We accept payment by L/C, Western Union, T/T, PayPal etc

7.What shipping methods do you support?

We support sea freight, air freight, international express, railway transportation and special line logistics
