Product Description

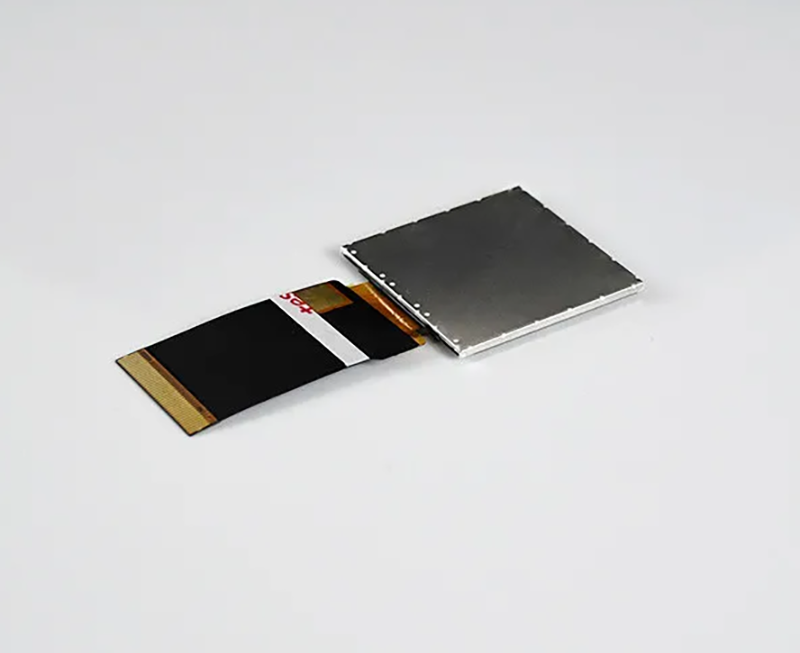

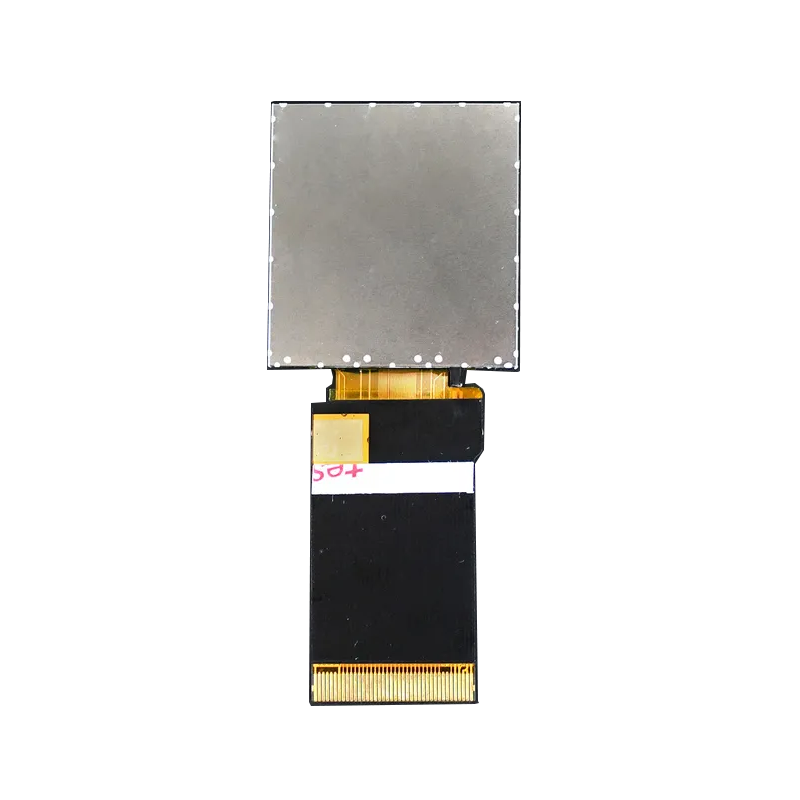

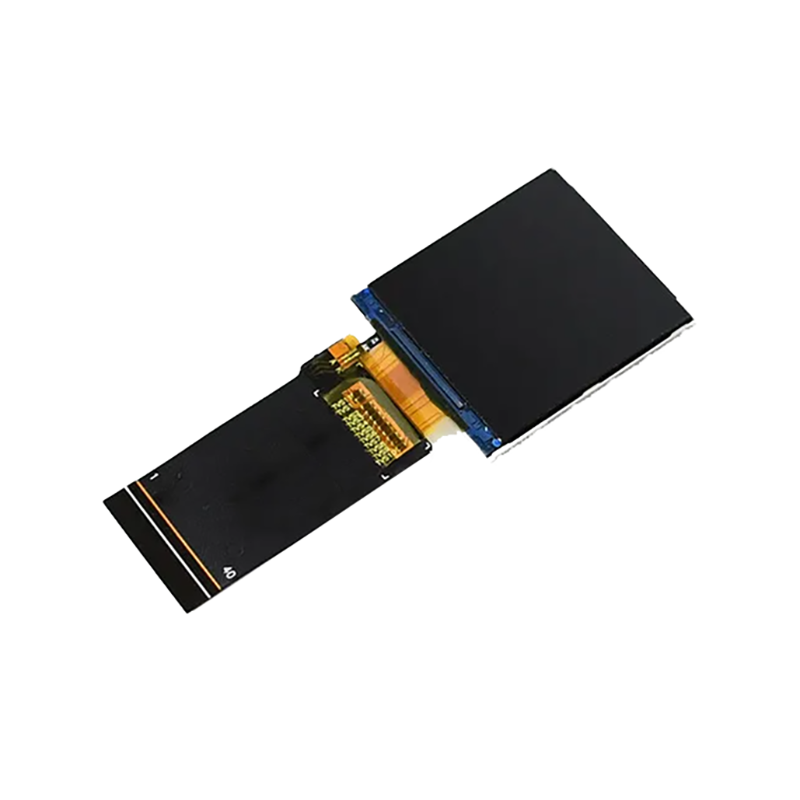

Extremely compact structural dimensions:
Measuring only 31.52×33.72×2.00mm, with a thickness of 2.0mm, the side-entry LED backlight manages to maintain high brightness performance while controlling the overall thickness. This 'card-thin' shape, in fact, allows the module to be embedded inside ultra-compact devices such as smartwatches, portable instruments, and IoT nodes very easily.
| Model | P154H008-40 |
| Screen Size | 1.54 inch |
| Number of Pixel | 240RGB(H)x240(V) |
| Display area | 27.72(H)x27.72(V)mm |
| Pixel pitch | 0.1155(H)x0.1155(V)mm |
| Pin | 40 pin |
| Outline Dimension | 31.52x33.72x2mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 1200:1 |
| Interface | RGB666 |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

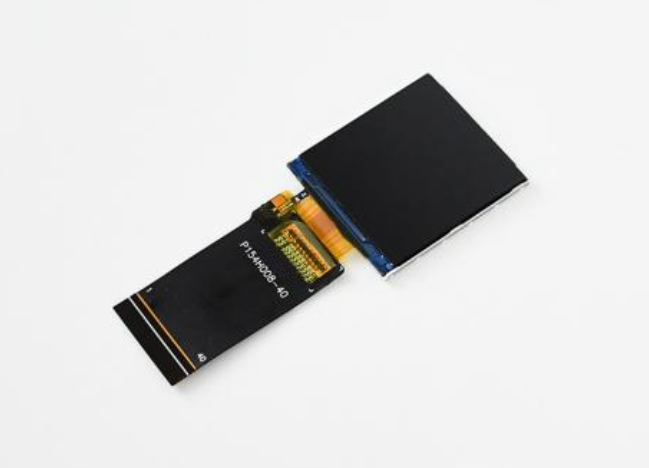

The P154H008-40 is a 1.54-inch square TFT panel with a resolution of 240×240, achieving a 1:1 balanced aspect ratio within a 27.72×27.72mm display area. It features fine 115.5×115.5μm pixels arranged in vertical RGB stripes, thus giving sharp text edges and smooth circular elements without jaggedness. With a brightness of 350 nits and a massive contrast ratio of 1200:1, the interface can be clearly seen in both indoor and outdoor conditions; a color depth of 262K guarantees that gradients, dynamic pointers, and status color blocks display with distinct layers. The normally black display mode causes unlit areas to appear deep and pure black, thus making the display blend in perfectly with the exterior of the device.

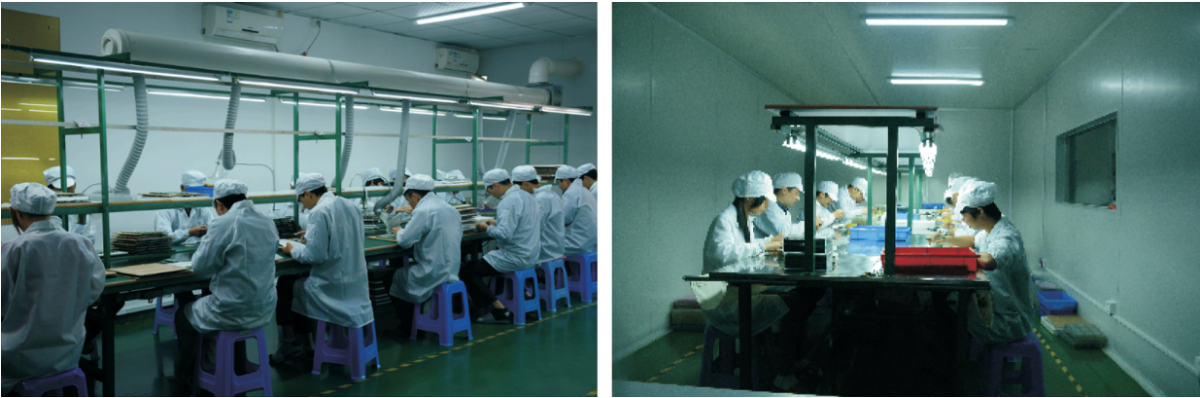

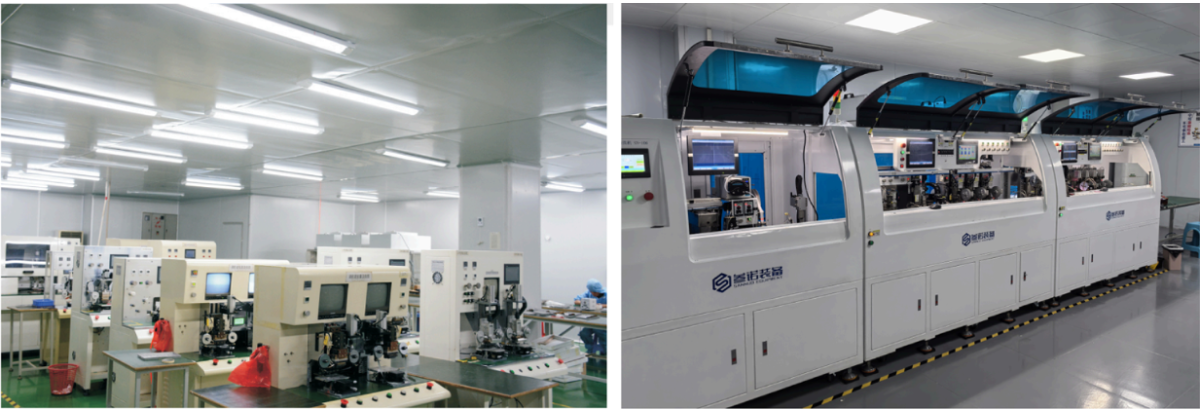

Extreme product reliability is the pursuit of Shenzhen Yitai Optoelectronics Co., Ltd. Each product is taken through a series of tough tests, such as those for high and low temperature, vibration, and anti-interference, to guarantee stable performance under all kinds of complicated environments. The company is home to a 20,000-square-meter manufacturing facility, including a Class 10,000 cleanroom, and the production capacity is 2.5 to 3 million units/month. Currently, the company employs 320 people, of whom 28 are dedicated to R&D and focus on reliability, with 20+ patents covering reliability technologies. It is a national high-tech enterprise with ISO9001 certification. The product range includes over 1000 TN/HTN/STN/VA modules and more than a hundred TFT color screens, with customizable LED backlights. Product portfolio of 0.96-7 inch size covers reliability engineering experience of twelve years and the products are mainly used in medical, inspection, smart home, and IoT fields, and exports are made to Europe, America, and Southeast Asia.
Customized development of a 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, meeting IP67 protection standards. We made the frame more impact-resistant and anti-slip texture design to satisfy the special needs of the industry, ensuring the device runs reliably even under severe conditions. The screen features intelligent light-sensing adjustment technology, which changes display modes automatically from day to night based on light conditions, thus greatly improving the visibility and efficiency during outdoor work.

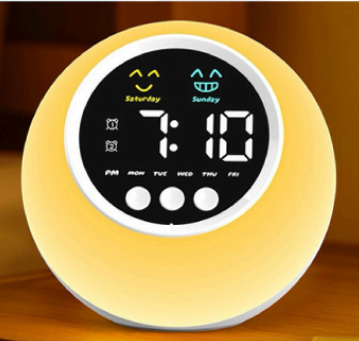

Customized development of a 2.8-inch minimalist clock display for a famous home brand, using low-power IPS full lamination technology and supporting clear display from 180° wide viewing angles. Taking the bedroom as the main usage scene, the ultra-thin borderless design and the soft light guide structure were both optimized to fit in perfectly with the aesthetics of a modern home. The screen also includes an intelligent light-sensing adjustment system that responds to daylight changes in an automatic way and switches to soft light mode at night in order to make sure that the time is visible clearly while sleep gets least affected.

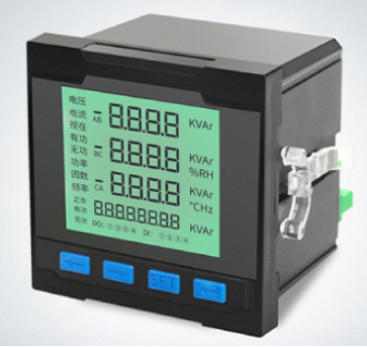

We tailor-made a 4.3-inch industrial-grade instrument display with high brightness and IP65 protection level for a famous power equipment manufacturer, utilizing high-contrast IPS full lamination technology. We have enhanced the dustproof and waterproof structure as well as the wide temperature design (-30°C to 70°C) for the unique requirements of the power industry, thereby ensuring uninterrupted functioning even in highly challenging environments such as substations. In addition, it adopts an adaptive brightness adjustment system that can automatically regulate the display based on ambient light, which greatly increases both data reading efficiency and operational safety while conducting outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
5. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
6.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
7.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
