Product Description
| Model | P0395H01-V2 |
| Screen Size | 3.95 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Display area | 55.68(H)x83.52(V)mm |
| Pins | 40 pins |
| LCM Outline Dimension | 60.88x94.57x2.3mm |
| Viewing Direction(eye) | 12 O’Clock |
| Display Color | 262K |
| Interface | RGB or 8/9/16/18 Parallel |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Input voltage | 2.8V |
High-resolution vertical display and detailed image quality

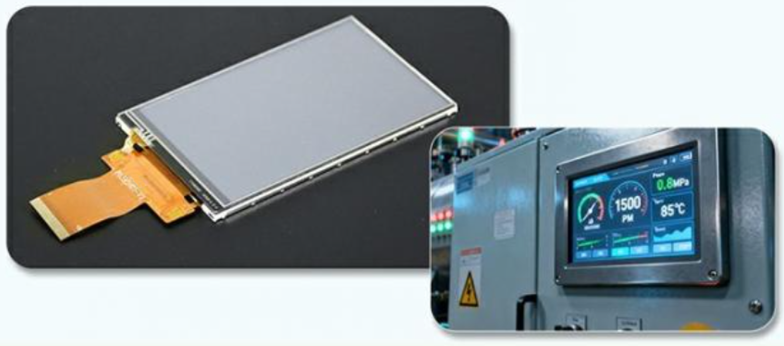

Physically the module contains 320RGB(H) × 480(V) pixels and its real display surface area is 55.68mm (horizontal) × 83.52mm (vertical). It is capable of rendering reliable details for texts and images as well as showing UI details on the 3.95-inch screen. The 480-pixel vertical length is especially good for very long scrolling lists, data tables, and showing vertical navigation menus in full which helps to lessen how often the user turns the page. The display with 262K colors, together with the RGB vertical strip pixel layout, guarantees very smooth and natural color transitions while it also satisfies layered expression requirements of industrial dashboard, data visualization, and multimedia contents.
Industrial-grade wide temperature reliability

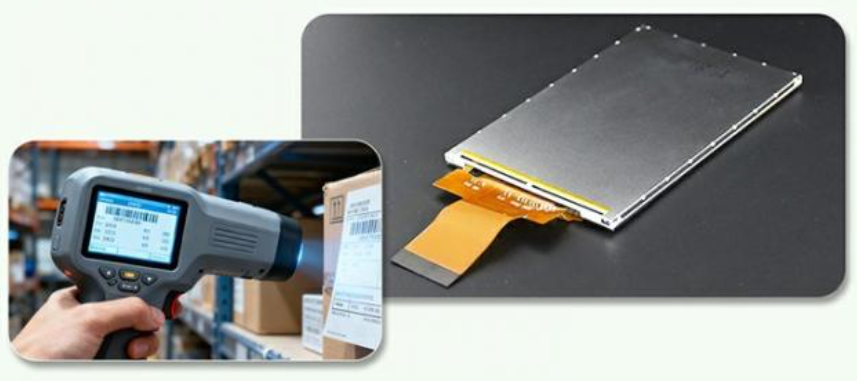

The operating temperature is between -20°C and 70°C, and the product can be stored at temperatures from -30°C to 80°C. Therefore, it perfectly satisfies the severe temperature stress conditions of industrial sites, automotive electronic devices, outdoor measuring instruments, and logistics handheld terminals. The ILI9488 as driver chip has mature temperature compensation circuits and power management ones which keep gamma curves and refresh timings stable even under the temperature extremes, so the display irregularities and color changes are avoided in harsh environments. This particular driver IC enjoys widespread availability of the driver library in the open-source community, so users can rapidly finish hardware debugging and UI migration development.
Accurate structure sizes and assembly fitting

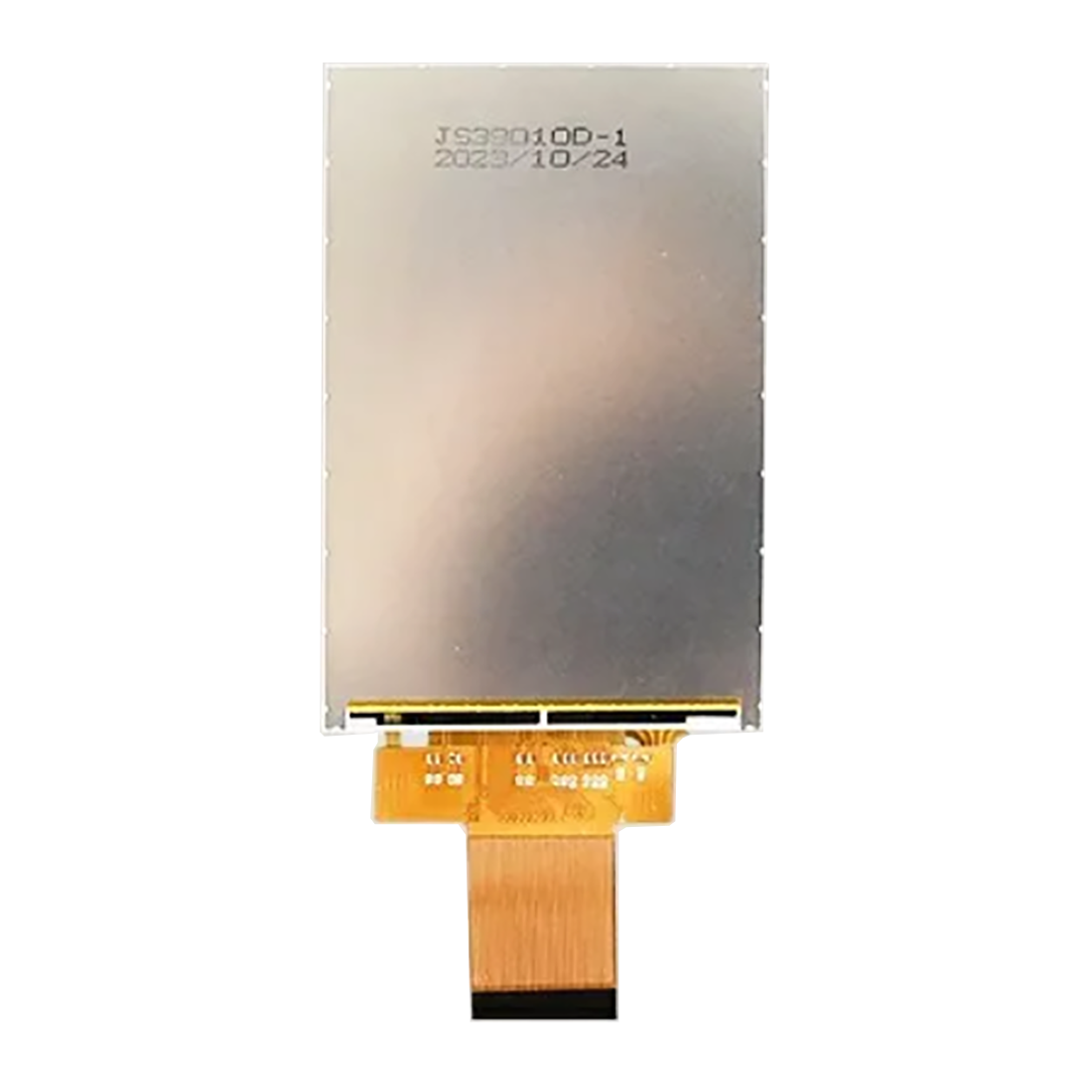

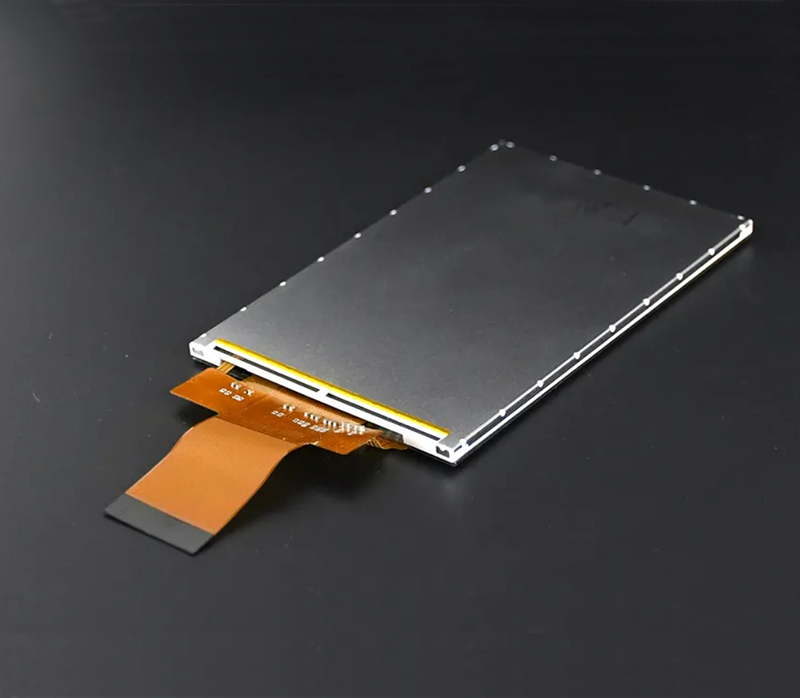

The LCM is 60.88mm × 94.57mm × 2.3mm in size. Its very thin feature makes it suitable for various handheld terminals, portable measuring instruments, and small-sized control panels. The FPC cable is dual-output located at the bottom (part no. P0395H01), featuring 40-pin that is finely laid out and supported for direct insertion or conversion use in mainstream MCU development boards as well as industrial control modules.
Viewing the present through the lens of endgame thinking, every step of Shenzhen Yitai Optoelectronics Co., Ltd. points toward the long term. When it was founded in 2014, the company already planned the path to becoming a national high-tech enterprise, and over twelve years gradually achieved: a 20,000-square-meter base, 20 production lines, a monthly production capacity of 2.5 to 3 million units, a team of 320 including 28 R&D personnel, more than 20 patented technologies, ISO9001 certification—these are all phased achievements of endgame thinking. The ten-thousand-level dust-free purification workshop and fully automated LCD production line are the hardware basis of the company's endgame manufacturing. It produces more than a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and customized LED backlights. The company has focused on small-size products in the 0.96-inch to 7-inch sector. Each product is tested by high and low temperature, vibration, and anti-interference tests, the results of which have in different applications in the medical, inspection, smart home, and IoT terminals areas. The idea for endgame came from Shenzhen and now it is spreading to global endgame points in Europe, America, and Southeast Asia.
We made a charging pile interactive screen of 4.3 inches in size for a top brand in new energy sector, using high-brightness IPS full lamination technology, and complying with IP65 protection level requirements.
We specifically improved the anti-glare feature of the screen and the functioning of the device at a wide temperature range (-30 °C to 70°C) as used for the outdoor complex environments so that the display can clearly show the data even under the most extreme weather conditions.
The screen is equipped with an intelligent light-sensing adjustment system able to continuously optimize the display brightness by a combination of day and night light variations, thereby radically improving the user operation experience.
With this 3.5-inch floor heating temperature control display, the well-known HVAC brand received a high-precision solution, featuring full-view IPS full lamination technology jointly with multi-touch operation support. Besides the technical part of the project, the team in charge also decided to use some of the elements of the contemporary interior design such as ultra-thin bezel and rounded corner that helped to create the perfect product for the customer.
The device boasts an ambient light ambient light intelligent adjustment feature capable of adjusting the display brightness and contrast automatically depending on the lighting of different rooms, so the users will definitely get the best visual gaming experience possible that will also lead to their energy savings.
To support the global expansion of the leading banks, the client ordered the creation of a 4-inch financial-grade encrypted display equipped with a military-grade IPS full lamination touchscreen that is comfortably compliant with PCIDSS payment security standards. For further increase of security, an anti-peep and tamper-proof enclosure are the main attributes of the devices installed in a bank ATM and other self-service terminals environment.
The display hosts an intelligent ambient light adaptation system that can switch automatically to the best display state according to the branch lighting conditions, quite markedly increasing the customer operation experience and transaction efficiency.
