Serial Port Screen

An LCD Module Printed Circuit Board (PCB) is a highly specialized multilayer circuit board that serves as the electronic interface, signal processor, and power distributor for liquid crystal display (LCD) modules. It transforms raw digital data from a host device (e.g., smartphone SoC, automotive ECU) into precisely timed analog/digital signals that physically actuate the LCD panel’s pixels.

TFT-LCDs: Standard COG (Chip-on-Glass) or COF (Chip-on-Flex) bonding. OLED Hybrids: Additional PMIC channels for pixel current control. Mini-LED Backlights: Local dimming drivers with 1000+ zones. Touch Integration: Embedded touch controllers (e.g., mutual capacitance sensing).

LCD Module PCB: The Neural Hub of Display Systems An LCD Module Printed Circuit Board (PCB) is a highly specialized multilayer circuit board that serves as the electronic interface, signal processor, and power distributor for liquid crystal display (LCD) modules. It transforms raw digital data from a host device (e.g., smartphone SoC, automotive ECU) into precisely timed analog/digital signals that physically actuate the LCD panel’s pixels.

Signal Processing & Driving: Converts low-voltage digital video signals (e.g., via RGB, LVDS, MIPI DSI interfaces) into the complex timing and voltage waveforms needed to activate individual pixels on the LCD glass. Power Management: Generates and regulates the various specific voltage levels required by the LCD panel (logic power, gate/source driver voltages) and often the backlight (LED driver). Timing Control: Generates critical clock signals (Hsync, Vsync, Dot Clock) to synchronize the row-by-row, pixel-by-pixel updating of the display.

LCD Module PCB (Printed Circuit Board) is the essential electronic circuit board integrated into a Liquid Crystal Display (LCD) module. It acts as the "control center" or "interface bridge" between the raw LCD glass panel and the main system of the device (like a computer, phone, or microcontroller).

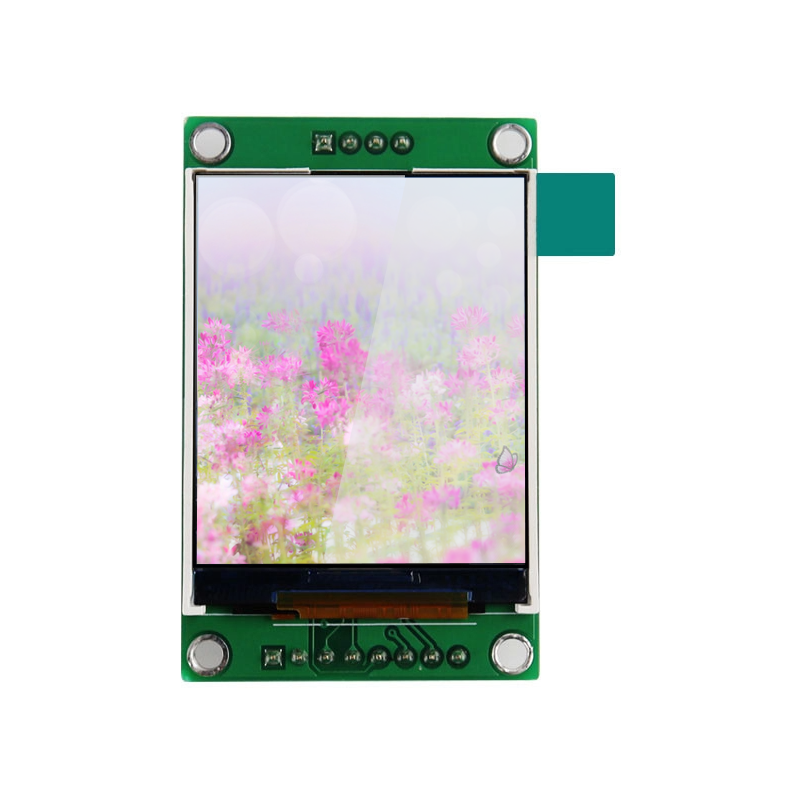

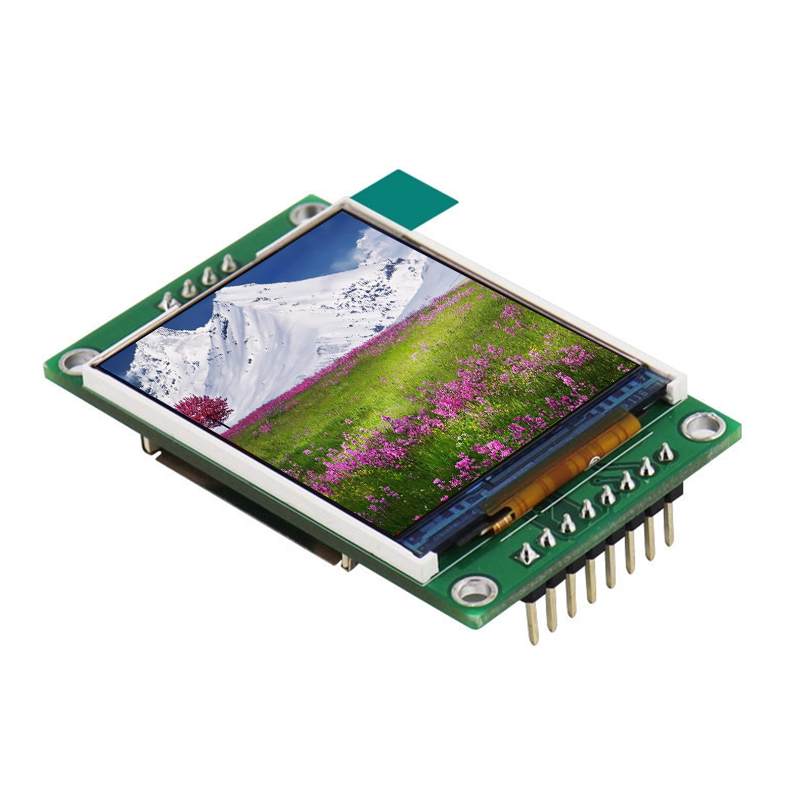

What can we expect from this one? Before this question it is better to know some information about this TFT Touch Screen. If your product requires a size 1.77 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 128*160, clear enough for most scenes to be used. The normal brightness is 250 nits under the test of laboratory.

New published TFT Touch Screen for commercial and industrial use. Screen size is 1.77 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 128*160 resolution product. 250 nits allow this lcd to work well indoors.

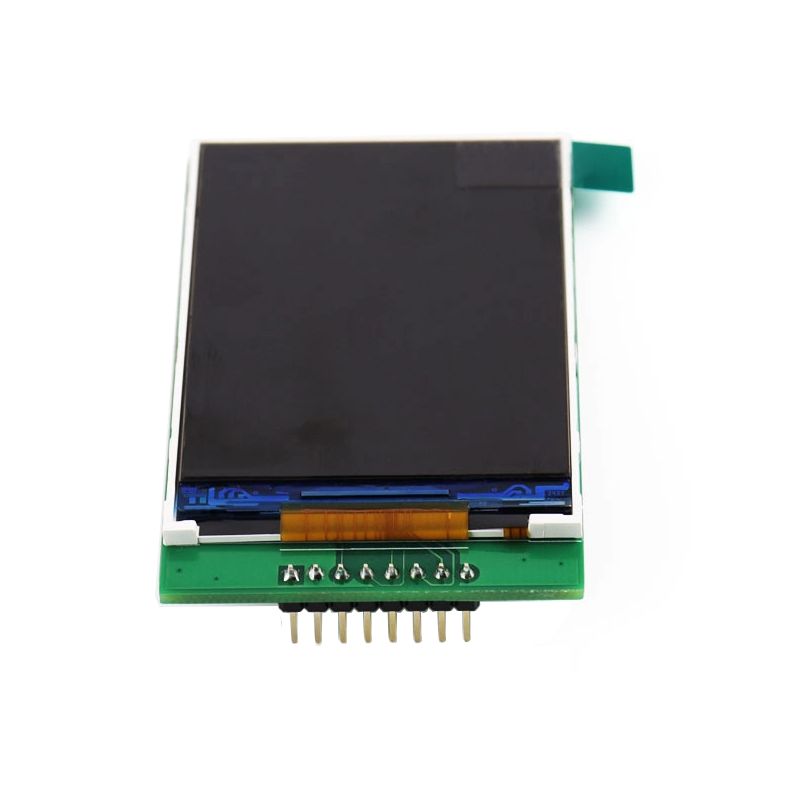

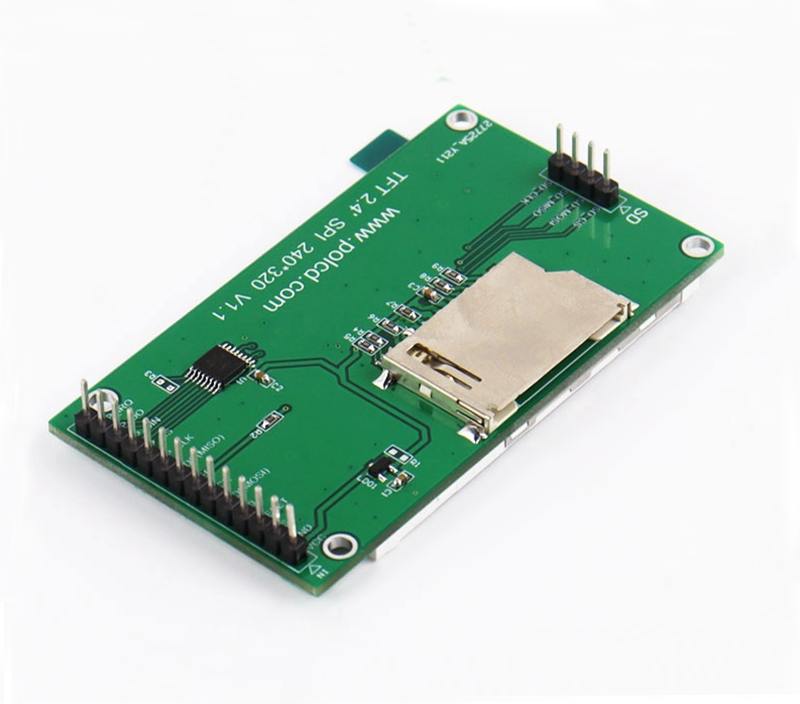

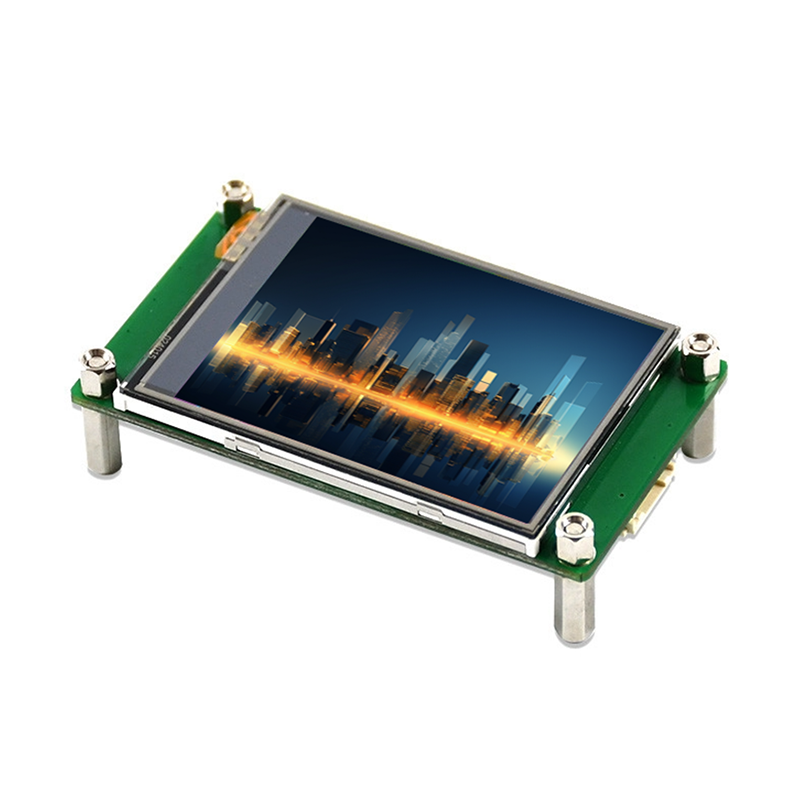

What can we expect from this one? Before this question it is better to know some information about this TFT Touch Screen. If your product requires a size 2.4 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. The normal brightness is 260 nits under the test of laboratory.

New published TFT Touch Screen for commercial and industrial use. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 320 resolution product. 260 nits allow this lcd to work well indoors.

It is often suitable for use in electronic products with small-size TFT-LCD screens, such as various small household appliances, smart home appliances, industrial control panels, electronic instruments, medical equipment, small testing equipment and other products.

It is often suitable for use in electronic products with small-size TFT-LCD screens, such as various small household appliances, smart home appliances, industrial control panels, electronic instruments, medical equipment, small testing equipment and other products.

Function introduction: 1. Support Uart serial communication, Boudrate up to 115,200bps. 2. Built-in efficient 32Bit MCU to parse serial port instructions. 3. Can support SPI serial port/8bit parallel port MCU screen. 4. Supports external SPI Flash, which can store pictures, animations, fonts and other information. ......
