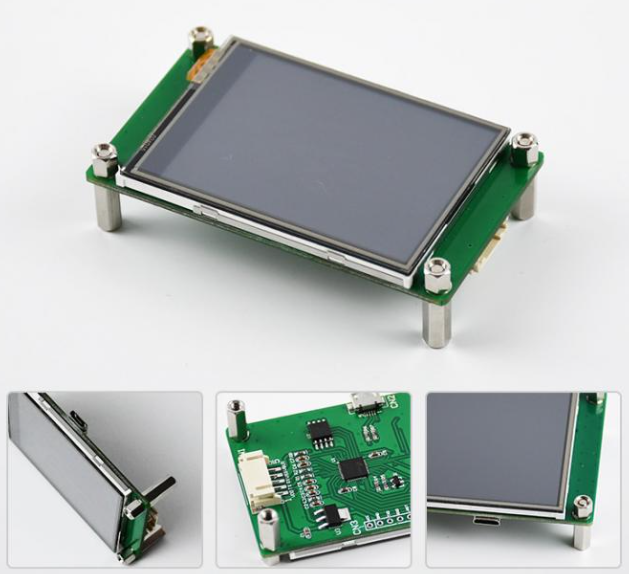

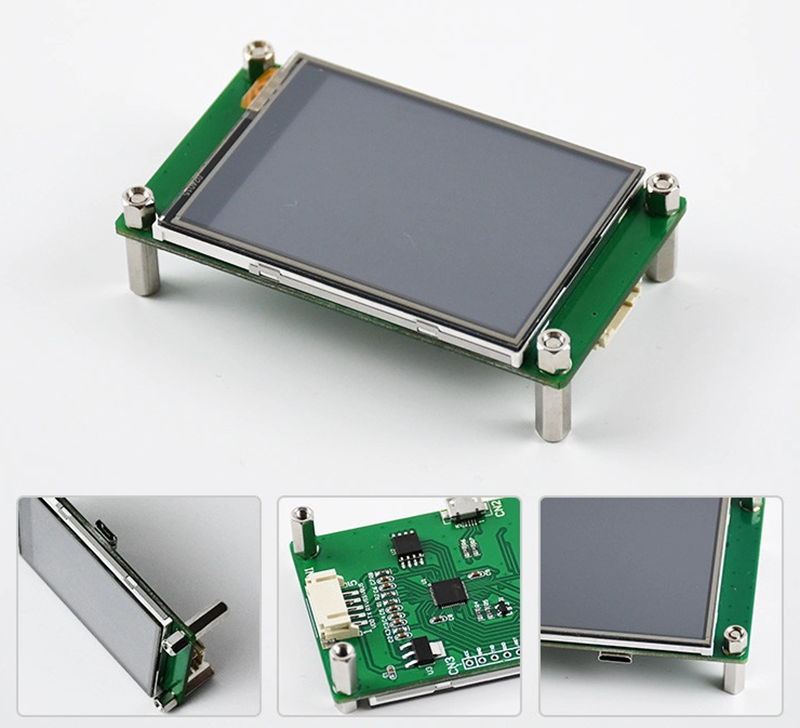

Parameter
| Product name | Serial Port Screen |
| Model | P024A1001 |

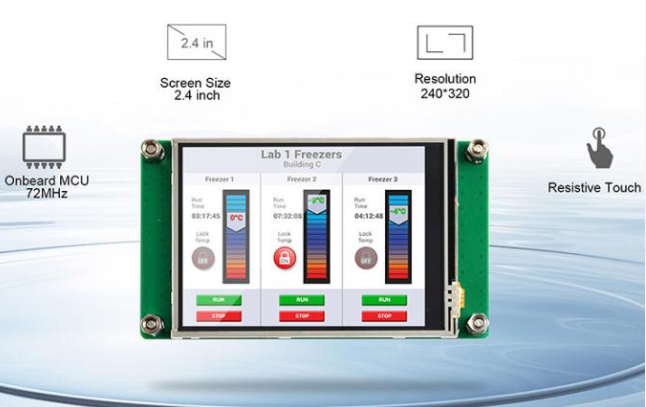

| Screen Size | 2.4 inch |
| Number of Pixel | 240x320 |
| Touch Screen | Resistance Touch |
| Display area | 36.72(H)x48.96(V)mm |
| Back-light | LED Side-light type |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Function introduction:
1. Support Uart serial communication, Boudrate up to 115,200bps.

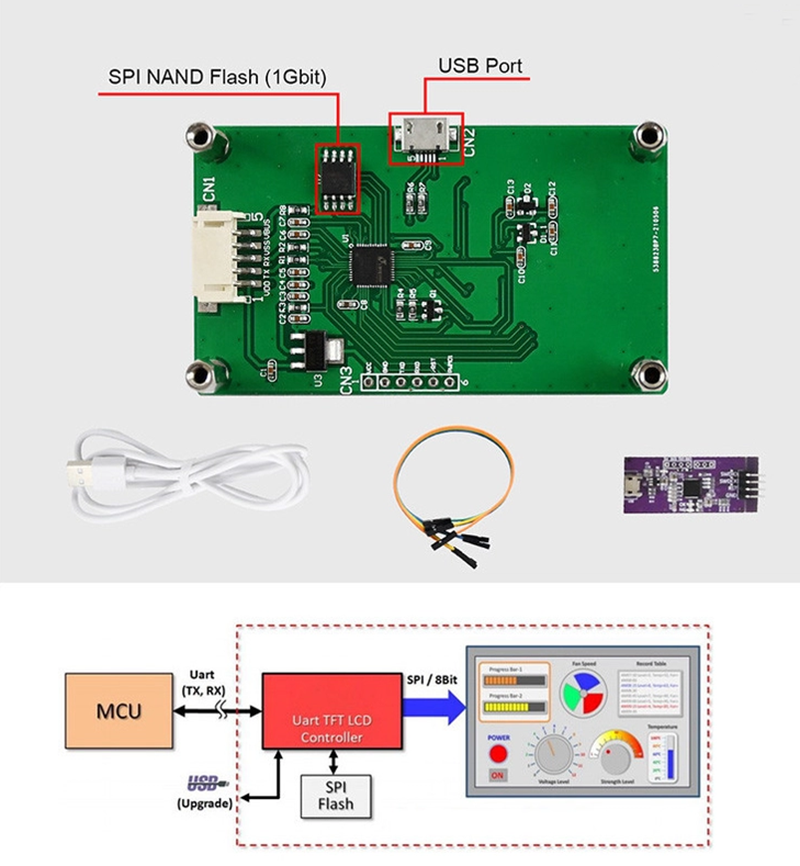

2. Built-in efficient 32Bit MCU to parse serial port instructions.
3. Can support SPI serial port/8bit parallel port MCU screen.
4. Supports external SPI Flash, which can store pictures, animations, fonts and other information.
5. Supports picture display, GIF animation display, loop picture display, startup screen display, progress bar display, and text string display command functions.
6. Supports drawing command functions such as points, lines, circles, triangles, and rectangles.
7. Support UartTFT_Tool and UI_Editor development software.
8.Support resistive/capacitive touch screen.
9. Support USB update program and update SPI Flash data function.
10. Provide PWM/GPIO output.
11. Built-in clock signal source.
12. Working voltage: 3.0~3.6V.
13.QFN-48Pin
Dynamic capabilities enable Shenzhen YiTai Co., Ltd. to adapt to technological changes. In the evolution of display technology from TN to TFT, and from monochrome to color, the 28-person R&D team leads the company's dynamic adjustments, while 20 production lines with a monthly capacity of 2.5 to 3 million units flexibly switch production. A 320-member team learns new skills, and 12 years of dynamic adaptation has accumulated experience. Established in 2014, the company has obtained ISO9001 certification, over 20 patented technologies, and the qualification of a national high-tech enterprise. The 20,000-square-meter base includes a ten-thousand-class cleanroom and fully automated production lines, with dynamically upgraded equipment. More than a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and custom LED backlights focus on small-sized displays from 0.96 inches to 7 inches.Our products are mainly used as components of medical devices, smart home, IoT and testing equipment, the major markets being China, Europe, America, and Southeast Asia.
We designed a 4.3-inch industrial-grade instrument display for a famous power equipment manufacturer, using high-contrast IPS full lamination technology and conforming to IP65-level protection requirements. Besides optimizing the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for the specific requirements of the power industry, we also made sure that the product will run steadily even in complex environments such as substations. A brightness sensor-based ambient light adaptive system is also built-in, which can automatically adjust display effects based on the surrounding light and thus significantly enhance data reading efficiency and operational safety during outdoor inspection.
We designed a 4.3-inch charging pile interactive screen featuring a high-brightness IPS full lamination technology for a well-known new energy brand, complying with the IP65 protection level requirements. Besides anti-glare and wide temperature operation performance (-30°C~70°C) optimization for the outdoor environment, we also ensured the product display will be visible under different weather conditions. An intelligent light-sensing adjustment system is integrated which can automatically optimize display brightness according to the lighting changes at day and night, greatly enhancing the user operation experience.
We developed a 3.5-inch high-precision temperature control display powered by full-view IPS full lamination technology and supporting multi-touch operation for a famous HVAC brand. We designed the ultra-thin bezel and rounded corners based on the requirements of a home environment, which will complement modern interior decoration styles perfectly. The screen is also equipped with ambient light intelligent adjustment function to automatically optimize the display brightness and contrast according to the indoor lighting, resulting in better user operation experience and energy saving.
