Product Description
Interface Connectors
Host side: We use board-to-board connectors, FPC sockets (0.4mm pitch are common).
Panel side: We use ultra-fine pitch ZIF (Zero Insertion Force) connectors (0.1–0.3mm pitch).
Backlight: LED anode/cathode pads or connectors.
Integration with Display Technologies
TFT-LCDs: Typical standard bonding arrangements for COG (chip-on-glass) or COF (chip-on-flex) are used.
OLED Hybrids: For pixel current control, a few PMIC channels are allotted separately.
Mini-LED Backlights: About 1000 local dimming zones needed for the driver.
Touch Integration: Touch controllers can be embedded (e.g., mutual capacitance sensing).

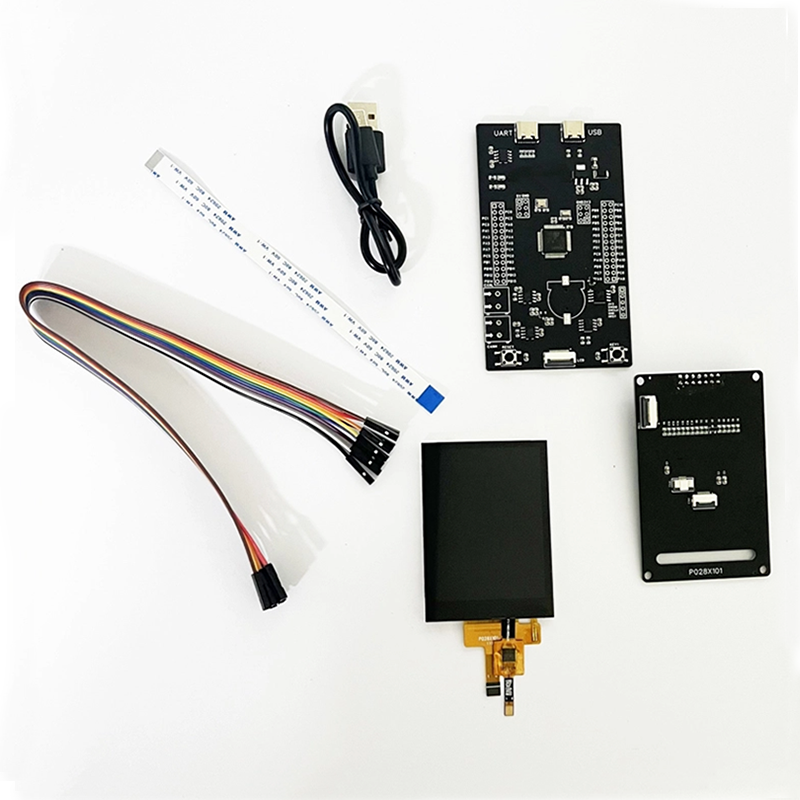

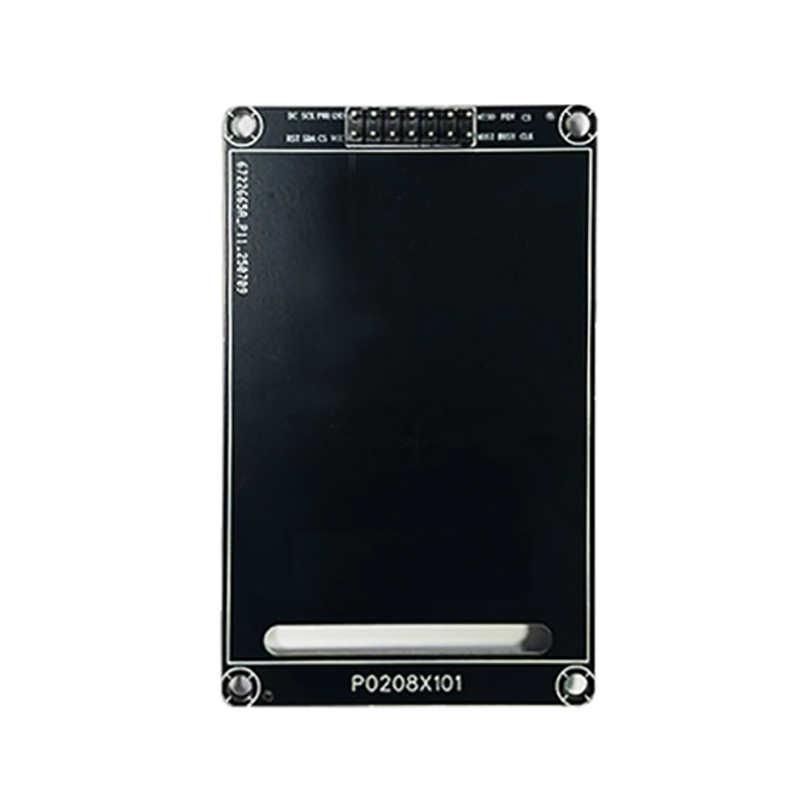

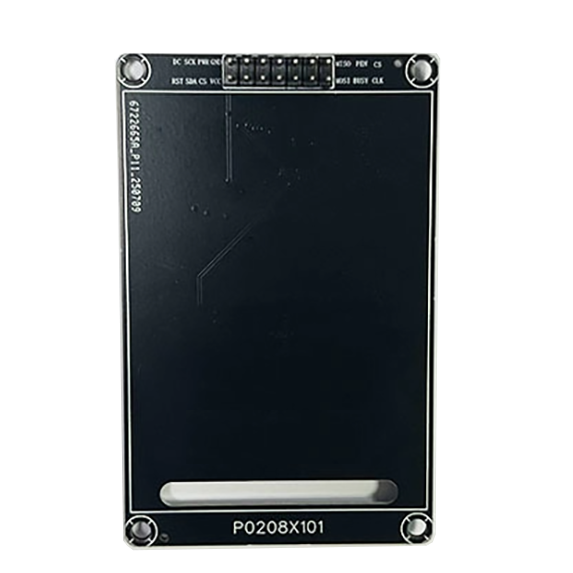

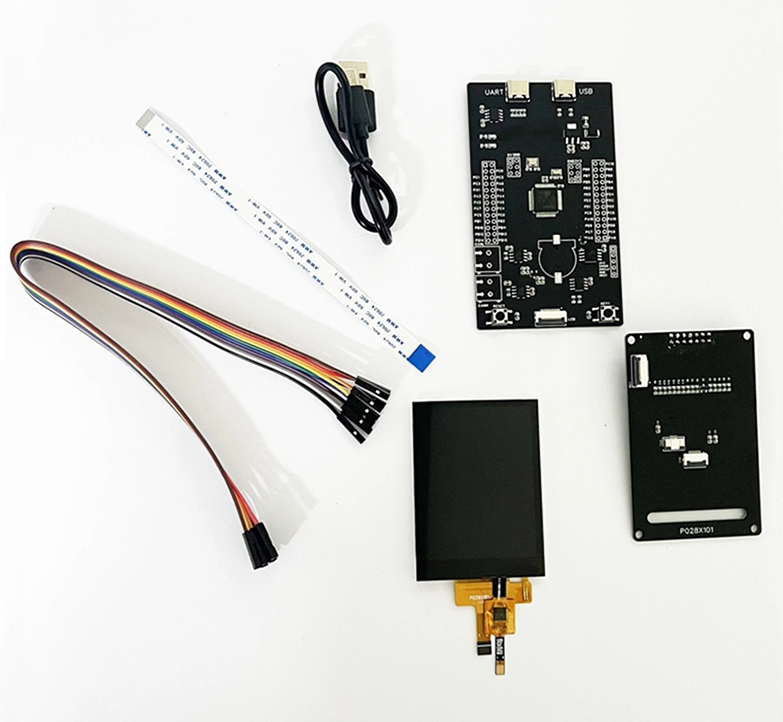

The P0208X101 is a 2-inch LCD display module PCBA with mechanical and electrical integration of a display panel, control circuit, communication interface, and memory unit. This is a black PCB board with the model number P0208X101 printed on the front and four metal mounting screw holes at the corners for convenient installation to device housings or control panels. Overall, the look and feel are very professional and compact. The product is industrial-grade and suitable for various sectors such as medical, smart homes, and instrumentation.
Shenzhen YiTai Optoelectronics Co., Ltd. considers Process Excellence as the principle of operations. Each step from order reception till finished goods shipment has time standards, quality gates, and accountability tracking. The 20 production lines with a monthly total capacity of 2.5 to 3 million units have processing excellence as a requirement to ensure efficiency. The 320 employees' team is significantly led in optimizations by the 28 R&D staff. Their 12 years of process mastery records are aimed at continuous improvement. The company, founded in 2014, is organized on an ISO9001 certified process basis, holding over 20 patent technologies including inventions at a process level and possessing national high-tech-enterprise credentials. The 20,000 square meter facility consisting of a 10,000-class cleanroom and fully automated production lines are the physical bases for process implementation. The product spectrum includes over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and LED backlight customizations. The company focuses on small-sized displays from 0.96 inches to 7 inches. Products pass through stringent quality-control testing and their applications are widespread in medical, inspection, smart home, and IoT terminals. The process excellence makes their strong sales easy both at the domestic and international levels.
4.3-inch interactive screen of charging pile for famous new energy car brand customized, is the use of high-brightness IPS full lamination technology, the products can meet the IP65 protection level requirements. We have mainly focused on anti-glare features and capability extended temperature operation (-30°C~70°C) to ensure that the product is always clearly visible under all weather conditions. Our product is equipped with an intelligent light-sensitive adjustment system that automatically tailors the display brightness during daytime and nighttime light changes, enhancing significantly the user operation experience.
We customized a 5-inch touch display for medical use for a famous medical devices manufacturer. The device was made out of a high-resolution IPS fully laminated panel, meeting the Class B electromagnetic compatibility standards. We follow medical ergonomics very closely, incorporating antibacterial bezels and anti-glare designs for stable operations in complex cases such as operating rooms. The display offers ambient light intelligent adjustment which automatically changes its settings based on the user scenario minimizing the medical staff's eye fatigue while increasing the efficiency of diagnosis and treatment.
To customize a 4-inch financial-grade encrypted display for international banks, a military-grade IPS full lamination touchscreen was used, which complies with PCIDSS payment security standards. To satisfy the stringent security requirements of the financial industry, we have specially designed an anti-peeping structure and tamper-proof frame to ensure the security of data on ATMs and other self-service terminals. The screen comes with a smart ambient light adaptation system that can automatically switch to the best display mode according to the lighting conditions of the branch. This has greatly enhanced customers' experience during operation and their transaction efficiency.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
