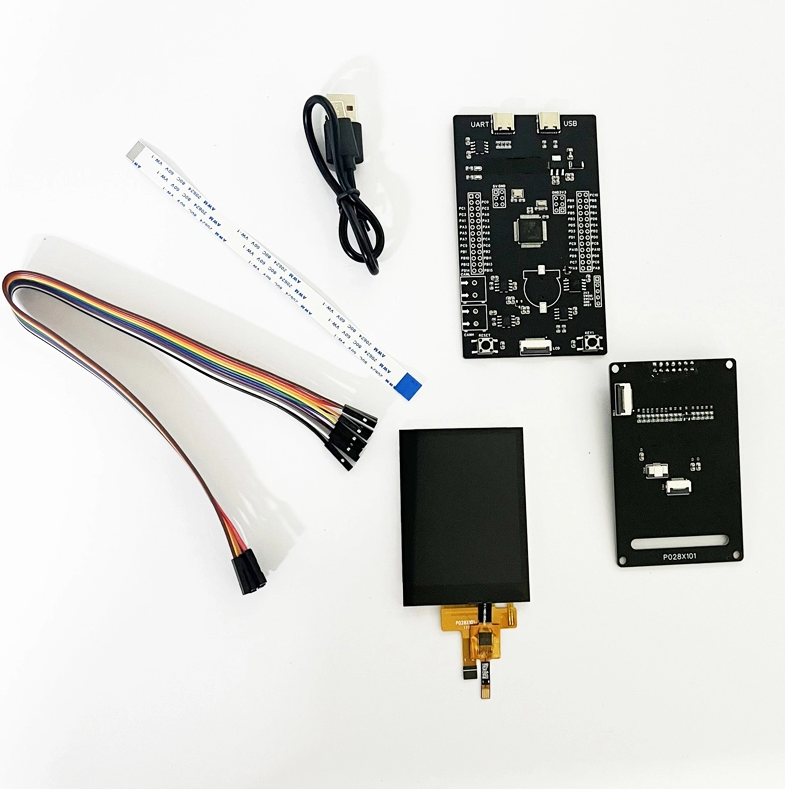

2.4 2.5 3.2 inch LCD Panel Pcb Boards Pcb Board China Manufacturer Pcba Electronic Assembly

BrandYiTai
Product originShenzhen, China
Delivery time 1~7 working days
Supply capacity 500,000 piece per week

Signal Processing & Driving: Converts low-voltage digital video signals (e.g., via RGB, LVDS, MIPI DSI interfaces) into the complex timing and voltage waveforms needed to activate individual pixels on the LCD glass. Power Management: Generates and regulates the various specific voltage levels required by the LCD panel (logic power, gate/source driver voltages) and often the backlight (LED driver). Timing Control: Generates critical clock signals (Hsync, Vsync, Dot Clock) to synchronize the row-by-row, pixel-by-pixel updating of the display.

Get Best Price

Payment & Shipping Terms

Minimum Order Quantity	1 piece	Price	Please contact us for latest price
Packaging Details	20cm 30 cm 40 cm	Delivery Time	5-8 working days
Payment Terms	T/T,L/C, Credit card, PayPal	Supply Ability	500,000 piece per week

Product Description

Key Responsibilities:

Signal Processing & Driving: Converts low-voltage digital video signals (e.g., via RGB, LVDS, MIPI DSI interfaces) into the complex timing and voltage waveforms needed to activate individual pixels on the LCD glass.

Power Management: Generates and regulates the various specific voltage levels required by the LCD panel (logic power, gate/source driver voltages) and often the backlight (LED driver).

Timing Control: Generates critical clock signals (Hsync, Vsync, Dot Clock) to synchronize the row-by-row, pixel-by-pixel updating of the display.

Physical Connection Hub:

Connects to the host device via a cable/connector.

Connects to the LCD glass panel itself, usually via a fine-pitch Flexible Printed Circuit (FPC).

Connects to the backlight unit.

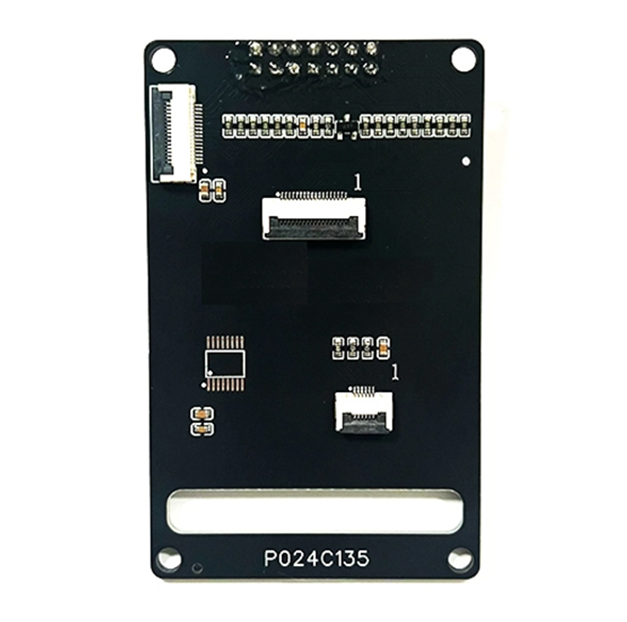

2.4 inch LCD panel PCB board
