| P/N | P024C117SD |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
The module's dimensions are 42.72 × 60.26mm, with a slim thickness.
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. From the datasheet we can know the driver of the LCD is is ST7789V2.
The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

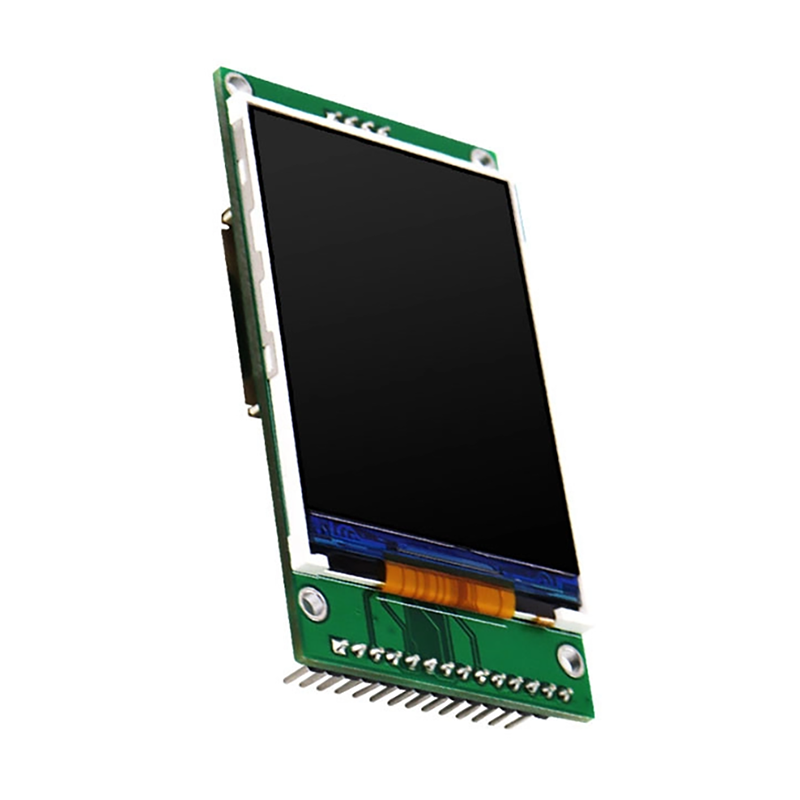

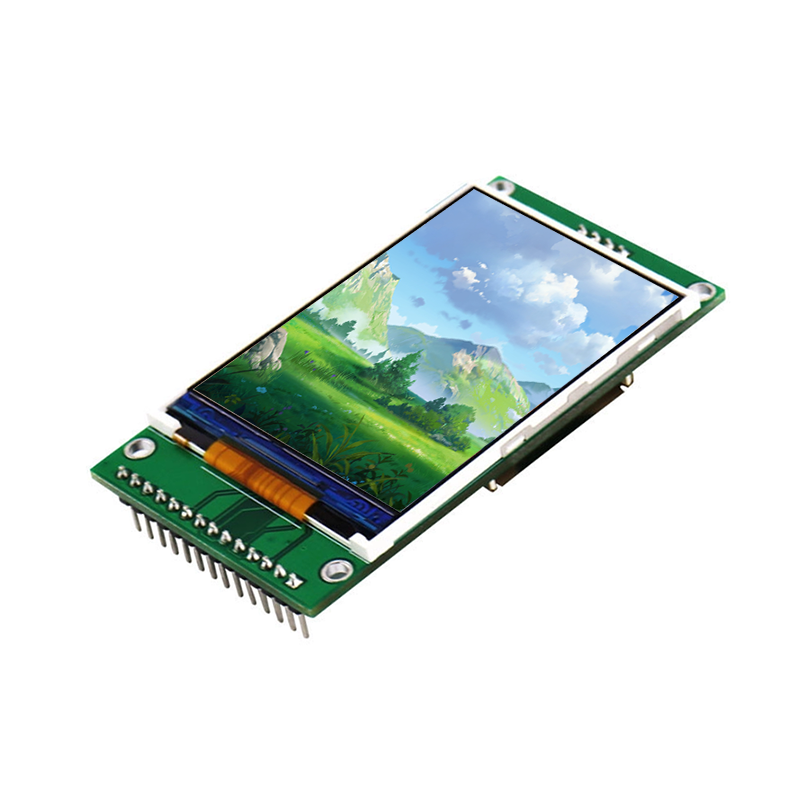

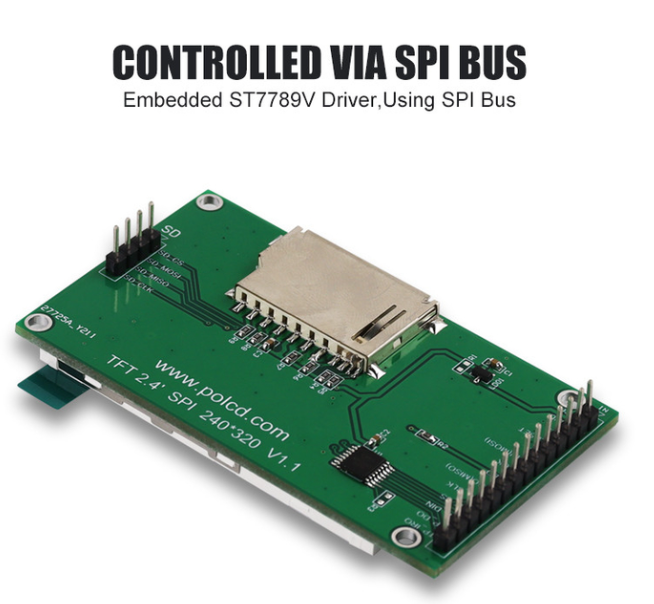

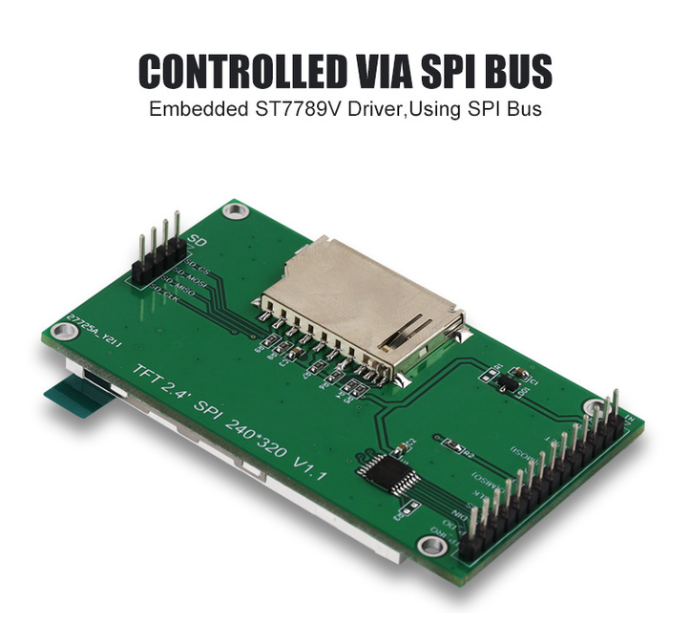

The model P024C117SD is a 2.4-inch TFT LCD touch panel that comes with a basic configuration of 260 nits brightness and ST7789V2 as the driver chip. This module is a mini smart display unit and it is controllable via SPI bus. The display has a pixel count of 240×320 pixels where the pixels are packed thoroughly and sharply within 2.4-inch display area, whose effective display area measures 36.72×48.96mm. Not only that, it has been vertically pixel arranged so as to be compatible with vertical screen operation habits of handheld devices and portable terminals and this stretch its usage to include industrial handheld instruments, medical equipment, smart home controllers, and data loggers, etc.
Shenzhen YiTai Optoelectronics Co., Ltd. goes beyond the desire for profit and profit-making, which is driven by the mission. Producing precise, reliable, and increasingly accessible small-size displays enabling the service of human health and the intelligent life is what makes the company tick. Thanks to its mission, the company was founded in 2014 and has a dual purpose: 1) occupy a 20,000 sqm production site, 2) operate 20 production lines that can manufacture 2.5 to 3 million units per month, 3) employ a 320-strong team including 28 R&D staff focused on the mission. Besides being ISO9001 certified, with over 20 patented technologies, national high-tech enterprise qualification and class-10,000 cleanroom, the company also has fully automated LCD production lines, which all collectively act as the material basis for the mission. Over a thousand TN/HTN/STN/VA products, more than a hundred TFT color screens, and customized LED backlight sources are the main focus of the company’s product line, based on small-size displays from 0.96 inches to 7 inches. Products go through rigorous testing and are extensively used in handheld testing instruments, portable medical devices, smart home control panels, and IoT terminals, with the mission leading to the products doing well both domestically and internationally.
Customized a 4.3-inch charging station interactive screen for a famous new energy brand, employing high-brightness IPS full lamination technology, complying with IP65 protection level standards. We specifically worked on the anti-glare feature and the operation temperature range (-30°C~70°C) for outdoor environments, so the display remains clear in all weather conditions. The display is equipped with an intelligent light-sensing adjustment system that can change its brightness automatically based on the natural light, thus greatly improving the user interface.
We did a bespoke creation of a 2.8-inch minimalist clock display for a home brand famous for its designs, employing low-power IPS full lamination technology that is able to support clear display even from 180° wide viewing angles. In accordance with the bedroom scene of use, we went for a thin, borderless design and a soft light guide structure to achieve a perfect modern home aesthetic. The screen is equipped with an intelligent light-sensing adjustment system that in the daytime the display mode gets automatically switched as per the light levels and that switches to the soft light mode automatically at night, allowing the time to be easily read without compromising on sleep quality.
We made a 3.5-inch high-resolution dashboard display for the client, employing high-contrast IPS full lamination technology to guarantee clear display even under bright light conditions. Complying with automotive-grade standards, we redesigned the ultra-thin bezel and the curved shape so that they correspond exactly to the interior style of the cockpit. Moreover, the screen features a smart light sensor system that can automatically modify the brightness and color temperature based on ambient light changes, which greatly improves driving safety and visual comfort.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
