Parameter:

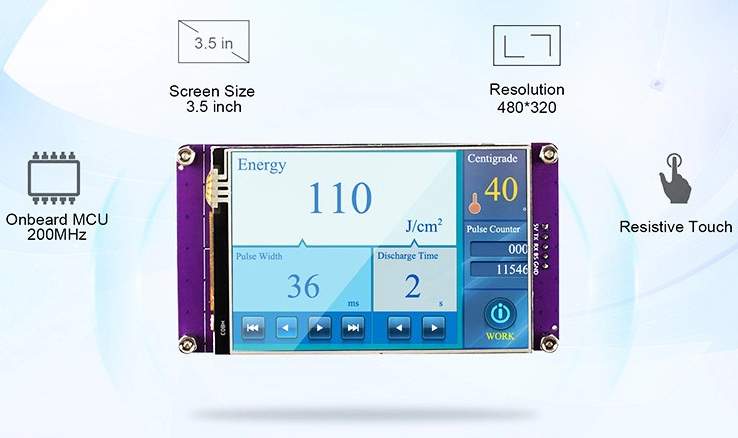

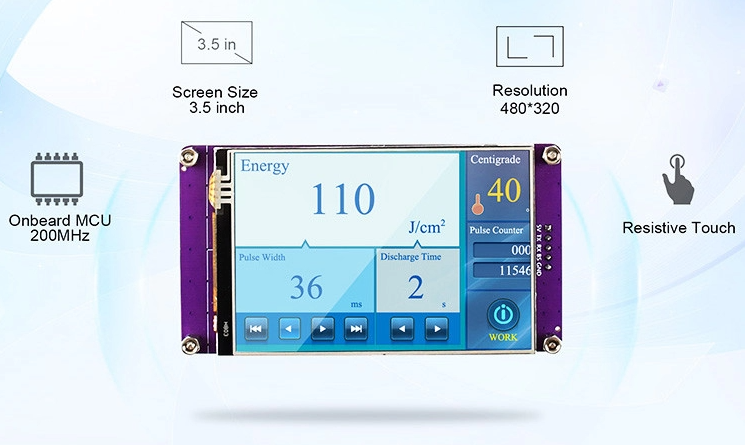

| Product name | Serial Port Screen |
| Model | P035A1001 |
| Screen Size | 3.5 inch |
| Number of Pixel | 480x320 |
| TFT Panel | 8bit 8080 |
| Touch Screen | Resistance Touch |
| Display area | 48.96(H)x73.44(V)mm |
| Back-light | LED Side-light type |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Application:
It is often suitable for use in electronic products with small-size TFT-LCD screens, such as various small household appliances, smart home appliances, industrial control panels, electronic instruments, medical equipment, small testing equipment and other products.

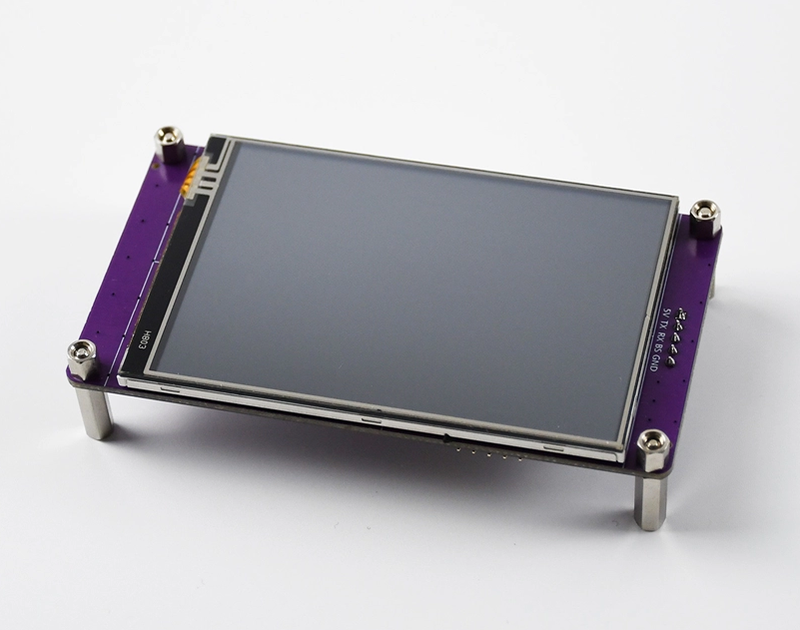

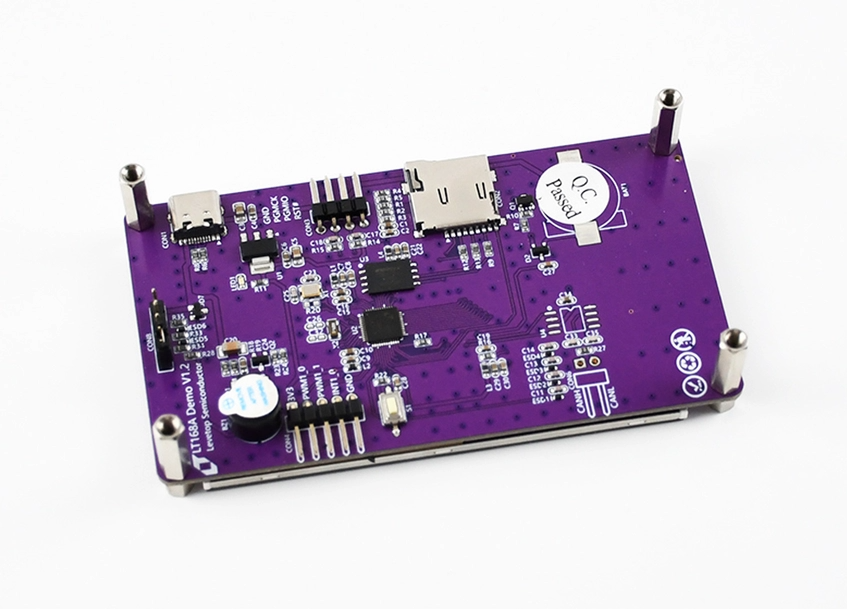

The module uses a purple PCB control board as the base, with metal support columns and mounting screw holes at the four corners, making it easy to install in equipment chassis or control panel cabinets. The PCB integrates a USB Type-C interface, pin header expansion interface, buzzer, and power management circuit. On the back side, there is a sticker indicating that the QC Passed quality label is attached. Besides, all parts are lined up very nicely and soldering is done very well. The front display panel and main control board are linked by an FPC ribbon cable. The screen has a transparent touch layer, which is very thin and you can hardly see any difference; when the screen is switched off, the surface shows a uniform dark gray color. The overall effect very much resembles a professional-high end sleek piece of equipment.

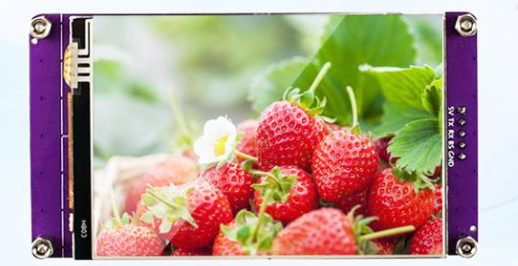

Environmentally speaking, the device can be used at temperatures between -20 and 70 ℃. It can even be kept at a temperature of between -30 and 80 ℃. This allows the equipment inside cold outdoor containers to run smoothly, as well as the high temperature industrial control cabinets. The display of a strawberry, which is shown at the highest resolution, is very attractive and eye-catching because of the colors and their brightness. There are different color layers and the display conveys that the module is very good at showing colors and images with great fidelity.
A clear value proposition defines the market positioning of Shenzhen YiTai Optoelectronics Co., Ltd. The company promises its customers: in the field of small-size displays, high-precision display technology, deeply customized services, and reliable quality assurance. On the one hand, the infrastructure of 20,000 square meters, 20 lines of production, and an ability to produce 2.5 to 3 million units monthly have been put in place to be able to deliver the value proposition. On the other hand, the team of 320 which includes 28 people who do R&D indeed live the value proposition, and having 12 years being consistent, the result has been trust.ISO9001 certification, more than 20 patented technologies, national high-tech enterprise qualification, a ten-thousand-level cleanroom, and fully automated production lines support the value proposition. With over a thousand TN/HTN/STN/VA products, more than a hundred TFT color screens, and customized LED backlights, the company focuses on the 0.96-inch to 7-inch market. Products undergo rigorous environmental testing and are widely used in the fields of medical equipment, inspection, smart homes, and the Internet of Things; the value proposition drives the products to be sold extensively overseas.

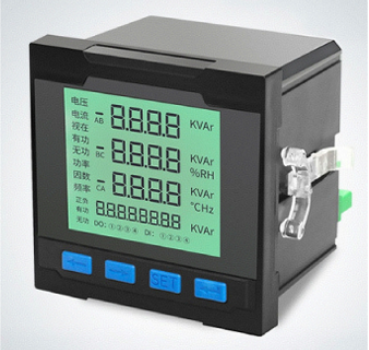

A 4.3-inch industrial-grade instrument display was custom-developed for a well-known power equipment manufacturer. It uses high-contrast IPS full lamination technology and meets the IP65 protection level. To address the specific needs of the power industry, it features an optimized wide temperature design from -30°C to 70°C and a dustproof and waterproof structure suitable for substation environments, ensuring stable operation in complex settings such as substations. The adaptive brightness automatically adjusts, enhancing the efficiency of outdoor inspections and operational safety.
Customized a 4.3-inch charging pile interactive screen for a well-known new energy brand, using high-brightness IPS full lamination technology, meeting the IP65 protection level requirements. We specially optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) for complex outdoor environments to ensure clear display under various weather conditions. The screen integrates an intelligent light-sensing adjustment system that can automatically optimize display brightness according to day and night light changes, greatly enhancing the user operation experience.

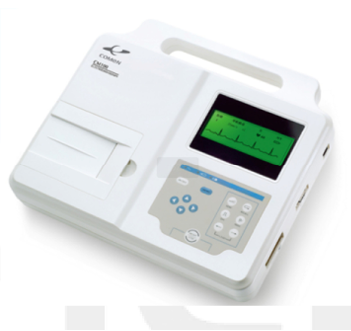

Customized a 5-inch medical-grade touch screen for a well-known medical device manufacturer, using a high-resolution IPS full-lamination panel, compliant with Class B electromagnetic compatibility standards. We strictly follow medical ergonomics requirements, implementing an antibacterial bezel and anti-glare design to ensure stable operation in the complex environment of the operating room. The ambient light smart adjustment automatically optimizes display parameters, reducing visual fatigue for medical staff and improving diagnostic efficiency and operational accuracy.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
