Parameter
| Product name | Serial Port Screen |
| Model | P024A1001 |
| Screen Size | 2.4 inch |
| Number of Pixel | 240x320 |
| Touch Screen | Resistance Touch |
| Display area | 36.72(H)x48.96(V)mm |
| Back-light | LED Side-light type |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Application:
It is often suitable for use in electronic products with small-size TFT-LCD screens, such as various small household appliances, smart home appliances, industrial control panels, electronic instruments, medical equipment, small testing equipment and other products.

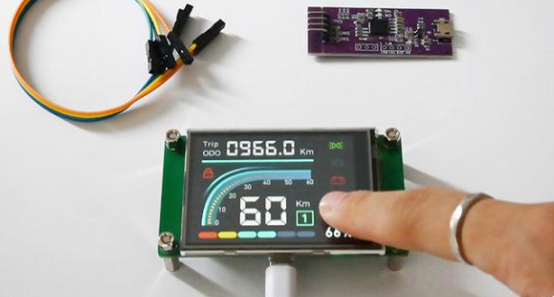

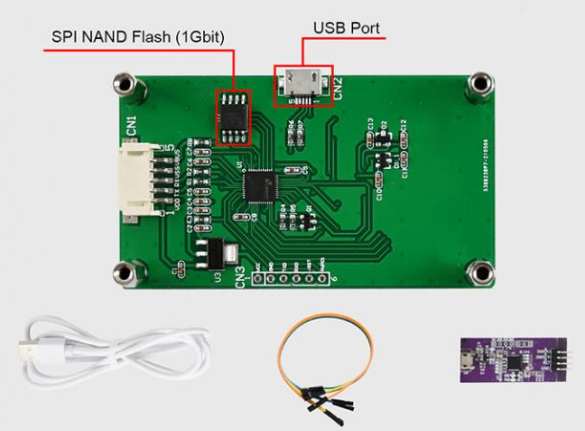

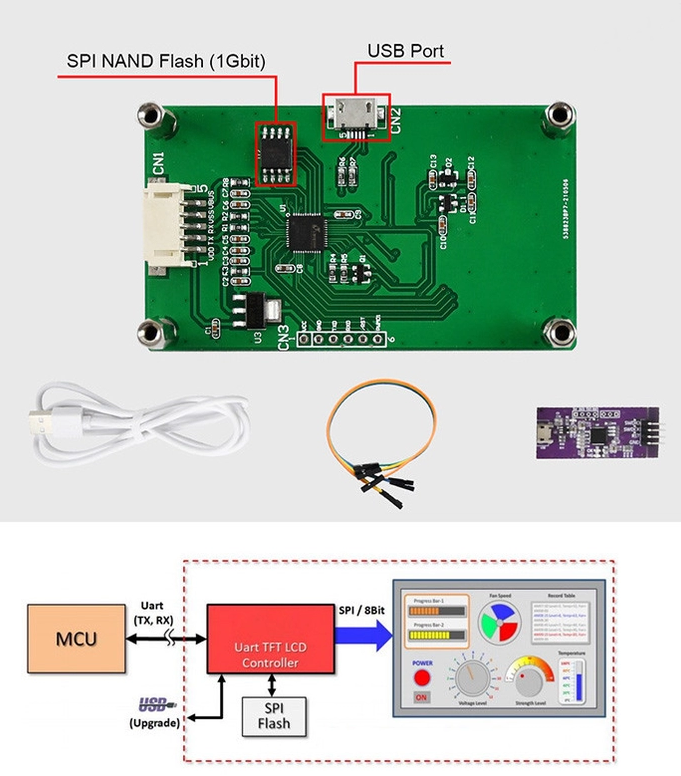

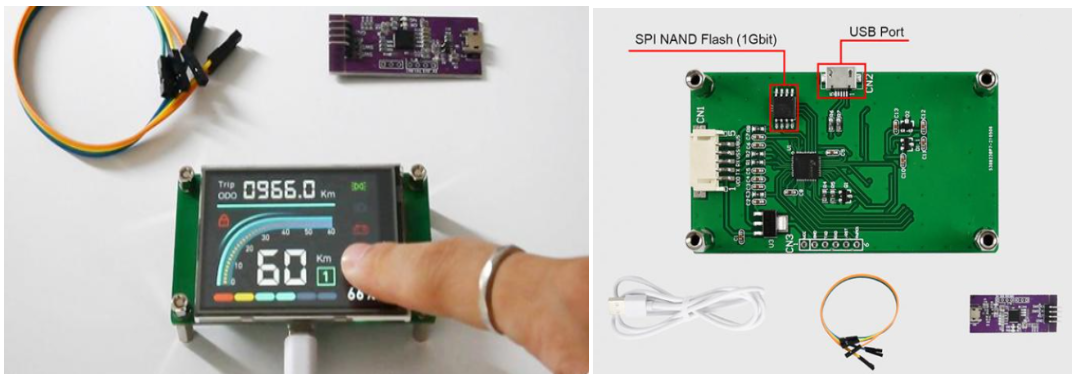

P024A1001 is an incredibly compact 2.4-inch serial smart module with a highly integrated design. It has been tailored for industrial human-machine interface (HMI) applications. This smart serial screen module combines the display panel, touch interface, and control logic board into a single piece. Therefore it not only drastically cuts down the difficulties associated with hardware development and the production schedule but also constitutes a great choice for smart display upgrading of industrial equipment.
The display unit of the module consists of a tiny 2.4-inch TFT color liquid crystal display with a resolution of 240×320 pixels and a visible area size of 36.72×48.96 mm. The graphical content is of a very high quality, and it is capable of showing even complex industrial user interfaces, data graphs, and Chinese characters. The viewing area is calibrated with the aid of high-precision optical methods so that the readability remains high even when looking at the screen from various angles. LED side-entry backlight, a light source that contains an array of LEDs placed along the side of the display, is installed to the brightest and most sensitive parts of the module and makes it a perfectly readable display even under harsh and bright lighting present on industrial sites. Moreover it can be said that the power consumed by this kind of backlight can be efficiently regulated and kept at a minimum.

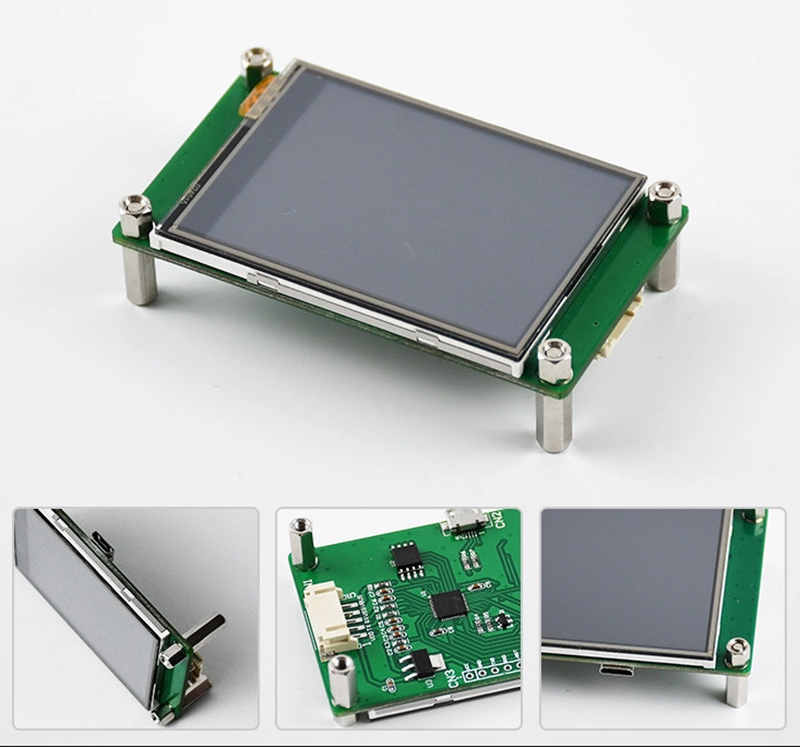

Environmental compatibility is one of the most important requirements for industrial products. P024A1001 is a versatile product that can be used under very diverse conditions as it keeps functioning properly within the whole temperature range of -20℃ to 70℃ while its storage temperature is even wider and runs from -30℃ to 80℃. It means that this module is much more than a regular one and it even can cope with northern cold, southern heat and even with high temperatures of the internal parts of the industrial equipment. A reinforced structural design is the most notable feature of the module. At the four corners of the PCB, metal mounting pillars have been placed. Also, it has outstanding vibration and shock resistance amazes its extended stable operation in high vibration environments such as machine tools, construction machinery, and rail transportation cases.
Dynamic capabilities enable Shenzhen YiTai Co., Ltd. to adapt to technological changes. In the evolution of display technology from TN to TFT, and from monochrome to color, the 28-person R&D team leads the company's dynamic adjustments, while 20 production lines with a monthly capacity of 2.5 to 3 million units flexibly switch production. A 320-member team learns new skills, and 12 years of dynamic adaptation has accumulated experience. Established in 2014, the company has obtained ISO9001 certification, over 20 patented technologies, and the qualification of a national high-tech enterprise. The 20,000-square-meter base includes a ten-thousand-class cleanroom and fully automated production lines, with dynamically upgraded equipment. We have more than a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and custom made LED backlights concentrating on small-sized displays from 0.96 inches to 7 inches. The products are subject to comprehensive testing and are in extensive use in the medical, inspection, smart home, and IoT terminals sectors. Our products find their application in medical instruments, smart home, IoT, and inspection devices as well as distribution all over China, Europe, America, and Southeast Asia.
Created a customized 3.5-inch industrial-grade intercom display for a well-known communication equipment manufacturer by employing a high-brightness, fully laminated IPS touch screen, that is compliant with IP67 protection standard. Keeping in mind the specific requirements of the industry, we enhanced the shock-resistant frame and designed the anti-slip texture, which guaranteed the reliable functioning even in the harshest of the environment. The display features a smart light-sensing control technology, capable of the automatic mode switching between day and night based on the surrounding light, which, in turn, vastly increases the visibility and work efficiency during outdoor operations.
Created customized 4.3-inch charging pile interactive display for a renowned new energy brand, employing high-brightness IPS full lamination technology, satisfying IP65 protection level requirements. For outdoor complex environments, we specifically optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) to ensure the user clearly sees the display in any weather condition. The display has been equipped with an intelligent light control system that can adapt the brightness of the display automatically according to the light present during day and night, which leads to a significant enhancement of the user operation experience.

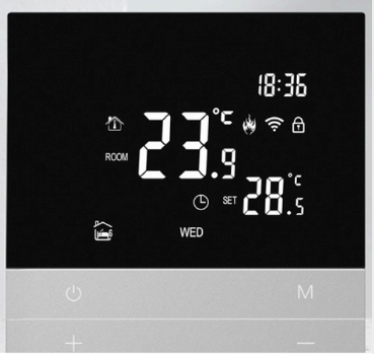

Produced 3.5-inch high-precision temperature control display tailored for a famous HVAC brand by a full-view IPS full lamination method and multi-touch support. To fulfill the home environment, we have used an ultra-thin bezel and rounded corner design, thus completely harmonizing with modern interior decorative styles. The display has been incorporated with an ambient light concept, whereby the display brightness and contrast level can be adjusted automatically by the light condition resulting in greatly enhanced user experience and energy saving.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
