| P/N | P024C117SD |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 260 |
| Interface | 4 Wire SPI |
| Driver Ic | ST7789V2 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 18 |
This display module of 2.4-inch size with TFT LCD type and model number P024C117SD has driver chip ST7789V2 onboard and the core interfacing is through 4-wire SPI serial method which is an intelligent display solution combining display panel and SD card expansion. The module resolution is 240×320 pixels which can render high-definition and delicate images inside the very small 2.4-inch size. Active display area is 36.72mm × 48.96mm, and vertical pixel arrangement is appropriate for the UI design habits of handheld devices and portrait-oriented terminals. It is mostly used in portable medical equipment, industrial handheld terminals, smart home control panels, and data loggers among other areas.

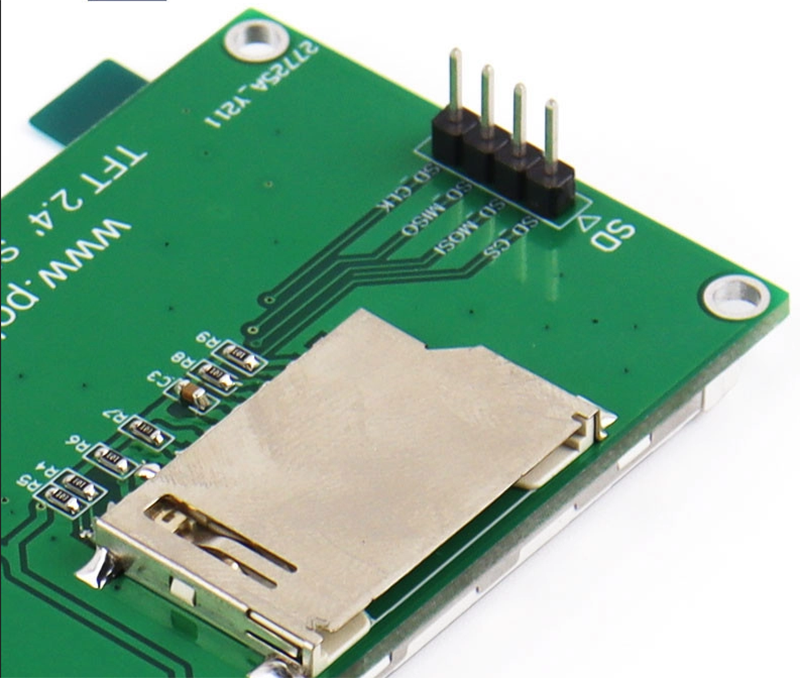

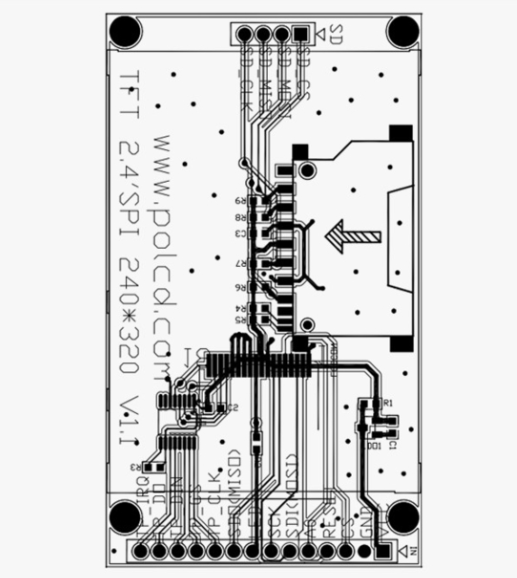

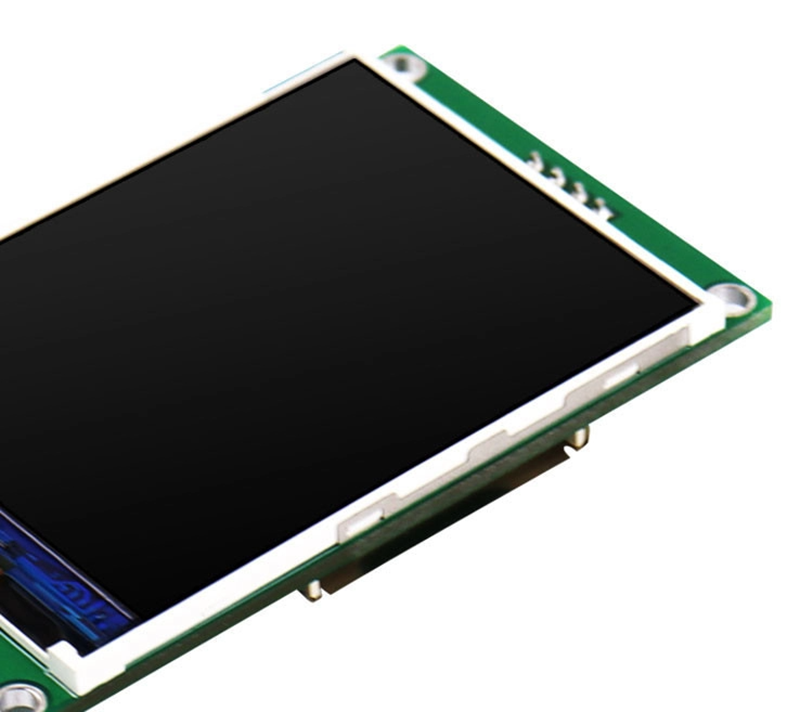

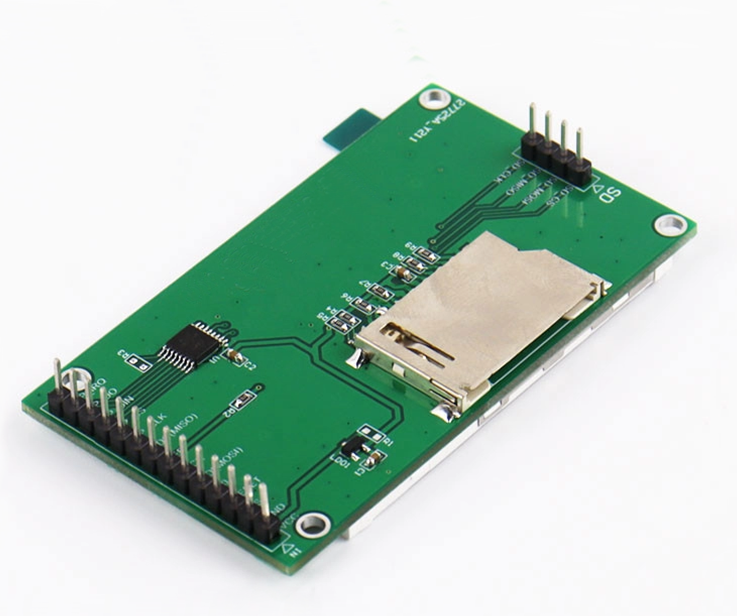

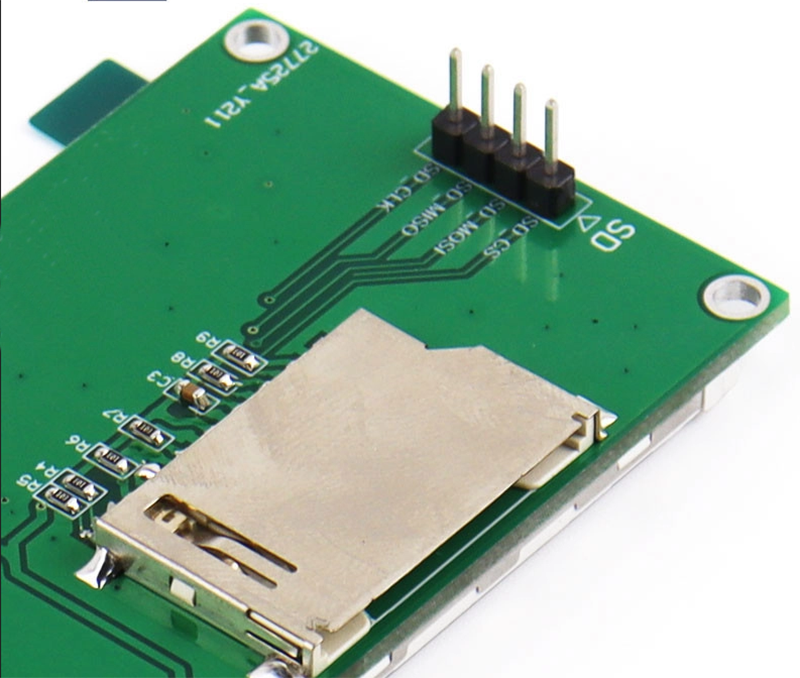

Talking about the structural design of the module, its overall dimensions are 42.72 × 60.26mm, the thickness is slim and efficiency in space utilization is high. The front portion is a black display panel with a silver metal frame, which when powered off, it presents a deep, pure black giving it a simple and high-end appearance. The back consists of a green PCB board where the SD card slot, SPI Flash chip, and pin headers are neatly arranged, which shows excellent soldering skill. Engineering drawings contain detailed markings of exact dimensions for each piece: the backlight area width is 42.72 ± 0.2mm, the LCD display area width is 40.32 ± 0.2mm, and the active display area width is 36.72mm; the overall height is 60.26 ± 0.2mm, the LCD display area height is 56.96mm, and the active display area height is 48.96mm. The FPC gold finger area is flat and smooth, having all critical dimensions sustained within precise tolerances.
Concerning environmental adaptability, the use temperature is from -20°C to 70°C, and the storage temperature goes up to -30°C to 80°C, both are in line with the industry standards. Thus, it can operate without abnormal display or SD card read/write failure caused by temperature changes that are sudden for outdoor portable contexts that are cold or high-temperature industrial control terminals. The module features a standard packaging process to offer clients mass production of complete devices with the least variation in parameters and high-quality consistency during bulk procurement.
The platform model is greatly helping Shenzhen Yitai Optoelectronics Co., Ltd. to run smoothly. They are using a platform for producing more than a thousand TN/HTN/STN/VA products and hundreds of TFT color screens with modular LED backlight source customization thus enabling them to quickly respond to customers' differentiated needs. Couple their 20,000-square-meter factory and 20 production lines, their monthly output capacity ranges from 2.5 to 3 million units, while the platform-based production is further improving the efficiency. Their 320-person team, including 28 R&D staff, is in charge of keeping the platform which has been on the market several times over the 12 years, so there are plenty of choices available users. Certification ISO9001, more than 20 patented technologies, national high-tech enterprise qualification, a class-10,000 cleanroom, and fully automated production lines are all contributing to platform-level quality. The product line primarily covering the 0.96-inch to 7-inch market, is subject to high and low temperature, vibration, and anti-interference tests, and the range is tested widely utilized in medical, inspection, smart home, and IoT applications. Platform strategy helps export of products to Europe, America and Southeast Asia.
Customized a 4.3-inch charging pile interactive screen for a famous new energy brand by adopting high-brightness IPS full lamination technology and satisfying IP65 level requirements. We specifically targeted the anti-glare design and wide temperature operating (-30 °C ~ 70 °C) performance for complicated outdoor environments to secure a clean display no matter the weather. Furthermore, the screen comes with a smart light-sensing feature that adjusts the display brightness automatically based on changing light levels indoors and outdoors, thus significantly upgrading the user's experience.

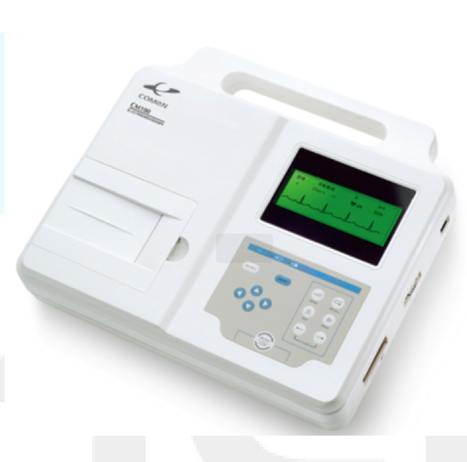

Custom-made a 5-inch medical-grade touch display for a famous medical device producer, using a high-resolution IPS fully laminated panel and conforming to Class B electromagnetic compatibility standards. We followed medical ergonomics strictly and, therefore, introduced antibacterial bezel and anti-glare features for usability in complex environments like operating rooms. The screen incorporates an ambient light intelligent adjustment system that tweaks display parameters according to usage scenarios automatically, thereby minimizing staff eye strain and increasing diagnostic and treatment efficiency.
We created a 3.5-inch high-precision temperature control display tailored to a famous HVAC brand. It utilizes full-view IPS full lamination technology and supports multi-touch operation. To meet the demands of the home environment, we decided on the ultra-thin bezel and rounded corner design, which works perfectly with contemporary interior styles. Additionally, the screen is equipped with an ambient light intelligent adjustment feature that can automatically optimize the brightness and contrast of the display according to the lighting conditions indoors, thus significantly enhancing the user experience and also being energy efficient.
