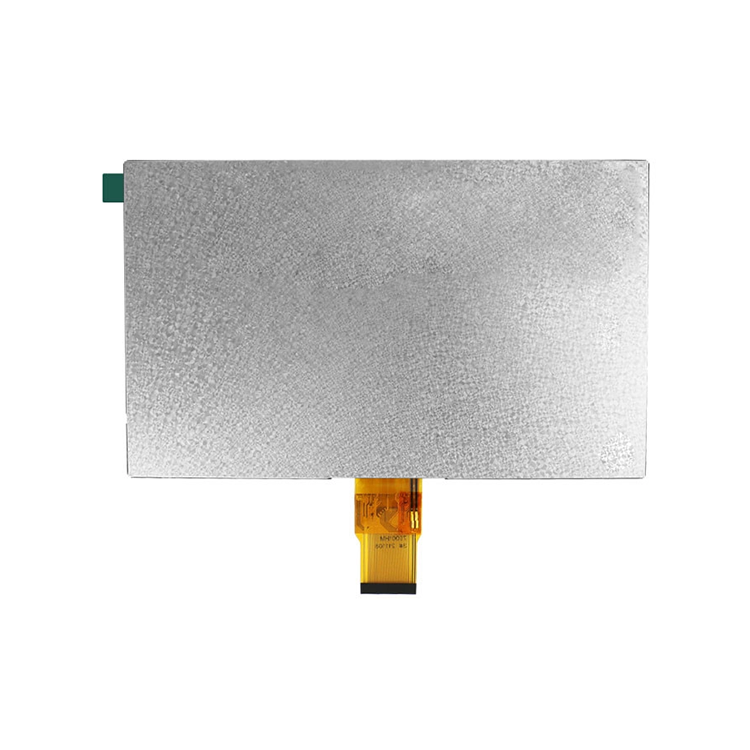

What can we expect from this one? Before this question it is better to know some information about this TFT LCD Module. Screen size is 10.1 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 1024 * 600, clear enough for most scenes to be used. High nits allow this lcd to work well indoors.
| P/N | T10150UX-V01 |

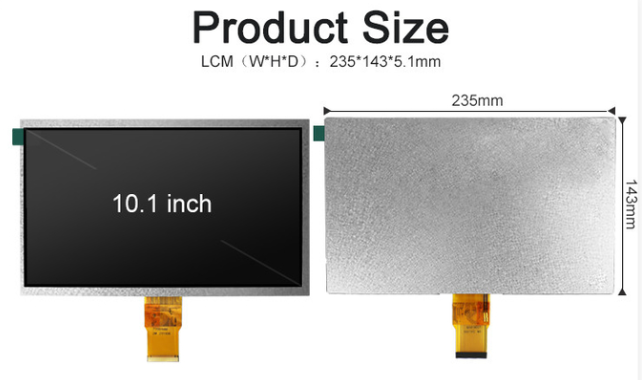

| Size(inch) | 10.1 |
| Resolution | 1024*600 |
| Brightness(cd/m²) | 750 |
| Interface | RGB 24bit |
| Driver Ic | EK79001 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 50 |
Supported by RGB 24bit, this type of TFT LCD can be used in many applications. EK79001 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
