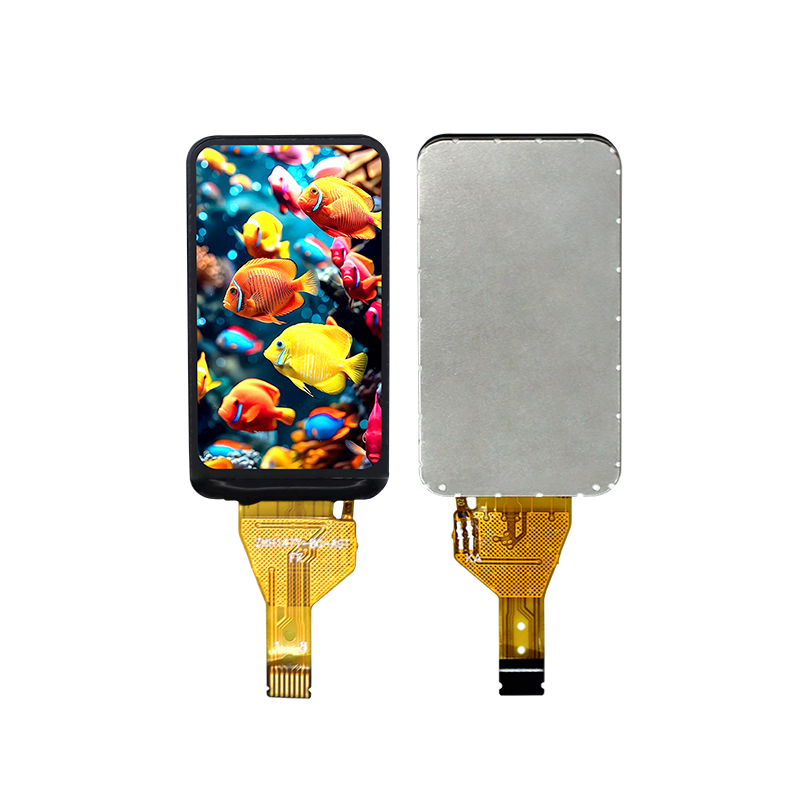

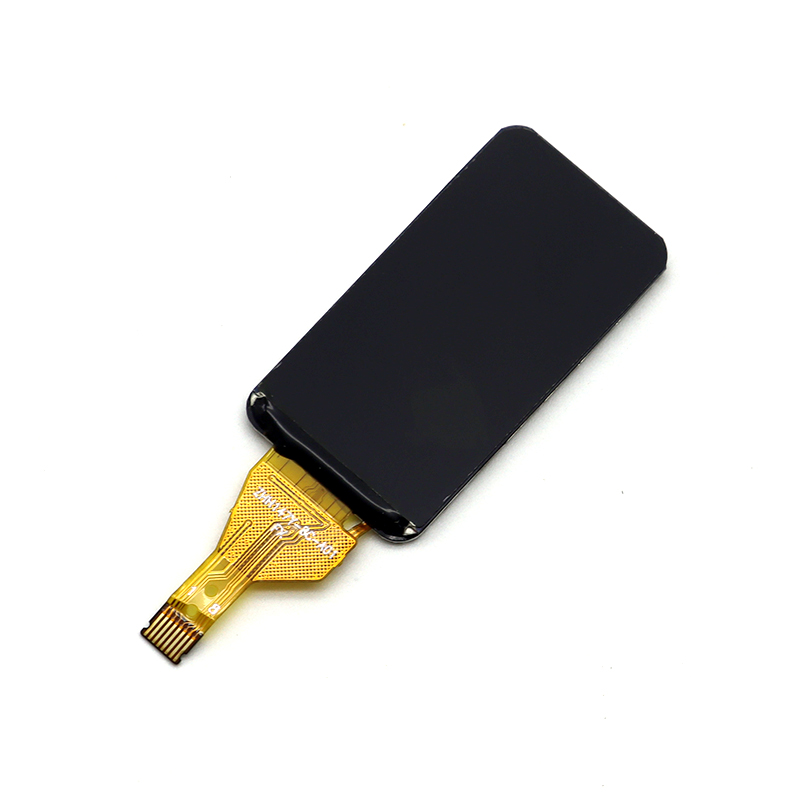

Product Name: 1.47" Color Screen
Product Size: 1.47 inch
Resolution: 172 × 320
Display Type: Color
Driver IC: GC9307
Connection Method: Plug-in 8P
Power Supply: 2.8V–3.3V

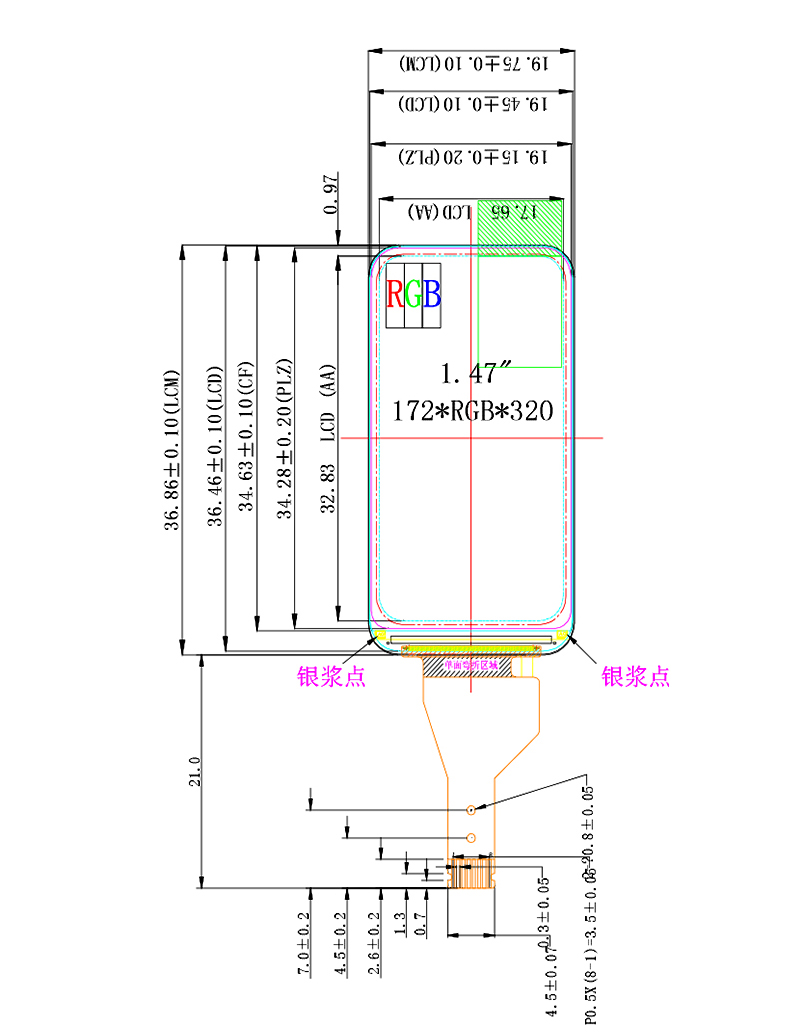

Display Area: 17.65 × 32.83 mm
Interface Type: 4-Wire SPI

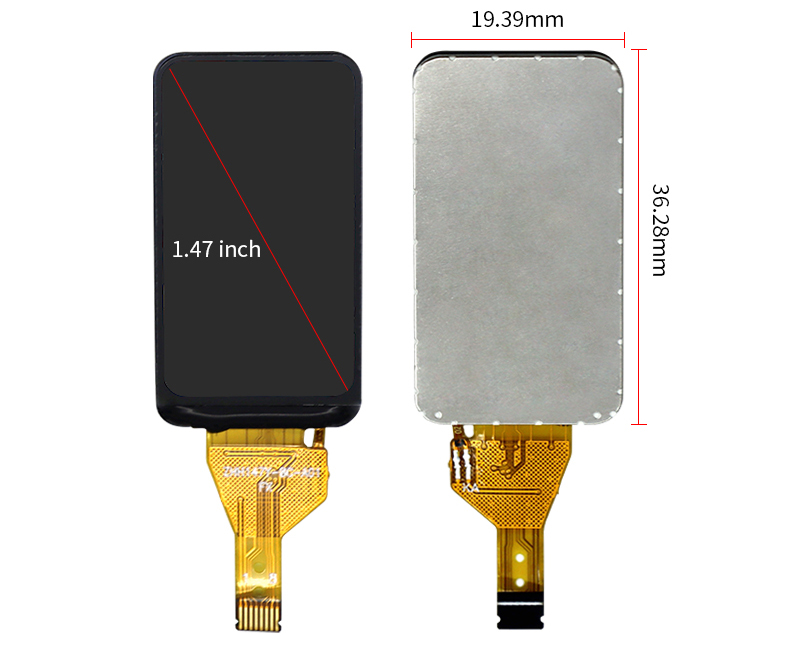

Screen Dimensions: 19.75 × 36.86 × 1.56 mm

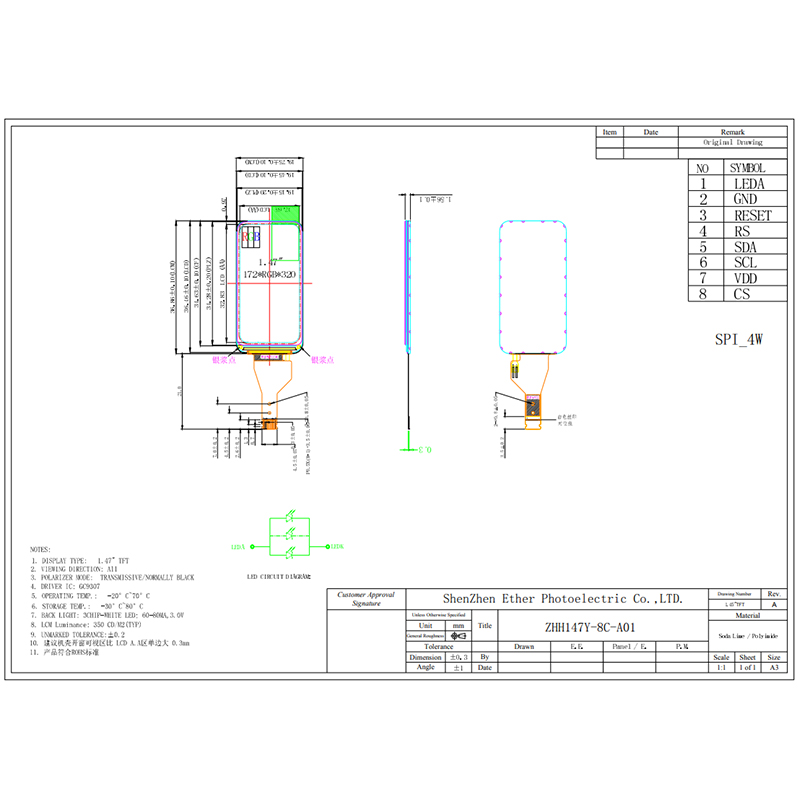

| PIN | SYMBOL | PIN | SYMBOL |
| 1 | LEDA | 5 | SDA |
| 2 | GND | 6 | SCL |
| 3 | RESET | 7 | VDD |
| 4 | RS | 8 | CS |
Ether Photoelectric is a high-tech company that merges R&D, design, production, sales, and services with two factories located at Shenzhen and Jiangxi. Besides developing more than 100 kinds of TFT color displays and color module products and more than 1,000 kinds of TN/HTN/STN/VA display products, the company has also been helping out the clients by providing customized structural design solutions. They have advanced equipment, considerable production knowledge, a professional R&D team, and high-quality product manufacturing capabilities along with sufficient after-sales service.
One of the major projects was a 4.3-inch charging pile interactive screen for a new energy brand developed using high-brightness IPS full lamination technology. Various features include anti-glare design and wide temperature operation performance (-30°C~70°C) to ensure clear display under different weather conditions. In addition, the screen is equipped with an intelligent light-sensing adjustment system that can automatically optimize display brightness according to day and night light changes, thus greatly improving the operation experience of the users.
Taken a minimalist 2.8-inch clock display for a very famous home brand as an example, the workpiece came out with low-power IPS full lamination technology which also supports clear display from the 180° wide viewing angle. Through the device's ultra-thin borderless design and the soft light guide structure, we have perfectly achieved the aesthetic that matches a modern home. The screen is also embedded with an intelligent light-sensing adjustment system that automatically changes display modes according to daylight and switches to a soft light mode at night without affecting sleep.
For the client, we created a 3.5-inch in-car HD dashboard display based on high-contrast IPS full lamination technology that guarantees the screen will remain perfectly clear and easily readable even if exposed to direct strong sunlight. In accordance with automotive-grade stipulations, we have worked on the ultra-narrow bezel and curved design that correspond perfectly to the style of the cockpit interior. The screen is accompanied by a smart ambient light sensing adjustment module that is capable of automatically changing brightness and color temperature in accordance with the surrounding light, which results in a considerable improvement in the safety of driving and the comfort of vision.
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
