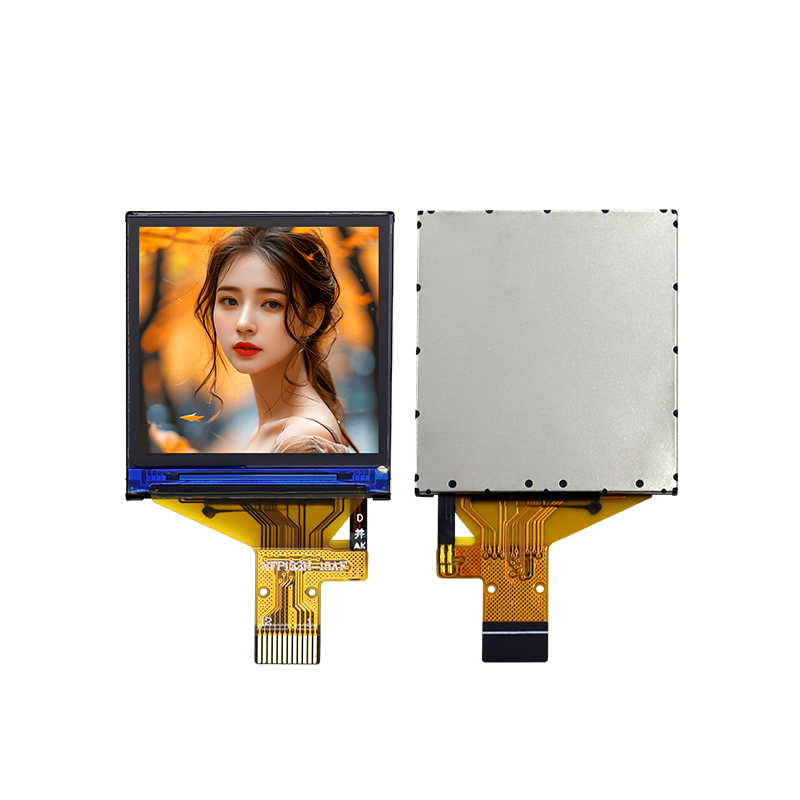

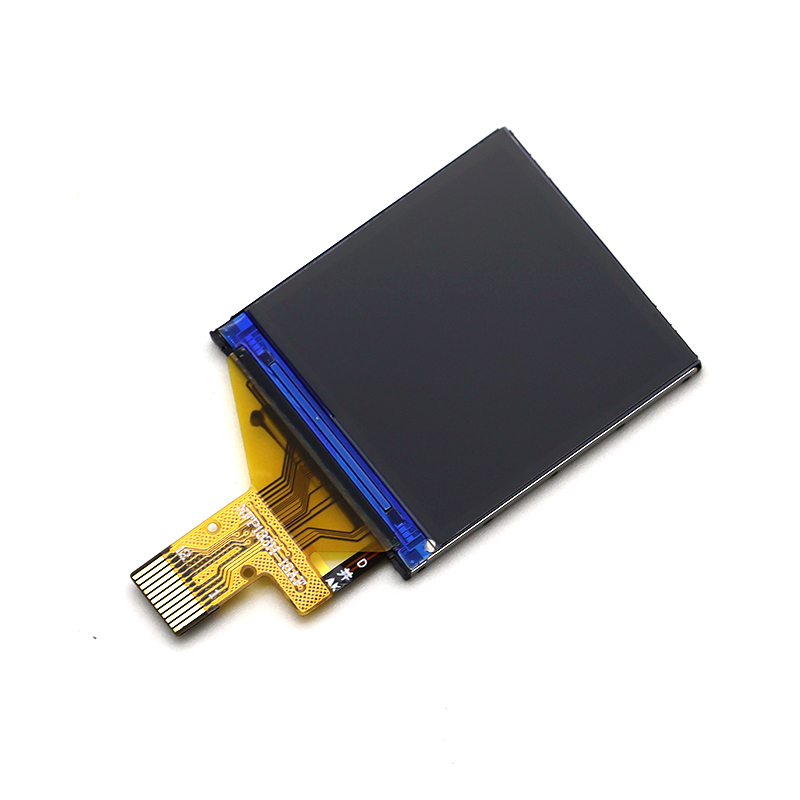

ZHH130Y-12C-A03is a 240RGB x 240 dot-matrix TFT LCD module. This mod uleiscomposed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.
Equipped with a user-friendly 12-pin plug-in connection method , it simplifies installation and assembly greatly. Composed of a TFT LCD panel, professional driver ICs, FPC and backlight unit, the product boasts excellent quality and durability. Backed by our strong R&D strength, advanced production equipment and rich manufacturing experience, we provide customized structural design solutions and one-stop full-cycle services from R&D, production to complete after-sales support, meeting diverse customized display demands across various industries.
Product Name: 1.3" Color Screen
Product Size: 1.3 inch
Resolution: 240 × 240
Display Type: Color
Driver IC: ST7789P3
Connection Method: Plug-in 12P
Power Supply: 2.8V–3.3V

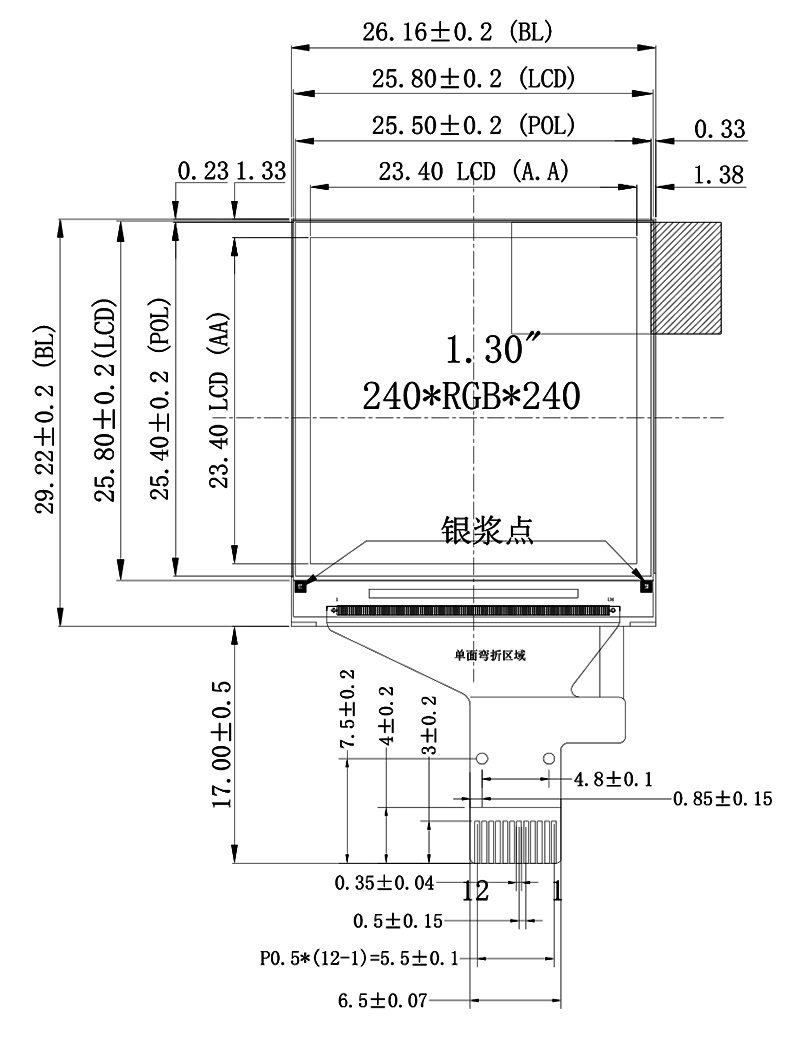

Display Area: 23.4 × 23.4 mm
Interface Type: 4-Wire SPI

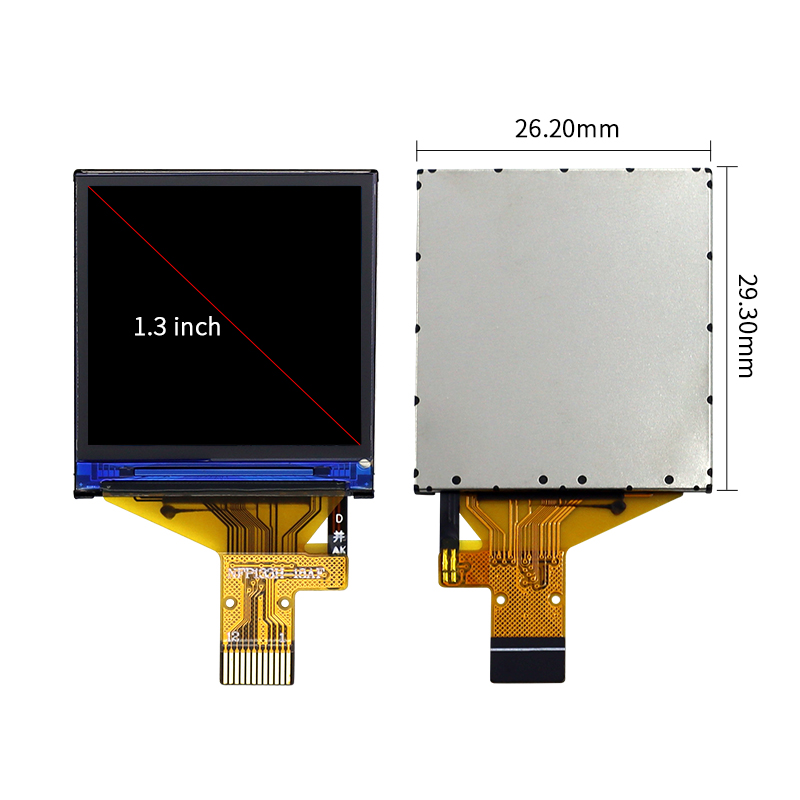

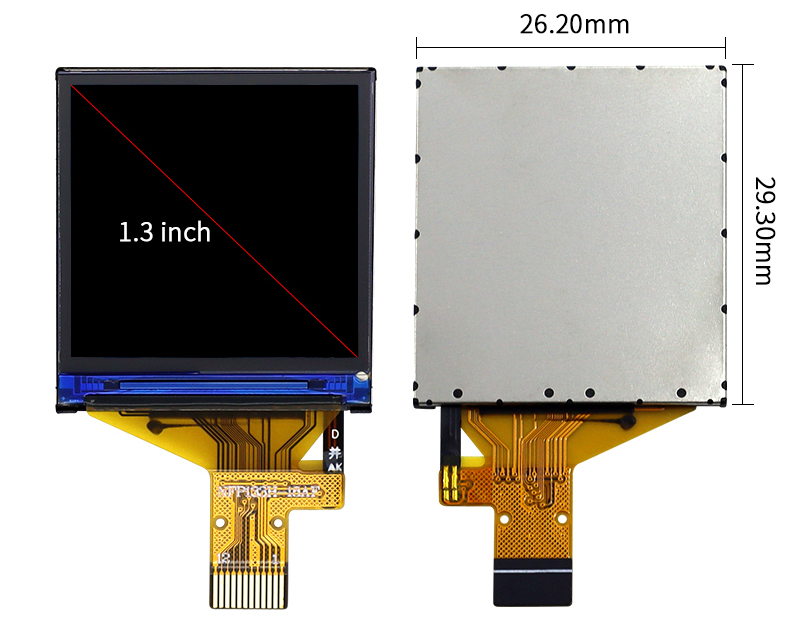

Screen Dimensions: 26.2 × 29.3 × 1.95 mm

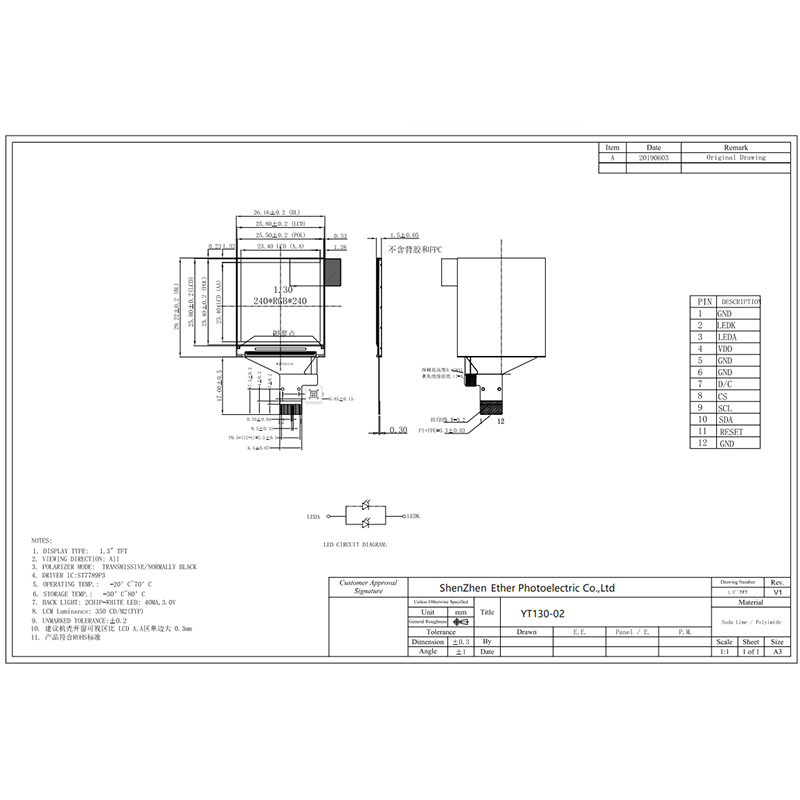

| PIN | SYMBOL | PIN | SYMBOL |
| 1 | GND | 7 | D/C |
| 2 | LEDK | 8 | CS |
| 3 | LEDA | 9 | SCL |
| 4 | VDD | 10 | SDA |
| 5 | GND | 11 | RESET |
| 6 | GND | 12 | GND |
