Product Details
P/N: | P028H026-TP | Size (inch): | 2.8 |
Resolution: | 240*320 | Brightness (cd/m²): | 350 |
Interface: | 8080 MCU 16bit | Driver Ic: | ILI9341V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20cm *30 cm *40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T,L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

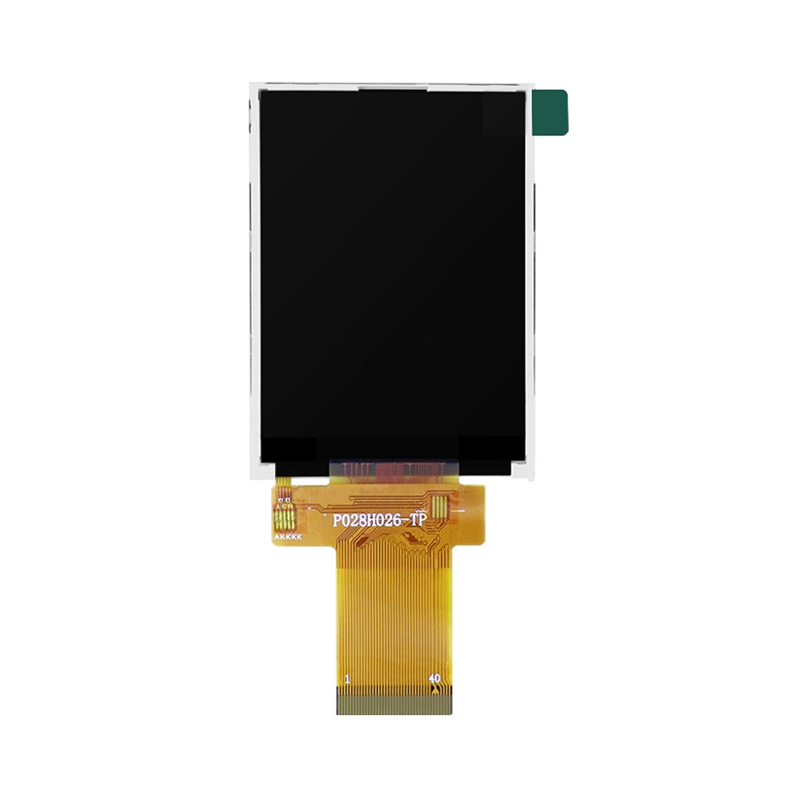

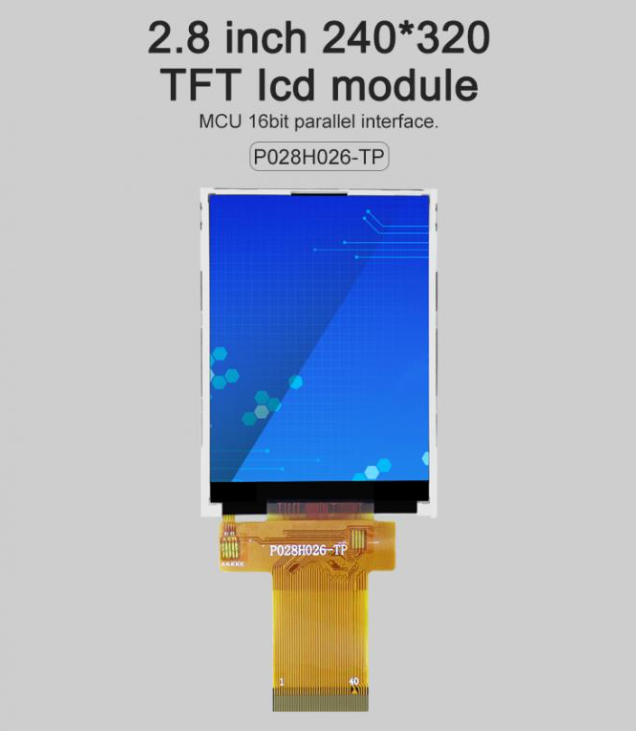

This 240x320 resolution LCD TFT is a standard display with 8080 MCU 16bit interface, offering 262K colors and a 600:1 contrast ratio. This Liquid Crystal Display has a built-in ILI9341V controller, FFC ZIF I/O connection, is RoHS compliant and does not come with a touch screen.
| P/N | P028H026-TP |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Active Area(mm) | 43.20*57.60 |
| Pixel pitch(um) | 60*180 |

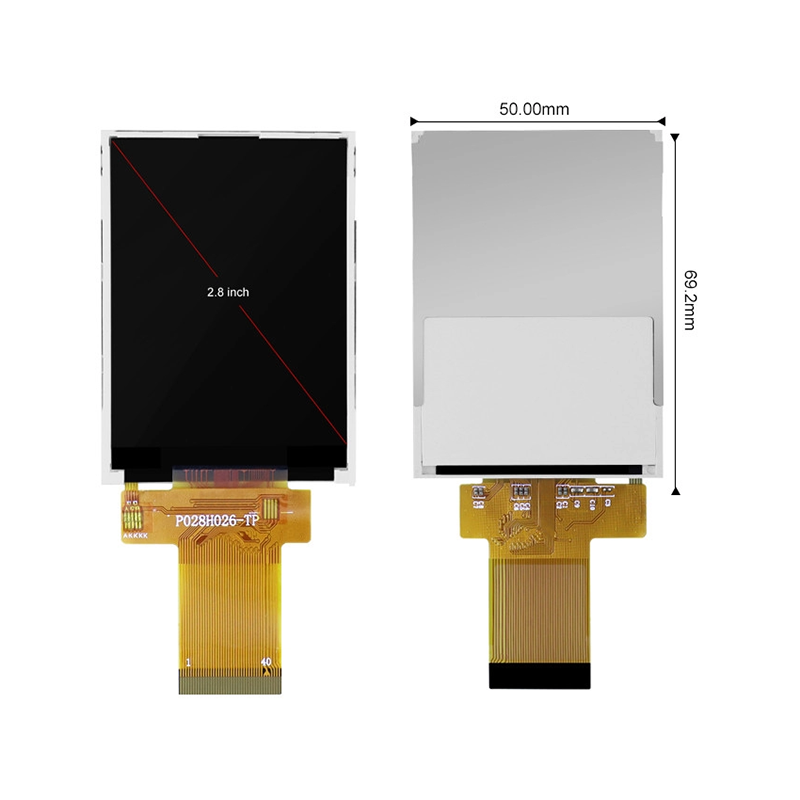

| Outline Dimension(mm) | 50.00*69.20*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 40 |
