Product Details
P/N: | P028X101-10 | Size (inch): | 2.8 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 4 Wire SPI | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |

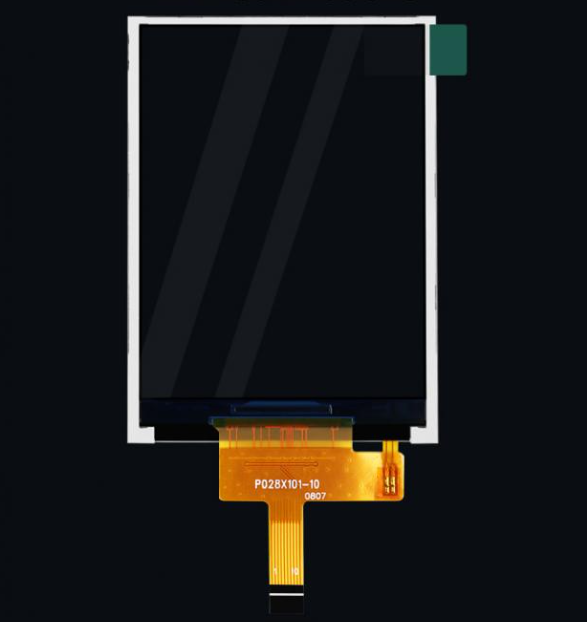

P028X101-10 is display module that contains a TFT display with a 240*320 RGB resolution. The driver used for this 2.8 inch LCD is the ST7789V and can display 262K colors. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. This LCD module size is also available with an IPS display.
| P/N | P028X101-10 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Active Area(mm) | 43.2*7.6 |
| Pixel pitch(um) | |

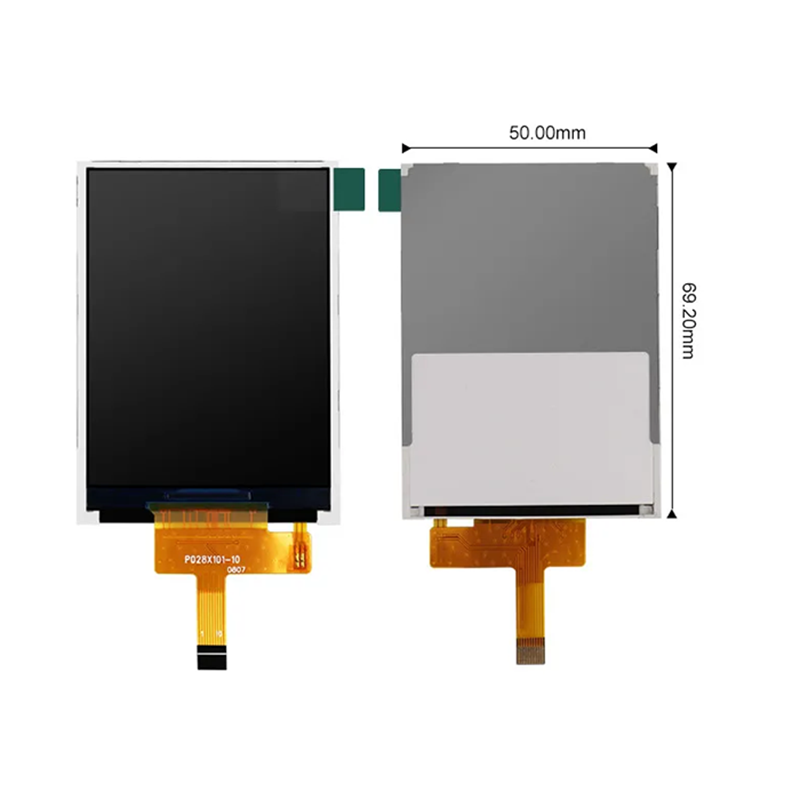

| Outline Dimension(mm) | 50.00*69.20*2.30 |
| Pixel arrangement | |
| Display Mode | Normally White |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 400:1 |
| Interface | 4 Wire SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 20 |
| Pin Number | 10 |
If you need more information please contact us, we will reply you within 24 hours.
