Product Details
P/N: | P028B052-IPS-V2 | Size (inch): | 2.8 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 3 Wire 4 Wire SPI MCU 8/9/16/ 18 BIT RGB 6/16/18BIT | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |

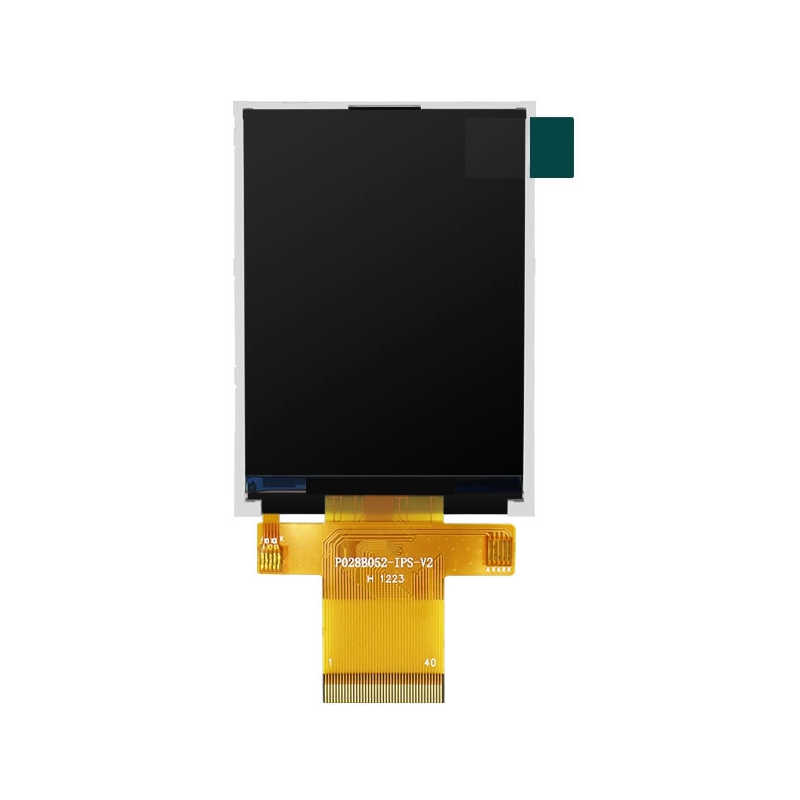

This IPS TFT LCD Display is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.8 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.
| P/N | P028B052-IPS-V2 |

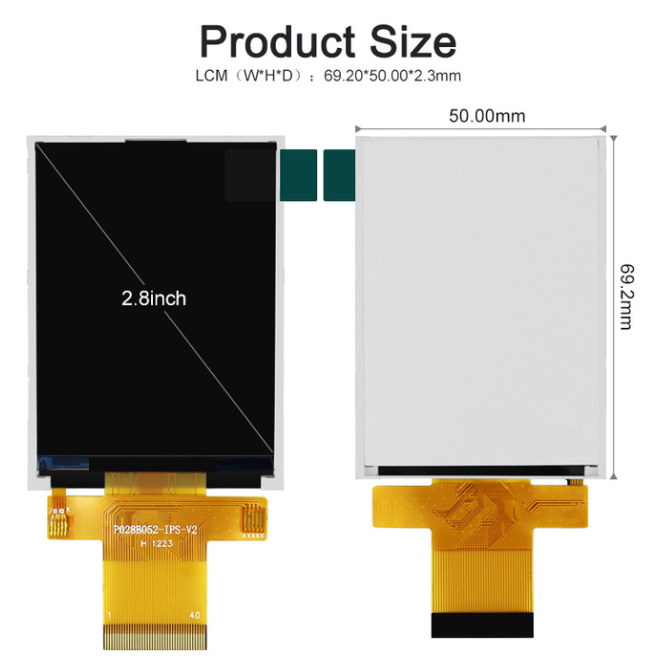

| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 300 |
| Interface | 3 wire 4 wire SPI MCU 8/9/16/ 18 BIT RGB 6/16/18BIT |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
This type of 3 wire 4 wire SPI MCU 8/9/16/ 18 BIT RGB 6/16/18BIT can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7789V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
