Product Description
| P/N | P022H002 |
| Size(inch) | 2.2 |
| Resolution | 240*320 |
| Active Area(mm) | 33.48*44.64 |
| Pixel pitch(um) | 139.5*139.5 |

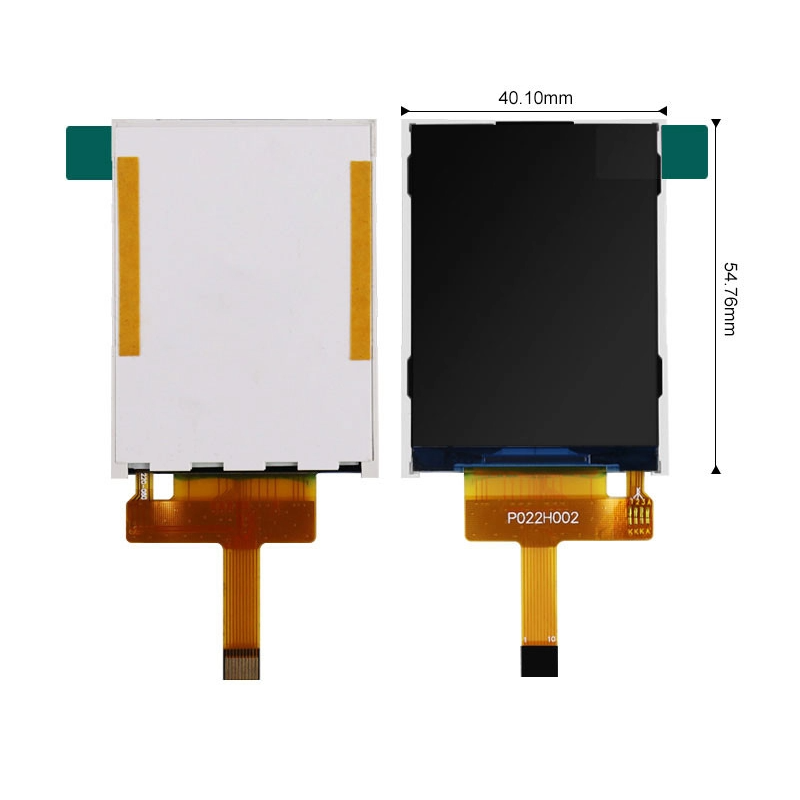

| Outline Dimension(mm) | 40.10*54.76*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally White |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness(cd/m²) | 300 |
| Contrast Ratio | 500:1 |
| Interface | 4 Line SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 8 |
| Pin Number | 10 |

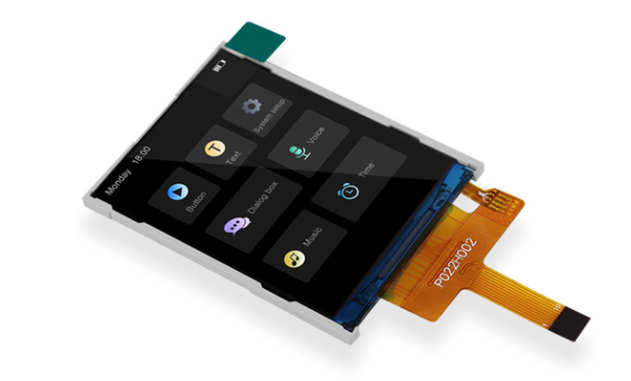

This is a compact integrated display package designed for mini smart terminals and handheld devices. It features a 2.2-inch display panel to standard specifications, driven by the ST7789V chip. This enables efficient communication via a 10-pin simplified interface and a 4-wire SPI serial protocol, thus keeping the display performance, hardware compatibility, and mass production cost within a very small footprint.
High Pixel Density and Fine Display Effects
The LCD physically measures 240 × 320 pixels, but only the display area of 33.48mm (horizontal) × 44.64mm (vertical) is lit, and its pixel pitch is 139.5μm × 139.5μm; thus, it achieves a high pixel density on a 2.2-inch screen. Letters on this display are very clear, the edges of icons are smooth, and the RGB vertical stripe layout of pixels and the ability to display 262,000 colors make it capable of providing vivid and saturated colors, primarily satisfying the visual needs of data visualization, status indication, and simple UI interface.
Normally White Mode and Optical Characteristics
The mode of display is Normally White, the view angle optimization is in the 12 o’clock direction, and the brightness and color of the display are at their best when seen from the front. The typical brightness is 300 cd/m², which is sufficient to produce a pleasing visual effect under regular indoor lighting situations. And the 500:1 contrast ratio shows designed layers well enough for separating background and foreground elements. Motion blurs left to a minimum with an 8ms response time, so users can enjoy interface switching and scrolling without any visible jitter.
Color is not only a visual experience but also the product politics of Shenzhen Yitai Optoelectronics Co., Ltd. The thousands of TN/HTN/STN/VA products control the hierarchical politics of black, white, and gray, while the hundreds of TFT color screens lead the color politics of RGB. Customized LED backlight service harmonizes the politics of light and shadow. Shenzhen Yitai Optoelectronics is a professionally integrated enterprise which not only engages in research, development and manufacturing of LCD products but also produces LED displays. Founded in 2014, the company covers an area of 20,000 square meters and has 20 production lines with a monthly output of 2.5 to 3 million units. It is equipped with a team of 320 persons including 28 R&D personnel. Color is managed on fully automated production lines in ten-thousand-level cleanrooms. ISO9001 certification standardizes color orders. Over 20 patented technologies expand the frontiers of color, and national high-tech enterprise status confirms color sovereignty. Focusing on color politics in small size from 0.96 inches to 7 inches, each product goes through strict tests to exercise color authority in medical, inspection, smart home, and IoT terminals. Color politics moves out of Shenzhen to Europe, America, and Southeast Asia, influencing the global display scenario.
One of the best home brands wanted a clock display that is both simple and elegant. So, the customized development of the clock display of only 2.8 inches was done using low-power IPS full lamination technology and the clock face can be viewed clearly even from the side at 180° wide viewing angles. Since the bedroom is usually the place where such a clock will be used, we made the ultra-thin borderless design and the soft light guide structure so that they will be perfect for the modern home décor. The screen has a built-in intelligent light-sensing adjustment feature whereby display modes change automatically depending on the variations in daylight, and at night be changes the mode to soft light which is non-disruptive to sleep.
We manufactured a 3.5-inch industrial-grade intercom display for a leading communication equipment manufacturer with the latest high-brightness IPS fully laminated touch screen, also fulfilling IP67 protection requirements. So, we enhanced the shockproof housing and anti-slip surface texture, the features most likely to be helped by the industry, and thus guaranteed dependable functioning even in very tough conditions. Moreover, the screen was equipped with a smart light-sensing adjustment feature that allows it to automatically change the display mode from day to night and vice versa, depending on the surrounding light, greatly improving visibility and work efficiency when used outside.
We designed a custom 4.3-inch industrial-grade display for a famous power equipment manufacturer. The display uses high-contrast IPS full lamination technology and complies with the IP65 protection level requirements. Besides that, we improved the dustproof and waterproof structure and wide temperature design (-30°C to 70°C) for the power industry needs so the power equipment can work reliably even in complex environments such as substations.
The screen brings together an adaptive brightness control system that is able to adjust display effects automatically according to the ambient light, which in turn to a great extent improves data reading efficiency and operational safety during outdoor inspections.
