Product Description
| Item | Specification | Unit |
| Screen Size | 2.8 inch | Diagonal |
| Number of Pixel | 240RGB(H)x320(V) | Pixels |
| Display area | 43.20(H)x57.60(V) | mm |
| Pixel pitch | 0.180(H)x0.180(V) | mm |
| Outline Dimension | 50.00x69.20x2.30 | mm |
| Pixel arrangement | RGB Vertical Stripe | -- |
| Display mode | Normally Black | -- |
| Viewing Direction(eye) | ALL | -- |
| Gray inversion direction | -- | |
| Display Color | 262K | -- |
| Luminance(cd/m2) | 300 | nit |
| Contrast Ratio | 1200:1 | -- |
| Surface treatment | -- | -- |
| Interface | 4wire SPI | |
| Back-light | LED Side-light type | -- |
| Drive IC | ST7789V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Weight | -- | g |
Equipped with a 4-wire SPI serial interface, this 2.8-inch TFT LCD display module named P028B123-10-PS is an IPS full-viewing-angle panel at the very heart of its configuration. It is a clever display option that offers high image quality and low pin count at the same time. The module features a 240RGB×320 pixel resolution, an active display area of 43.20mm×57.60mm, and pixels are arranged in vertical RGB stripes with a pixel pitch of 0.180×0.180mm, thus ensuring excellent image quality for a 2.8-inch display. Therefore, it is widely used in portable medical devices, industrial handheld terminals, smart home control panels, and in-vehicle navigation systems.

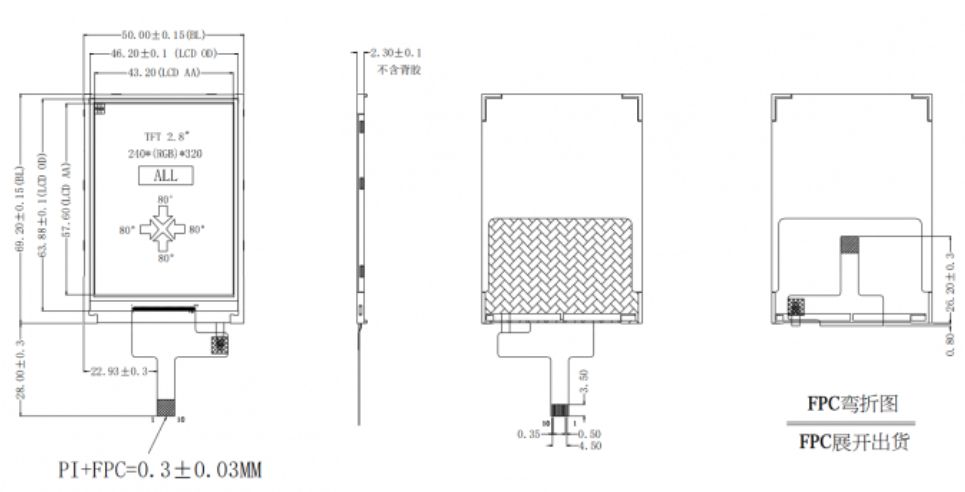

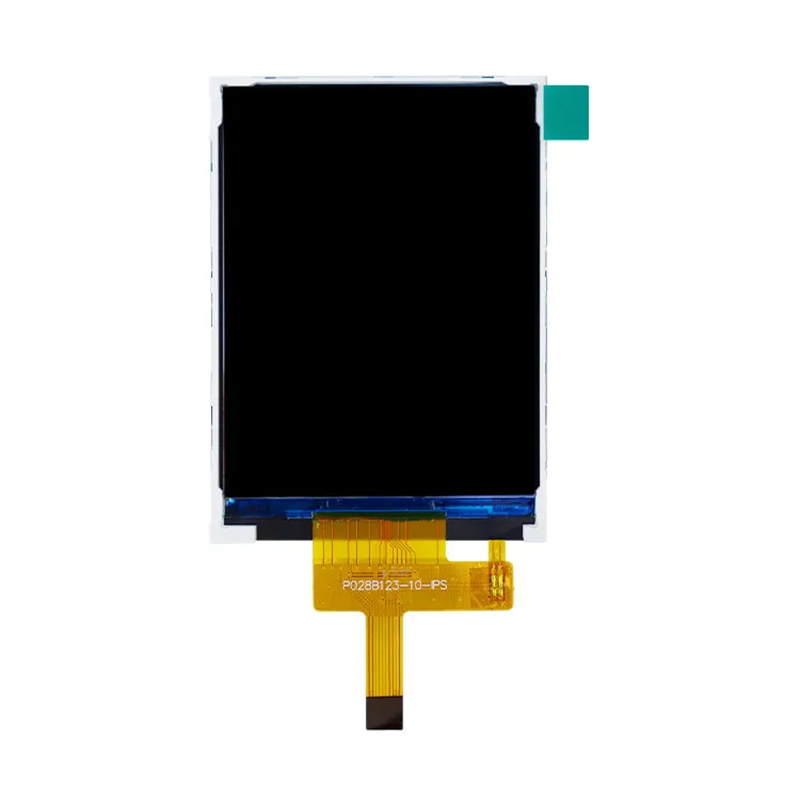

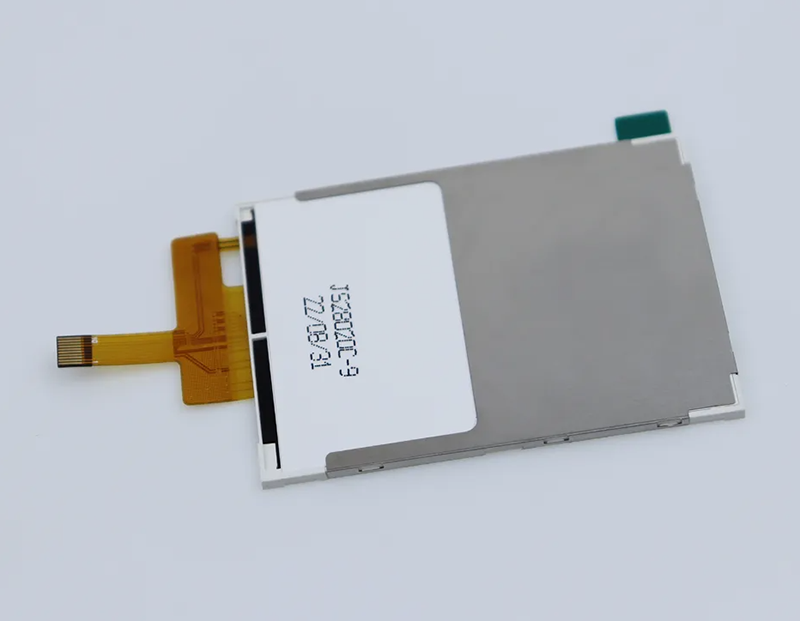

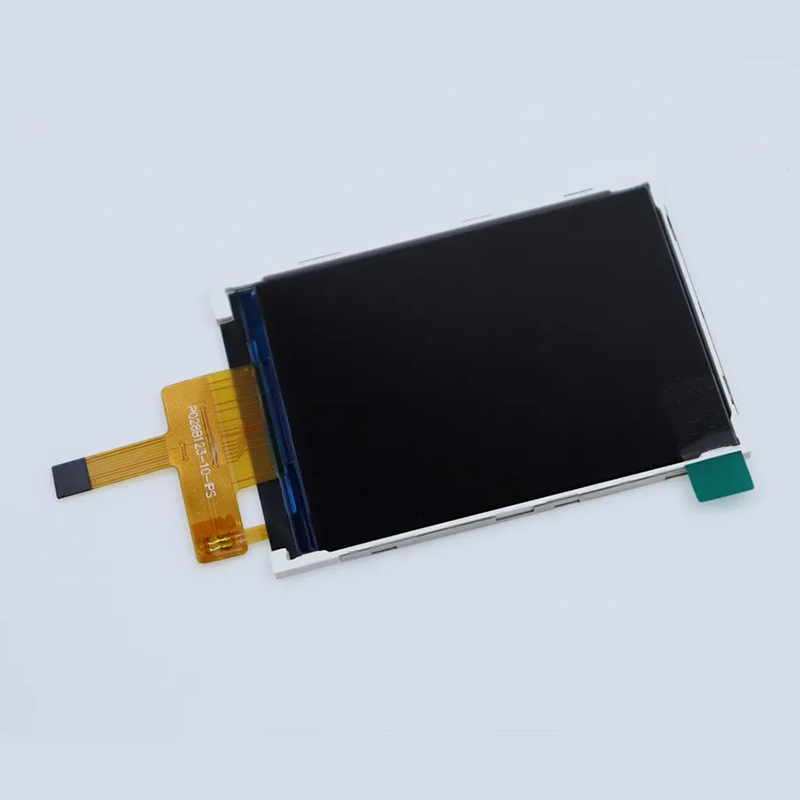

The module's measurements are 50.00×69.20×2.30mm, and at 2.30mm thick, it can be considered an ultra-thin device. On the front, there is a black display panel with a silver metal frame. Also, at the upper right corner, there is a green FPC reinforcement sheet. On the back, there is a gray backlight module along with a white light guide plate that is flat and uniform. Besides, the production traceability info such as 15C8DA1E-9 and 22/08/31 is also present on the back. The FPC cable comes out from the bottom. The module is delivered in an unfolded FPC form, so the cable can naturally stretch along the bottom of the module, which makes wiring and installation very convenient.

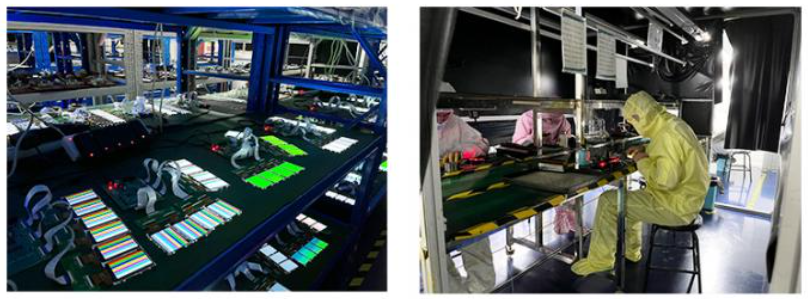

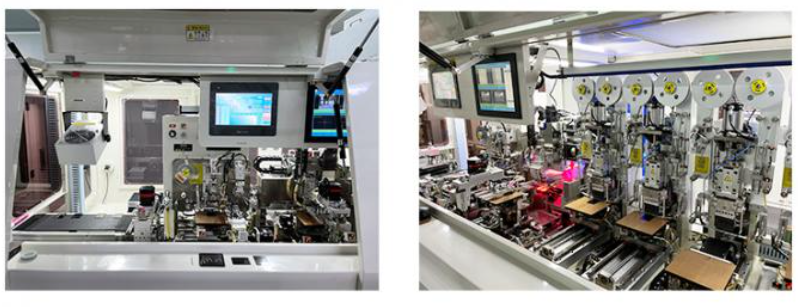

Shenzhen Yitai Optoelectronics Co., Ltd's technological value is greatly enhanced by complementary assets. Four over twenty patented technologies call for complementary assets such as a 20,000-square-meter facility, 20 production lines, and a team of 320 to be commercialized. A 28-person R&D team invents technology, and 12 years of complementary asset development have established the system. Established in 2014, the company is governed by ISO9001-certified management that supervises complementary assets while the National High-Tech Enterprise qualification recognizes the asset portfolio. A class-10,000 cleanroom and fully automated LCD production lines are main complementary assets. With over a thousand TN/HTN/STN/VA products, hundreds of TFT color screens, and custom LED backlights, monthly production capacity reaches 2.5 to 3 million units, focusing on the 0.96-inch to 7-inch market. Products are subjected to thorough environmental tests and are widely employed in medical, inspection, smart home, and IoT terminals; the complementary asset portfolio supports extensive overseas sales.
Our client from the communication equipment industry asked us for a customized 3.5-inch industrial-grade intercom display that runs on factory standard and IP67 protection compliant high-brightness IPS fully laminated touchscreen. We upgraded a shock-resistant frame and slip-resistant texture design for a typical industrial scene, which definitely can perform well in a harsh environment. This display comes with a built-in light-sensing technology that is smart enough to change from day to night display mode autonomously by sensing the surrounding lighting, which will, therefore, drastically improve the display of user information and efficiency of the operation while they are working outside.
We made a custom 4.3 inches charging station interactive screen for a leading new energy vehicle brand with a high brightness IPS full lamination technology that meets the IP65 protection level requirements. In order to perform in various outdoor environments, we have, among other things, enhanced anti-reflection features, wide-operation temperature range (-30°C~70°C), and ability to function at very low temperatures (-20°C). The monitor is equipped with a smart light sensor system that can automatically adjust its brightness depending on whether it is day or night, which tremendously increases the operating experience of the user.
We customized a 4-inch financial-grade encrypted display for international banks, using a military-grade IPS full lamination touchscreen, compliant with PCIDSS payment security standards. To meet the high security requirements of the financial industry, we specially designed an anti-peeping structure and tamper-proof frame to ensure data security on ATMs and other self-service terminals. The screen integrates an intelligent ambient light adaptation system, which can automatically adjust to the optimal display state according to the lighting conditions of the branch, significantly enhancing the customer operation experience and transaction efficiency.
