Product Details
Size (inch): | 1.69 | Resolution: | 240*280 |
PIN: | 18 Pins | Brightness (cd/m²): | 500 Nit |
Interface: | 4 Line SPI | Driver Ic: | ST7789T3 |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram | Supply Ability | 25,000 PCS per day |
Product Description
Product description:

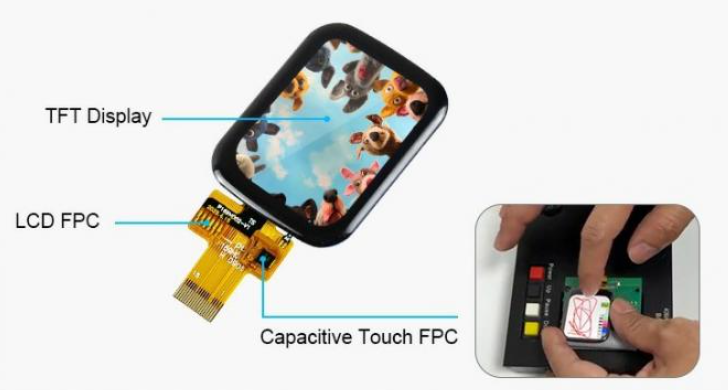

1.69'' TFT LCD is a versatile display technology that offers high resolution, accurate color representation, low power consumption, and a compact size. It is a popular choice for use in wearable devices, industrial equipment, medical devices, and other applications where a small, high-quality display is required.
Parameter:
| Model | P169H002-V5-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |

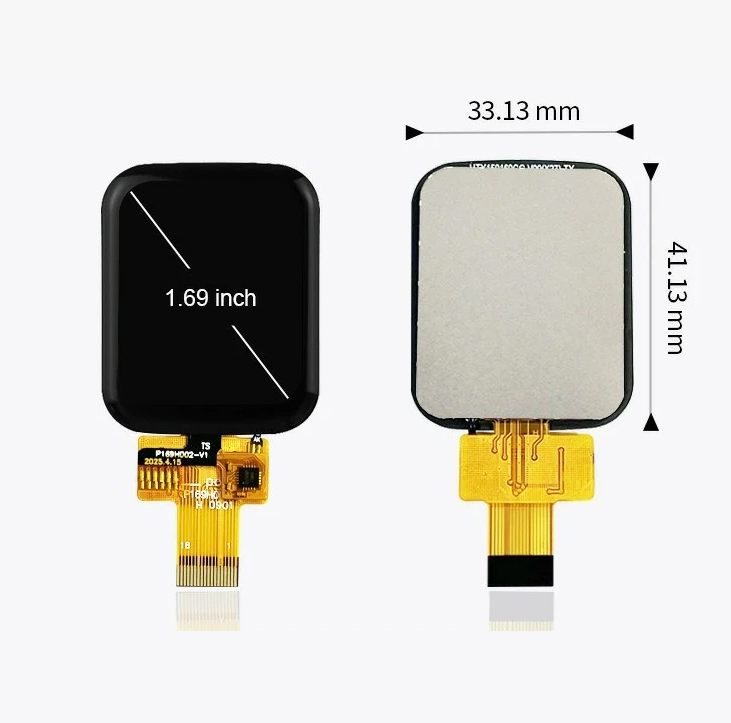

| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
