Product Details
P/N: | N133-2424TCBIG01-H12 | Size (inch): | 1.33 |
Resolution: | 240*320 | Brightness (cd/m²): | 350 |
Interface: | 4 Line SPI | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

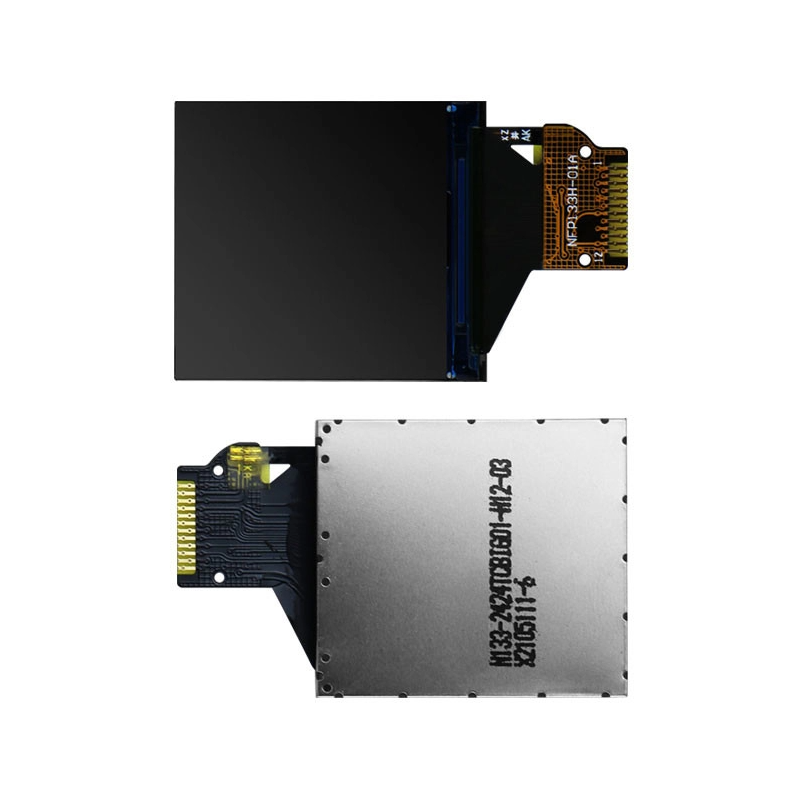

What can we expect from this one? Before this question it is better to know some information about this TFT LCD Display. If your product requires a size 1.33 inch then our lcd is just what you need. The TFT LCD offers a physical resolution of 240 * 240, clear enough for most scenes to be used. The normal brightness is 350 nits under the test of laboratory.
| P/N | N133-2424TCBIG01-H12 |
| Size(inch) | 1.33 |
| Resolution | 240*240 |
| Active Area(mm) | 23.40*23.40 |
| Pixel pitch(um) | 97.5*97.5 |

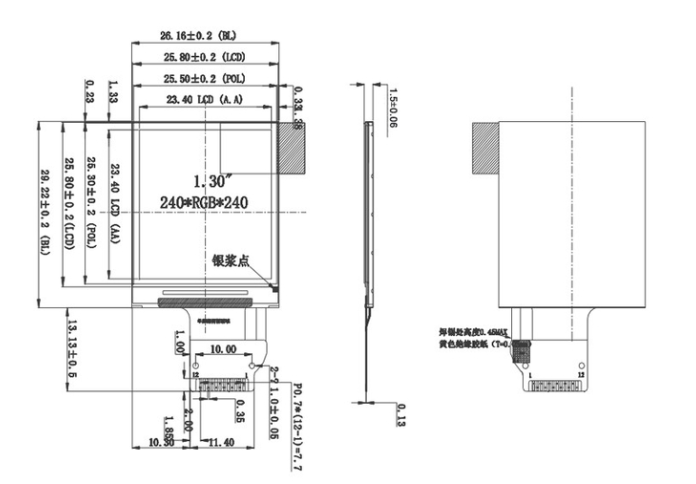

| Outline Dimension(mm) | 26.16*29.22*1.5 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | ALL |
| Display colors | 262K |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 600:1 |
| Interface | 4 Wire SPI |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 12 |
Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. From the datasheet we can know the driver of the LCD is is ST7789V. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
