Product Details
PIN: | 37 Pins | Size (inch): | 2.8 |
Resolution: | 240*320 | Brightness (cd/m²): | 270 |
Interface: | MCU 16bit | Driver Ic: | ILI9341V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm | Delivery Time | 1-7 working days |
Payment Terms | T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram | Supply Ability | 25,000 PCS per day |

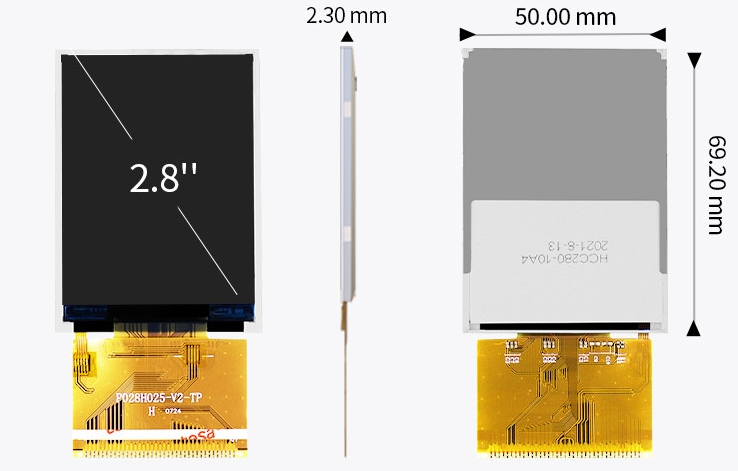

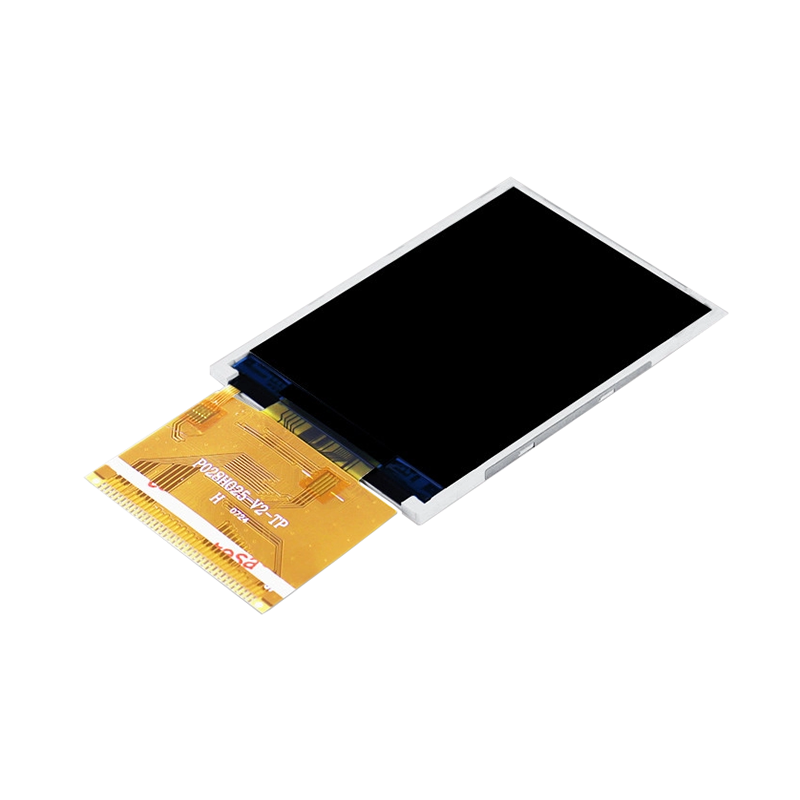

New published LCD Touch Panel for commercial and industrial use. Screen size is 2.8 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 240 * 320 resolution product. 300 nits allow this lcd to work well indoors.

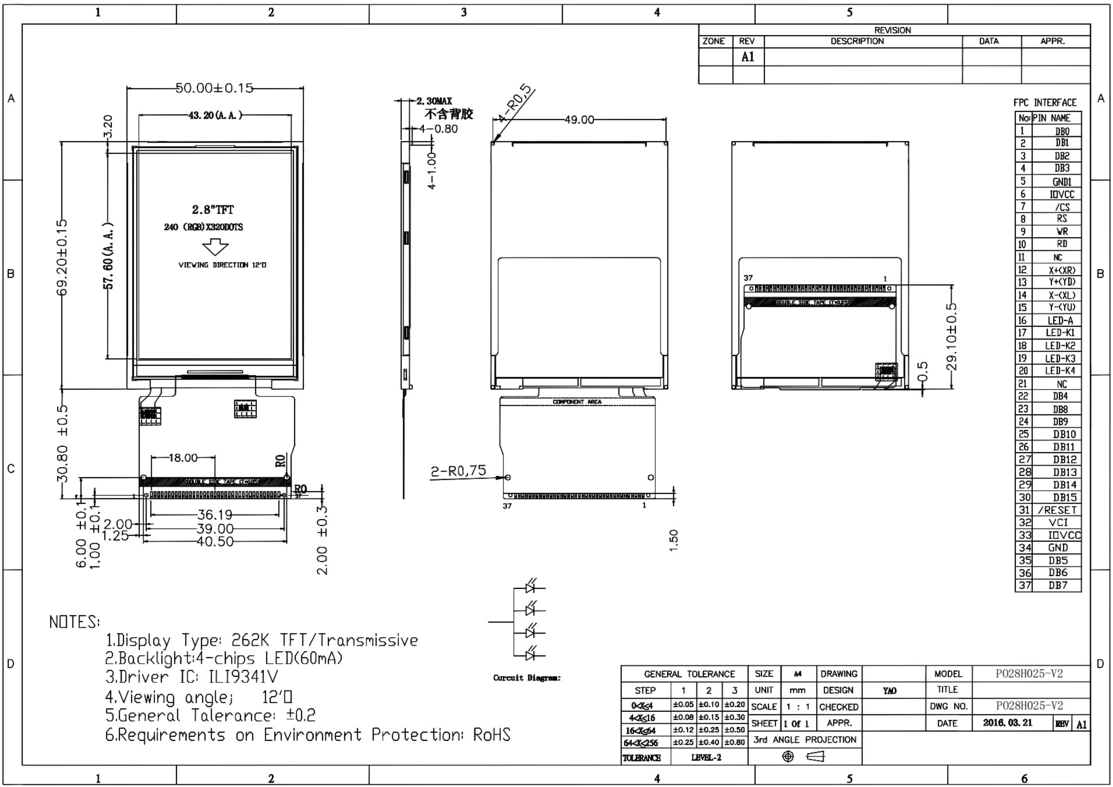

| P/N | P028H025-V2 |
| Size(inch) | 2.8 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 270 |
| Interface | MCU 16bit |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 37 |

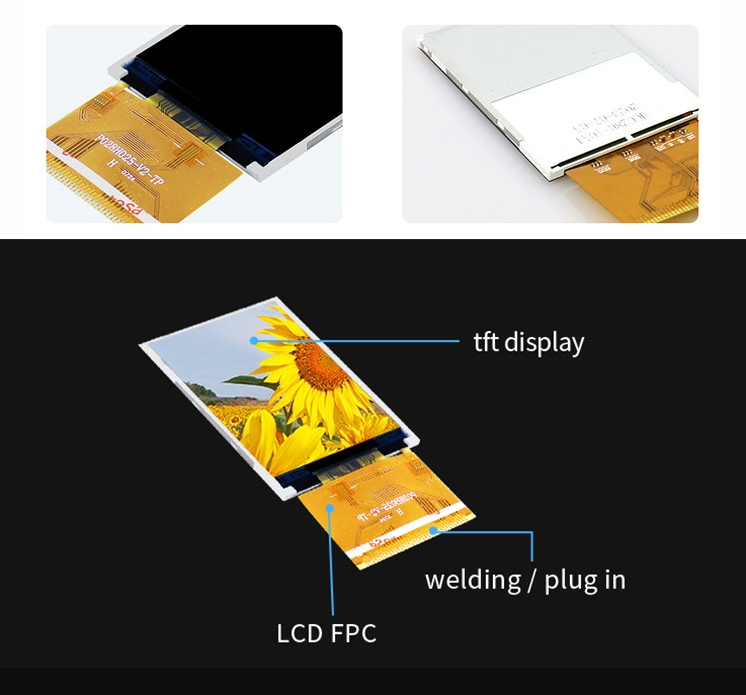

The Interface of this LCD is 8080 MCU 16bit. We can also customize other types of interfaces and FPCs for you. ILI9341V is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
