Product Details
P/N: | EO-DIS-TFT24V03 | Size (inch): | 2.4 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 8080 MCU 8bits | Driver Ic: | ST7789V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

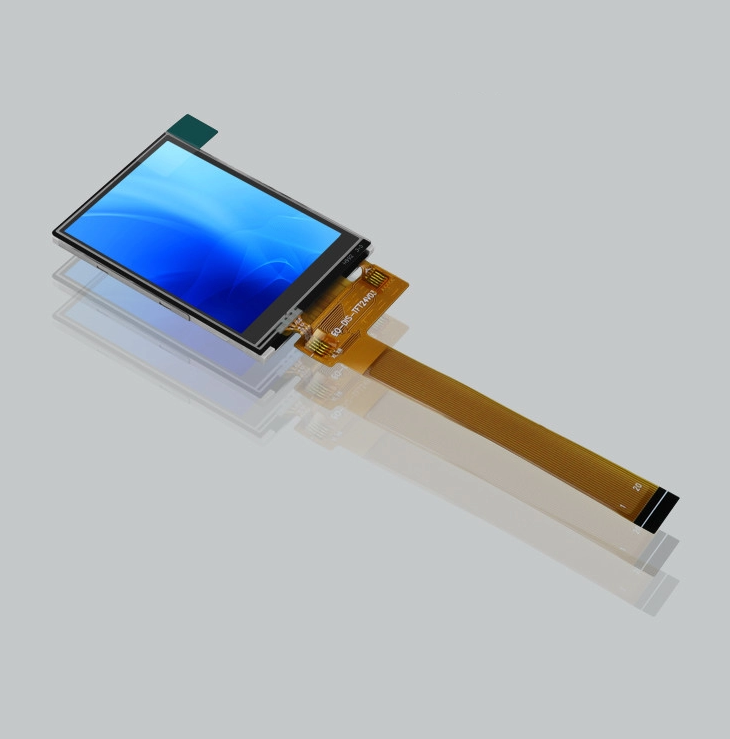

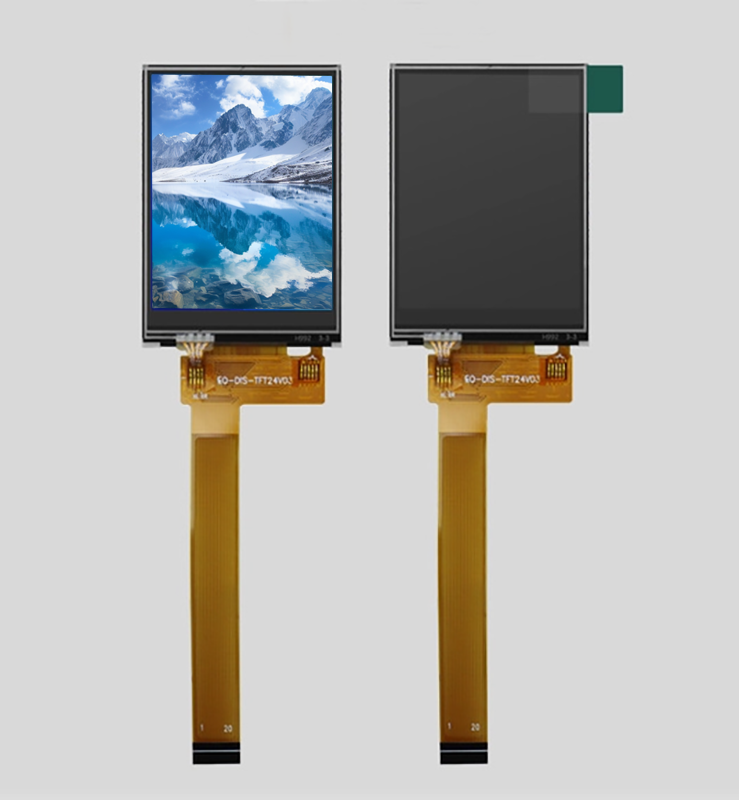

What can we expect from this one? Before this question it is better to know some information about this TFT LCD Display. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 300 nits allow this lcd to work well indoors.
| P/N | EO-DIS-TFT24V03 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |
| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bits |

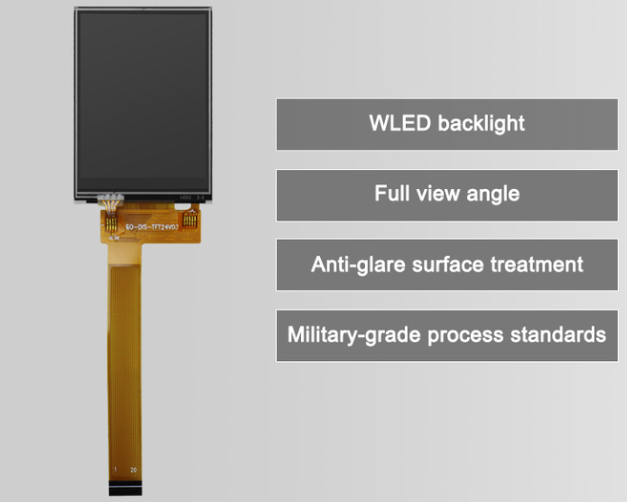

| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 20 |
Supported by 8080 MCU 8bits, this type of TFT LCD can be used in many applications. ST7789V is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.
