Parameter:
| Model | P028HK9853-24P |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Pins | 24 pins |
Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 200 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | JD9853 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

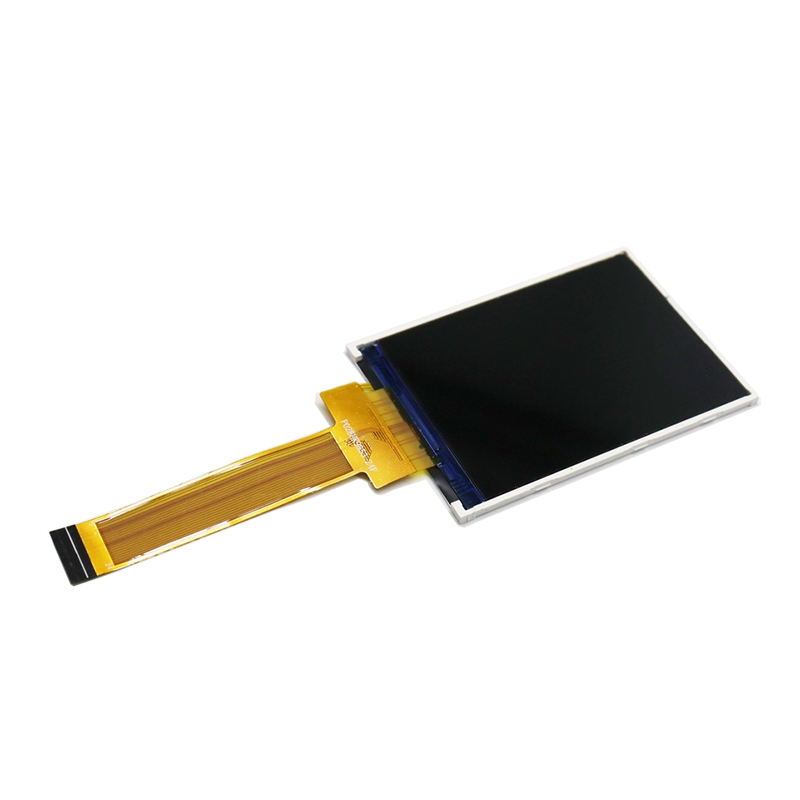

This 2.8-inch TFT LCD panel unit, model P028HK9853-24P, has a main specification of 240×320 pixel resolution, and it is targeted directly at small electronic devices with the minimum available space. Its outer dimensions are just 50.00×69.20×2.30mm, while the thickness is held at an extremely thin level of 2.30mm, so it can be conveniently incorporated into handheld tools, portable medical units, smart wearables, and tiny industrial control terminals, all of which have very demanding in terms of physical space requirements.
The display area of the module is 43.20mm×57.60mm, with the pixels set in RGB vertical stripes and the pixel pitch of 0.180×0.180mm. It has quite a good screen fineness, and the demonstration of characters and icons is both clear and neat. It is a Normally Black display mode using an ultra-high contrast ratio of approximately 1200:1, so it produces blacks that are not only deep but also pure along with the intricate layers of dark details, making it an extremely useful feature when UI interfaces or video contents which are largely dark are being displayed. The display can show 262K colors with richly blended and beautifully smooth color changes.

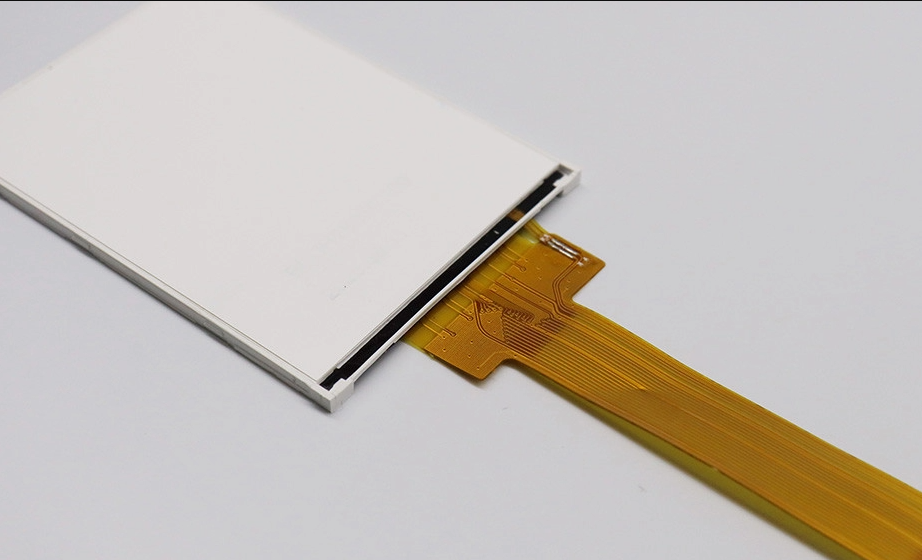

The display, along with the LED edge-lit backlight solution, achieves a brightness of 200 cd/m². The backlight circuit comprises 4 LEDs in series, with the working current of 80mA and the voltage of 3.2V delivered, thereby assuring uniform and energy-efficient illumination. The full viewing angle (ALL) characteristic of the module, dictates that irrespective of the angle of viewing—top, bottom, left, or right—the brightness and color remain unchanged, thereby ensuring an unvarying visual experience even when multiple viewers are present.
With regard to environmental adaptability, its operating temperature scope is from -20℃ to 70℃, whilst its storage temperature can go up to -30℃ to 80℃, which allows it to be used in highly varying temperature situations from cold outdoor survey equipment to very hot dashboards in cabinet environments.This module is produced by the HKC LCD panel factory under rigorous quality control conditions, and the precision of the PI FPC alignment is 0.3±0.03mm, which is a guarantee of very good structural reliability.
At Shenzhen YiTai Optoelectronics Co., Ltd, the success of our customers means our success too. We are not only a display screen supplier but also offer our customers help in optimizing display solutions, technical problem-solving, and reducing their time-to-market. Since 2014, we have been operating a 20,000 square meter facility with 20 production lines capable of producing 2.5 to 3 million units monthly. Our team consists of 320 members including 28 dedicated R&D staff who are focused on achieving customer success. Among our qualifications and capabilities, we hold an ISO9001 certificate, possess more than 20 patented technologies, have national high-tech enterprise qualification, a class 10,000 cleanroom, and fully automated production lines, thus, working together, we lead to customer success.Not only do we have thousands of TN/HTN/STN/VA products to choose from, we also offer one hundred plus TFT color screens and provide customized LED backlight solutions. Teaming up with you, we aim at small size displays from 0.96 inches to 7 inches. Our products are test-driven for high and low temperature, vibration, and anti-interference and have a broad spectrum of medical, testing, smart home, and IoT application fields. Going the extra mile to serve our customers is what enables us to sell our products extensively in Europe, Americas, and Southeast Asia.
A 4.3-inch charging pile interactive screen was custom-made for a well-known new energy brand. It employs the high-brightness IPS full lamination technology and complies with IP65 protection level requirements. We especially improved the anti-glare design and wide temperature operation performance (-30°C~70°C) for the outdoor environment, which is very complex. That said, the screen is clear and visible under all weather conditions. The device also includes a clever light-responding system that automatically enhances the display's brightness in rescue of the day/night changes, which really amplifies the user-operation experience.

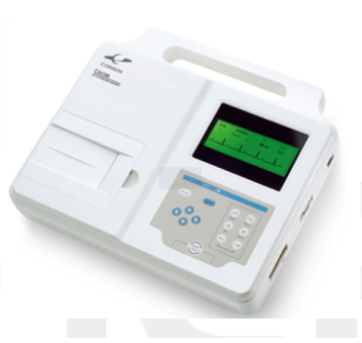

We created from scratch a 5-inch medical-grade touch display for a famous medical device manufacturer, which is fitted with a high-resolution IPS fully laminated panel and meets Class B electromagnetic compatibility standards. Apart from medical ergonomics, we also use antibacterial bezels and anti-glare features to guarantee the stability of operations in complicated environments such as operating rooms. Integrated into the display is an intelligent ambient light system, which automatically adjusts the parameters of the display according to the surroundings, thereby minimizing the visual stress of doctors and promoting efficiency in diagnosis and treatment.
A 3.5-inch industrial-grade intercom display was custom-developed for a famous communication equipment manufacturer. It features a high brightness IPS fully laminated touch screen and meets IP67 protection requirements. We improved the shock-resistant frame and anti-slip texture design that are the features of our industry to satisfy the special needs of the industry and so, we are sure that it can operate reliably in the most unfriendly environments. The screen contains an intelligent light-sensor-based adjustment technology that can switch between the day and night display modes automatically depending on the ambient light, which greatly improves the visibility and the ease of operation during outdoor work.
