| P/N | EO-DIS-TFT24V03 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |

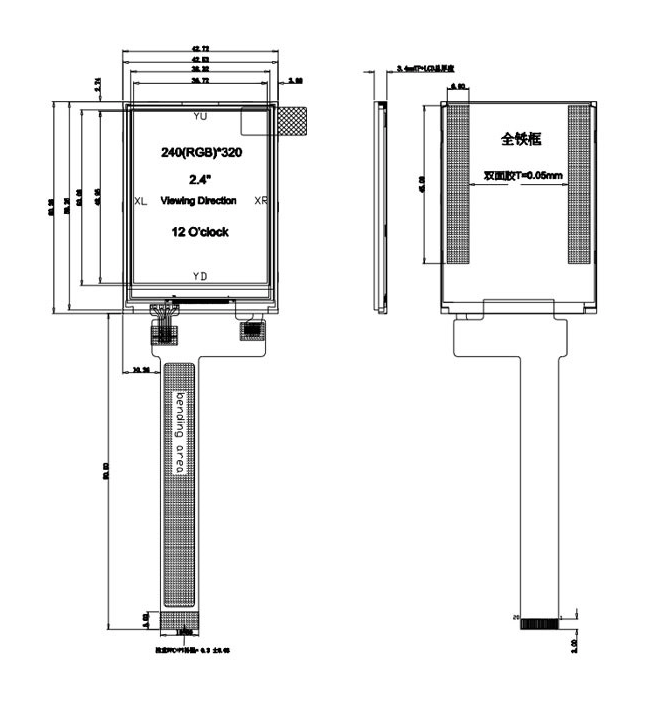

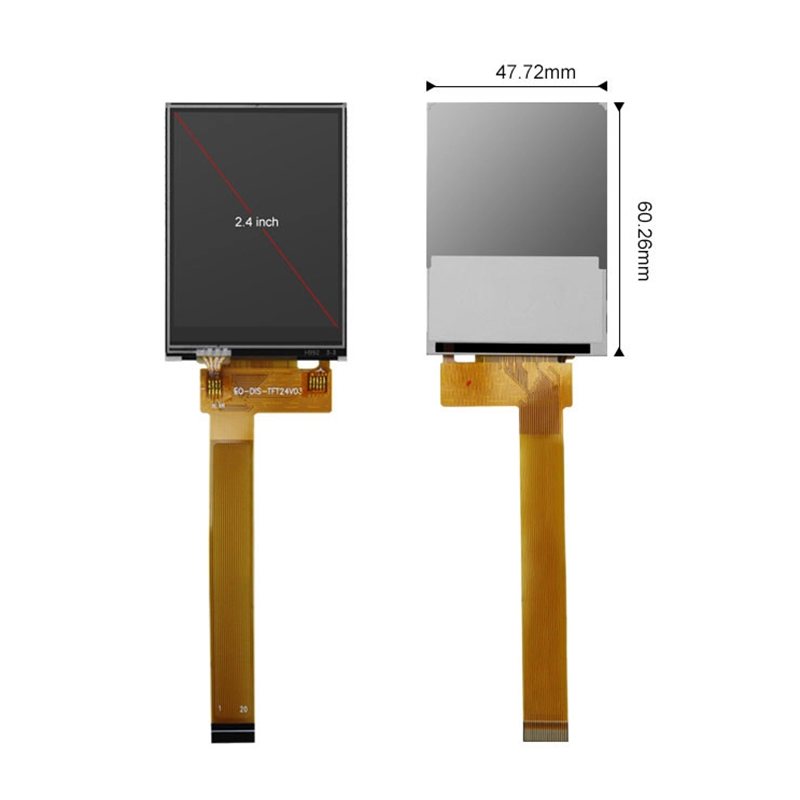

| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bits |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 20 |
Supported by 8080 MCU 8bits, this kind of TFT LCD can be employed in a wide range of applications. ST7789V being the driver IC of the tft lcd.
The operating temperature range for this product is from -20°C to 70°C and the storage temperature range is from -30°C to 80°C which comply with the industry standards.
The EO-DIS-TFT24V03 2.4-inch TFT LCD display module is mainly aimed at industrial control, open-source hardware, and embedded terminal applications. It is equipped with an ST7789V driver chip which is quite high-performance the resolution is 240×320 pixels (QVGA portrait).
The use of an 8080 MCU parallel interface, a full-angle display, and military-grade workmanship standards make it a source of professional-grade visual solution products for industrial HMI interfaces, portable instruments, Raspberry Pi expansion screens, Arduino development kits, smart home controllers, and IoT interactive nodes.

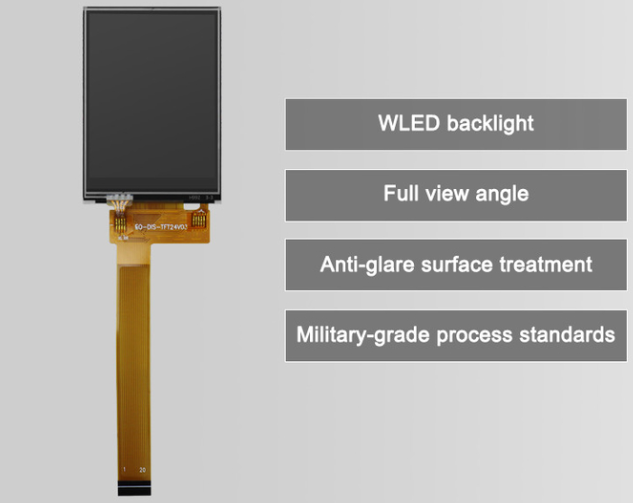

The EO-DIS-TFT24V03 stands out among 2.4-inch industrial and open-source solutions display products as a benchmark due to its balance between the professional image quality and durability aspects. The introduction of a 600:1 super high contrast ratio, mature 8080 MCU interface, anti-glare surface, military-grade workmanship, and integral iron frame strengthening has given it a lead in the market. Besides the mentioned features, it mostly keeps the same historical advantage of a change of industrial operating environment temperature capability range of -20℃ to 70℃ with storage at -30℃ to 80℃ enabling it to work stably under drastic changes of temperature and humidity very well like the laboratory, factory workshop, outdoor node, and field operation environments. As a product it is also RoHS environmentally certified, characterized by its use of green and eco-friendly materials.
Shenzhen Yitai Optoelectronics Co., Ltd. was established in 2014, and is a faculty national high-tech enterprise with more than 12 years of professional experience in display screen manufacturing. We have a fully independent factory of 20,000 square meters, equipped with 20 production lines, over 320 skilled workers and 28 R&D professional engineers. We can easily handle large-volume orders with our monthly production capability of 2.5 to 3 million units. Our factory is equipped with ten-thousand-level cleanrooms and advanced fully automated production lines, which help maintain the consistent quality of the products. By engaging mainly in the R&D, production, and sales of small-size LCD screens with the range from 0.96 to 7 inches, we are keeping our leading position in the market. So far, we have a product range that includes over 1,000 types of TN, HTN, STN, VA displays and hundreds of TFT color LCDs, with customized LED backlight services as well. We have won over 20 technical patents and are also ISO9001 certified. The products undergo strict tests for the ability to withstand high & low temperatures, vibration resistance and anti-interference performance. Our displays are extensively used in portable medical devices, handheld detectors, smart home panels, and IoT terminals. By sticking to the customer-oriented and quality-driven concepts, we keep providing trustworthy display solutions. Our sales network is very wide as the products are sold well across the country and exported to Europe, America, and Southeast Asia.

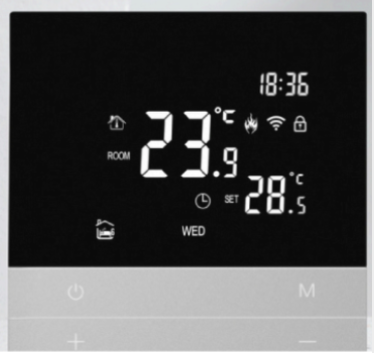

Developed a 3.5inch very accurate temperature control display specially made for a famous HVAC brand by going with full-view IPS full lamination technology and also support multi-touch operation. To match the home environment requirements, an ultra-thin bezel and rounded corner design were adopted, thereby making a great combination with modern interior decorating styles.Moreover, the screen comes with an ambient light intelligent adjustment feature that helps to automatically adjust the display brightness and contrast according to the indoor lighting, thereby providing an excellent user operation experience and energy conservation.
Through close cooperation with a well-known new energy brand, we were able to provide a 4.3-inch charging pile interactive screen that featured high-brightness IPS full lamination technology and the capability of IP65 protection level. We optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) to make it suitable for complex outdoor environments and ensure a clear display under various weather conditions. The screen also includes a system that uses intelligent light-sensing to make adjustments to the display brightness according to light changes between day and night, which greatly improves the user's experience of operation.
We have customcrafted 4-inch financial-grade encrypted display for international banks by using a military-grade IPS full lamination touchscreen that is PCIDSS payment security compliant.In order to meet the financial industry's extremely high security requirements, we have specifically come up with an anti-peeping structure and tamper-proof frame.We have also integrated an intelligent ambient light adaptation system into the screen that automatically adjusts to the best display state in accordance with the branch lighting conditions.
