Product Description
Because it supports 8080 MCU 8 bits, this kind of TFT LCD can be changing many uses. ST7789V is the driver IC of the tft lcd.
The operation temperature is decided as -20°C to 70°C, and the storage temperature is -30°C to 80°C, which make it fulfill the requirements of the industrial standards.

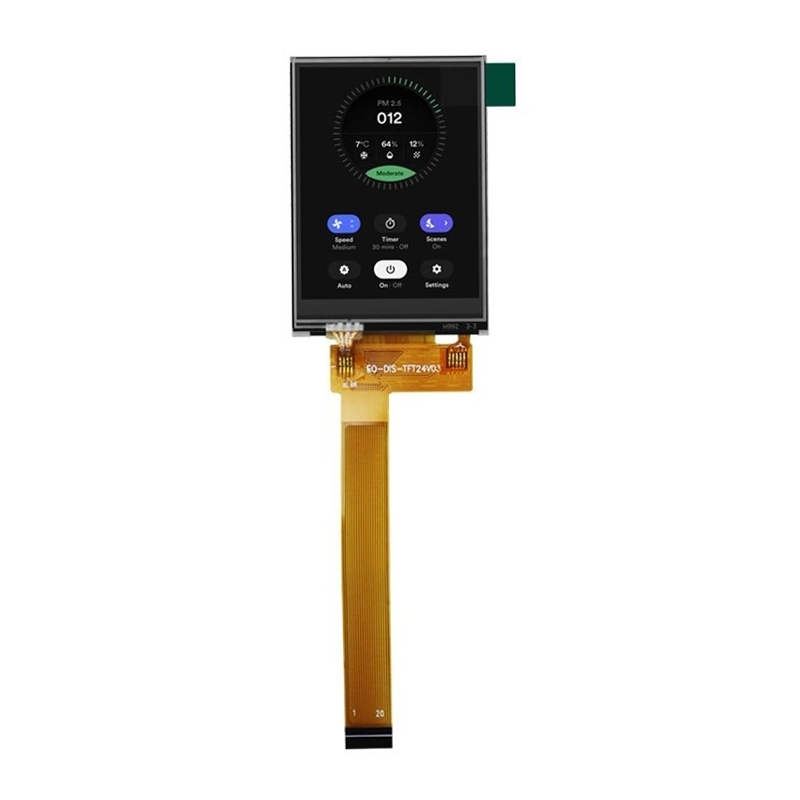

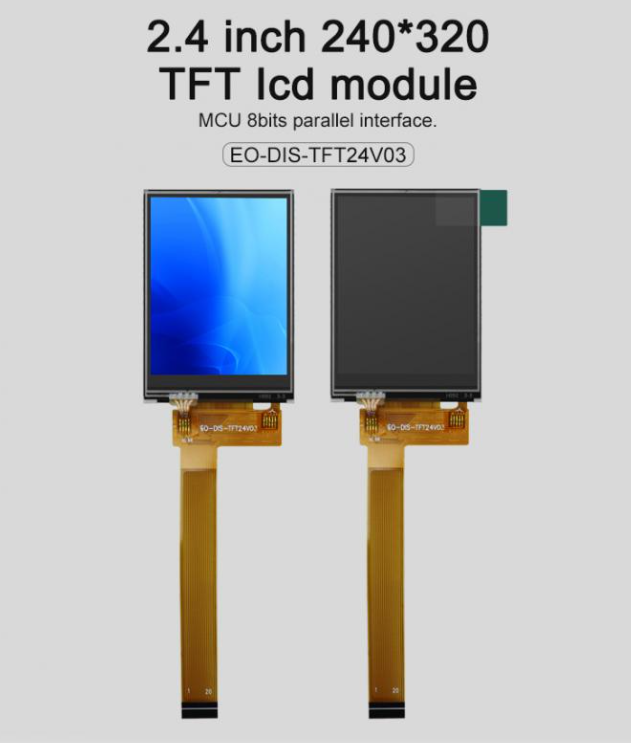

Display model EO-DlS-TFT24V03 is a Transmissive type color active matrix thin Film transistor(TFT)liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.

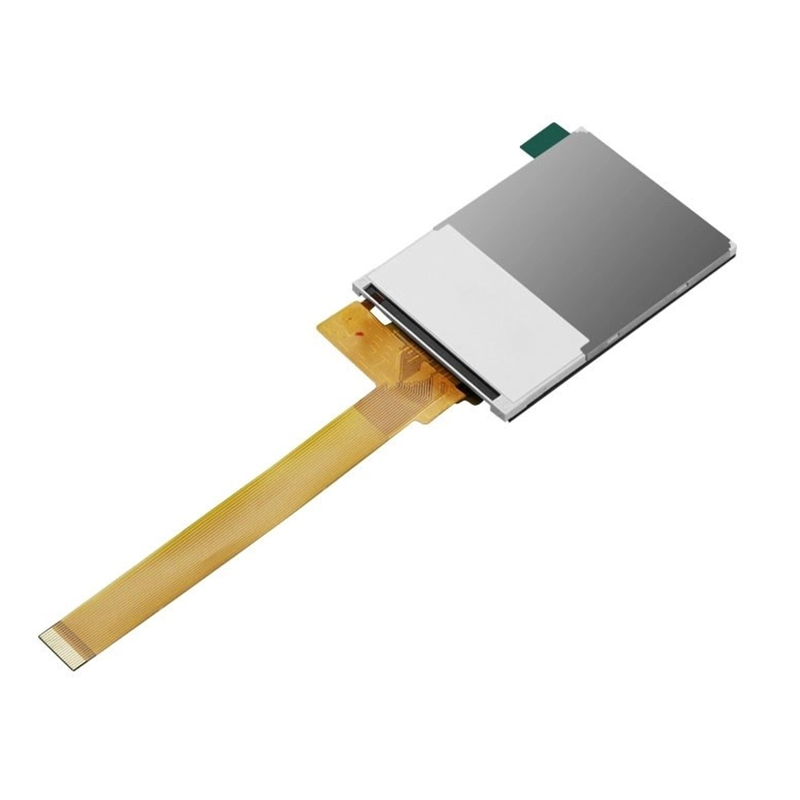

This model consists of a TFT LCD panel, a driving circuit, and a backlight system.
| P/N | EO-DIS-TFT24V03 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 51*153 |

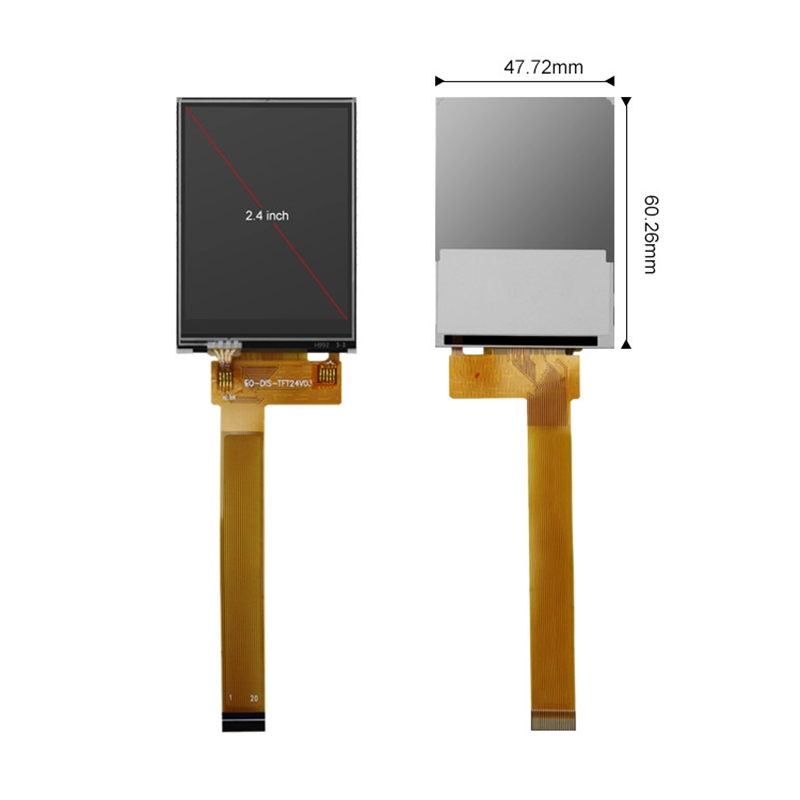

| Outline Dimension(mm) | 42.72*60.26*3.40 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 262K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bits |
| Back-light | LED Side-light type |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 20 |
The dimension of the module is 42.72×60.26×3.40mm in size, and the thickness is only 3.40mm, standing for slim and compact advantages, making it easy for embedding in small device enclosures with limited space. As far as environmental adaptability is concerned, the operating temperature is -20°C to 70°C, and storage temperature can be -30°C to 80°C, which allows functioning even in extreme conditions like very cold outdoors and hot high-temperature workshops. When the display is viewed straight on, the brightness is uniform and the colors are beautifully saturated. This makes the display solution ideal for handheld devices, portable instruments, and embedded terminals. The module resolution is 240×320 pixels, the active display area is 36.72×48.96 mm, with pixels arranged in RGB vertical stripes and a pixel pitch of 51×153 microns. This gives a clear and detailed information within the small size.
In terms of the color presentation, this module capable of presenting 262K different colors thus delivering very natural and rich color transitions. When combined with Normally Black display mode and high contrast of 600:1, it turns the blacks deepest and pure with details of shadows remaining crisply. Rendering data charts, menu interfaces or product images, it gives an accurate reproduction of true and vivid visual effects, with a brightness of 300 cd/m² and uniform, stable light distribution.
At Shenzhen YiTai Optoelectronics Co., Ltd., quality, cost and time are equally important to them and they strongly advocate quality and only produce the best quality products. To put it another way, the company does not tolerate poor quality at any cost and at the same time will not compromise the quality to the limited costs of the products but always strikes a balance in the framework of ISO9001. With 20000 square meters of factory floor space, 20 production lines, a monthly output of 2.5 to 3 million units, and a work force of 320 employees, including 28 R&D personnel, the company adjusts quality costs and makes the optimal selection from the 12 years data. Having more than 20 patented technologies and national high-tech enterprise qualifications, and having a Class 10,000 cleanroom and fully automated production lines, the company obtains the best quality at the least cost.It provides over one thousand TN/HTN/STN/VA items, several hundreds TFT color screens, and customized LED backlights, mainly focusing on small-size displays of 0.96 to 7 inches. Products are subjected to harsh environmental tests and most of them have been widely applied in the medical, inspection, smart home and IoT fields, with quality cost advantages being the basis for exports overseas.
We tailored a 2.8-inch minimalist clock display for a famous house brand, made with a low-power IPS full lamination technology that allows clear display from 180° wide viewing angles. We re-imagined the ultra-thin borderless design and the soft light guide structure based on bedroom usage scenario to fit perfectly with modern home aesthetics. The screen comes with a smart light-sensing adjustment system that not only changes the display modes automatically depending on the daylight, but also switches to soft light mode at night for ensuring that the time is clearly visible without sleep being affected.
We custommade a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer, which is a high-brightness IPS fully laminated touch screen and it also fulfills the IP67 protection level requirements. The demand of the industry was such that we considered the shock-resistant frame and anti-slip texture design so that in spite of the harsh environment, the device can still be operated reliably. The screen is equipped with intelligent light-sensing adjustment technology, which allows switching between day and night display modes automatically based on light, thus improving visibility and workplace efficiency during outdoor operations.
We have designed a 4.3" industrial-grade instrument display for a famous power equipment manufacturer, which is a high-contrast IPS full lamination panel and a workhorse that has met the IP65 protection level requirement. We have re-engineered the dustproof and waterproof structure along with the wide temperature range (-30°C to 70°C) for the special needs of the power industry so that even at substations where conditions are tough, equipment continues to operate properly. The screen features an automatic dimming system that automatically varies the intensity of the display according to ambient light, greatly enhancing the efficiency of data reading and operational safety in outdoor environments.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
