| P/N | P024C026 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Brightness(cd/m²) | 320 |
| Interface | 8080 MCU 16bits |
| Driver Ic | ST7789V |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |

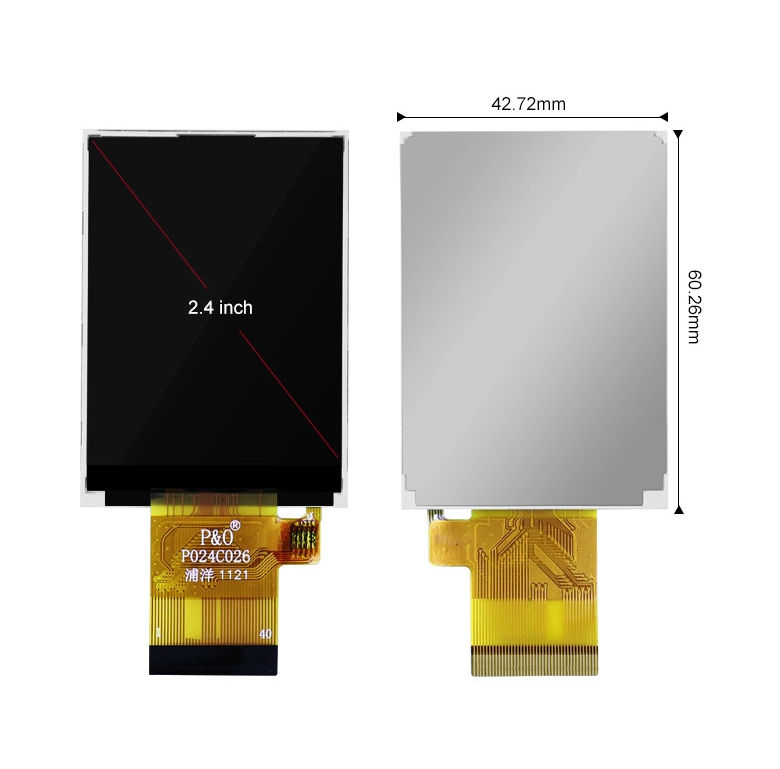

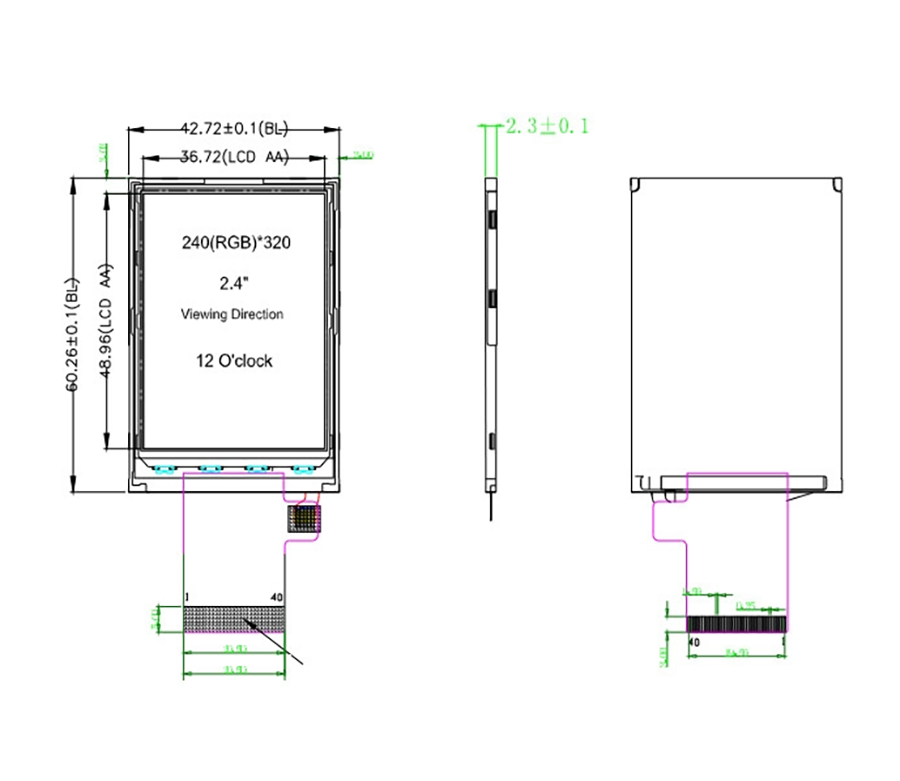

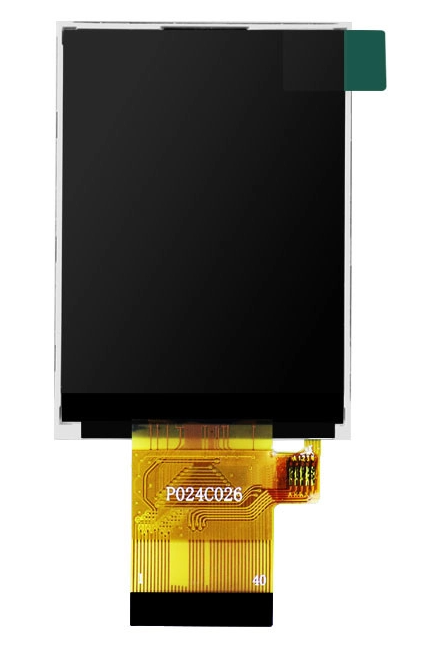

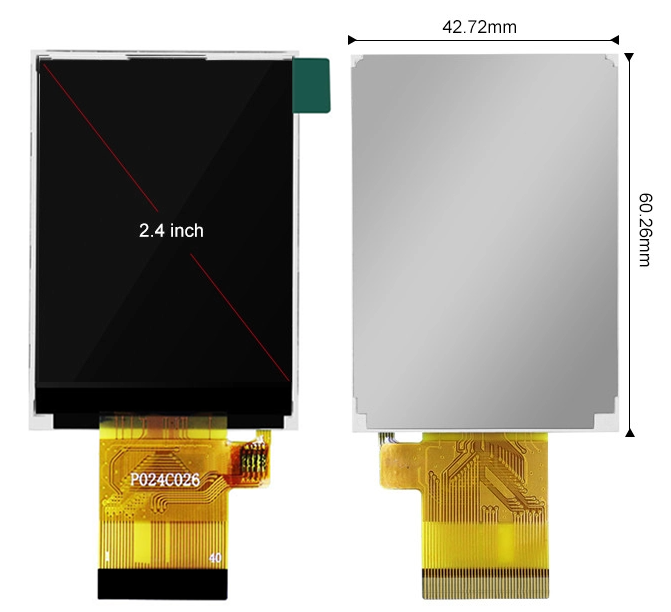

Among a number of small-size products, this 2.4-inch TFT LCD display module model P024C026 with a core selling feature of lighting 320 nits brightness will be quite attractive, even during the day when the lighting is strong. Office or lighted semi-outdoor spaces, the content of the screen can still be seen clearly and brightly; users don't have to deliberately look for shade or shield the light source in order to read the information.The module resolution of 240 × 320 pixels and presentation of pixels vertically is perfect for UI design of handheld devices and portrait-oriented terminals. A single screen can feature numerous menu items, data charts, and status indicators, rendering an interface more rational and intuitive.
The charging pile interactive screen (4.3 inches) for a famous new energy brand used high-brightness IPS full lamination technology and met the IP65 protection level requirements. We introduced special measures to improve the anti-glare feature and make the wide temperature operation performance sample (-30°C~70°C) to weather the complicated outdoor environment to make the display more clear under all kinds of weather conditions. Besides, a light sensor based smart system has been integrated to the screen, and it can change the display brightness automatically, based on the day and night changes of light, and the result is substantially better user experience of operation.

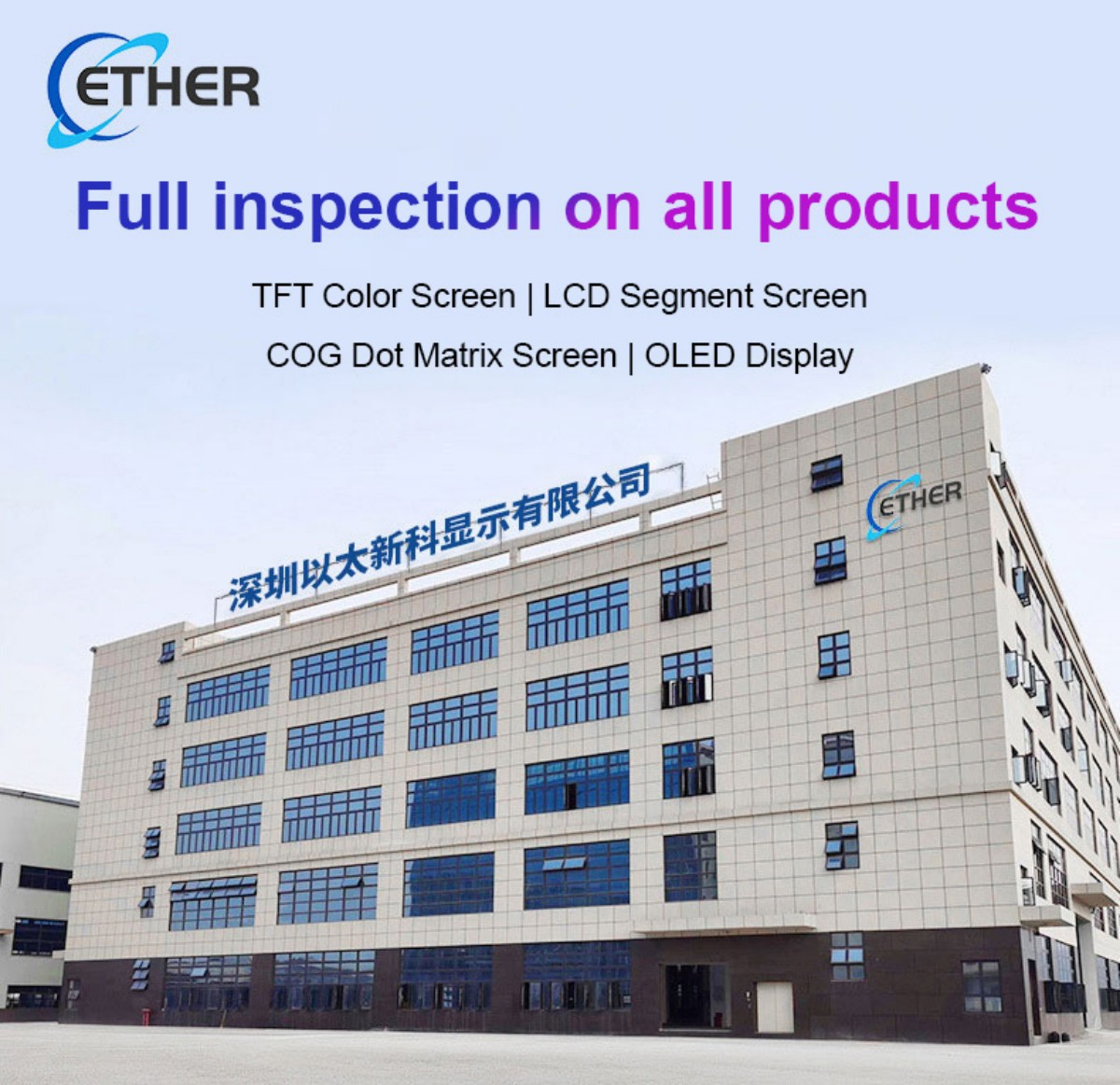

Established in 2014, Shenzhen Yitai Optoelectronics has a solid 12 years of experience in the display manufacturing industry. We operate a 20,000㎡ independent factory which houses 20 automated LCD production lines along with a 10,000-class dust-free workshop. With a workforce of more than 320 personnel, our monthly production capacity reaches 2.5-3 million units which facilitate us to handle large order volumes. Besides, our 28 expert R & D team that is devoted to working on new innovations, has already designed more than 1,000 TN/HTN/STN/VA display products along with a variety of TFT color LCD screens. Our focus lies on manufacturing 0.96-7 inch small size displays for industrial and consumer markets, also providing customized LED backlight solutions. We have in our portfolio more than 20 patents and also are ISO9001 certified. In line with the principle of 'customer first and quality foremost', all our products are subject to strict tests to ensure reliable performance even in challenging environments. Updates to our production lines are continuous which allow us to be able to keep our manufacturing level at industry-leading position.Our products are used in sectors such as medical equipment, smart home, IoT and testing equipment, and have record of strong sales not only in China but also in Europe, America and Southeast Asia.
The charging pile interactive screen (4.3 inches) for a famous new energy brand used high-brightness IPS full lamination technology and met the IP65 protection level requirements. We introduced special measures to improve the anti-glare feature and make the wide temperature operation performance sample (-30°C~70°C) to weather the complicated outdoor environment to make the display more clear under all kinds of weather conditions. Besides, a light sensor based smart system has been integrated to the screen, and it can change the display brightness automatically, based on the day and night changes of light, and the result is substantially better user experience of operation.

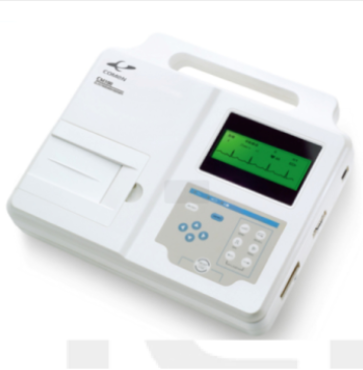

We have custom-designed a 5-inch touch display touchscreen of medical-grade for a well-known medical device manufacturer, which is based on a high-resolution IPS fully laminated panel, and also satisfies the Class B electromagnetic compatibility standards. Moving towards hospital ergonomics requirements carefully, we have employed antibacterial bezels and anti-glare treatment to deliver members stable working conditions even in complex settings like the operating room. Besides, the screen integrates an ambient light intelligent adjustment system that could automatically optimize display parameters according to usage scenario thus effectively reducing visual fatigue of medical staff and improving both diagnostic and treatment efficiency.
We tailor-made a 3.5-inch high-definition dashboard display for the client, implementing high-contrast IPS full lamination technology to keep the display visible clearly even under sunlight. As per the automotive-grade standards, we enhanced the ultra-narrow bezel and curved design to make a flawless harmonious with the cockpit interior style. The screen features a smart light-sensing system that can detect the surrounding light and automatically adjust the brightness and color temperature, thereby greatly improving driving safety and health visual experience.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
