Product Details
P/N: | P024C015-V2 | Size (inch): | 2.4 |
Resolution: | 240*320 | Brightness (cd/m²): | 300 |
Interface: | 8080 MCU 8bit/16bit | Driver Ic: | ILI9341V |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |
Product Description

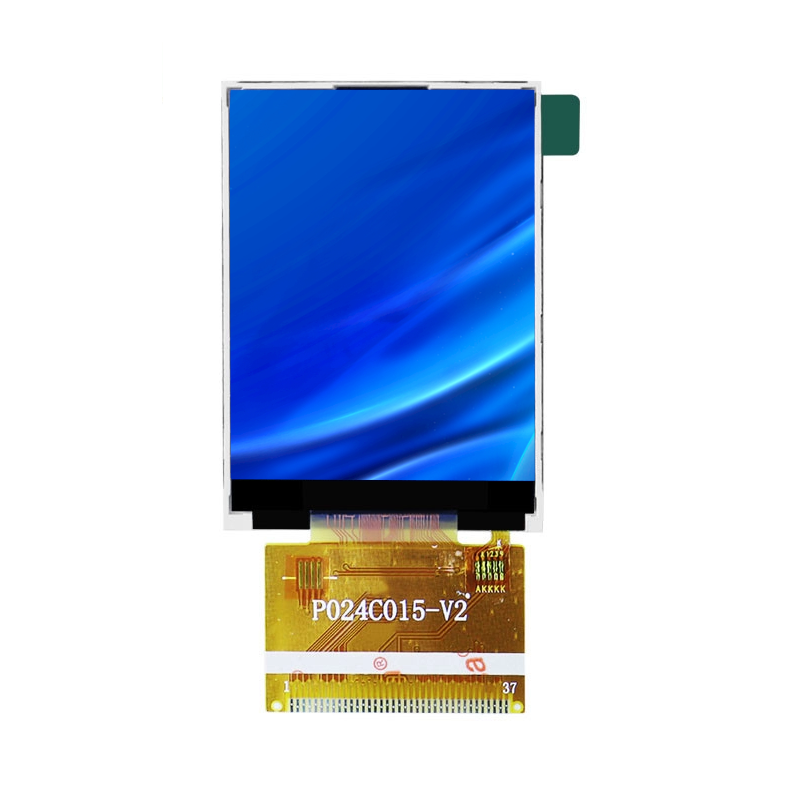

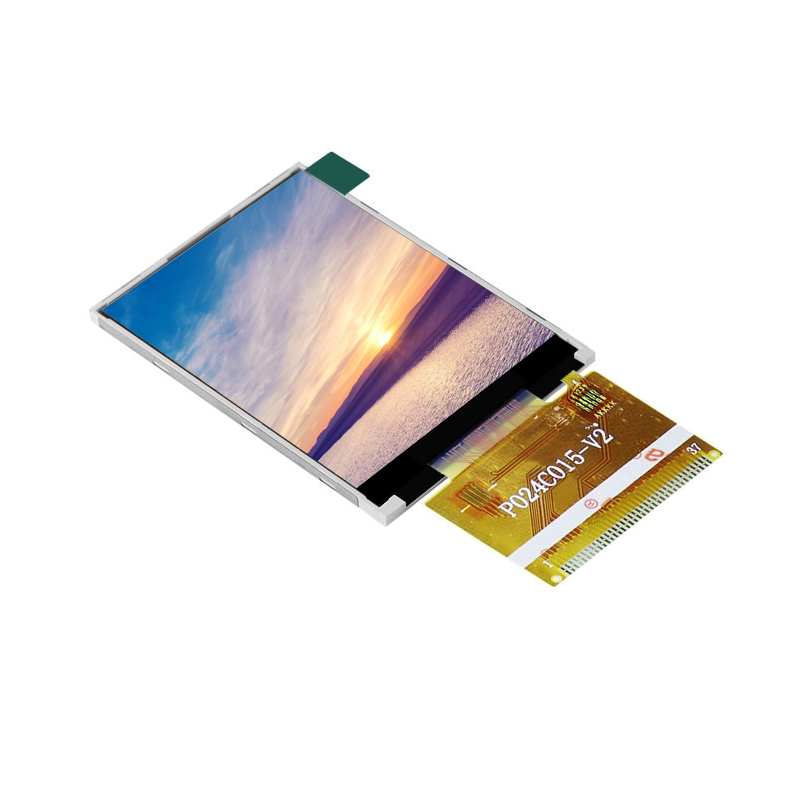

This Industrial Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.
| P/N | P024C015-V2 |
| Size(inch) | 2.4 |
| Resolution | 240*320 |
| Active Area(mm) | 36.72*48.96 |
| Pixel pitch(um) | 60*180 |

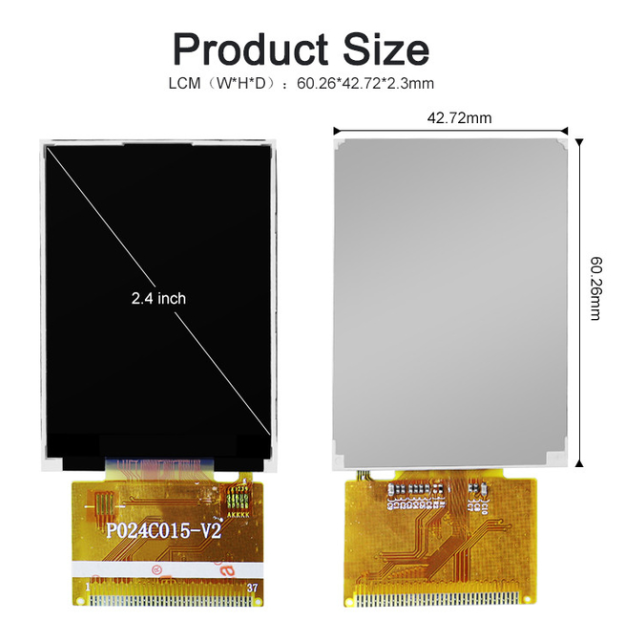

| Outline Dimension(mm) | 42.72*60.26*2.30 |
| Pixel arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |
| Viewing Angle | 12 0'CLOCK |
| Display colors | 65K |
| Brightness (cd/m²) | 300 |
| Contrast Ratio | 600:1 |
| Interface | 8080 MCU 8bit/16bit |
| Back-light | LED Side-light type |
| Driver Ic | ILI9341V |
| Operation Temperature(°C) | -20~70 |
| Storage Temperature(°C) | -30~80 |
| Response time(ms) | 35 |
| Pin Number | 37 |
This type of 8080 MCU 8bit/16bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9341V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
