Product Details
P/N: | P043B018-CTP | Size (inch): | 4.3 |
Resolution: | 800*480 | Brightness (cd/m²): | 300 |
Interface: | RGB 24bit | Driver Ic: | ST7262E43 |
Payment & Shipping Terms
Minimum Order Quantity | 1 piece | Price | Please contact us for latest price |
Packaging Details | 20 cm * 30 cm * 40 cm | Delivery Time | 5-8 working days |
Payment Terms | T/T, L/C, Credit card, PayPal | Supply Ability | 500,000 piece per week |

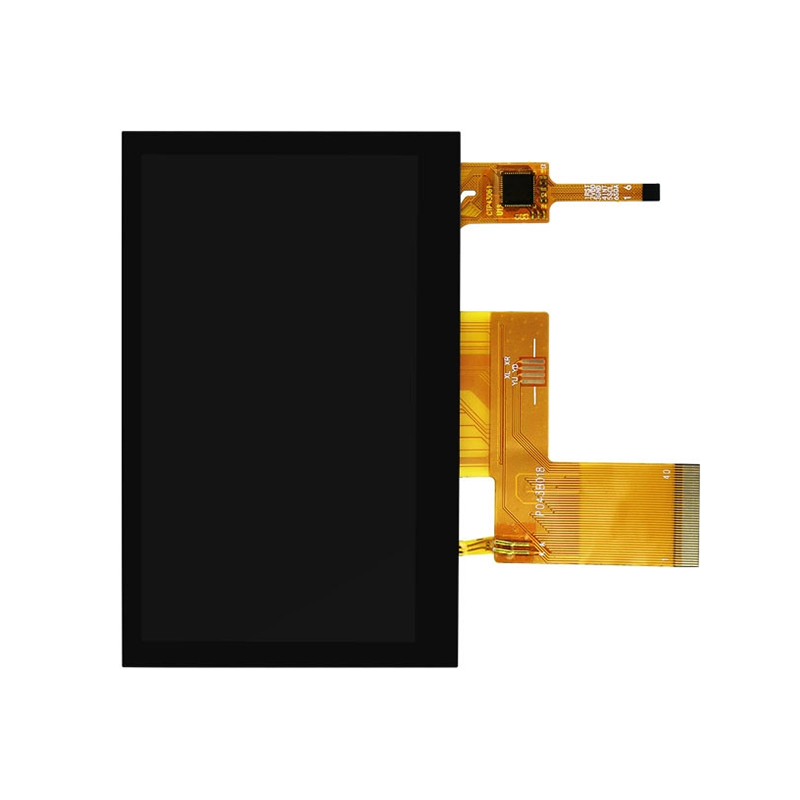

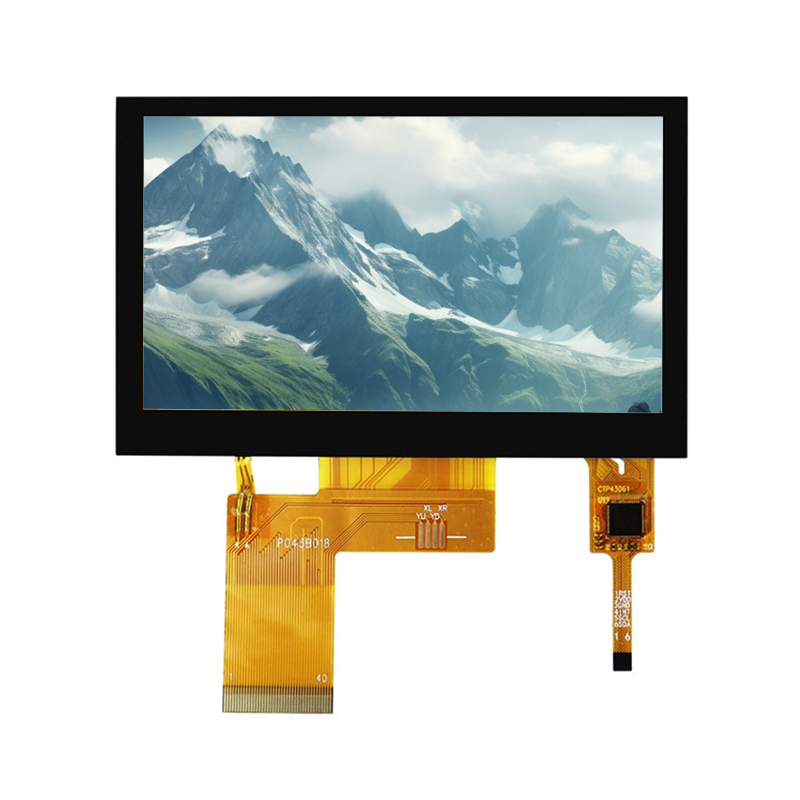

New published LCD Touch Panel for commercial and industrial use. Screen size is 4.3 inch. A very common and hot selling size for small size TFT display. Improve your product design by adding our 800 * 480 resolution product. 280 nits allow this lcd to work well indoors.
| P/N | P043B018-CTP |
| Size(inch) | 4.3 |
| Resolution | 800*480 |
| Brightness(cd/m²) | 280 |
| Interface | RGB 24bit |
| Driver Ic | ST7262E43 |
| Operation Temperature(°C) | -20~70 |
| Pin Number | 40 |
The Interface of this LCD is RGB 24bit. We can also customize other types of interfaces and FPCs for you. ST7262E43 is the driver IC of the tft lcd. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).
Q: Is there a Touch Panel (Touch Screen) on the display?
A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.
Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.
Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.
Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
Q: Where is your factory? Can we visit your factory?
A: Our factory is located in Shenzhen, China mainland. We always warm welcome customers and friends to visit.
