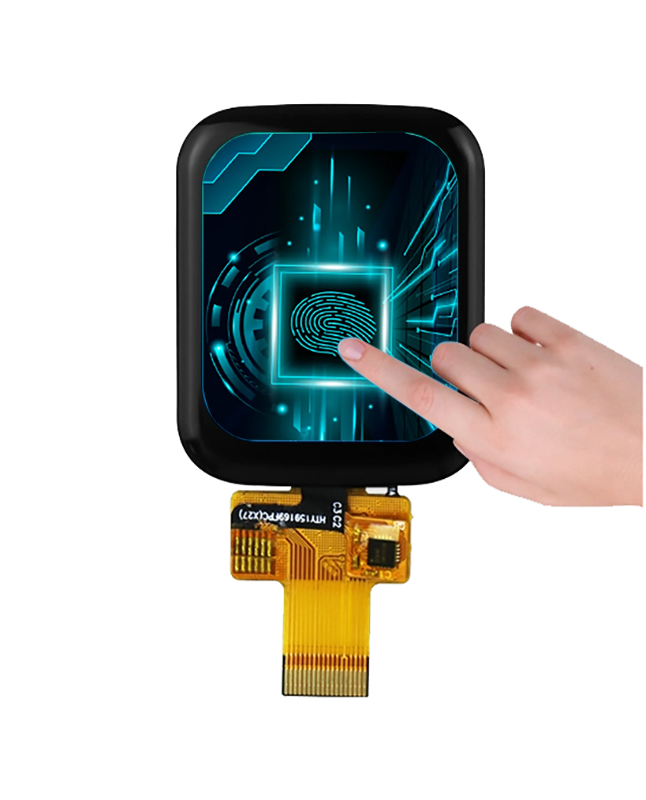

Product Description
Parameter:
| Model | P169H002-V5-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |
| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |

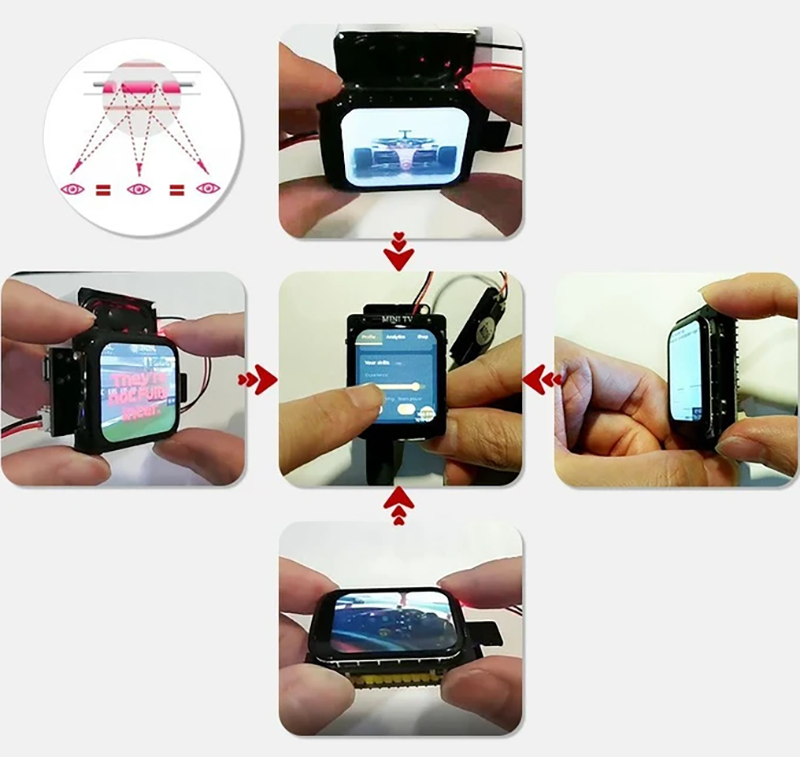

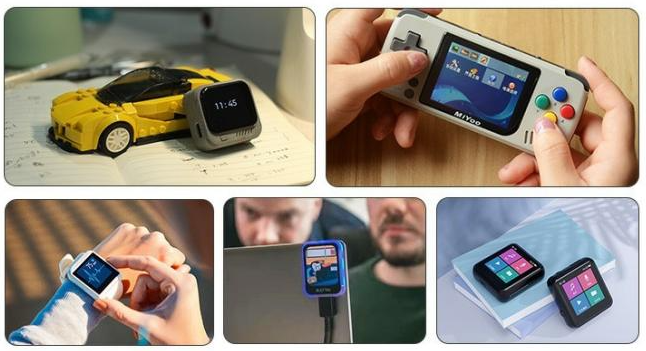

The active display area of this module is 27.97mm (horizontal) × 32.63mm (vertical), the size of the single pixel is 0.11655mm × 0.11655mm. The display has an RGB vertical stripe pixel layout, with the ability to display 262k colors layered very vividly. The utilization of IPS full-view technology facilitates that the screen does not show color shifting nor brightness fading from any viewing direction, thus totally getting rid of the viewing angle problems of the traditional TN displays. So, whether the user raises the wrist to see time, views the watch from the side or looks at it from the top, time, heart rate, steps, and notification information will always be visible clearly and the color accuracy will be preserved. This provides a great solution for smartwatches that are worn in they undergo quite different wearing postures. Especially the Normally Black display mode coupled with a 1000:1 ultra-high contrast ratio gives true and deep dark areas, sharp details in bright areas, a wide dynamic range and maintains excellent visual impact when shifting between dark-themed watch faces and light-colored application interfaces.
In the specialized world of LCD display manufacturing, Shenzhen Yitai Optoelectronics Co., Ltd., is the kind of 'hidden champion' not very well known. The company does not aim at a mass market exposure but quite silently provides the main display components to the major industry leaders, in fact becoming the 'hidden screen supplier.' Operating since 2014, with 20,000 square meters of space and 20 production lines, it can produce monthly between 2.5 and 3 million units. Its staff numbers 320, out of which 28 are R&D personnel. The company is at the forefront of its particular niche by means of 'very precise display technologies and highly customized services.' More than twenty patented technologies, ISO9001 certification, national high-tech enterprise endorsement, a cleanroom of 10,000 class, and fully automated production lines form together a very effective moat for its role as a hidden champion. It sells over 1000 TN/HTN/STN/VA types, hundreds of different TFT color screen models, and custom LED backlight sources. Product portfolio mainly targets the 0.96-inch up to 7-inch segment. Among other sectors, hospital equipment, analytical instruments, smart home systems, and IoT devices rely on its products, which are exported to Europe, America, and Southeast Asia.

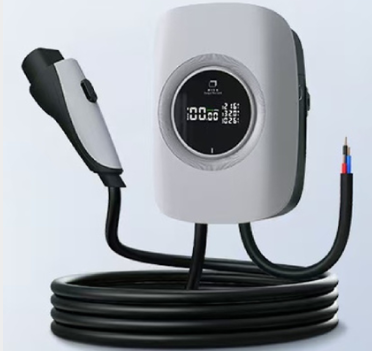

We have made a 4.3-inch charging pile interactive screen for a very well-known new energy brand. The screen uses a high-brightness IPS full lamination technology, which is also consistent with IP65 protection level specifications.We have particularly enhanced the anti-glare feature and also the performance of operation at a wide temperature range (-30°C~70°C) in order to function in a very complex outdoor environment so that display is also very clear even when weather changes.The display also comes with a light sensor system that automatically adjusts the brightness of the display according to the changes between day and night light conditions thus significantly improving the user experience during the operation.
We have designed a bespoke 5-inch medical-grade touch screen for a famous globally medical device manufacturer. The project was executed with a high-resolution IPS fully laminated panel, attaining Class B electromagnetic compatibility standards. We follow medical ergonomics regulations very strictly by, for instance, using antibacterial bezels and anti-glare designs that ensure the equipment runs stably even in very complicated situations such as the operating room. The display has a feature of an intelligent ambient light system, which can autonomously regulate the display settings based on the environment and therefore, prevent eye strain of medical staff and also help in enhancing medical examination and treatment performance.
Developed a 4-inch highly secure financial-grade encrypted display tailored for the global banking sector, featuring a military-grade IPS full lamination touchscreen and PCIDSS payment security standards compliance.To address the stringent security levels of the financial sector, we engineered an anti-peep mechanism and a tamper-resistant enclosure to maintain the confidentiality of information on ATMs and other self-service terminals.This display features a smart ambient light sensing capability that can self-regulate the brightness and contrast levels to the perfect setting based on the surrounding lighting of the banking hall, thus greatly improving the customers' operational comfort and transaction speed.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
