Product description:
Parameter:

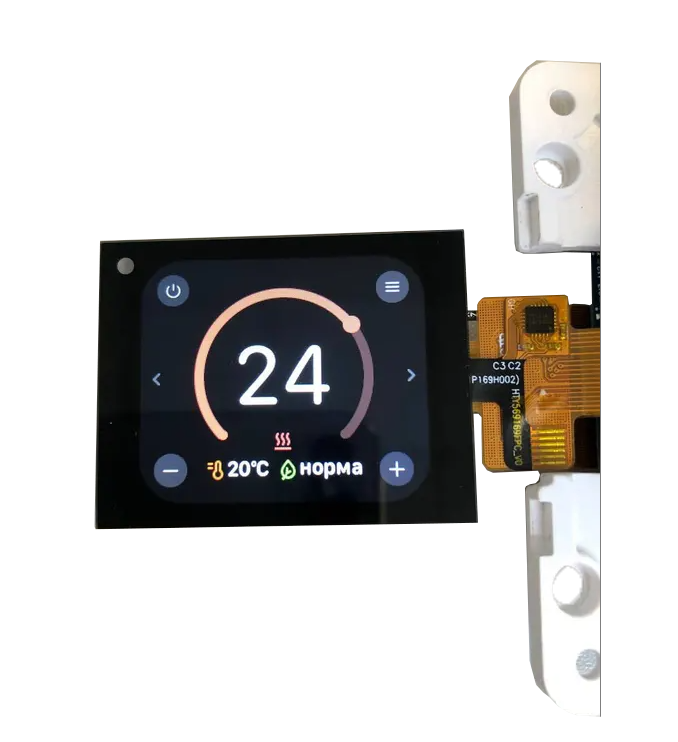

| Model | P169H002-V5-CTP |
| Screen Size | 1.69 inch |
| Number of Pixel | 240RGB(H)x280(V) |
| Display area | 27.97(H)x32.63(V)mm |
| Pixel pitch | 0.11655(H)x0.11655(V)mm |
| Pins | 18 Pins |
| Outline Dimension | 33.13x41.13x3.8 mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 500 nit |
| Contrast Ratio | 1000:1 |
| Interface | 4-line SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
The capacitive multi-point touch panel layer enables the execution of numerous gestures, has a very high level of sensitivity as well as a high degree of precise tracking, making the user experience very comfortable with simple finger touch actions resulting in operation types: sliding, clicking, zooming, and even rotating. Both the touch layer and the display panel are laminated as one, thus dramatically shortening the thickness of the whole body of the device as well as assembly processes. Besides this, the panel comes with a professional waterproof feature, which means that the product can be used in water-related situations such as when swimming or in the rain, while the stable operation of the device is guaranteed, which definitely expands the boundaries of the usage of smartwatches.
Simple SPI timing, driver code having plenty of open-source resources, and the development threshold being low are some features of this module that make it very easy and quick to turn prototypes into final products. The ST7789T3 driver IC consists of an integrated chip memory and power management system, and GRAM memory is also built into it. It supports multi-direction rotation of the display and the partial refresh function. Software configuration can be easily adapted, and system response is quick.
Shenzhen Yitai Optoelectronics, established in 2014, is a national high-tech enterprise that has accumulated 12 years of experience in display manufacturing. Our independent factory covers an area of 20,000㎡. We have 20 automated LCD production lines and a 10,000-class dust-free workshop. We have over 320 employees, and our monthly production is 2.5–3 million units in order to satisfy the demands of large-scale orders.
Our 28 highly qualified R&D team dedicated to innovation has developed more than 1,000 TN/HTN/STN/VA displays and a variety of TFT color LCD screens. Our main range of products includes 0.96-7 inch small-size displays for industrial and consumer fields; we also provide customized LED backlight service. We hold more than 20 patents and have ISO9001 certification.
We adhere to the customer first, quality foremost concept, so each product is thoroughly tested before leaving the factory in order to ensure stable performance even in harsh environments. The ongoing upgrading of production lines allows our manufacturing capacity to always be at an industry-leading level.Our products are suitable for medical devices, smart home, IoT and testing equipment. They are sold well not only in China, but also in Europe, America and Southeast Asia.
Customized the development of a 3.5-inch industrial-grade intercom display for a famous communication equipment manufacturer, using a high-brightness IPS fully laminated touch screen, complying with IP67 protection level requirements. We improved the shock-resistant frame and anti-slip texture design based on the special requirements of the industry, guaranteeing the product operation even in the harsh environments. The screen adopts intelligent light-sensing adjustment technology, which can switch automatically the day and night modes display according to the lighting, this feature greatly enhances the visibility and efficiency of the users during the outdoor work.

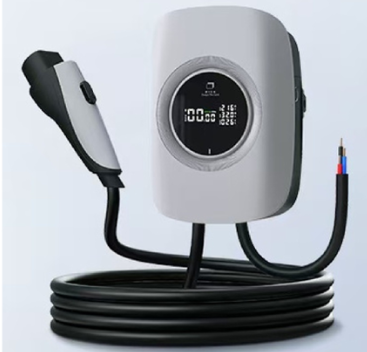

Customized 4.3-inch charging pile interactive screen for a famous new energy brand, using high-brightness IPS full lamination technology, fulfilling IP65 protection level requirements. For the complicated outdoor environments, we have specially optimized the anti-glare design and wide temperature operation performance (-30°C~70°C) to ensure the clear display under different weather conditions. The screen is equipped with an intelligent light-sensing adjustment system that can automatically vary the display brightness according to the changes of day and night light, it considerably enhances the user operation experience.

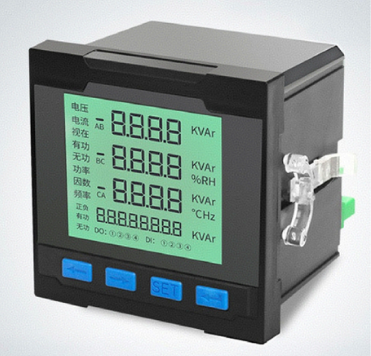

Customized a 4.3-inch industrial-grade instrument display for a well-known power equipment manufacturer, using high-contrast IPS full lamination technology, complying with the IP65 protection level requirements. We have designed the dustproof and waterproof structures, and a wide temperature range (-30°C to 70°C) to meet the special requirements of the power industry so that the equipment can continue working without any interruption even in the complicated environment of substations, etc. The display is equipped with an adaptive brightness adjustment system which can automatically improve display effects subject to the ambient light, it greatly facilitates the reading and safety of operations during outdoor inspections.
FAQ
1. Can you customize the products?
Yes, we can customize products for content, size with customer's requirements.
2. Can we use our own logo or design?
Yes, you can. You can contact us for the details.
3. Who do I contact if I have a problem?
You can email to us, we will provide quality after-sales service
4.What are your MOQ requirements for both in-stock wholesale and OEM customized orders?
MOQ for in-stock wholesale: 100 pieces. For OEM orders: 2,000 LCD liquid crystal displays; 3,000 TFT color screens. Actual quantities may vary based on product dimensions.
5. How do you pack your product?
We adopt standard export package, cartons or boxes, also can pack it by your requirement.
6. What's your method of payment?
We accept payment by L/C, Western Union, T/T, PayPal etc
7.What shipping methods do you support?
We support sea freight, air freight, international express, railway transportation and special line logistics
